Description

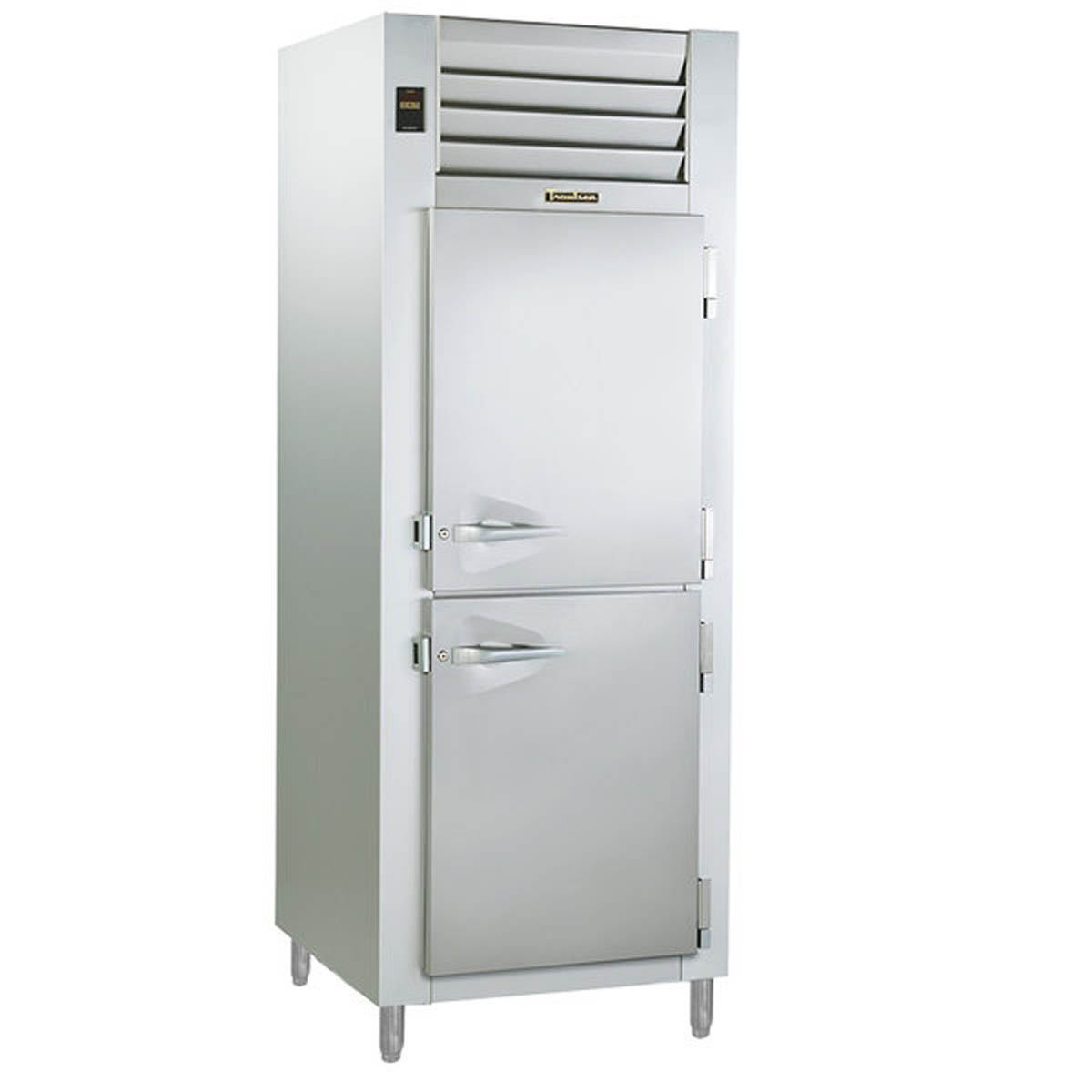

The Traulsen ACV132WUT-HHS is a one-section, self-contained convertible reach-in that switches between refrigerator and freezer operation with a face-mounted key switch. Its Smart Control with LED display supports clear cabinet monitoring, while the top-mounted refrigeration system keeps service components above the food zone.
This exact configuration has two half-height solid doors, a right-hand standard hinge arrangement, and 23.43 cu. ft. of net capacity. Half doors let staff access either portion of the cabinet while limiting the amount of interior exposed during loading and retrieval. Three adjustable coated-wire shelves are factory installed.
Applications and Workflow
Use this unit for commercial kitchens, prep areas, institutions, and other operations that need one cabinet dedicated as either refrigerated or frozen storage at a given time. It is convertible, not a simultaneous refrigerator/freezer combo: select refrigerator or freezer mode for the entire cabinet. The operating temperatures are factory set rather than adjustable.
Features and Practical Benefits
Switchable cabinet function
A face-mounted key switch changes the cabinet from freezer to refrigerator mode, allowing the same reach-in to serve changing storage needs.
Half-door access
Two half-height solid doors allow access to one part of the cabinet at a time. The self-closing doors stay open at 120 degrees when needed for loading.
Organized shelf storage
Three adjustable coated-wire shelves are supplied per section on shelf pins. Each shelf has a recommended load limit of 225 lb.
Designed for daily cleaning
The cabinet uses a magnetic snap-in EZ-Clean door gasket and a gasket-protecting raised door liner for more straightforward routine maintenance.
Top-mounted self-contained system
The R-290 refrigeration system is mounted at the top behind the louver assembly, with a non-electric condensate evaporator.
Technical Specifications
| Manufacturer model | ACV132WUT-HHS |
|---|---|
| Cabinet configuration | One section; two half-height solid doors |
| Net capacity | 23.43 cu. ft. (663.5 L) |
| Overall width | 29 7/8 in. (75.9 cm) |
| Overall depth | 35 1/8 in. (89.2 cm) |
| Overall height on included legs | 83 7/16 in. (211.9 cm) |
| Depth with door open 90 degrees | 56 11/16 in. (144 cm) |
| Clear door width | 20 15/16 in. (53.2 cm) |
| Clear half-door height | 27 7/16 in. (69.8 cm) |
| Electrical connection | 115V/60Hz/1-phase; NEMA 5-15P plug |
| Full-load amperage | 2.4 A |
| Refrigerant | R-290 |
| Refrigerant charge | 5.29 oz. (150 g) |
| Compressor rating | 3/4 HP |
| Refrigerator-mode temperature | 34 to 38 degrees F |
| Freezer-mode temperature | -10 to 0 degrees F |
| Standard shelves | Three adjustable coated-wire shelves per section |
| Included legs | Four adjustable 6 in. stainless-steel legs |
| Standard door hinging | Right hand |
Installation and Purchasing Considerations
- Plan for an overall footprint of 29 7/8 in. wide by 35 1/8 in. deep and 83 7/16 in. high on the included 6 in. adjustable legs.
- Allow 56 11/16 in. overall depth when the door is open 90 degrees. The clear door opening is 20 15/16 in. wide, and each half-door opening is 27 7/16 in. high.
- Provide a 115V, 60 Hz, single-phase outlet with a NEMA 5-15P receptacle. The unit is supplied with a 9 ft. cord and plug.
- Maintain 12 in. of top clearance where possible for optimum performance and service access. The self-contained refrigeration system is top mounted.
- Verify the standard right-hand door hinging suits the installation aisle and wall layout before ordering.
Choosing This Configuration
ACV132WUT-HHS is the one-section A-Series W-width model with two half-height solid doors; it is not the full-height-door version.
This cabinet changes the entire interior between refrigerator and freezer modes. It does not provide separate refrigerated and frozen compartments at the same time.
The exterior front, sides, louver assembly, and doors are anodized aluminum; the interior and door liner are also anodized aluminum. Do not specify it as a stainless-steel cabinet.
Standard shelving is included. Tray slides, additional shelves, casters, flanged legs, and other interior arrangements are options unless separately specified.
Frequently Asked Questions
Can the ACV132WUT-HHS refrigerate and freeze products at the same time?
No. A face-mounted key switch converts the entire cabinet between refrigerator and freezer operation; it is not divided into separate temperature zones.
What temperatures does this unit operate at?
In freezer mode, the standard operating range is -10 to 0 degrees F. In refrigerator mode, it operates at 34 to 38 degrees F. These operating temperatures are not adjustable.
How many doors and shelves does this model have?
This exact model has two half-height solid doors and three adjustable coated-wire shelves in its single section.
What electrical connection is required?
It requires 115V, 60 Hz, single-phase power and is equipped with a NEMA 5-15P plug on a 9 ft. cord.
