Description

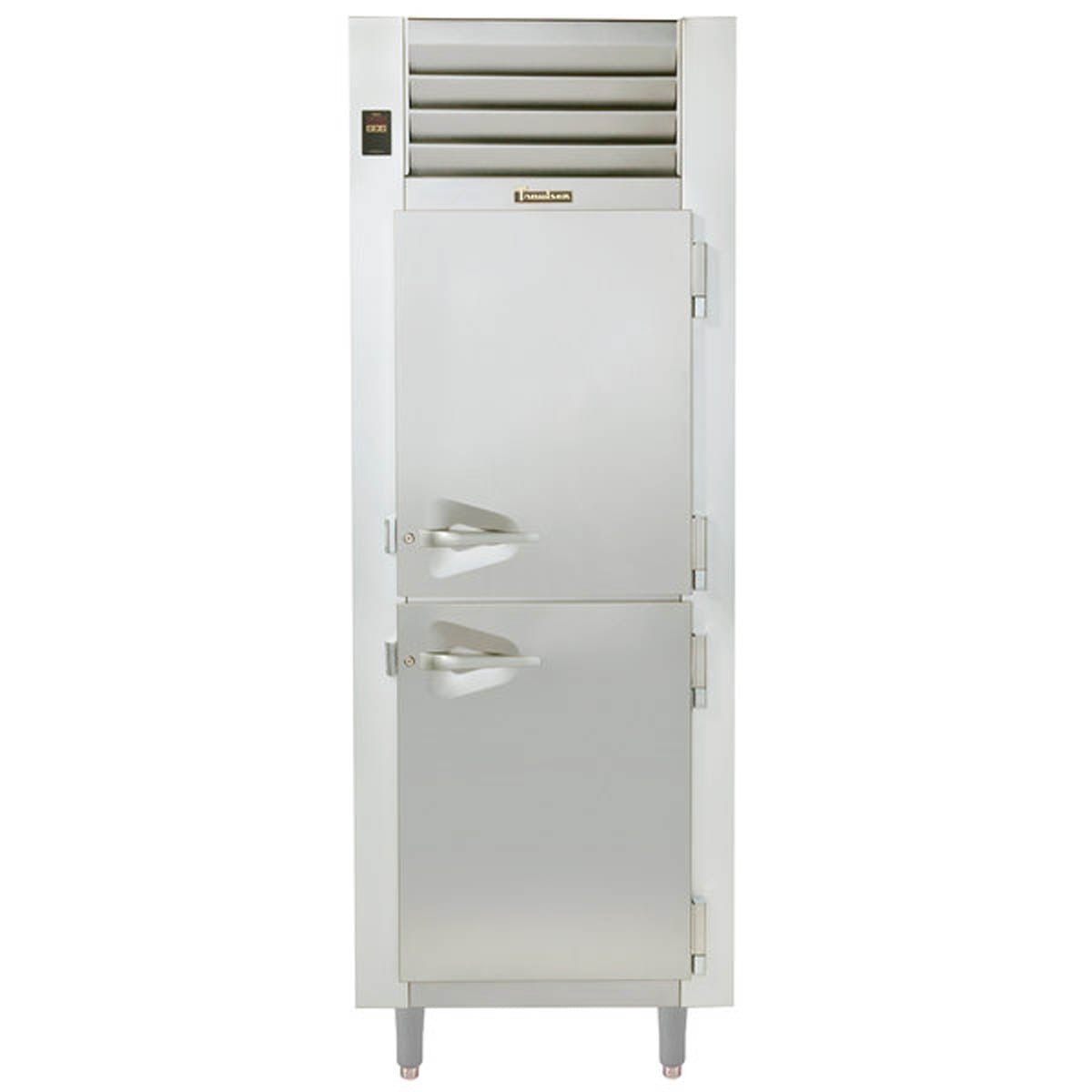

The Traulsen ADH132WUT-HHS is a one-section, self-contained dual-temperature reach-in that combines a heated upper cabinet with a refrigerated lower cabinet. Its two half-height solid doors allow staff to access either temperature zone separately, helping keep the other compartment closed during service.
This A-Series configuration has a stainless steel exterior, anodized aluminum interior, right-hinged doors, two standard coated wire shelves, and four adjustable 6-inch stainless steel legs. The refrigerated bottom compartment operates at 34–38°F, while the upper heated compartment operates at 140–180°F.
Applications and Workflow
Use this cabinet where a kitchen needs adjacent heated and refrigerated storage in one vertical footprint, such as an institutional kitchen, production area, banquet support station, or back-of-house service line. It is specifically configured with a heated top compartment and refrigerated bottom compartment; it is not a two-refrigerator or two-heated-cabinet design.
Features and Practical Benefits
Two temperature zones in one reach-in
The upper cabinet is heated while the lower cabinet is refrigerated, providing separate environments for staged hot and chilled products without requiring two full-height cabinets.
Separate half-height access
Two solid half-height doors let staff open the needed compartment while leaving the other zone closed. Doors are self-closing and can stay open at 120° for loading.
Self-contained refrigerated bottom
The bottom cabinet uses a top-mounted, self-contained refrigeration system with R-450A refrigerant and a front-facing condenser for routine cleaning access.
Practical interior organization
Two coated wire shelves are standard—one in each cabinet—and the full-width shelf design avoids large gaps that can require bridge shelves.
Built for commercial placement
The cabinet has a stainless steel front, sides, louver assembly, and doors, plus adjustable 6-inch stainless steel legs for leveling.

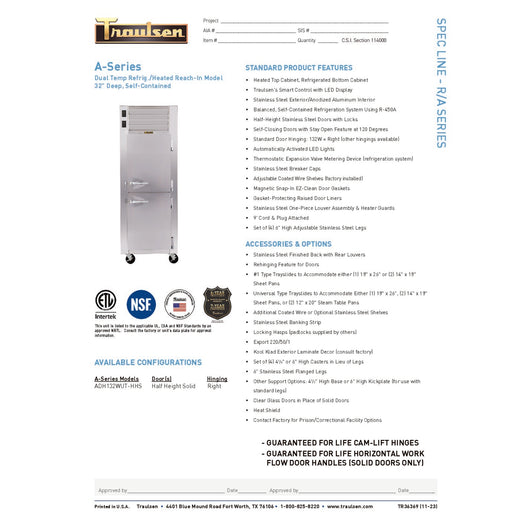

Technical Specifications
| Manufacturer model | ADH132WUT-HHS |
|---|---|
| Cabinet configuration | Heated top cabinet / refrigerated bottom cabinet |
| Net capacity | 22.3 cu. ft. |
| Overall width | 29 7/8 in. |
| Overall depth | 35 1/8 in. |
| Overall height on legs | 83 7/16 in. |
| Depth with door open 90° | 56 11/16 in. |
| Door configuration | Two half-height solid doors, right hinged |
| Clear door width | 20 15/16 in. |
| Standard shelves | 2 coated wire shelves |
| Electrical service | 208-230/115V, 60 Hz, 1-phase |
| Plug type | NEMA L14-20P |
| Wattage at 208V | 1000 W |
| Full-load amperage | 11 A |
| Refrigerant | R-450A |
| Compressor | 1/3 HP |
| Refrigerated compartment operating range | 34–38°F |
| Heated compartment operating range | 140–180°F |
| Legs | Four adjustable 6 in. stainless steel legs |
| Power cord | 9 ft. cord with plug attached |
Installation and Purchasing Considerations
- Allow a 29 7/8-inch overall width and 35 1/8-inch overall depth; overall height is 83 7/16 inches on the included 6-inch legs.
- Plan for 56 11/16 inches of depth when a door is opened to 90°. The clear door opening is 20 15/16 inches wide.
- This right-hinged model requires 208-230/115V, 60 Hz, single-phase power and is equipped with a NEMA L14-20P plug and 9-foot cord.
- Maintain 12 inches of top clearance where possible for performance and service access. The self-contained refrigeration system is top-mounted behind the louver assembly.
- Confirm the receiving path, final ceiling clearance, electrical receptacle, and right-hand door swing before ordering.
Choosing This Configuration
ADH132WUT-HHS is the A-Series, one-section configuration with a heated top cabinet and refrigerated bottom cabinet.
This exact model has two half-height solid doors with standard right hinging.
The standard interior includes coated wire shelves. Tray slides, additional shelves, glass doors, casters, alternative hinging, and other support arrangements are options rather than confirmed standard inclusions for this configuration.
Frequently Asked Questions
Which compartment is heated and which is refrigerated?
The top cabinet is heated and the bottom cabinet is refrigerated. Standard operating temperatures are 140–180°F for the heated compartment and 34–38°F for the refrigerated compartment.
What electrical connection does the ADH132WUT-HHS use?
It is specified for 208-230/115V, 60 Hz, single-phase electrical service and comes with a NEMA L14-20P plug on a 9-foot cord.
How many doors and shelves are included?
This model has two right-hinged, half-height solid doors. Two coated wire shelves are standard, with one shelf in each cabinet.
How much aisle space is needed to open the door?
The cabinet depth with a door open to 90° is 56 11/16 inches. Confirm this projection does not obstruct aisles, adjacent equipment, or traffic flow.
