Description

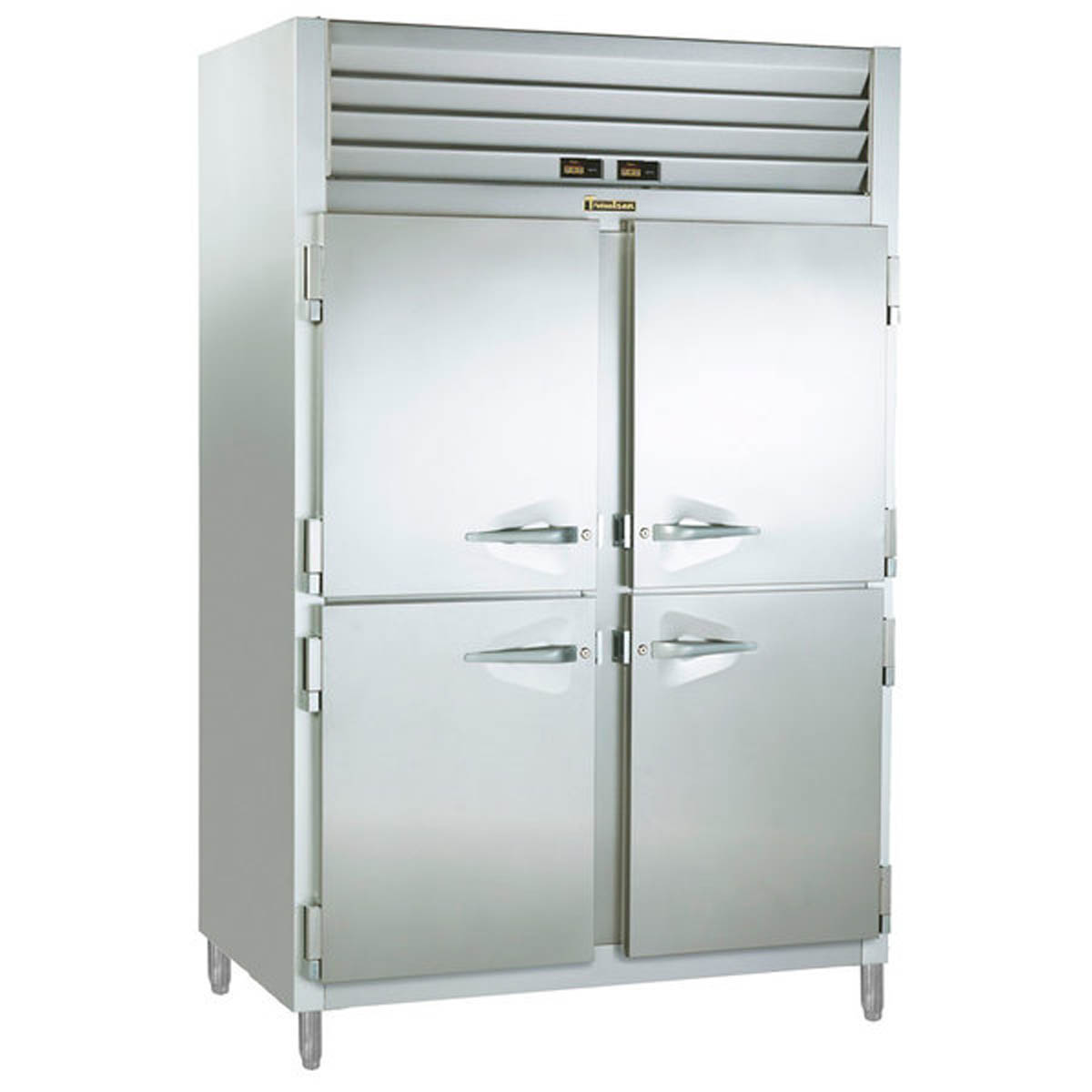

The Traulsen ADH232WUT-HHS is a two-section, self-contained dual-temperature reach-in with a heated left section and refrigerated right section. Its four half-height solid doors let staff access one area at a time, supporting separate hot and cold staging within one 58-inch-wide cabinet.
This A-Series configuration has a stainless steel exterior, anodized aluminum interior, Smart Control with LED display, and six factory-installed coated wire shelves—three per section. The refrigerated section is designed for 34–38°F operation, while the heated section operates from 140–180°F.
Applications and Workflow
Use this cabinet where a commercial kitchen needs dedicated heated and refrigerated holding in one reach-in footprint, such as an assembly line, banquet staging area, or high-volume prep kitchen. It is a heated/refrigerated holding cabinet with separate left and right compartments; it is not a single-temperature refrigerator or a single-zone heated cabinet.
Features and Practical Benefits
Separated hot and cold compartments
The left cabinet is heated and the right cabinet is refrigerated, allowing separate holding workflows without dedicating floor space to two full-size cabinets.
Half-height door access
Four solid half-height doors help limit exposure of the remaining cabinet contents during frequent access. The doors self-close, stay open at 120 degrees, and include locks.
Ready-to-use shelf layout
Three full-width coated wire shelves are provided in each section for six standard shelves total. The stated recommended load limit is 225 lb per shelf.
Self-contained refrigerated section
The right-side refrigeration system is top-mounted and self-contained, with a front-facing condenser intended to simplify routine cleaning access.
Built-in controls and lighting
Smart Control with LED display supports cabinet monitoring, while door-activated LED lighting illuminates the interior during access.
Technical Specifications
| Manufacturer model | ADH232WUT-HHS |
|---|---|
| Cabinet configuration | Two-section dual-temperature reach-in; heated left section and refrigerated right section |
| Door configuration | 4 half-height solid doors |
| Net capacity | 46.86 cu. ft. |
| Overall width | 58 in. |
| Overall depth | 35 in. |
| Cabinet body depth | 32 in. |
| Overall height on supplied legs | 83 1/4 in. |
| Depth with door open 90 degrees | 57 11/16 in. |
| Clear door width | 21 1/8 in. |
| Clear half-door height | 27 1/2 in. |
| Standard shelves | 6 coated wire shelves |
| Electrical service | 208-230/115/60/1 |
| Plug | NEMA L14-20P |
| Wattage at 208V | 2000 W |
| Full-load amperage | 13.5 A |
| Refrigerant | R-450A |
| Refrigerant charge | 16 oz. |
| Refrigeration capacity / compressor | 2220 BTU/hr / 1/3 HP |
| Refrigerated section operating temperature | 34–38°F |
| Heated section operating temperature | 140–180°F |
| Legs | Four 6 in. adjustable stainless steel legs |
| Power cord | 9 ft. |
Installation and Purchasing Considerations
- Plan for a 58-inch overall width, 35-inch overall depth, and 83 1/4-inch height on the supplied 6-inch adjustable legs. The cabinet body depth is 32 inches.
- Allow for a 57 11/16-inch depth when a door is open 90 degrees. Each half-door has a 21 1/8-inch clear width and 27 1/2-inch clear height.
- Provide 12 inches of top clearance where possible; Traulsen identifies this clearance as preferred for performance and service access.
- This model uses 208-230/115/60/1 electrical service and is equipped with one NEMA L14-20P plug on a 9-foot cord. Confirm the site receptacle and electrical service before ordering.
- The refrigerated section is self-contained and top-mounted. Keep the front-facing condenser accessible for cleaning and service.
Choosing This Configuration

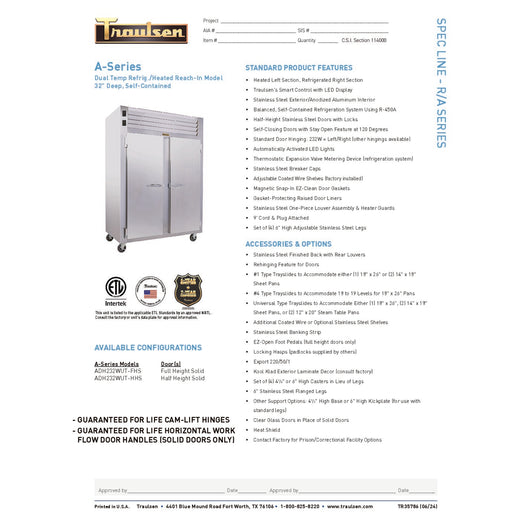

This exact ADH232WUT-HHS configuration is the half-height solid-door version, with four doors total. The same specification sheet also identifies a full-height solid-door configuration; it is not the same door arrangement.
The standard arrangement is heated on the left and refrigerated on the right.
Standard doors are listed with left/right hinging for the 232W configuration. Confirm door hinging requirements at order time because alternative hinging is available.
Standard coated wire shelves are included. Tray slides, stainless steel shelves, casters, glass doors, and other listed accessories are options unless specifically added to the order.
Frequently Asked Questions
Which side is heated on the ADH232WUT-HHS?
The left section is heated, and the right section is refrigerated.
What are the operating temperature ranges?
The refrigerated compartment has a standard operating range of 34–38°F. The heated compartment has a standard operating range of 140–180°F.
How many shelves are included?
The standard arrangement includes six coated wire shelves: three full-width shelves in the heated section and three in the refrigerated section.
What electrical connection does this cabinet need?
It is specified for 208-230/115/60/1 electrical service and is supplied with a 9-foot cord and one NEMA L14-20P plug.
