Description

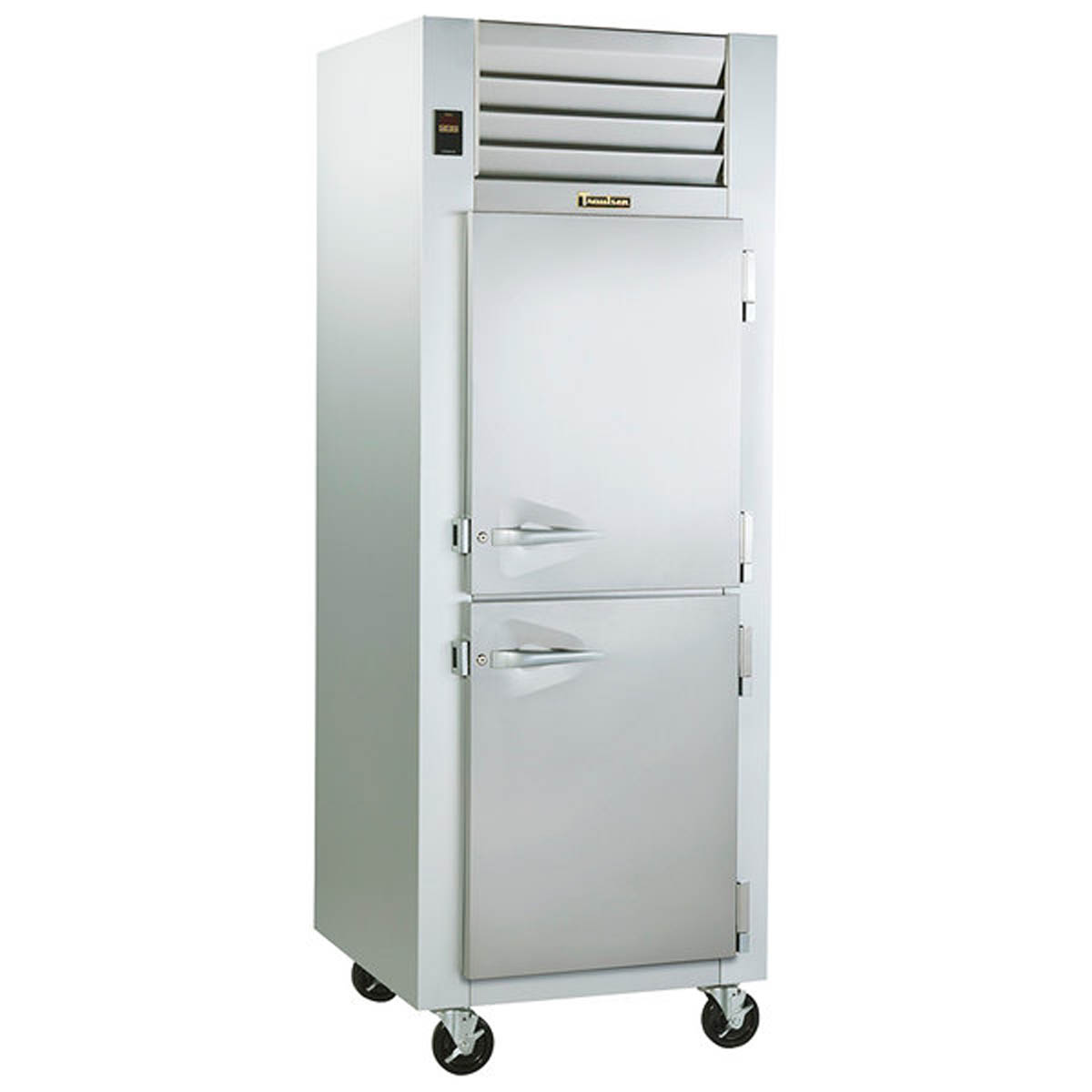

The Traulsen ADT132KUT-HHS is a one-section, 24-inch reach-in refrigerator/freezer designed to keep refrigerated and frozen inventory in separate vertical cabinets. Its refrigerated cabinet is on top and its freezer cabinet is below, making it a practical choice where a narrow footprint is needed but both temperature zones must remain available at the same station.
This A-Series configuration has two half-height solid doors, a stainless steel exterior, anodized aluminum interior, top-mounted self-contained refrigeration, and one adjustable coated wire shelf in each cabinet. The factory-standard hinge orientation for the 132K model is right-hand; confirm the swing and aisle clearance before ordering.
Applications and Workflow
Use this reach-in for prep kitchens, cook lines, cafés, healthcare foodservice, and other commercial stations that need separated refrigerated and frozen storage in a 24-inch-wide cabinet. It is best suited to operations that can organize refrigerator products in the upper cabinet and frozen products in the lower cabinet; it is not a single-temperature refrigerator or freezer.
Features and Practical Benefits
Two temperature zones in one narrow cabinet
The upper cabinet is refrigerated and the lower cabinet is frozen, allowing separate cold and frozen ingredient storage without dedicating floor space to two full cabinets.
Half-door access supports organized loading
Two half-height solid doors let staff open only the cabinet section being accessed. Each cabinet includes one factory-installed adjustable coated wire shelf.
Self-contained top-mounted system
The refrigeration system is built into the cabinet and accessed behind the louver assembly, avoiding the need for a separately installed remote condenser.
Workflow-focused door construction
The doors are self-closing, stay open at 120 degrees, and include locks. Interior LED lighting activates when the door is opened.
Commercial cabinet finishes
The exterior front, sides, louver assembly, and doors are stainless steel, while the interior and door liners are anodized aluminum.

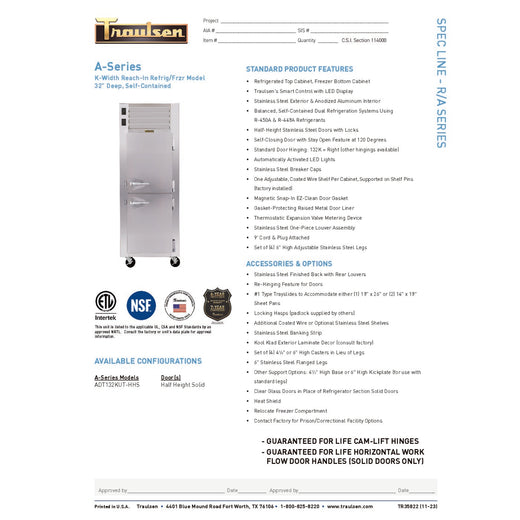

Technical Specifications
| Manufacturer model | ADT132KUT-HHS |
|---|---|
| Cabinet arrangement | Refrigerated top cabinet; freezer bottom cabinet |
| Number of sections | 1 |
| Door configuration | Two half-height solid doors |
| Standard door hinging | Right-hand |
| Overall width | 24 in. (61 cm) |
| Overall depth | 35 in. (88.8 cm) |
| Depth with door open 90° | 54 3/4 in. (139.1 cm) |
| Overall height on 6 in. legs | 83 1/4 in. (211.5 cm) |
| Clear door width | 18 5/8 in. (47.3 cm) |
| Clear half-door height | 27 1/2 in. (69.9 cm) |
| Refrigerator net capacity | 8.5 cu. ft. (241.5 L) |
| Freezer net capacity | 8.5 cu. ft. (241.5 L) |
| Standard shelves | 2 total |
| Refrigeration system | Top-mounted, self-contained balanced dual system |
| Electrical requirement | 115V / 60 Hz / 1 phase; NEMA 5-20P |
| Full-load amperage | 11.9 A |
| Power cord | 9 ft. cord and plug attached |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator compressor | 1/5 HP |
| Freezer compressor | 1/3 HP |
| Exterior material | Stainless steel exterior with galvanized steel top, back, and bottom |
| Interior material | Anodized aluminum |
| Legs | Four adjustable 6 in. stainless steel legs |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Allow a 24 in. overall width, 35 in. overall depth, and 83 1/4 in. overall height on the supplied 6 in. legs.
- Plan for 54 3/4 in. total depth with a door opened 90 degrees. The standard hinge orientation for this 132K configuration is right-hand.
- Connect to 115V, 60 Hz, single-phase power using the supplied 9 ft. cord with NEMA 5-20P plug. Verify that the installation location has the appropriate receptacle.
- Maintain the manufacturer-preferred 12 in. top clearance for performance and service access. Keep the top-mounted louver and front-facing condenser accessible for cleaning and service.
- The cabinet is supplied with four adjustable 6 in. stainless steel legs. Level the unit after placement; casters and other support styles are optional rather than standard.
Choosing This Configuration
This exact ADT132KUT-HHS configuration is a one-section, 24 in. wide A-Series refrigerator/freezer with half-height solid doors; it is not the wider two- or three-section configurations.
Storage is divided into an upper refrigerator cabinet and lower freezer cabinet, with 8.5 cu. ft. listed for each section.
Two adjustable coated wire shelves are standard, one per cabinet. Additional shelves, trayslides, casters, glass refrigerator doors, and other listed accessories are not standard equipment.
The standard 132K door hinging is right-hand. Re-hinging is presented as an available feature, so confirm the ordered door swing rather than assuming a field change is included.
Frequently Asked Questions
What type of storage does the ADT132KUT-HHS provide?
It combines a refrigerated top cabinet with a freezer bottom cabinet. Each section is listed at 8.5 cu. ft. net capacity.
What electrical connection does this model need?
It requires 115V, 60 Hz, single-phase power and is equipped with a 9 ft. cord and NEMA 5-20P plug. Listed full-load amperage is 11.9 A.
How much aisle space is needed to open the door?
The cabinet is 35 in. deep overall, and the depth increases to 54 3/4 in. with a door open 90 degrees. Account for this swing dimension when locating the unit near an aisle or opposing equipment.
Are shelves included?
Yes. The standard arrangement includes two adjustable coated wire shelves total, with one shelf installed in each cabinet.
