Description

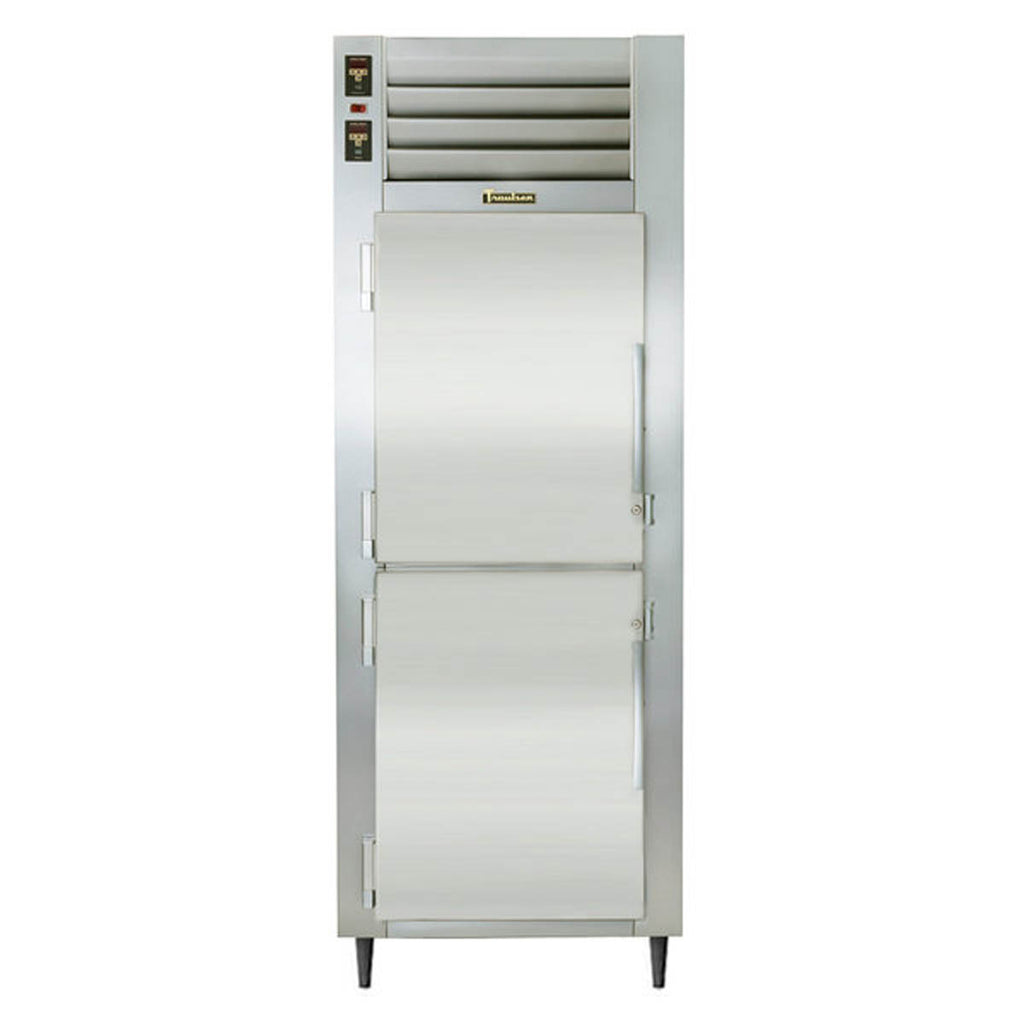

The Traulsen ADT132WUT-HHS is a one-section, self-contained reach-in refrigerator/freezer designed to keep refrigerated and frozen inventory separated in one narrow 29-7/8 inch cabinet. Its upper cabinet is refrigerated and its lower cabinet is a freezer, each with a half-height solid stainless steel door, an adjustable coated wire shelf, LED lighting, and a locking door.
This A-Series configuration combines a stainless steel exterior with an anodized aluminum interior. A top-mounted dual refrigeration system, front-facing condenser, Smart Control display, and horizontal recessed door handles support daily back-of-house access while keeping the aisle profile compact.
Applications and Workflow
Suitable for commercial kitchens, prep areas, bakeries, cafes, and institutional foodservice operations that need both refrigerated and frozen storage in a single one-section footprint. This is a vertical reach-in storage cabinet with separate top refrigerator and bottom freezer compartments; it is not a pass-through cabinet or a refrigerated worktop.
Features and Practical Benefits
Two storage temperatures in one section
The top cabinet is refrigerated and the bottom cabinet is frozen, allowing operators to separate chilled and frozen products without dedicating floor space to two full cabinets.
Narrow reach-in footprint
At 29-7/8 inches wide, this cabinet provides 21.44 cu. ft. total net capacity while fitting where a wider multi-section reach-in may not.
Half-height solid doors
The two locked, self-closing half doors open independently and have a 120-degree stay-open feature. This can limit exposure of the other compartment during retrieval.
Practical interior arrangement
Two standard adjustable coated wire shelves are supplied—one per cabinet—to organize refrigerated and frozen inventory. Additional shelves and tray slides are options, not standard equipment.
Self-contained service access
The top-mounted refrigeration system has a front-facing condenser behind a one-piece louver assembly for accessible routine cleaning and service.

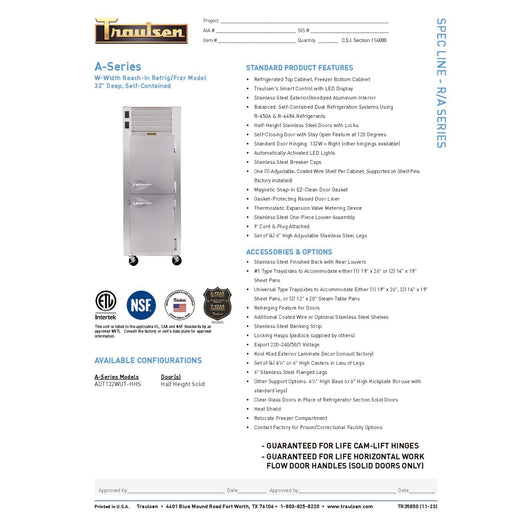

Technical Specifications
| Manufacturer model | ADT132WUT-HHS |
|---|---|
| Cabinet configuration | One-section reach-in; top refrigerator and bottom freezer |
| Door configuration | Two half-height solid stainless steel doors |
| Overall width | 29-7/8 in. |
| Overall depth | 35-1/8 in. |
| Overall height | 83-7/16 in. on 6 in. legs |
| Depth with door open 90 degrees | 56-11/16 in. |
| Clear door width | 20-15/16 in. |
| Clear half-door height | 27-7/16 in. |
| Total net capacity | 21.44 cu. ft. |
| Refrigerator net capacity | 10.72 cu. ft. |
| Freezer net capacity | 10.72 cu. ft. |
| Standard shelves | 2 adjustable coated wire shelves |
| Exterior / interior finish | Stainless steel exterior / anodized aluminum interior |
| Refrigeration system | Top-mounted, self-contained dual system |
| Electrical | 115V, 60 Hz, single phase; NEMA 5-20P |
| Full-load amperage | 11.9 A |
| Power cord | 9 ft. cord and plug attached |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Standard legs | Four 6 in. adjustable stainless steel legs |
Installation and Purchasing Considerations
- Provide a level location sized for the 29-7/8 in. overall width, 35-1/8 in. overall depth, and 83-7/16 in. height on the supplied 6 in. adjustable legs.
- Plan the aisle for a 56-11/16 in. depth with a door open 90 degrees. Clear door width is 20-15/16 in.
- Connect to the specified 115V, single-phase electrical supply. The cabinet includes a 9 ft. cord with a NEMA 5-20P plug; confirm a matching receptacle is available at the installation location.
- Allow 12 in. top clearance where possible for performance and service access. Keep the front louver/condenser area accessible for cleaning and maintenance.
- This model is self-contained; it does not require a remote condenser connection. It is supplied with adjustable legs, not casters.
Choosing This Configuration
ADT132WUT-HHS is the 29-7/8 in. W-width, one-section configuration with a refrigerated upper cabinet and freezer lower cabinet.
The HHS configuration uses half-height solid doors. Clear glass doors for the refrigerator section are listed as an option rather than standard equipment.
The published standard hinge arrangement for the 132W is right-hand; the manufacturer lists other hinging as available. Confirm the ordered hinging before finalizing placement near walls or adjacent equipment.
Do not confuse the 21.44 cu. ft. net total with capacity in one temperature zone: the refrigerator and freezer sections are each listed at 10.72 cu. ft.
Frequently Asked Questions
Which compartment is refrigerated and which is frozen?
The upper cabinet is the refrigerator compartment and the lower cabinet is the freezer compartment.
What electrical connection does the ADT132WUT-HHS need?
It is specified for 115V, 60 Hz, single-phase power and includes a 9 ft. cord with a NEMA 5-20P plug.
How many shelves are included?
Two adjustable coated wire shelves are standard—one shelf in each cabinet. Extra shelves and tray-slide arrangements are optional.
How much clearance is needed when opening a door?
The cabinet depth with a door open 90 degrees is 56-11/16 inches. The manufacturer also notes that 12 inches of top clearance is preferred for performance and service access.
