Description

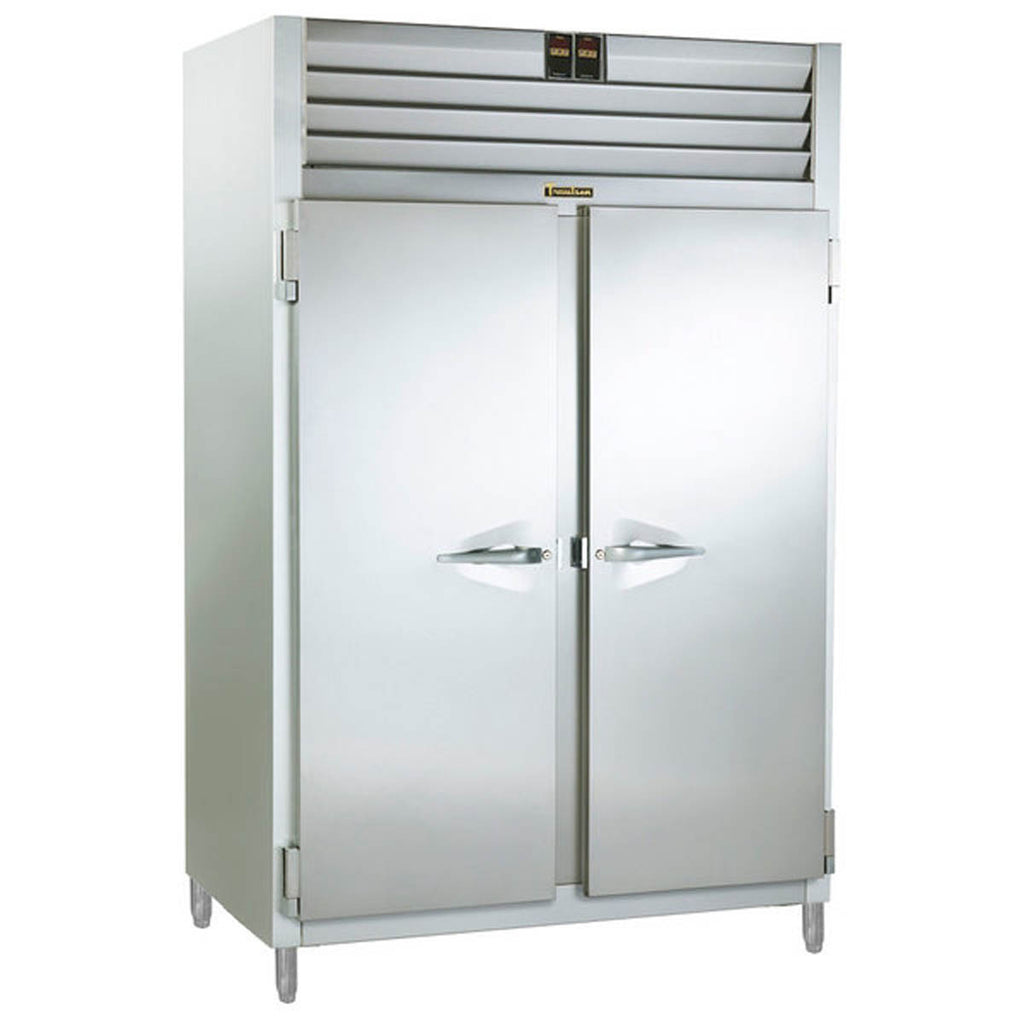

The Traulsen ADT232DUT-FHS is a self-contained, two-section reach-in refrigerator/freezer combination for kitchens that need refrigerated and frozen storage in one 48-inch-wide cabinet. Its refrigerator compartment is on the left and its freezer compartment is on the right, helping staff keep the two storage zones clearly separated during prep and replenishment.
This exact A-Series configuration has two full-height solid stainless steel doors rather than four half doors. It has an anodized aluminum interior, six factory-installed coated wire shelves, LED interior lighting, and a top-mounted dual refrigeration system. Full-height doors self-close and can stay open at 120 degrees for loading.
Applications and Workflow
Suitable for commercial prep kitchens, restaurants, institutional kitchens, and other operations needing adjacent refrigerator and freezer storage in a single reach-in footprint. Plan product organization around the fixed left refrigerator/right freezer layout; this model is not a two-refrigerator cabinet or a two-freezer cabinet.
Features and Practical Benefits
Separated cold-storage zones
The left section is refrigerated and the right section is frozen, allowing one cabinet to support ingredients with different storage needs.
Full-height solid-door access
Two full-height solid doors provide access to each section. The doors self-close, stay open at 120 degrees when loading, and include locks.
Usable shelf layout
Three adjustable coated wire shelves are supplied per section, for six standard shelves total. This supports separate organization of refrigerator and freezer inventory.
Self-contained refrigeration
The top-mounted, balanced dual refrigeration system is built into the cabinet, using separate refrigerants for the refrigerator and freezer circuits.
Operational visibility
Smart Control with LED display, automatically activated LED lighting, and an easy-to-clean front-facing condenser support daily monitoring and upkeep.

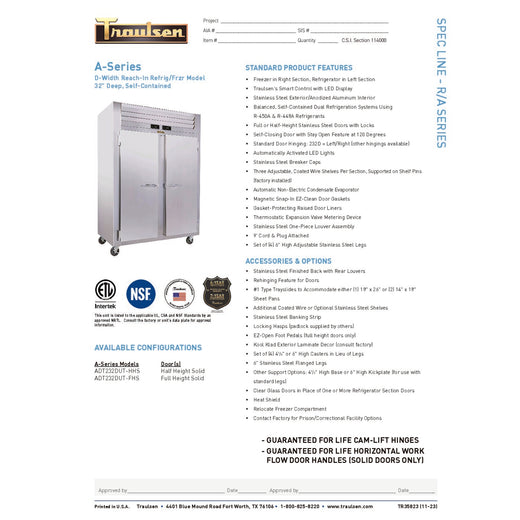

Technical Specifications
| Manufacturer model | ADT232DUT-FHS |
|---|---|
| Cabinet configuration | Two-section reach-in refrigerator/freezer combo |
| Refrigerator/freezer layout | Refrigerator left; freezer right |
| Door configuration | 2 full-height solid doors |
| Overall width | 48 in. |
| Overall depth | 35 in. |
| Depth with door open 90° | 54 1/4 in. |
| Overall height on included legs | 83 1/4 in. |
| Net capacity | 37.72 cu. ft. |
| Refrigerator capacity | 18.86 cu. ft. |
| Freezer capacity | 18.86 cu. ft. |
| Standard shelves | 6 coated wire shelves total; 3 per section |
| Electrical requirement | 115V, 60Hz, single phase; NEMA 5-20P plug |
| Full-load amperage | 13.6 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator compressor | 1/5 HP |
| Freezer compressor | 1/3 HP |
| Exterior/interior construction | Stainless steel exterior with anodized aluminum interior |
| Included legs | Four adjustable 6 in. stainless steel legs |
| Attached power cord | 9 ft. |
Installation and Purchasing Considerations
- Allow a 48-inch-wide by 35-inch-deep footprint and 83 1/4 inches of overall height when the included 6-inch legs are installed.
- At a 90-degree door opening, cabinet depth reaches 54 1/4 inches. Keep this door-swing projection clear of aisles, walls, and nearby equipment.
- Connect to the specified 115V, single-phase electrical supply using the attached 9-foot cord with NEMA 5-20P plug. Confirm that the intended receptacle matches before delivery.
- The condenser is top-mounted. Traulsen notes that 12 inches of top clearance is preferred for performance and service access.
- Verify the receiving route, final location, doorway clearance, and floor space before installation. This cabinet uses the standard left/right door hinging for the 232D configuration.
Choosing This Configuration
ADT232DUT-FHS is the full-height solid-door version, with one full-height door for the refrigerator section and one full-height door for the freezer section.
The refrigerator is fixed on the left and freezer is fixed on the right in the standard configuration.
This unit includes six coated wire shelves. Tray slides, additional shelves, casters, and other listed accessories or options should not be assumed included.
The cabinet has a stainless steel exterior and anodized aluminum interior; it is not the all-stainless interior R-Series construction.
Frequently Asked Questions
Which side is the refrigerator compartment on?
The refrigerator compartment is on the left, and the freezer compartment is on the right.
Does this model have full doors or half doors?
ADT232DUT-FHS has two full-height solid doors. The separately configured half-height version uses four half doors.
What electrical connection does it require?
It is specified for 115V, 60Hz, single-phase power and is equipped with a NEMA 5-20P plug on a 9-foot cord.
How much clearance is needed when opening a door?
The overall cabinet depth is 35 inches, and the depth with a door open 90 degrees is 54 1/4 inches. Traulsen also prefers 12 inches of clearance above the cabinet for service access.
