Description

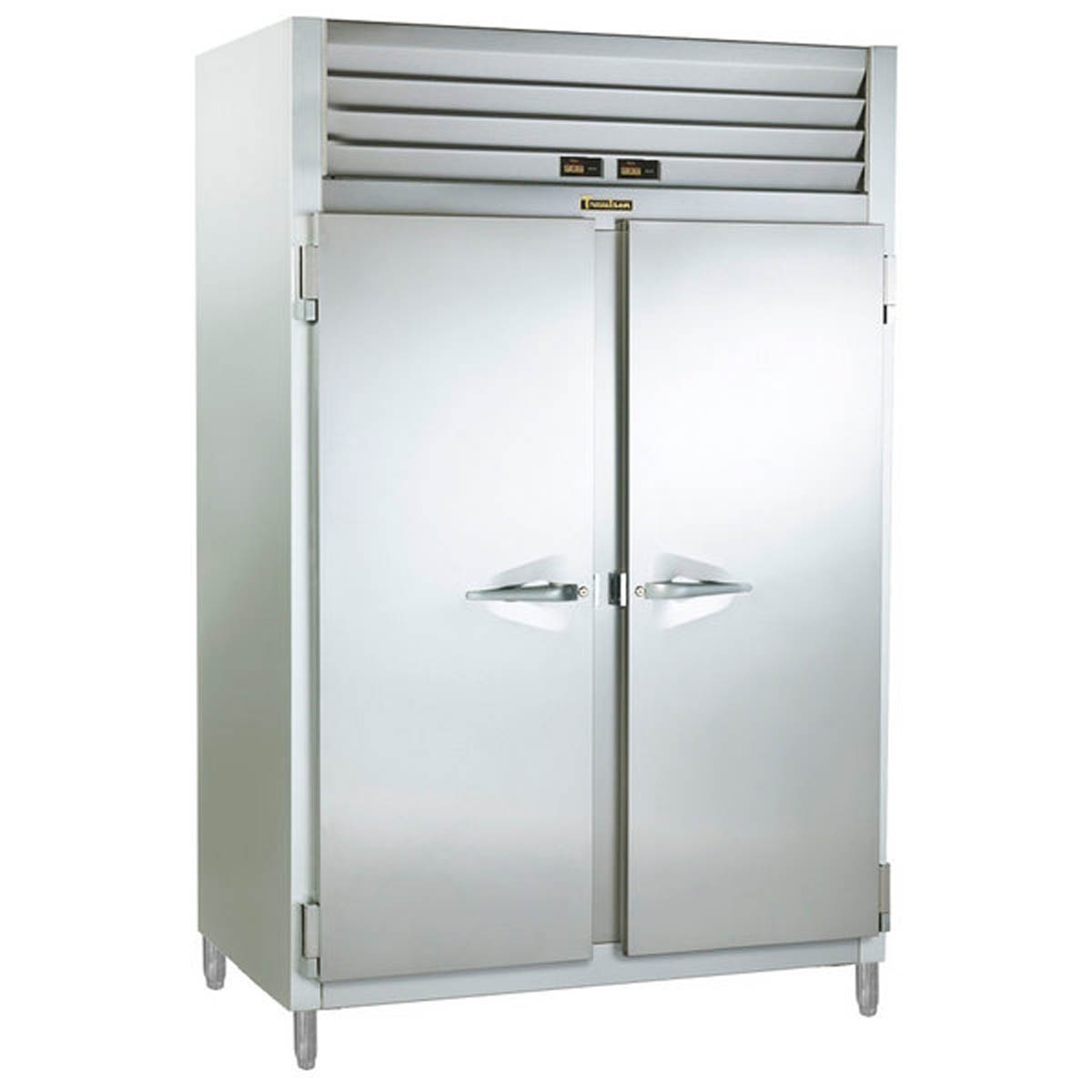

The Traulsen ADT232NUT-FHS is a self-contained, two-section reach-in refrigerator/freezer combination for kitchens that need refrigerated and frozen ingredients at one workstation. Its left section is a refrigerator and its right section is a freezer, with independent balanced refrigeration systems and a top-mounted refrigeration package.
This exact FHS configuration has two full-height solid stainless steel doors with standard left/right hinging. It includes three adjustable coated wire shelves in each section, interior LED lighting, door locks, and adjustable 6-inch stainless steel legs. The A-Series cabinet combines a stainless steel exterior with an anodized aluminum interior.
Applications and Workflow
Use this reach-in in commercial prep, production, bakery, catering, or back-of-house storage areas where staff benefit from separate refrigerator and freezer access in one 52 1/8-inch-wide cabinet. It is designed for refrigerated and frozen storage, not for a single-temperature application; the freezer is fixed on the right and the refrigerator is fixed on the left in the standard configuration.
Features and Practical Benefits
Refrigerator and freezer at one station
The cabinet places the refrigerator compartment on the left and freezer compartment on the right, allowing separate cold and frozen storage without installing two full reach-ins.
Full-height solid-door access
Two full-height solid stainless steel doors provide a clear opening height of 57 9/16 inches. The self-closing doors can stay open at 120 degrees for loading.
Organized standard interior
Three adjustable coated wire shelves are provided per section, for six standard shelves total. Shelf pins allow the storage layout to be adjusted for changing product sizes.
Self-contained top-mounted system
Balanced dual refrigeration systems are built into the cabinet, with R-450A used for the refrigerator and R-448A for the freezer. No remote condenser is specified for this model.
Practical service and cleaning features
The unit has a front-facing condenser, automatic non-electric condensate evaporator, removable magnetic door gaskets, and a one-piece stainless steel louver assembly.
Technical Specifications
| Manufacturer model | ADT232NUT-FHS |
|---|---|
| Cabinet configuration | Two-section refrigerator/freezer reach-in; refrigerator left, freezer right |
| Door configuration | Two full-height solid doors |
| Standard door hinging | Left/right |
| Overall width | 52 1/8 in. |
| Overall depth | 35 1/8 in. |
| Depth over body | 32 in. |
| Overall height on 6 in. legs | 83 7/16 in. |
| Depth with door open 90 degrees | 56 11/16 in. |
| Clear door width | 20 15/16 in. |
| Clear full-door height | 57 9/16 in. |
| Total net capacity | 42.26 cu. ft. |
| Refrigerator net capacity | 21.13 cu. ft. |
| Freezer net capacity | 21.13 cu. ft. |
| Standard shelves | 6 total |
| Electrical requirement | 115V, 60 Hz, 1-phase; NEMA 5-20P |
| Full-load amperage | 15.4 A |
| Power cord | 9 ft. cord and plug |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator operating temperature | 34 to 38°F |
| Freezer operating temperature | -5 to 0°F |
| Legs | Four adjustable 6 in. stainless steel legs |
| Exterior/interior construction | Stainless steel exterior; anodized aluminum interior |
Installation and Purchasing Considerations
- Plan for a 52 1/8-inch overall width, 35 1/8-inch overall depth, and 83 7/16-inch overall height on the supplied 6-inch legs.
- Allow for the door swing: depth with a door open 90 degrees is 56 11/16 inches. Confirm aisle clearance before positioning the cabinet.
- Provide a 115V, 60 Hz, single-phase electrical connection with a NEMA 5-20P receptacle. A 9-foot cord and plug are supplied.
- The manufacturer prefers 12 inches of clearance above the cabinet for performance and service access.
- Level the cabinet using its four adjustable 6-inch stainless steel legs. This is a self-contained unit; a separately installed remote condenser is not part of this configuration.
Choosing This Configuration
ADT232NUT-FHS is the full-height solid-door version, with one full-height door per section. It is not the half-height-door configuration.
The standard compartment arrangement is refrigerator left and freezer right. Relocating the freezer compartment is listed as an option rather than a standard feature.
Standard interiors are coated wire shelves. Tray slides, stainless shelves, casters, flanged legs, and other support options are not established as included with this model.
Frequently Asked Questions
Which side is the refrigerator and which side is the freezer?
The refrigerator is in the left section and the freezer is in the right section.
How many shelves are included?
The standard interior has three adjustable coated wire shelves per section, for six shelves total.
What electrical connection does this model use?
It operates on 115V, 60 Hz, single-phase power and is equipped with a NEMA 5-20P plug on a 9-foot cord.
How much clearance is needed when opening a door?
The listed depth with a door open 90 degrees is 56 11/16 inches. The manufacturer also prefers 12 inches of top clearance for performance and service access.
