Description

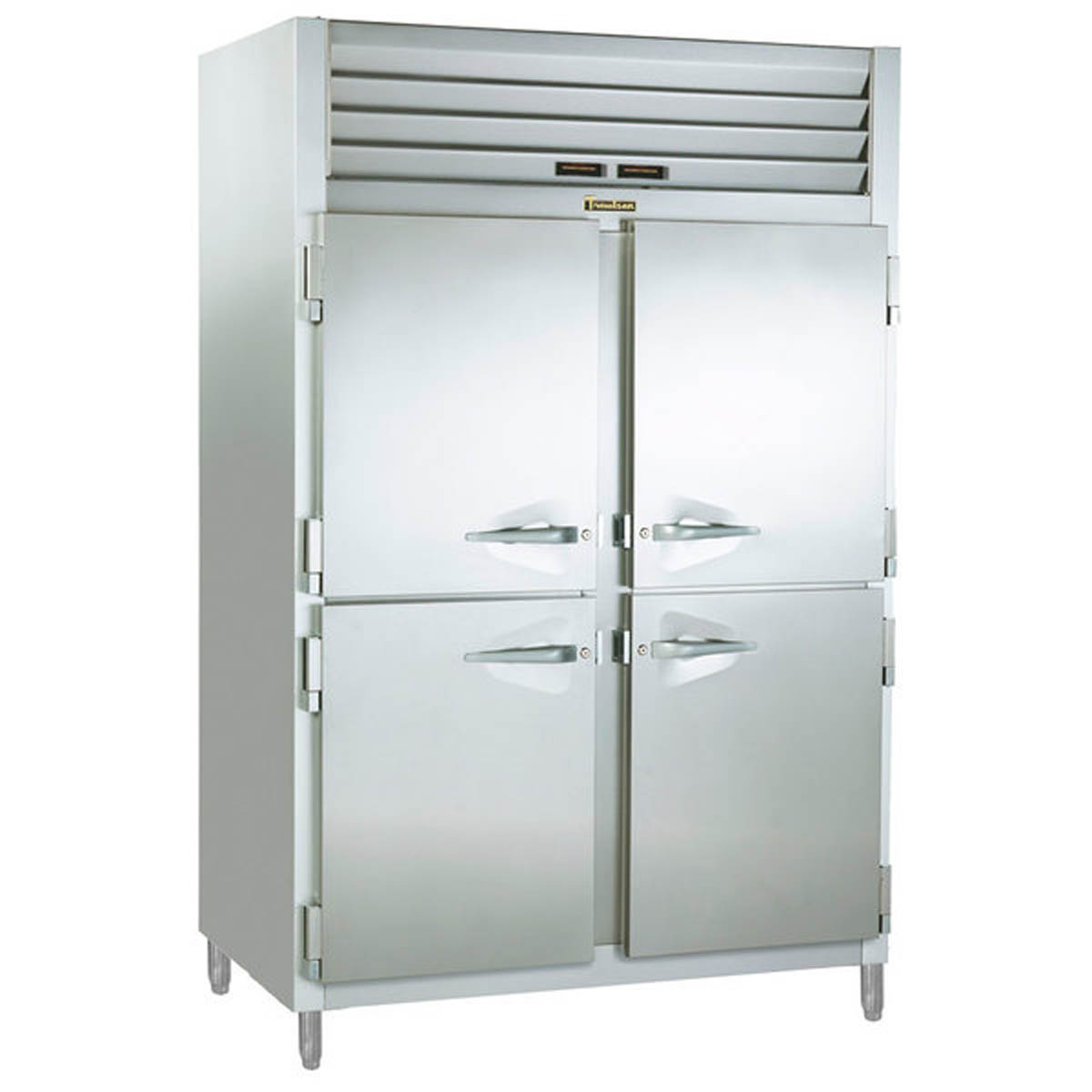

The Traulsen ADT232WUT-HHS is a 58-inch, two-section self-contained reach-in refrigerator-freezer designed to keep refrigerated and frozen inventory in separate side-by-side compartments. The refrigerator is on the left and the freezer is on the right, allowing one cabinet to support two storage zones without combining products or workflows.
This A-Series configuration has four half-height solid stainless steel doors: upper and lower access doors for each section. It includes six coated wire shelves total, interior LED lighting, locks, Smart Control with LED display, and a top-mounted refrigeration system. Its anodized aluminum interior distinguishes this model from stainless-interior R-Series equipment.
Applications and Workflow
Suitable for restaurant prep areas, institutional kitchens, cafeterias, and other commercial operations that need adjacent refrigerated and frozen dry-storage access in one reach-in footprint. This is a storage refrigerator-freezer, not a pan, tray-slide, or roll-in cabinet; optional tray-slide arrangements are separate from the standard shelf configuration.
Features and Practical Benefits
Separated refrigerator and freezer storage
The left compartment is refrigerated and the right compartment is frozen, helping organize ingredients by storage requirement within one two-section cabinet.
Half-height doors for targeted access
Four half-height solid doors let staff open only the upper or lower portion needed, rather than opening a full-height door for every retrieval.
Standard shelf storage is included
Three adjustable coated wire shelves are supplied per section, for six standard shelves total. This model is delivered with shelves rather than optional tray slides.
Designed for frequent kitchen access
Self-closing doors stay open at 120 degrees when needed for loading, and the horizontal recessed handles reduce handle projection into the aisle.
Self-contained top-mounted system
The balanced refrigeration system is factory contained in the cabinet, with a front-facing condenser positioned behind the one-piece louver assembly for cleaning access.
Technical Specifications
| Manufacturer model | ADT232WUT-HHS |
|---|---|
| Cabinet configuration | Two-section reach-in refrigerator-freezer |
| Compartment arrangement | Refrigerator left; freezer right |
| Door configuration | Four half-height solid doors |
| Overall width | 58 in. |
| Overall depth | 35 1/8 in. |
| Overall height on supplied legs | 83 7/16 in. |
| Depth with door open 90 degrees | 56 11/16 in. |
| Clear door width | 20 15/16 in. |
| Clear half-door height | 27 1/2 in. |
| Net capacity | 46.86 cu. ft. total |
| Refrigerator capacity | 23.43 cu. ft. |
| Freezer capacity | 23.43 cu. ft. |
| Standard shelves | 6 total |
| Electrical requirement | 115V, 60Hz, single-phase; NEMA 5-20P |
| Full-load amperage | 15.4 A |
| Power cord | 9 ft. cord and plug |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator operating temperature | 34 to 38°F |
| Freezer operating temperature | -5 to 0°F |
| Supplied legs | Four 6-inch adjustable stainless steel legs |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan a finished footprint of 58 inches wide by 35 1/8 inches deep by 83 7/16 inches high on the supplied 6-inch adjustable legs.
- Allow up to 56 11/16 inches of overall depth when a door is open 90 degrees; the clear door width is 20 15/16 inches.
- Provide a 115V, 60Hz, single-phase electrical connection for the supplied NEMA 5-20P plug and 9-foot cord. The listed full-load amperage is 15.4 A.
- Leave 12 inches of clearance above the cabinet for preferred performance and service access. Keep the top-mounted louver/condenser area accessible for routine cleaning.
- Verify the delivery route and final placement location accommodate the cabinet height, door swing, and required overhead clearance before delivery.
Choosing This Configuration
This exact ADT232WUT-HHS configuration uses four half-height solid doors. The full-height-door version is a different configuration and should not be substituted when split upper/lower access is required.
The standard hinge arrangement for the 232W platform is left/right by section. Confirm the desired hinging at order placement if the kitchen layout requires another arrangement.
Standard storage is three coated wire shelves per section. Tray slides, additional shelves, casters, a stainless back, and other interior arrangements are options rather than assumed inclusions.
This is the 58-inch W-width cabinet. Other listed 232 variants have different cabinet widths and should be measured separately.
Frequently Asked Questions
Which side is the refrigerator compartment?
The refrigerator compartment is on the left; the freezer compartment is on the right.
How many shelves are supplied?
Six adjustable coated wire shelves are standard: three shelves in the refrigerator section and three in the freezer section.
What electrical connection does this model need?
It operates on 115V, 60Hz, single-phase power and is equipped with a NEMA 5-20P plug on a 9-foot cord.
How much space is needed with a door open?
Overall depth reaches 56 11/16 inches with a door opened to 90 degrees. Plan this clearance in front of the cabinet in addition to its 35 1/8-inch closed depth.
