Description

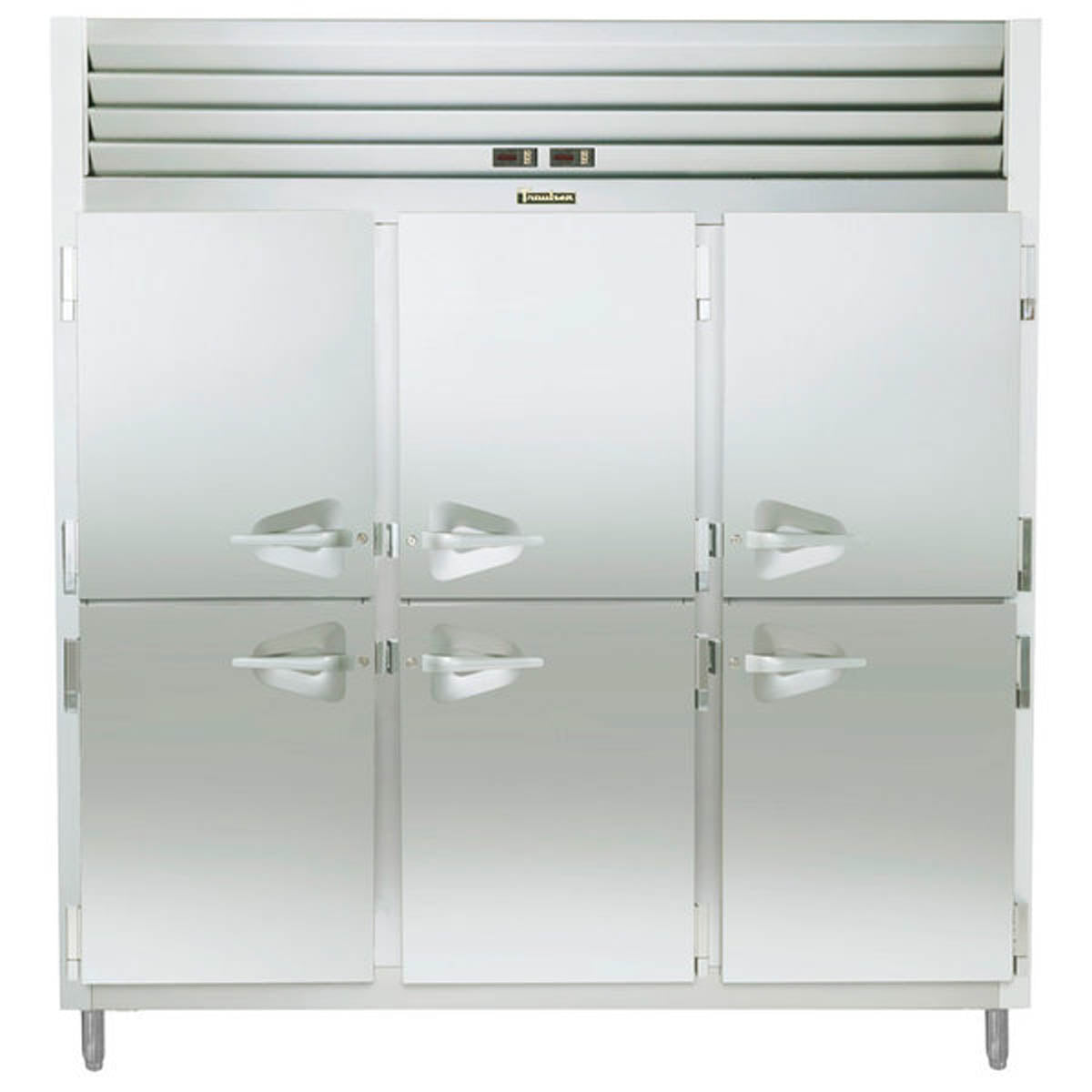

The Traulsen ADT332NUT-HHS is a self-contained, three-section reach-in refrigerator/freezer combination with six half-height solid doors. Its left and center sections provide refrigerated storage, while the right section is dedicated freezer storage, allowing chilled and frozen ingredients to be organized in one 76 5/16 in. cabinet.
This A-Series N-Width model has a stainless steel exterior, anodized aluminum interior, Smart Control with LED display, and nine factory-installed coated wire shelves. Half doors let staff access a smaller portion of the cabinet at a time, and the standard left/right/right door hinging should be considered when planning the aisle and adjacent equipment.
Applications and Workflow
Suitable for commercial kitchens that need separate refrigerated and frozen ingredient storage at one prep, production, or back-of-house location. The freezer is confined to the right section; this is not a three-section refrigerator or a three-section freezer. It is intended for indoor commercial installation with a hard-wired electrical connection.
Features and Practical Benefits
Refrigerated and frozen storage in one footprint
The left and center sections are refrigerator storage and the right section is freezer storage, combining two temperature zones in a single three-section reach-in.
Six half-height solid doors
The HHS configuration uses half-height solid doors, helping staff reach a selected shelf area without opening the full height of a section.
Organized shelf storage
Nine coated wire shelves are standard—three per section—and are installed on shelf pins for adjustable product organization.
Built for frequent kitchen access
Doors are self-closing, stay open at 120 degrees, and include locks, while interior LED lights activate with the door hinge switch.
Separate self-contained systems
Balanced dual refrigeration systems use R-450A for the refrigerator and R-448A for the freezer.
Technical Specifications
| Manufacturer model | ADT332NUT-HHS |
|---|---|
| Cabinet configuration | Three-section dual-temperature reach-in |
| Door configuration | Six half-height solid doors |
| Refrigerator section location | Left and center sections |
| Freezer section location | Right section |
| Total net capacity | 67.36 cu. ft. |
| Refrigerator net capacity | 45.31 cu. ft. |
| Freezer net capacity | 22.05 cu. ft. |
| Overall width | 76 5/16 in. |
| Overall depth | 35 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90 degrees | 57 11/16 in. |
| Electrical requirement | 115/60/1, hard wired |
| Full-load amperage | 25.3 A |
| Refrigerant, refrigerator | R-450A |
| Refrigerant, freezer | R-448A |
| Standard shelves | 9 coated wire shelves |
| Standard legs | Four adjustable 6 in. stainless steel legs |
| Exterior and interior construction | Stainless steel exterior with anodized aluminum interior |
Installation and Purchasing Considerations
- Allow a cabinet footprint of 76 5/16 in. W x 35 in. D; overall height on the included 6 in. legs is 83 1/4 in.
- Plan for 57 11/16 in. overall depth with a door open 90 degrees. Standard hinging is left/right/right across the three sections.
- This unit requires a 115/60/1 hard-wired electrical connection and has a 25.3 full-load amp rating. It is not specified with an attached plug.
- The refrigeration system is top-mounted and self-contained. Provide 12 in. of top clearance where possible for performance and service access.
- Four adjustable 6 in. stainless steel legs are included. Verify finished floor, doorway, hood, and overhead-clearance conditions before delivery and installation.
Choosing This Configuration
ADT332NUT-HHS is the half-height solid-door version, with six doors. The related FHS configuration uses full-height solid doors instead.
This N-Width cabinet is 76 5/16 in. wide. Do not substitute wider three-section variants when space has been allocated for this model.
Standard shelving is included as coated wire shelves. Trayslides, extra shelves, casters, flanged legs, and other interior arrangements are options rather than standard inclusions.
Frequently Asked Questions
Which sections refrigerate and which section freezes?
The left and center sections are refrigerated, and the right section is the freezer compartment.
Does this model have six doors?
Yes. ADT332NUT-HHS is the half-height solid-door configuration with six doors.
What electrical connection does the unit need?
It is specified for 115/60/1 power and must be hard wired. The listed full-load amperage is 25.3 A.
How much clearance is needed when opening a door?
The cabinet is 35 in. deep closed and measures 57 11/16 in. deep with a door opened 90 degrees. Traulsen also notes that 12 in. of top clearance is preferred for service access and performance.
