Description

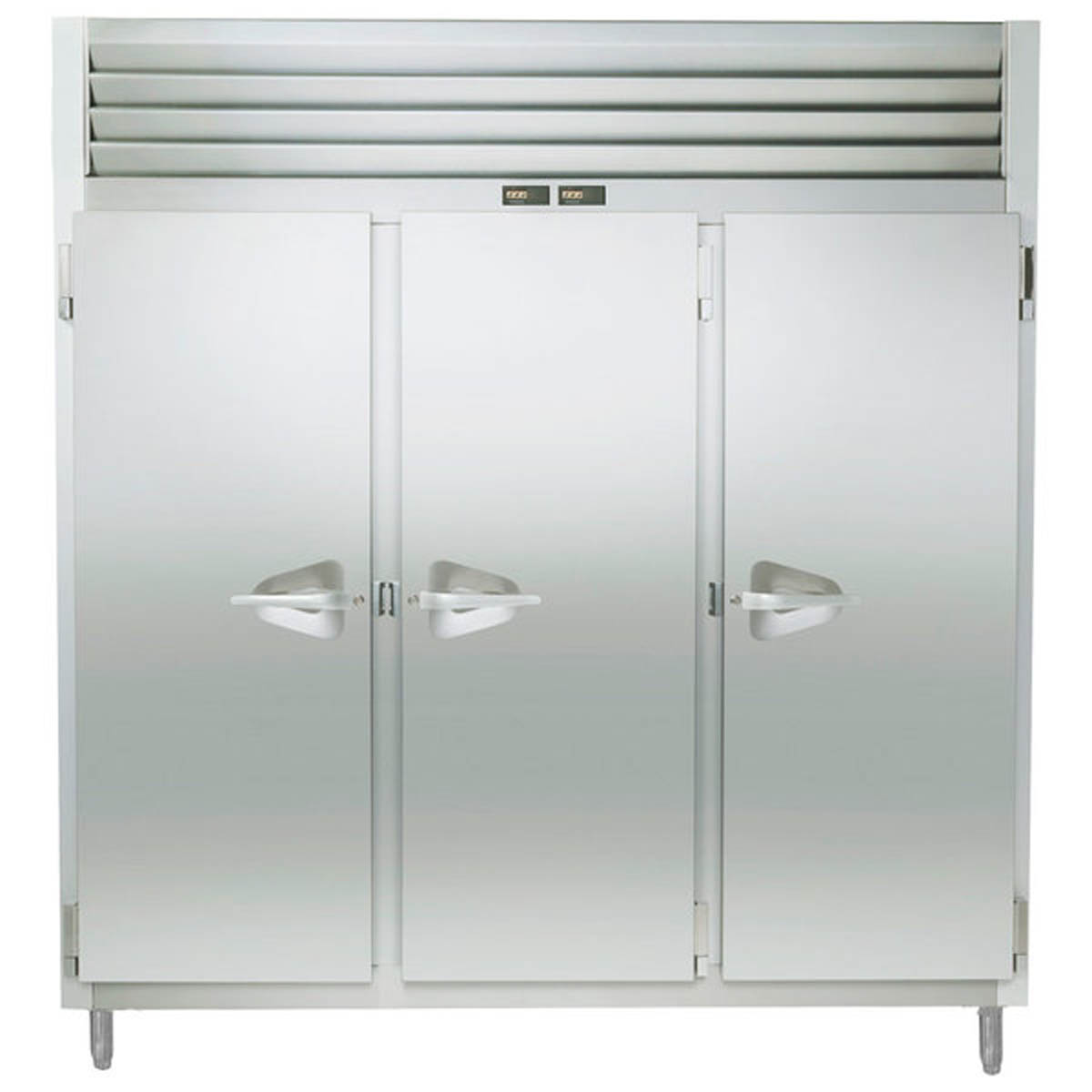

The Traulsen ADT332WUT-FHS is a self-contained, three-section reach-in refrigerator/freezer built for operations that need refrigerated and frozen storage at the same work area. Its left and center sections are refrigerated, while the right section is a freezer, allowing staff to separate ingredients by temperature zone without moving between cabinets.
This exact A-Series W-Width configuration has three full-height solid doors, a stainless steel exterior, anodized aluminum interior, and nine factory-installed coated wire shelves. Smart Control with LED display, automatic interior lighting, locking doors, and self-closing hinges support day-to-day access and organization.
Applications and Workflow
Use this reach-in combo in restaurant prep areas, institutional kitchens, commissaries, or other commercial back-of-house spaces that need adjacent refrigerated and frozen ingredient storage. It is designed with the freezer in the right section and refrigerator storage in the left and center sections; it is not a three-section all-refrigerator or all-freezer cabinet.
Features and Practical Benefits
Separated refrigerator and freezer zones
The left and center sections provide refrigerator storage while the right section is dedicated to frozen product, helping organize inventory by holding requirement.
Full-height solid-door access
Three full-height stainless steel doors provide tall vertical access. The doors self-close and can stay open at 120 degrees during loading or cleaning.
Configured storage surfaces
Nine coated wire shelves are supplied as the standard shelf complement, with three adjustable shelves per section installed on shelf pins.
Self-contained top-mounted system
The balanced refrigeration system is housed in the cabinet, with separate refrigerator and freezer refrigerants and an easy-to-clean front-facing condenser.
Built for frequent kitchen access
Automatic LED lighting, removable cylinder locks, magnetic snap-in gaskets, and horizontal recessed door handles support routine stocking and retrieval.

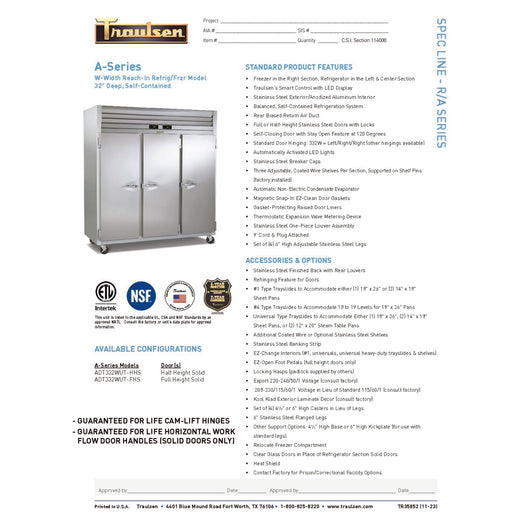

Technical Specifications
| Manufacturer model | ADT332WUT-FHS |
|---|---|
| Cabinet configuration | Three-section refrigerator/freezer reach-in |
| Door configuration | 3 full-height solid doors |
| Refrigerator compartment location | Left and center sections |
| Freezer compartment location | Right section |
| Overall width | 86-1/8 in. |
| Overall depth | 35-1/8 in. |
| Overall height on legs | 83-7/16 in. |
| Depth with door open 90° | 56-11/16 in. |
| Net capacity | 75.38 cu. ft. |
| Refrigerator net capacity | 50.52 cu. ft. |
| Freezer net capacity | 24.86 cu. ft. |
| Standard shelves | 9 coated wire shelves |
| Electrical service | 115/60/1 |
| Electrical connection | Hard wired |
| Full load amperes | 25.3 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator compressor | 1/2 HP |
| Freezer compressor | 1/2 HP |
| Exterior material | Stainless steel |
| Interior material | Anodized aluminum |
| Included legs | Four adjustable 6 in. stainless steel legs |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan a finished footprint of 86-1/8 inches wide by 35-1/8 inches deep, with an overall height of 83-7/16 inches on the included 6-inch legs.
- Allow up to 56-11/16 inches of depth with a door open 90 degrees. Confirm aisle space and the standard left/right/right door hinging before placing the cabinet.
- The unit is specified for 115/60/1 electrical service and is hard wired. Have a qualified installer confirm the dedicated electrical connection and site service before installation.
- Keep 12 inches of top clearance where possible for preferred performance and service access. The refrigeration system is self-contained and top mounted.
- The included support package is four adjustable 6-inch stainless steel legs. Casters, alternate legs, trayslides, and additional shelves are separate options unless specifically ordered.
Choosing This Configuration
ADT332WUT-FHS is the full-height solid-door version, with three doors. It is distinct from the half-height solid-door configuration, which uses six half doors.
This W-Width cabinet is 86-1/8 inches wide. Do not substitute dimensions from narrower three-section configurations.
The standard compartment layout places refrigeration on the left and center and the freezer on the right. Freezer relocation is identified as an option rather than a standard feature.
Standard shelving is coated wire shelving. Sheet-pan trayslides and stainless steel shelves are optional configurations, not included with the standard shelf arrangement.
Frequently Asked Questions
Which sections refrigerate and which section freezes?
The left and center sections are refrigerated, and the right section is the freezer.
Does this model have full-height or half-height doors?
ADT332WUT-FHS has three full-height solid doors. The half-height version is a different configuration.
How many shelves are included?
The standard arrangement includes nine coated wire shelves: three adjustable shelves in each section.
What electrical connection does this unit require?
The specification lists 115/60/1 electrical service and a hard-wired connection. Confirm the site connection with a qualified installer before delivery.
