Description

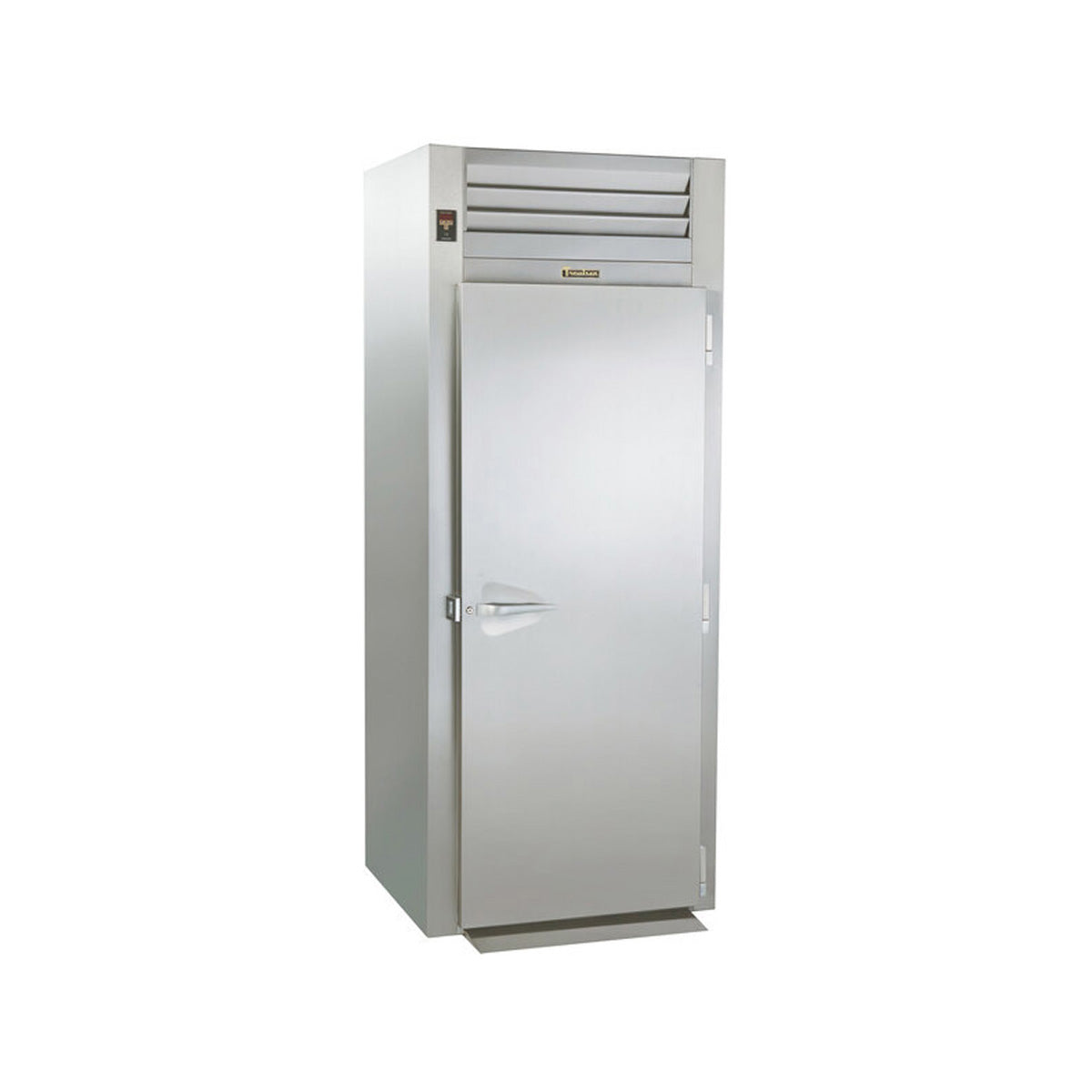

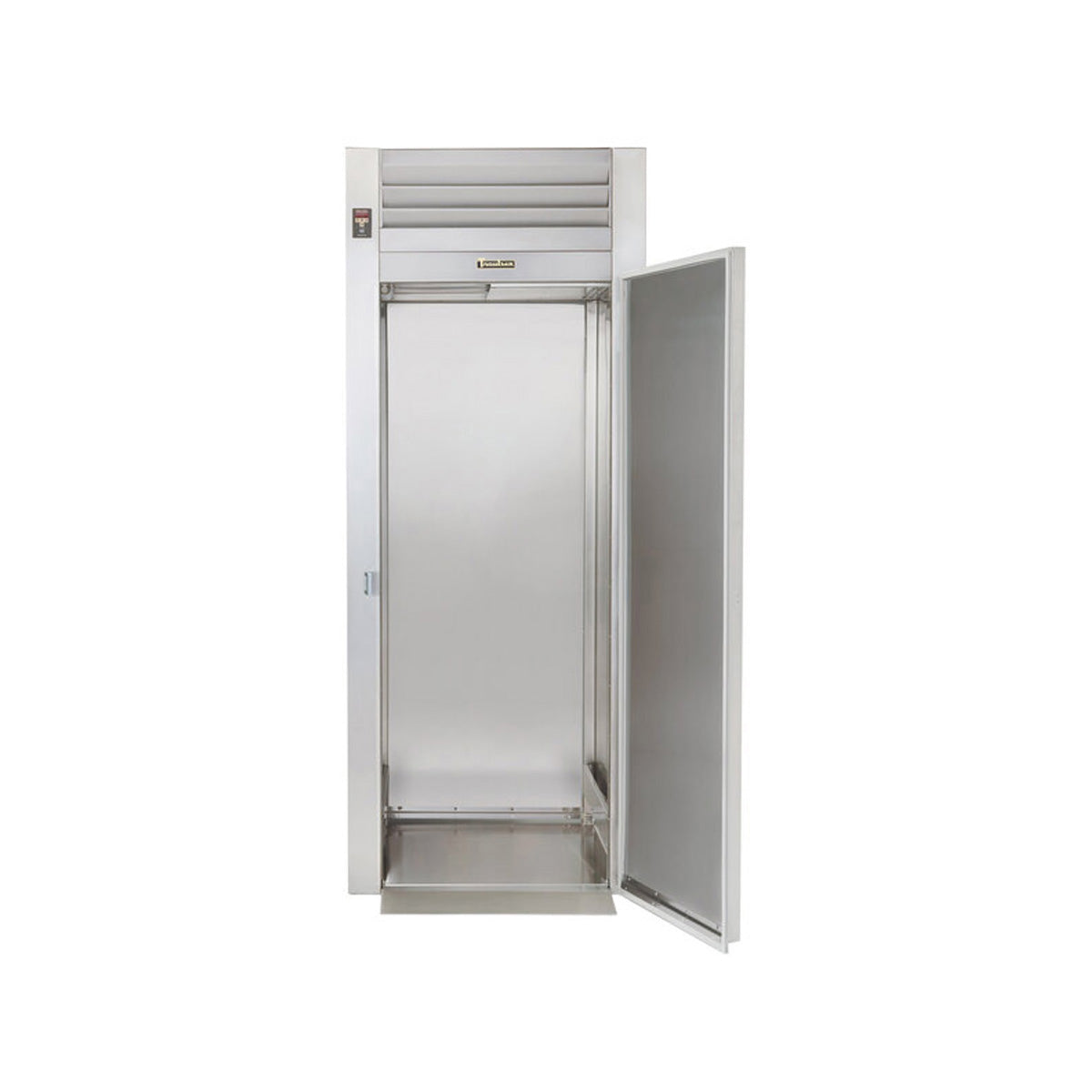

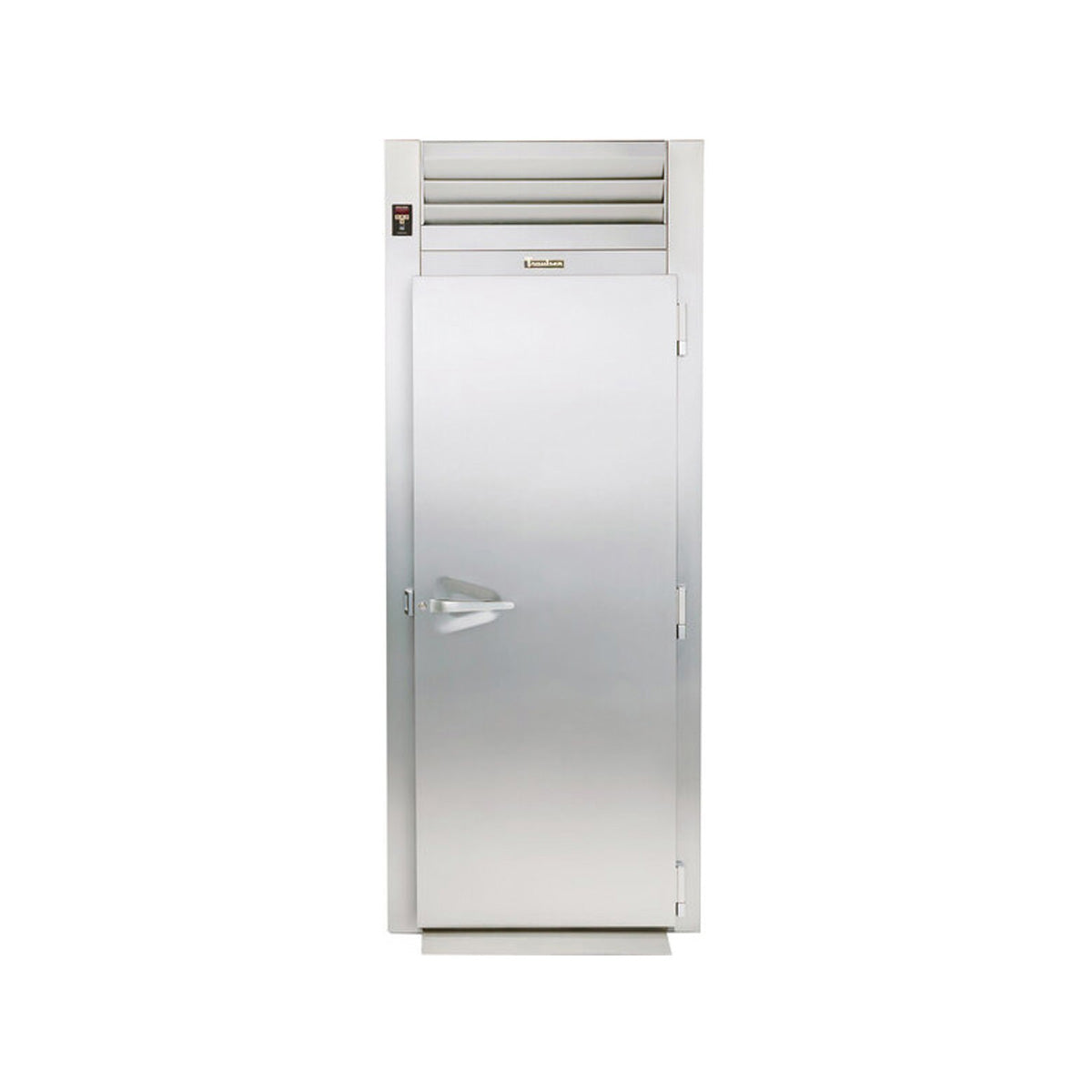

The Traulsen AIF132H-FHS is a one-section roll-in freezer cabinet designed to accept a mobile rack rather than require staff to transfer products to interior shelves. Its full-height solid door, 38 cu. ft. cabinet, and 72-inch rack-height format support frozen-product staging and storage in high-volume commercial operations.
This exact AIF132H-FHS configuration uses remote refrigeration, so refrigeration equipment is not included with the cabinet. The standard 132H door arrangement is right hinged. A stainless steel exterior, anodized aluminum interior, threshold ramp, rack guides, locking door, and LED lighting support day-to-day rack movement and freezer access.
Applications and Workflow
Suitable for commissaries, bakeries, institutional kitchens, and other commercial operations that move product on roll-in racks up to 72 inches high. This is a remote-refrigerated freezer cabinet, not a self-contained freezer; it requires a separately provided remote refrigeration system and should be planned with a qualified refrigeration installer.
Features and Practical Benefits
Roll-in rack workflow
The cabinet accommodates roll-in racks up to 72 inches high, allowing a loaded rack to move directly into frozen storage. Racks are supplied separately.
Right-hinged full-height access
The 132H configuration has a full-height solid door with standard right-side hinging. The self-closing door can stay open at 120 degrees for loading and unloading.
Remote refrigeration configuration
Remote refrigeration is not included, allowing the cabinet to be paired with a separately planned remote refrigeration system.
Cabinet protection at the loading point
Stainless steel interior rack guides and a threshold ramp help guide rack movement at the cabinet opening.
Technical Specifications
| Manufacturer model | AIF132H-FHS |
|---|---|
| Cabinet type | Roll-in freezer |
| Sections | 1 section |
| Net capacity | 38 cu. ft. |
| Width | 35.5 in. |
| Depth | 35.56 in. |
| Height | 89.13 in. |
| Door configuration | 1 full-height solid hinged door |
| Standard door hinging | Right |
| Refrigeration arrangement | Remote; refrigeration not included |
| Exterior finish | Stainless steel |
| Interior finish | Aluminum |
| Maximum rack height | 72 in. |
| Door hold-open position | 120° |
Installation and Purchasing Considerations
- Allow for the cabinet footprint of 35.5 inches wide by 35.56 inches deep and 89.13 inches high.
- Plan aisle space for the right-hinged door. The related 72-inch roll-in cabinet specification lists a 63 1/4-inch depth with the door open 90 degrees; verify final clearances against the approved remote-model submittal before installation.
- This remote model does not include refrigeration equipment. Coordinate the remote condensing system, refrigerant piping, controls, electrical requirements, and commissioning with a qualified refrigeration installer.
- Confirm the incoming rack dimensions before purchase. The supplied family documentation identifies a maximum wheeled rack size of 27 inches wide by 29 inches deep by 72 inches high, with wheels inboard of the frame; racks are supplied separately.
Choosing This Configuration
AIF132H-FHS is the remote-refrigeration version; do not substitute it for a self-contained roll-in freezer unless the project is designed for the different refrigeration arrangement.
The H designation indicates standard right door hinging. Other hinging arrangements may be available only when specified for the order.
The cabinet is configured for full-height solid-door access and 72-inch-high roll-in racks. Shelves and racks should not be assumed included.
Frequently Asked Questions
Does the AIF132H-FHS include its own refrigeration system?
No. This model is specified for remote refrigeration, and refrigeration equipment is not included.
Which way does the door hinge?
The standard 132H door hinging is right side.
What rack size can this roll-in freezer accept?
It is designed for racks up to 72 inches high. The supplied family specification lists a maximum wheeled rack size of 27 inches wide by 29 inches deep by 72 inches high, with wheels inboard of the frame.
Are roll-in racks included?
No. The manufacturer documentation states that racks are supplied by others.
