Description

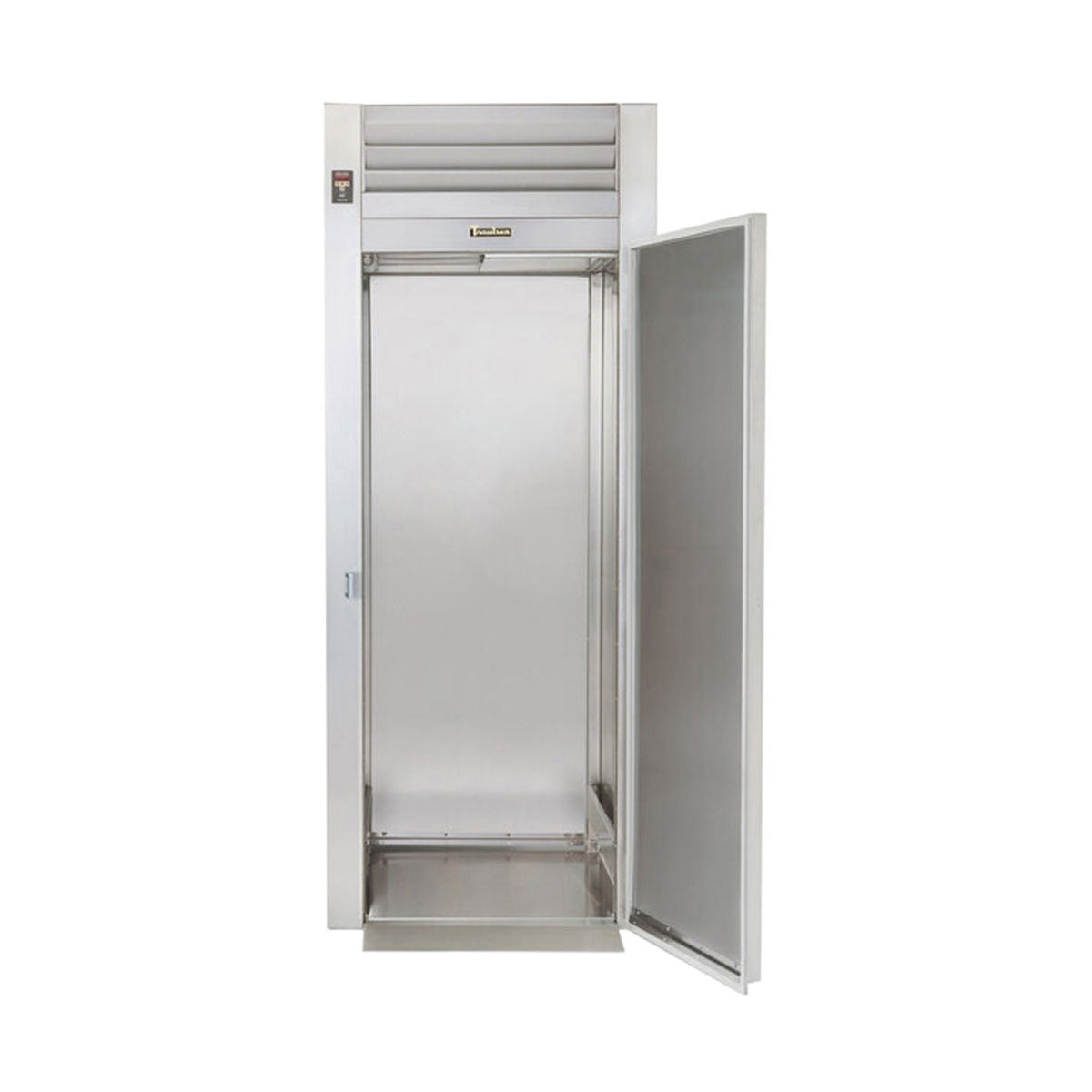

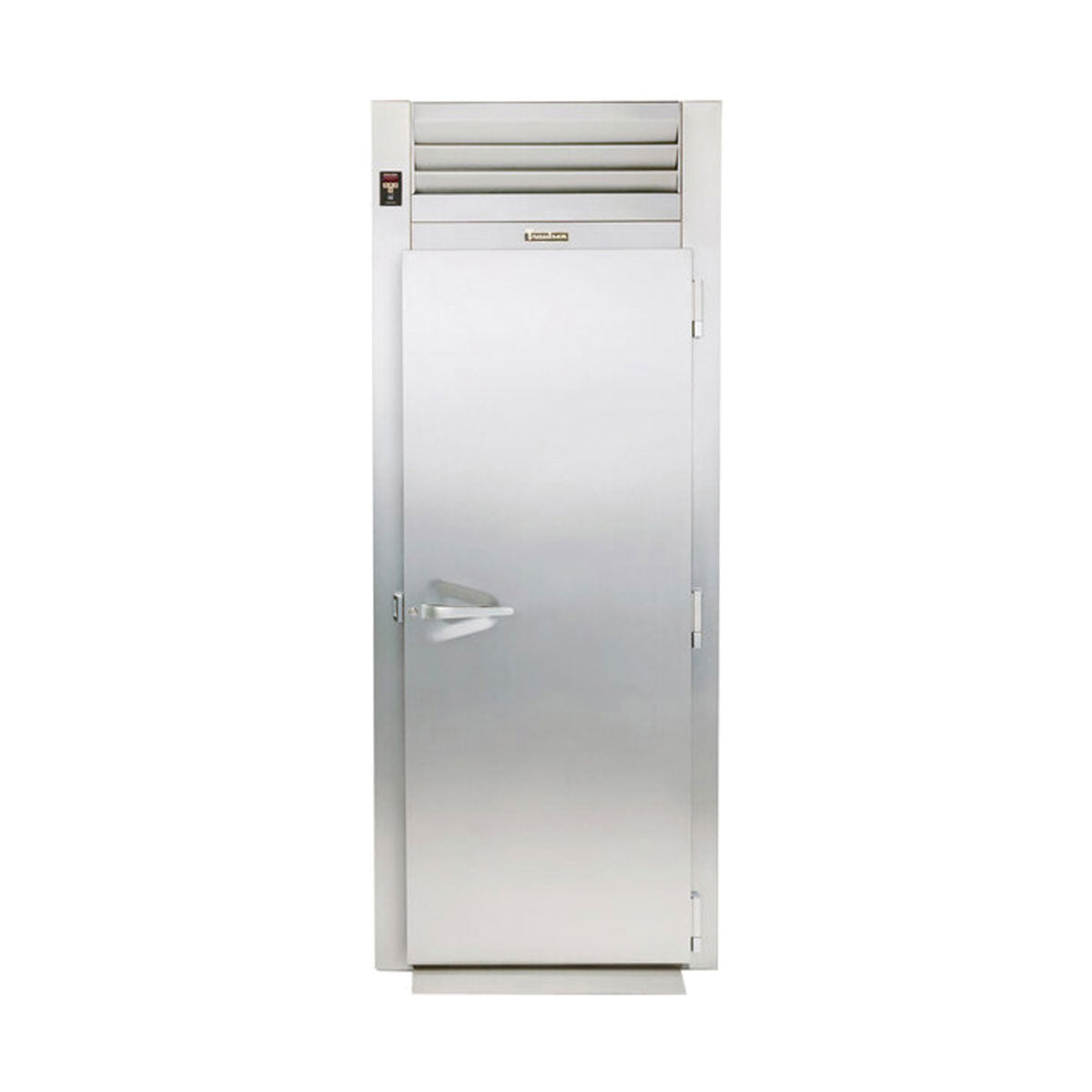

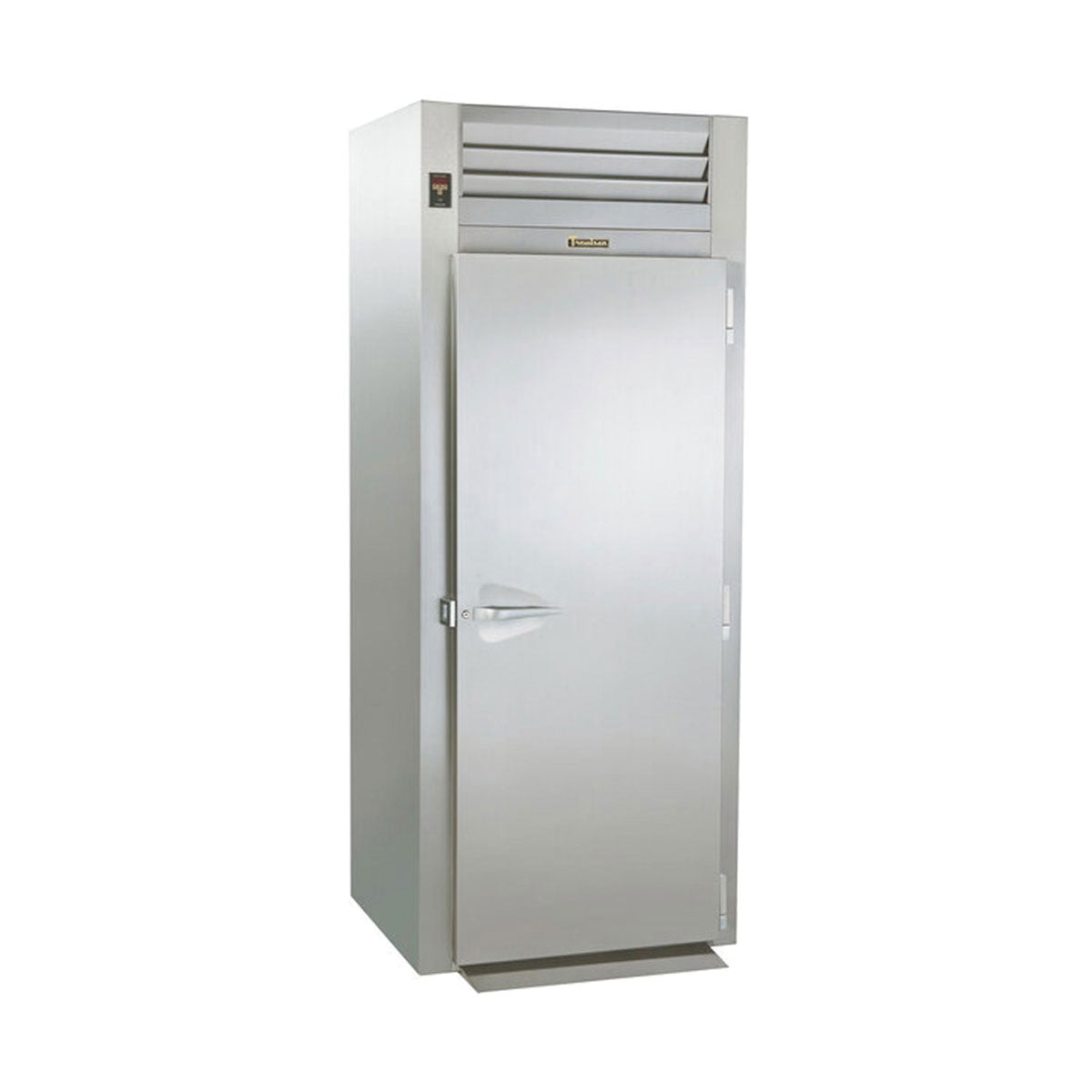

The Traulsen AIF132HUT-FHS is a one-section, self-contained roll-in freezer built to receive a roll-in rack up to 72 inches high. Its full-height solid door, interior rack guides, threshold ramp, and top-mounted refrigeration package support loading an entire rack into the cabinet instead of transferring individual pans or shelves.
This exact AIF132HUT-FHS configuration has a 38.2 cu. ft. cabinet, stainless steel exterior, anodized aluminum interior, and a standard right-hinged full-height solid door. Smart Control with LED display, automatic interior lighting, a locking door, and a non-electric condensate evaporator support everyday frozen-product storage workflows.
Applications and Workflow
Suitable for commercial kitchens, commissaries, bakeries, and other operations that stage frozen product on a single roll-in rack. This is a roll-in freezer rather than a conventional shelf reach-in; the rack must fit the published maximum dimensions and is supplied separately.
Features and Practical Benefits
Roll-in rack workflow
The cabinet accepts one rack up to 27 inches wide, 29 inches deep, and 72 inches high when the rack wheels are inboard of the frame. A stainless steel threshold ramp helps with loading and unloading.
Full-height solid-door configuration
This model is specified with one full-height solid stainless steel door with a lock. The self-closing door can remain open at 120 degrees during rack loading.
Top-mounted self-contained refrigeration
The balanced R-448A refrigeration system is top mounted and self-contained, avoiding the need to connect this standard configuration to a remote refrigeration system.
Controls and cabinet visibility
Smart Control provides an LED display and diagnostic alarms, while a concealed hinge switch activates the interior LED lighting when the door is opened.
Service-conscious cabinet details
The unit has a StayClear condenser coil, magnetic snap-in EZ-Clean gasket, one-piece louver assembly, and automatic non-electric condensate evaporator.
Technical Specifications
| Manufacturer model | AIF132HUT-FHS |
|---|---|
| Cabinet type | 72-inch roll-in freezer for 72-inch-high racks, self-contained |
| Door configuration | One full-height solid door |
| Standard door hinging | Right hinged |
| Net capacity | 38.2 cu. ft. |
| Overall width | 35 1/2 in. |
| Overall depth | 39 1/4 in. |
| Depth over body | 32 in. |
| Overall height | 89 1/8 in. |
| Clear door width | 27 1/8 in. |
| Clear door height | 72 3/16 in. |
| Electrical requirement | 115/60/1 |
| Plug | NEMA 5-15P |
| Full-load amperage | 9.4 A |
| Refrigerant | R-448A |
| Refrigerant charge | 15 oz. |
| Compressor horsepower | 1/2 HP |
| Standard operating temperature | 0 to -5°F |
| Maximum rack size | 27 in. W x 29 in. D x 72 in. H |
| Power cord | 9 ft. |
Installation and Purchasing Considerations
- Plan a finished footprint of 35 1/2 inches wide by 39 1/4 inches deep and 89 1/8 inches high.
- Allow for the full door swing: depth with the door open 90 degrees is 63 1/4 inches. Confirm the right-hand door swing works with the loading aisle and rack approach.
- Connect to a 115/60/1 electrical supply using the factory-equipped NEMA 5-15P plug. The unit includes a 9-foot cord.
- Provide 12 inches of clearance above the cabinet where possible for preferred performance and service access.
- Confirm the rack before purchase. Maximum rack size is 27 inches wide by 29 inches deep by 72 inches high with wheels inboard of the frame; racks are supplied separately.
Choosing This Configuration
This exact model is the 72-inch-high rack, 32-inch-deep, self-contained roll-in freezer configuration—not a remote refrigeration configuration.
The specified door is full-height and solid, with standard right-side hinging for the 132H configuration. Other hinging arrangements are listed as factory options.
Shelf packages are optional. This roll-in freezer is equipped with rack guides and a threshold ramp; do not assume shelves or a roll-in rack are included.
The published net capacity is 38.2 cu. ft. and differs from other roll-in cabinet sizes or configurations.
Frequently Asked Questions
What size roll-in rack fits the AIF132HUT-FHS?
It accommodates a rack up to 27 inches wide, 29 inches deep, and 72 inches high when the wheels are inboard of the rack frame. The rack is supplied separately.
What electrical connection does this freezer require?
It operates on 115/60/1 power and is equipped with a NEMA 5-15P plug and a 9-foot cord.
How much clearance is needed when opening the door?
The cabinet is 39 1/4 inches deep when closed and 63 1/4 inches deep with the door open 90 degrees. Plan the loading aisle around that open-door dimension.
What operating temperature is specified?
The standard operating temperature is 0 to -5 degrees F. The manufacturer also states that the model is capable of -10 degrees F operation in ambient temperatures up to 100 degrees F.
