Description

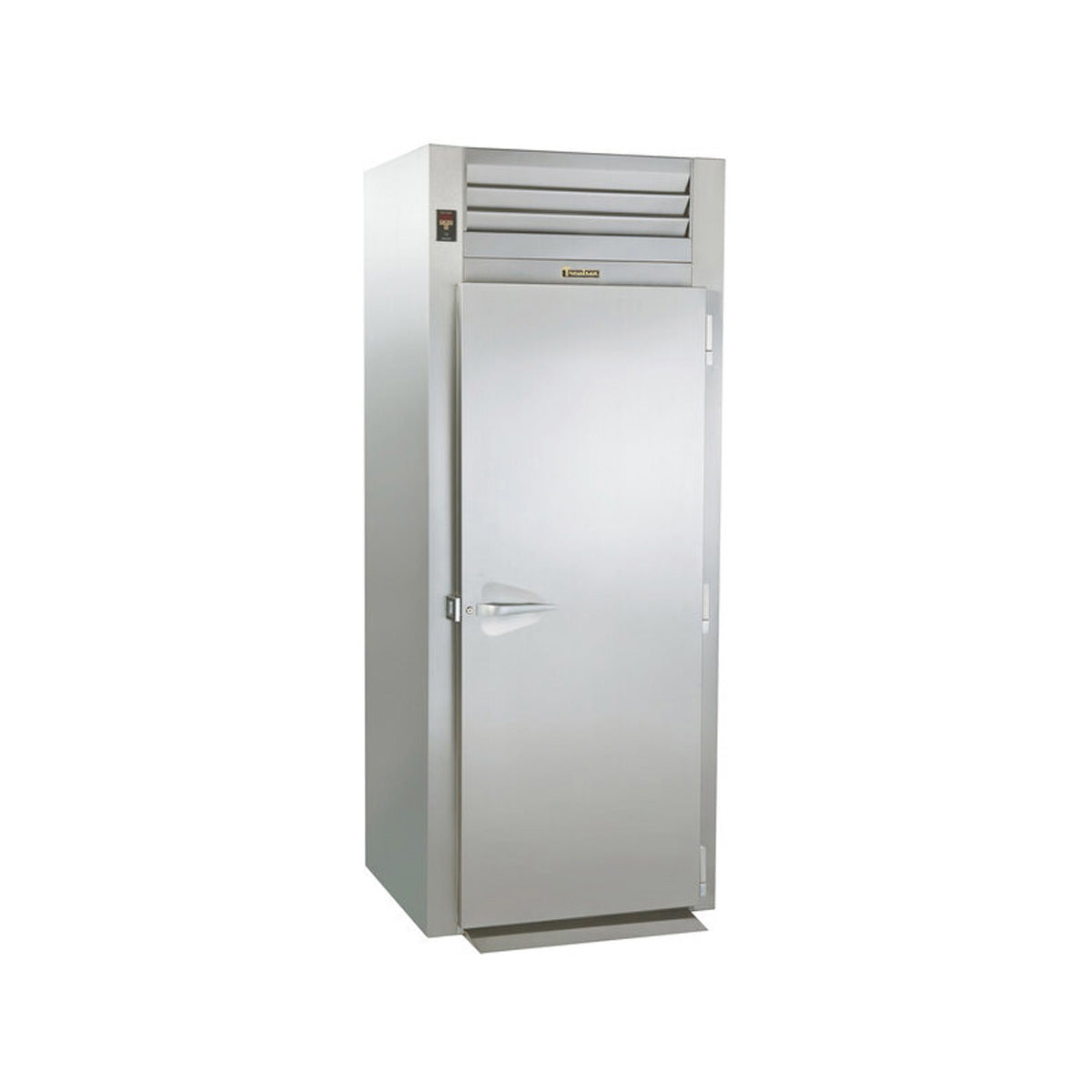

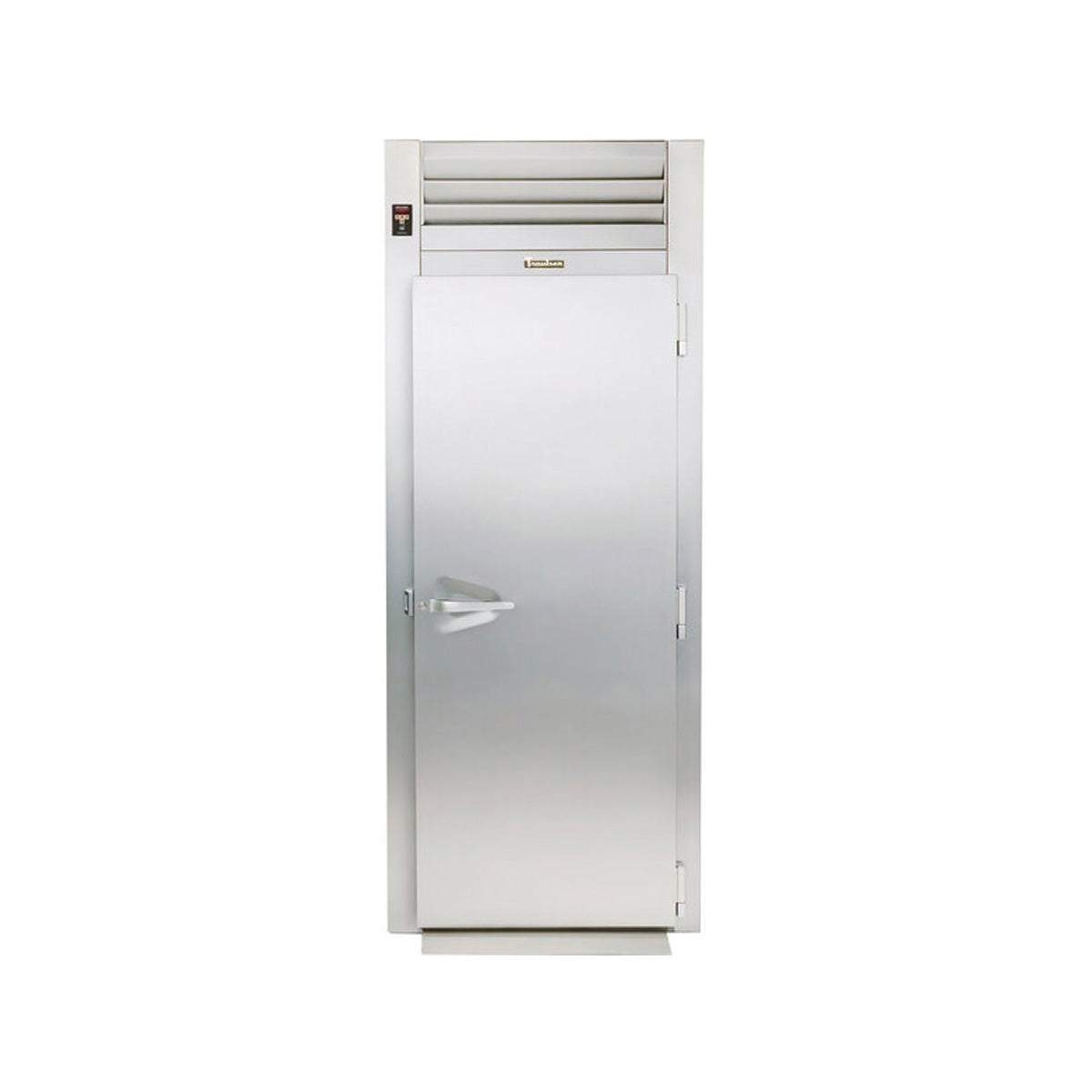

The Traulsen AIF132L-FHS is a one-section roll-in freezer with approximately 35 cu. ft. of cabinet capacity. Its full-height hinged solid door provides an enclosed freezer compartment for operations that move product on a roll-in rack rather than loading individual shelves.
This configuration uses remote refrigeration, so refrigeration equipment is not included with the cabinet. It is suited to projects where the freezer cabinet will be connected to a separately planned remote refrigeration system.
Applications and Workflow
Use this roll-in freezer in commercial kitchens, bakeries, commissaries, and institutional foodservice operations that stage product on mobile racks. It is not a self-contained freezer; plan for separately provided remote refrigeration equipment and its installation.
Features and Practical Benefits
Roll-in cabinet workflow
The one-section roll-in format is designed for rack-based loading and unloading rather than shelf-by-shelf product transfer.
Remote refrigeration configuration
Remote refrigeration is specified for this model, allowing the cabinet to be incorporated into a remotely engineered refrigeration installation.
Full solid door

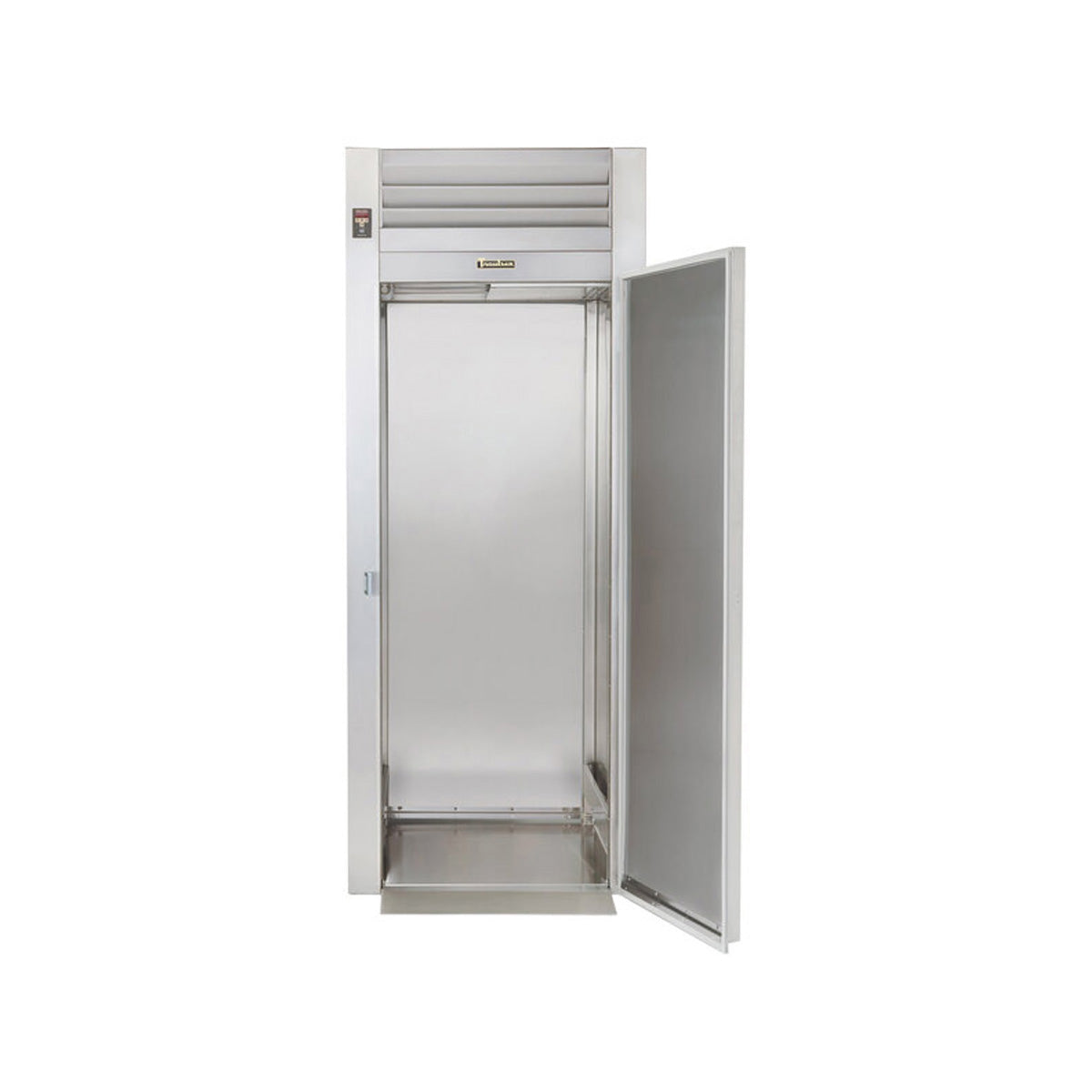

A single full-height, hinged solid door provides access to the roll-in freezer compartment.
Specified cabinet finishes
The listed stainless steel exterior and aluminum interior support a durable commercial cabinet construction.
Technical Specifications
| Manufacturer model | AIF132L-FHS |
|---|---|
| Equipment type | Roll-in freezer |
| Sections | 1 section |
| Door configuration | 1 full hinged solid door |
| Refrigeration configuration | Remote; refrigeration not included |
| Capacity | 35 cu. ft. |
| Exterior finish | Stainless steel |
| Interior finish | Aluminum |
| Width | 35.5 in. |
| Depth | 35.56 in. |
| Height | 83.25 in. |
Installation and Purchasing Considerations
- Allow a cabinet footprint of 35.5 in. W x 35.56 in. D x 83.25 in. H, then confirm the final path, doorway clearance, and operating clearance before delivery.
- This is a remote-refrigeration model; refrigeration equipment is not included. Coordinate the remote system, piping, controls, and final connection requirements with qualified refrigeration professionals.
- Position the unit so the full hinged door can open without blocking adjacent equipment or traffic routes.
- Confirm that the selected roll-in rack and the remote refrigeration design are appropriate for this cabinet before purchase.
Choosing This Configuration
AIF132L-FHS is the remote-refrigeration version specified here; do not substitute a self-contained model when the project is designed for remote refrigeration.
This unit has one full hinged solid door and one cabinet section.
The listed capacity is 35 cu. ft. Supplier dimensional data lists the cabinet at 35.5 in. wide, 35.56 in. deep, and 83.25 in. high.
Frequently Asked Questions
Is refrigeration included with the Traulsen AIF132L-FHS?
No. This model is specified with remote refrigeration, and the refrigeration equipment is not included.
What are the cabinet dimensions?
The listed overall dimensions are 35.5 in. wide, 35.56 in. deep, and 83.25 in. high.
What door configuration does this freezer have?
It has one full-height hinged solid door.
What is the listed capacity?
The listed cabinet capacity is 35 cu. ft.
