Description

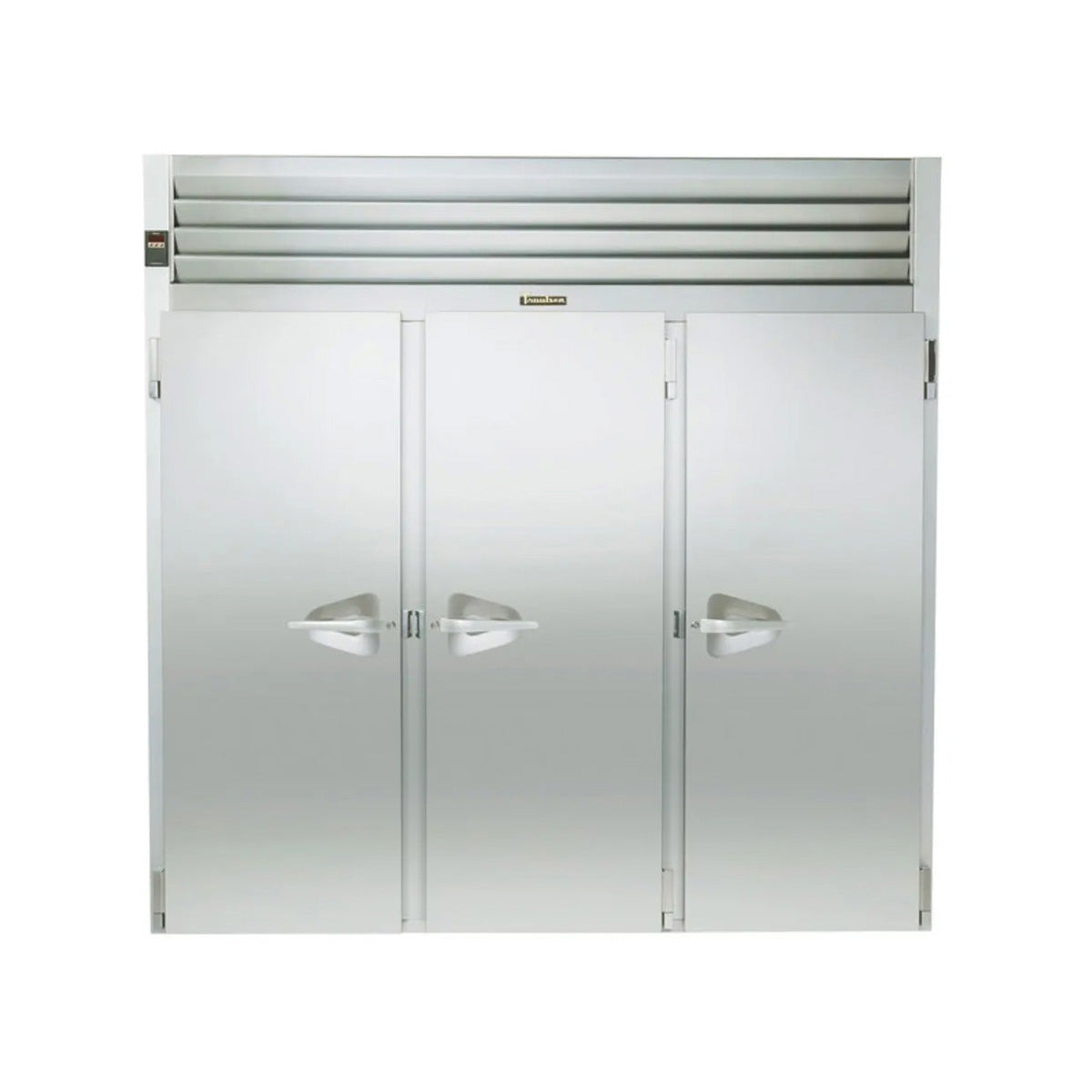

Traulsen AIF332L-FHS Roll-In Remote Freezer
The Traulsen AIF332L-FHS is a roll-in remote freezer. Organize frozen ingredients in a commercial cabinet with the access arrangement specified for this ordering model. Compare the footprint, door layout and storage capacity with the containers used in your operation. This configuration provides a 100.5 in. overall width, 111 cu. ft. of published storage capacity.
This is a remote-refrigeration configuration. A separate, correctly sized condensing system and field installation are required; do not use the self-contained family specifications as a substitute for the remote installation requirements.
Model configuration and practical use
- Width: 100.5 in.
- Depth: 35.56 in.
- Height: 83.25 in.
- Capacity (cu. ft.): 111
- Access Arrangement: roll-in
- Door Type: solid
- Door Style: full-height hinged
- Door Quantity: 3
- Refrigeration: remote refrigeration; separate condensing system required
- Interior Finish: anodized aluminum
Technical specifications
| Manufacturer | Traulsen |
|---|---|
| Model / ordering code | AIF332L-FHS |
| Width | 100.5 in. |
| Depth | 35.56 in. |
| Height | 83.25 in. |
| Size | 3 section |
| Door Type | solid |
| Door Style | full-height hinged |
| Door Quantity | 3 |
| Refrigeration | remote refrigeration; separate condensing system required |
| Exterior Finish | stainless steel |
| Interior Finish | anodized aluminum |
| Capacity (cu. ft.) | 111 |
| Access Arrangement | roll-in |
Installation and purchasing considerations
Confirm rack dimensions, cabinet opening and the floor transition along the loading route. A roll-in or roll-thru cabinet is intended for compatible mobile racks; shelf-cabinet dimensions do not establish rack compatibility. Verify the current factory drawing and utility requirements.
Frequently asked questions
How should I choose this configuration?
Choose the AIF332L-FHS by matching its footprint and access layout to your station, then check the listed capacity and utility requirements. Confirm optional finishes, hinges, pans, tray slides or support packages on the order.
Is a separate refrigeration system required?
Yes. This catalog configuration uses remote refrigeration. Confirm the condensing-system selection and field installation requirements with the applicable manufacturer instructions.
