Description

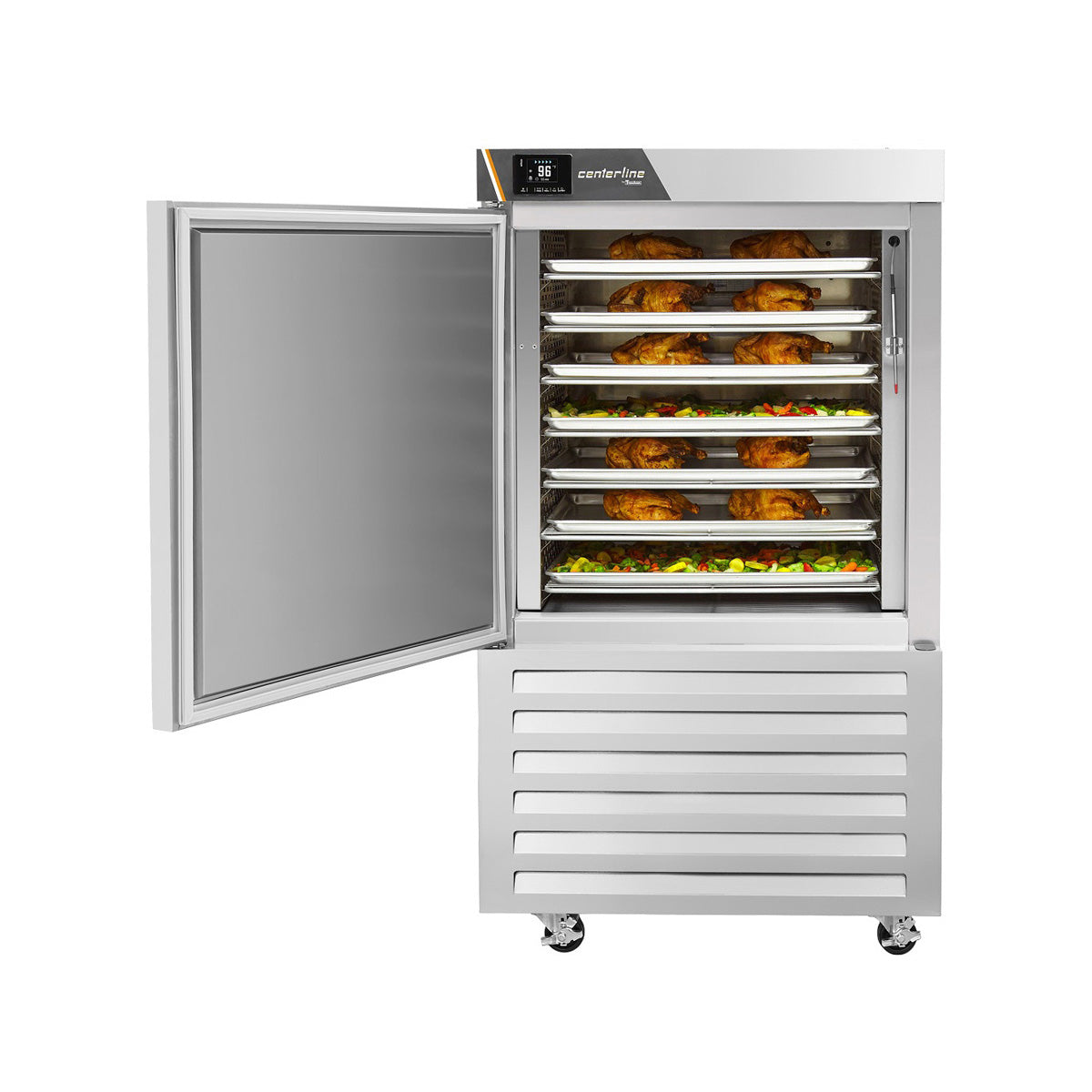

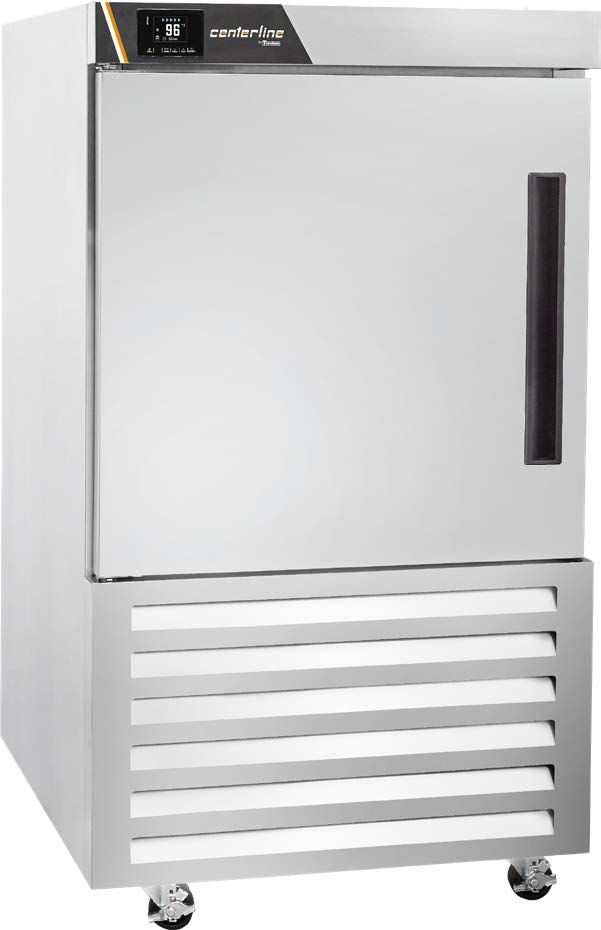

Traulsen CLBC7-R Blast Chiller
The Traulsen CLBC7-R is a blast chiller. Plan controlled cooling of prepared foods around the model’s batch capacity and rack or pan configuration. Select the cabinet and refrigeration arrangement for the production volume and installation site. This configuration provides a 34.75 in. overall width.

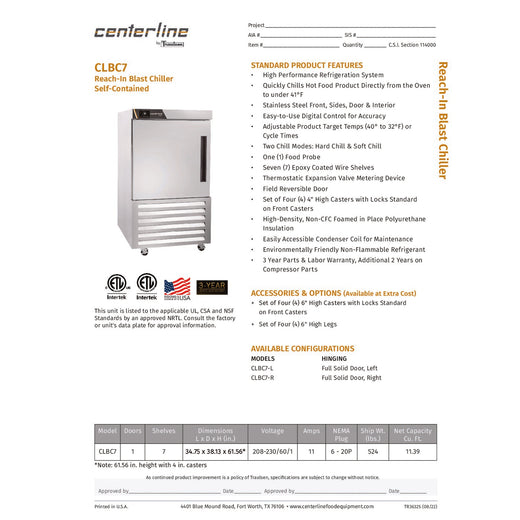

Match the refrigeration airflow path to the installation site. Keep condenser access available for cleaning and service, and use the factory drawing for the final opening and utility connections.
Batch capacity is a manufacturer rating for the specified loading and cycle conditions. Actual cooling performance depends on food type, starting temperature, container depth and loading. Follow the operating instructions when selecting cycles and positioning probes.
Model configuration and practical use
- Width: 34.75 in.
- Depth: 38.13 in.
- Height: 61.56 in.
- Hinge Location: reversible right
- Steam Table Pan Capacity: (14) 12" x 20" pans
- Sheet Pan Capacity: (7) 18" x 26" pans
- Chill Capacity (lbs): 56 lb
- Refrigeration: self-contained refrigeration
Technical specifications
| Manufacturer | Traulsen |
|---|---|
| Model / ordering code | CLBC7-R |
| Width | 34.75 in. |
| Depth | 38.13 in. |
| Height | 61.56 in. |
| Installation Type | free standing |
| Type | Blast Chiller |
| Style | Reach-In |
| Refrigeration | self-contained refrigeration |
| Steam Table Pan Capacity | (14) 12" x 20" pans |
| Sheet Pan Capacity | (7) 18" x 26" pans |
| Hinge Location | reversible right |
| Chill Capacity (lbs) | 56 lb |
| Refrigerant Type | R-448A |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow for doors or drawers to open and for staff to load food safely. Confirm the current model drawing, electrical data plate and ventilation or remote-system requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the CLBC7-R by matching its footprint and access layout to your station, then check the listed capacity and utility requirements. Confirm optional finishes, hinges, pans, tray slides or support packages on the order.
