Description

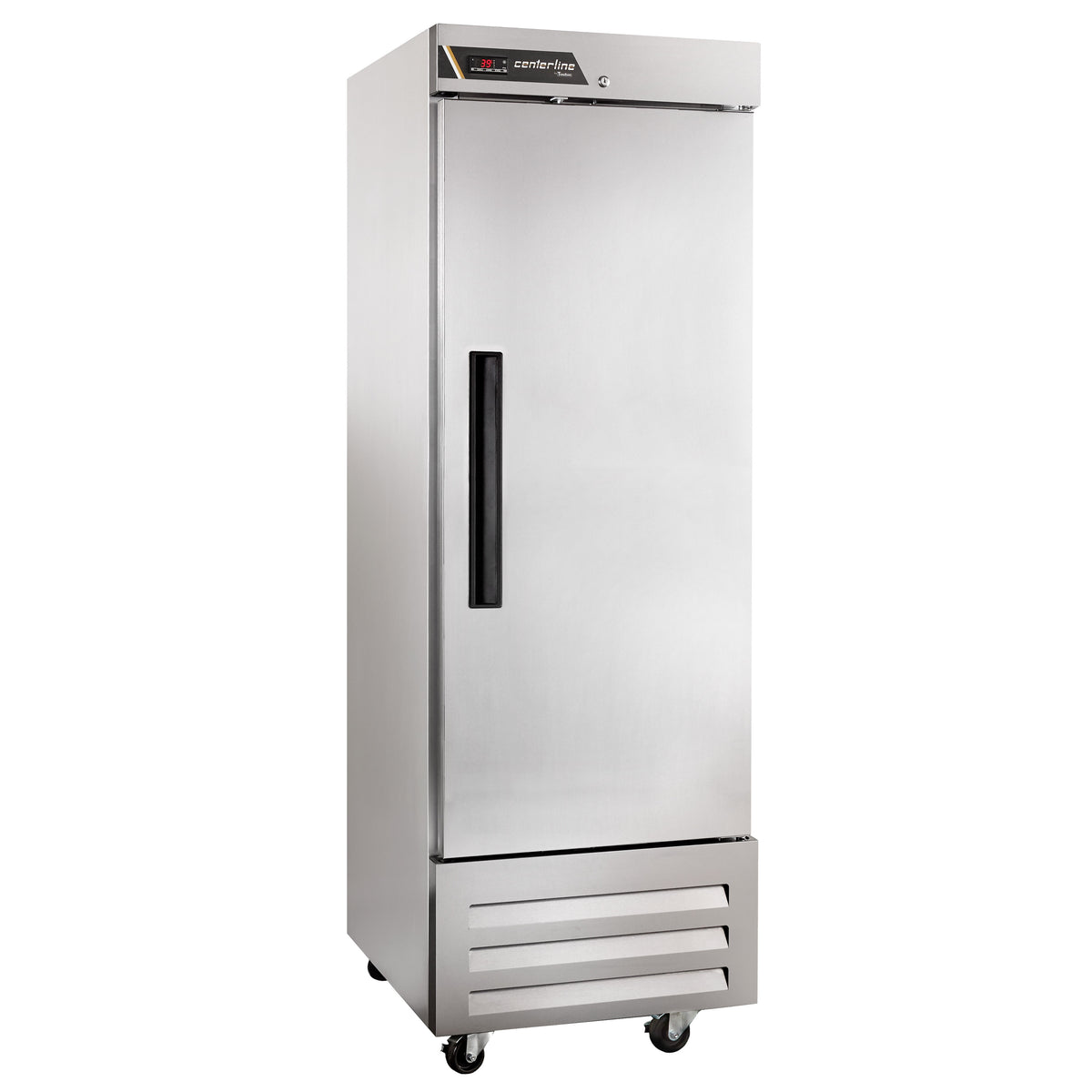

Traulsen CLBM-23F-FS-L Reach-In Freezer
The Traulsen CLBM-23F-FS-L is a reach-in freezer. Organize frozen ingredients in a commercial cabinet with the access arrangement specified for this ordering model. Compare the footprint, door layout and storage capacity with the containers used in your operation. This configuration provides a 27 in. overall width, 19.89 cu. ft. of published storage capacity.
Match the refrigeration airflow path to the installation site. Keep condenser access available for cleaning and service, and use the factory drawing for the final opening and utility connections.
Model configuration and practical use
- Width: 27 in.
- Depth: 33.5 in.
- Height: 82 in.
- Capacity (cu. ft.): 19.89
- Access Arrangement: reach-in
- Door Type: solid door
- Door Style: full hinged
- Door Quantity: 1
- Hinge Location: left
- Refrigeration: self-contained, bottom mounted
Technical specifications
| Manufacturer | Traulsen |
|---|---|
| Model / ordering code | CLBM-23F-FS-L |
| Width | 27 in. |
| Depth | 33.5 in. |
| Height | 82 in. |
| Size | 1 section |
| Door Type | solid door |
| Door Style | full hinged |
| Door Quantity | 1 |
| Refrigeration | self-contained, bottom mounted |
| Exterior Finish | stainless steel doors and louver; anodized aluminum sides |
| Interior Finish | anodized aluminum |
| Hinge Location | left |
| Capacity (cu. ft.) | 19.89 |
| Access Arrangement | reach-in |
| Cabinet Height Without Casters | 78 in. |
| Electrical Supply | 115/60/1 V/Hz/phase |
| Amps | 6.5 A |
The dimensional table lists a 78-inch cabinet height without casters. Overall height is 82 inches with the standard 4-inch casters; optional supports change the installed height.
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow for doors or drawers to open and for staff to load food safely. Confirm the current model drawing, electrical data plate and ventilation or remote-system requirements before connection.
Frequently asked questions
How should I choose this configuration?

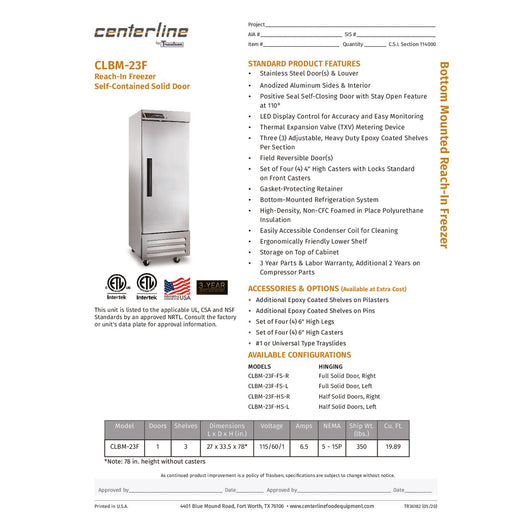

Choose the CLBM-23F-FS-L by matching its footprint and access layout to your station, then check the listed capacity and utility requirements. Confirm optional finishes, hinges, pans, tray slides or support packages on the order.
