Description

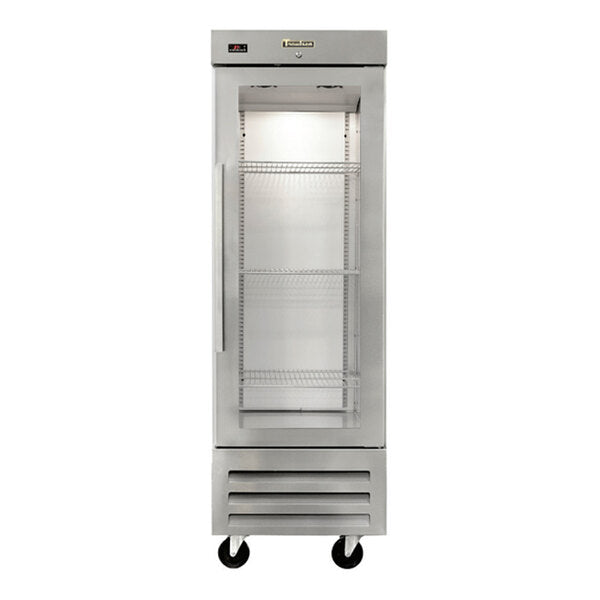

The Traulsen CLBM-23R-FG-R is a one-section, full-height glass-door reach-in refrigerator designed for refrigerated ingredient, beverage, and packaged-product storage. Its 20.5 cu. ft. cabinet, three adjustable epoxy-coated wire shelves, and LED microprocessor display help staff organize inventory and check cabinet temperature without opening the door.
This exact model has one full-height glass door hinged on the right. The door is self-closing, stays open when needed for loading, and is field reversible. A bottom-mounted, self-contained refrigeration system uses R-290 refrigerant, while the included 4-inch casters allow the cabinet to be moved for cleaning or repositioning.
Applications and Workflow
Suitable for restaurant prep areas, cafes, convenience retail, bakeries, institutional kitchens, and beverage or grab-and-go storage where product visibility through a glass door is useful. This is a refrigerated reach-in cabinet operating at 36-41°F, not a freezer.
Features and Practical Benefits
Glass-door product visibility
The full-height glass door lets staff view stored items before opening the cabinet, supporting faster selection during service and inventory checks.
Right-hinged, flexible door setup
This CLBM-23R-FG-R configuration is supplied with a right-hinged door. The door is field reversible, allowing the swing direction to be changed during installation when site conditions require it.
Organized adjustable storage
Three adjustable epoxy-coated wire shelves are supplied per section. Each shelf is supported on shelf pins and is rated for loads up to 150 lb.
Accessible bottom-mounted refrigeration
The self-contained bottom-mounted system uses R-290 refrigerant and has a front-facing condenser coil for cleaning access.
Mobile cabinet base
Four 4-inch casters are standard, including two braking casters, for easier movement and placement.
Technical Specifications
| Manufacturer model | CLBM-23R-FG-R |
|---|---|
| Cabinet configuration | 1-section full-height glass-door reach-in refrigerator |
| Door hinge as supplied | Right hinged |
| Capacity | 20.5 cu. ft. |
| Overall width | 27 in. |
| Overall depth | 33 1/2 in. |
| Overall height | 82 in. |
| Electrical service | 115/60/1 |
| Amperage | 3.4 A |
| Plug configuration | NEMA 5-15P |
| Horsepower | 1/3 hp |
| Refrigerant | R-290 |
| Refrigerant charge | 3.0 oz. (85 g) |
| Operating temperature range | 36-41°F (2.2-5°C) |
| Shelves included | 3 adjustable epoxy-coated wire shelves |
| Shelf load limit | 150 lb. per shelf |
| Casters | Four 4 in. casters; two with brakes |
| Door-open depth | 57 1/2 in. |
| Power cord | 9 ft. cord and plug |
Installation and Purchasing Considerations
- Plan for a 27-inch overall width, 33 1/2-inch overall depth, and 82-inch overall height. The published overall height includes the 4-inch casters.

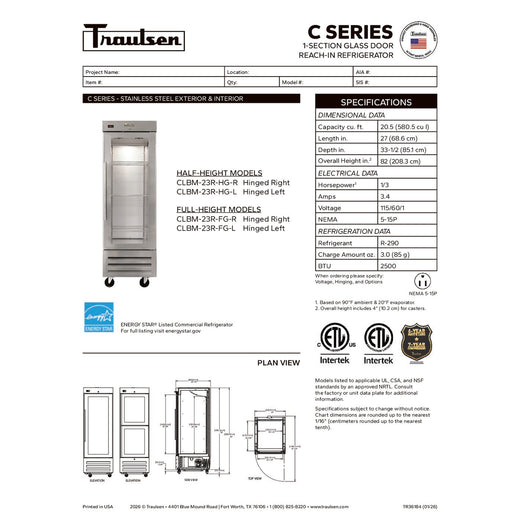

- Allow for the door swing: the full-door dimensional drawing shows 57 1/2 inches with the door open. Confirm aisle and adjacent-equipment clearance before final placement.
- This unit requires 115/60/1 electrical service and uses a NEMA 5-15P plug. A 9-foot cord and plug are provided.
- The refrigeration system is self-contained and bottom-mounted; no remote condenser connection is specified. Keep the front-facing condenser accessible for cleaning.
- Confirm the required hinge direction before installation. This exact model is right hinged as supplied, although the door is field reversible.
Choosing This Configuration
CLBM-23R-FG-R is the one-section, 27-inch, full-height glass-door configuration with a right-hinged door.
Do not confuse this model with half-height glass-door versions; this unit uses one full-height door.
Glass-door and solid-door versions serve different visibility needs. This model is the glass-door version.
The three adjustable wire shelves and 4-inch casters are listed as standard; separately listed field-installed options should not be assumed to be included.
Frequently Asked Questions
What is the door configuration on the CLBM-23R-FG-R?
It has one full-height glass door supplied with right-hand hinging. The door is self-closing, has a stay-open feature, and is field reversible.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power, draws 3.4 amps, and uses a NEMA 5-15P plug. A 9-foot cord and plug are provided.
How much storage space and shelving does it provide?
The cabinet has 20.5 cu. ft. of capacity and includes three adjustable epoxy-coated wire shelves. Each shelf has a maximum listed load of 150 lb.
What temperature range does this reach-in refrigerator maintain?
The refrigeration system is specified to operate at 36-41°F.
