Description

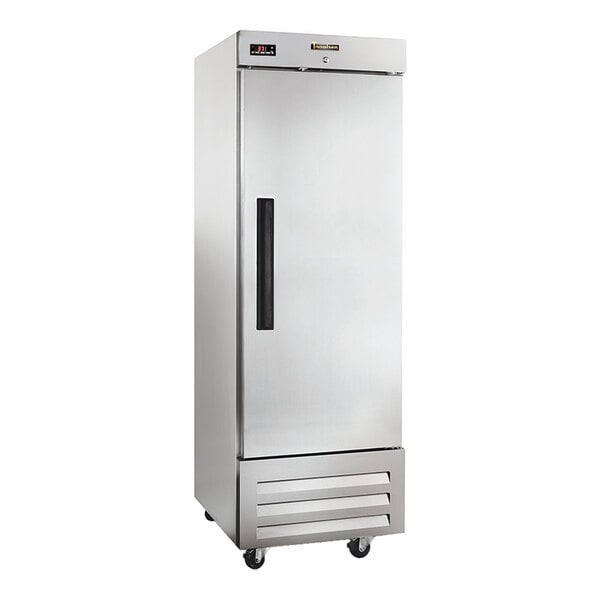

The Traulsen CLBM-23R-FS-R is a one-section, full-height solid-door reach-in refrigerator for refrigerated storage in commercial kitchens, prep areas, and back-of-house service. Its self-contained, bottom-mounted refrigeration system operates at 36–41°F, while the water-resistant LED microprocessor display provides an accessible temperature readout and control point.
This exact configuration has one full-height solid door hinged on the right, three adjustable epoxy-coated wire shelves, and a 19.89 cu. ft. cabinet. The door is self-closing and stays open when needed for loading. A stainless steel exterior and interior support routine commercial use, and the unit is supplied on 4 in. casters, with two brakes.
Applications and Workflow
Suitable for refrigerated ingredient, packaged-product, and mise en place storage in restaurants, cafeterias, healthcare kitchens, and institutional foodservice operations. This is a refrigerator, not a freezer; select it for storage within its specified 36–41°F operating range rather than frozen product storage.
Features and Practical Benefits
Right-hinged full-height solid door
Model CLBM-23R-FS-R is supplied with a full-height solid door hinged on the right. The door self-closes and includes a stay-open feature to support loading and unloading.
Organized one-section storage
The 19.89 cu. ft. cabinet includes three adjustable epoxy-coated wire shelves. Each shelf is supported on shelf pins, and the manufacturer specifies a maximum 150 lb. load per shelf.
Self-contained bottom-mounted refrigeration
A bottom-mounted, self-contained system uses R-290 refrigerant and is designed to operate at 36–41°F. The front-facing condenser coil is positioned for cleaning access.
Durable cabinet and mobile base
The cabinet has a stainless steel exterior and interior, with galvanized steel used for the exterior top, back, and bottom. Four 4 in. casters are supplied; two have brakes.
Technical Specifications
| Manufacturer model | CLBM-23R-FS-R |
|---|---|
| Product type | One-section solid-door reach-in refrigerator |
| Door configuration | One full-height solid door, right hinged |
| Capacity | 19.89 cu. ft. (564 L) |
| Overall width | 27 in. (68.6 cm) |
| Overall depth | 33-1/2 in. (85.1 cm) |
| Overall height | 82 in. (208.3 cm) |
| Electrical supply | 115/60/1 |
| Amperage | 3.4 amps |
| Plug type | NEMA 5-15P |
| Compressor horsepower | 1/3 hp |
| Refrigerant | R-290 |
| Refrigerant charge | 3.0 oz. (85 g) |
| Operating temperature range | 36–41°F (2.2–5°C) |
| Shelves included | 3 adjustable epoxy-coated wire shelves |
| Shelf load limit | 150 lb. per shelf |
| Casters | Four 4 in. casters; two with brakes |
| Power cord | 9 ft. cord and plug |
Installation and Purchasing Considerations
- Allow a footprint of 27 in. W × 33-1/2 in. D, with an overall height of 82 in. The stated overall height includes the 4 in. casters.
- Connect to a 115/60/1 electrical supply using the factory-provided 9 ft. cord and NEMA 5-15P plug. The unit is rated at 3.4 amps.
- Plan access space on the right side/front for the supplied right-hinged door to swing and for staff to load shelves. The door is field-reversible, but the as-supplied model is right hinged.
- Because this is a self-contained bottom-mounted unit with a front-facing condenser coil, keep the coil accessible for routine cleaning. Confirm site placement and service access before installation.
- Lock the two braking casters after positioning the cabinet.
Choosing This Configuration
This page is for CLBM-23R-FS-R: a one-section refrigerator with one full-height solid door supplied right hinged.

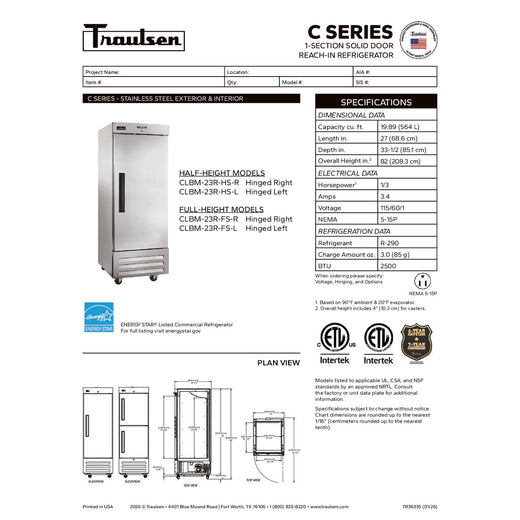

The C Series specification sheet also identifies left-hinged and half-height-door variants. Those configurations are not this exact model.
A solid door is specified for this model; do not substitute information from glass-door versions when planning visibility or merchandising needs.
The supplied configuration includes three adjustable epoxy-coated wire shelves and four 4 in. casters. Larger 6 in. casters, legs, tray slides, and shelf-pilaster arrangements are listed as field-installed options rather than standard inclusions.
Frequently Asked Questions
Which way does the door hinge on the CLBM-23R-FS-R?
This exact model is supplied hinged on the right. The manufacturer also states that the door is field-reversible.
What electrical connection does this refrigerator require?
It requires 115/60/1 power, draws 3.4 amps, and is supplied with a 9 ft. cord and NEMA 5-15P plug.
How many shelves are included?
Three adjustable epoxy-coated wire shelves are included in the one-section cabinet. The manufacturer specifies a maximum load of 150 lb. per shelf.
Are casters included?
Yes. The unit includes four 4 in. casters; two are equipped with brakes.
