Description

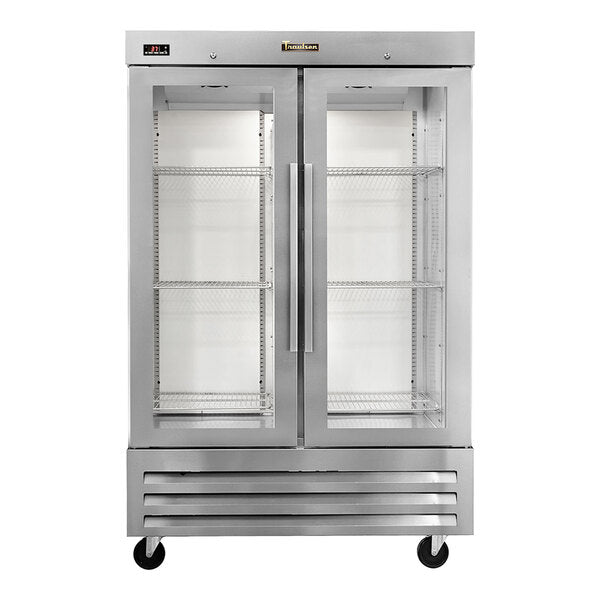

The Traulsen CLBM-49R-FG-LR is a full-height, two-section reach-in refrigerator with two full glass doors and 45.13 cu. ft. of refrigerated storage. Its left/right door hinging places one hinge on each outside edge, while the glass doors allow staff to check stored inventory before opening the cabinet.
This self-contained, bottom-mounted refrigerator operates at 36-41°F and uses R-290 refrigerant. Six adjustable epoxy-coated wire shelves support organized storage across two sections; self-closing doors also include a stay-open feature for loading and retrieval.
Applications and Workflow
Suitable for commercial kitchens, cafeterias, markets, and prep areas that need refrigerated storage with visible product identification. This is a refrigerator, not a freezer or heated holding cabinet. Plan its 53-3/4 inch width, 33-1/2 inch depth, and door-swing clearance before installation.
Features and Practical Benefits
Glass-door inventory visibility
Two full-height glass doors help staff identify stored items without repeatedly opening the cabinet.
Two-section organized storage
The 45.13 cu. ft. cabinet includes six adjustable epoxy-coated wire shelves, with three shelves in each section.
Workflow-oriented doors
The self-closing doors have a stay-open feature to support loading, unloading, and frequent access.
Self-contained refrigeration
A bottom-mounted, self-contained refrigeration system uses R-290 refrigerant and has a front-facing condenser coil for cleaning access.
Ready for standard 115V power
The unit is specified for 115/60/1 electrical service and includes a 9-foot cord with a NEMA 5-15P plug.
Technical Specifications
| Manufacturer model | CLBM-49R-FG-LR |
|---|---|
| Refrigerator type | 2-section full-height glass door reach-in refrigerator |
| Door hinging | Left/right |
| Capacity | 45.13 cu. ft. |
| Overall width | 53-3/4 in. |
| Overall depth | 33-1/2 in. |
| Overall height | 82 in. including casters |
| Refrigeration system | Self-contained, bottom-mounted |
| Operating temperature range | 36-41°F |
| Refrigerant | R-290 |
| Electrical service | 115V, 60 Hz, 1 phase |
| Amperage | 3.6 A |
| Plug type | NEMA 5-15P |
| Compressor horsepower | 1/3 hp |
| Shelves | 6 adjustable epoxy-coated wire shelves |
| Door operation | Self-closing with stay-open feature |
| Cabinet construction | Stainless steel exterior and interior |
| Casters | Four 4 in. casters; two with brakes |
| Power cord | 9 ft. cord and plug |
Installation and Purchasing Considerations
- Provide a level location measuring at least 53-3/4 inches wide by 33-1/2 inches deep; overall height is 82 inches, including the casters.
- Connect to a 115V, 60 Hz, single-phase electrical supply using the supplied NEMA 5-15P plug. The specified electrical draw is 3.6 amps.

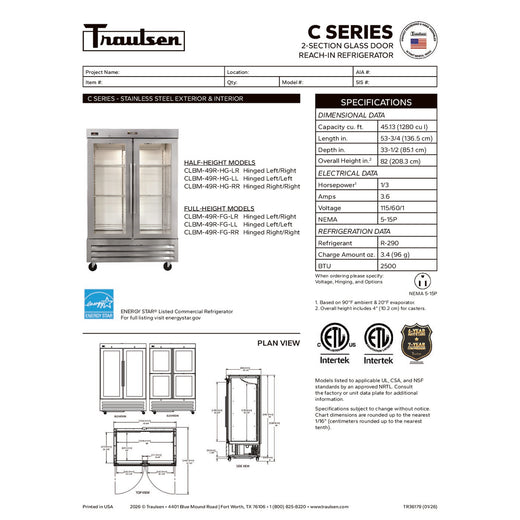

- Allow aisle and door-swing space. The dimensional drawing shows 57-1/2 inches at the open-door profile.
- The cabinet has four 4-inch casters, including two braking casters. Position and lock the brakes after final placement.
- Keep the front-facing condenser coil accessible for routine cleaning. Confirm site ventilation and service-access requirements before setting the cabinet in place.
Choosing This Configuration
CLBM-49R-FG-LR is the full-height glass-door version with left/right hinging; it is not the half-height glass-door configuration.
This exact model has two sections and two full glass doors. Solid-door alternatives are a different configuration.
Six adjustable wire shelves are specified. Do not assume optional legs, larger casters, tray slides, or additional shelving are included.
Frequently Asked Questions
What does LR mean in CLBM-49R-FG-LR?
LR identifies a left/right hinged door arrangement: the two full-height doors are hinged on opposite outside edges.
How many shelves does this refrigerator have?
It has six adjustable epoxy-coated wire shelves total, with three shelves in each section.
What electrical connection does it require?
It requires 115V, 60 Hz, single-phase power and is specified with a NEMA 5-15P plug. A 9-foot cord and plug are provided.
Does this unit have a remote condenser?
No. It uses a self-contained, bottom-mounted refrigeration system.
