Description

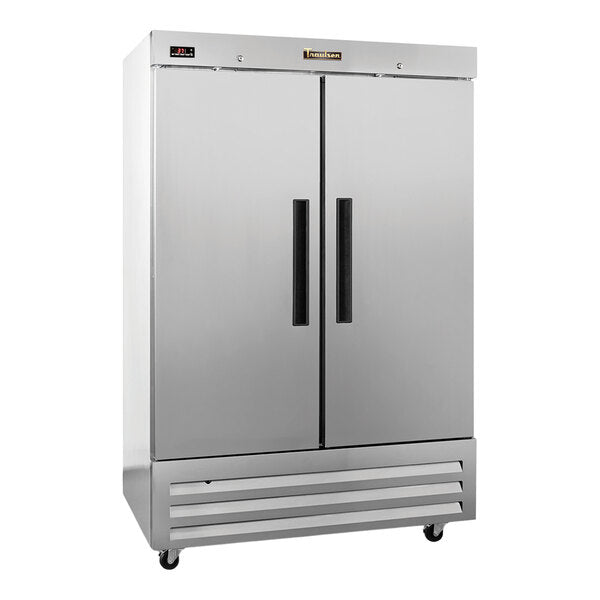

The Traulsen CLBM-49R-FS-LR is a full-height, two-section reach-in refrigerator with two solid doors hinged left and right. Its 43.88 cu. ft. cabinet provides refrigerated storage for ingredients and prepared products while keeping each section independently accessible from the front.
This C Series configuration uses a self-contained, bottom-mounted R-290 refrigeration system and operates from a 115V connection. Six adjustable epoxy-coated wire shelves—three per section—support organized storage, while self-closing doors can stay open during loading or restocking.
Applications and Workflow
Suitable for commercial kitchens, prep areas, cafeterias, and back-of-house refrigerated ingredient storage where a full-height two-section cabinet and left/right door arrangement fit the workflow. This is a refrigerator for 36-41°F operation, not a freezer.
Features and Practical Benefits
Left/right full-height door layout
This exact model has two solid, full-height doors with left/right hinging, allowing staff to access either section separately.
Organized two-section storage
The 43.88 cu. ft. interior includes six adjustable epoxy-coated wire shelves, with three shelves in each section.
Loading-friendly doors
Self-closing doors include a stay-open feature for restocking and retrieval.
Front-serviceable refrigeration components
The self-contained bottom-mounted refrigeration system uses R-290 refrigerant and has a front-facing condenser coil for cleaning access.
Durable mobile cabinet
Stainless steel exterior and interior construction is paired with four 4-inch casters; two casters have brakes.

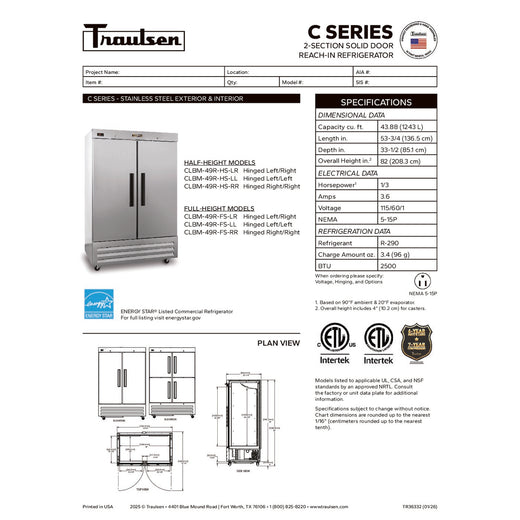

Technical Specifications
| Manufacturer model | CLBM-49R-FS-LR |
|---|---|
| Configuration | Two-section, full-height solid-door reach-in refrigerator |
| Door hinging | Left/right |
| Capacity | 43.88 cu. ft. (1243 L) |
| Overall width | 53-3/4 in. (136.5 cm) |
| Overall depth | 33-1/2 in. (85.1 cm) |
| Overall height | 82 in. (208.3 cm), including casters |
| Electrical supply | 115V, 60 Hz, 1 phase |
| Amperage | 3.6 A |
| Horsepower | 1/3 hp |
| Plug type | NEMA 5-15P |
| Power cord | 9 ft. cord and plug provided |
| Refrigerant | R-290 |
| Operating temperature range | 36-41°F (2.2-5°C) |
| Shelves | 6 adjustable epoxy-coated wire shelves |
| Cabinet construction | Stainless steel exterior and interior |
| Casters | Four 4 in. casters; two with brakes |
Installation and Purchasing Considerations
- Allow a cabinet footprint of 53-3/4 in. W x 33-1/2 in. D x 82 in. H. The listed overall height includes the 4-inch casters.
- Connect to a 115V, 60 Hz, single-phase electrical supply. The unit is specified with a NEMA 5-15P plug and a 9-foot cord.
- Plan the installation around the left/right door hinging and leave practical front access for opening doors, loading shelves, and cleaning the front-facing condenser coil.
- This is a self-contained, bottom-mounted model; it does not require a separately installed remote condenser. Keep the condenser area accessible for routine cleaning.
- Confirm that the delivery route, doorway openings, and final location accommodate the cabinet dimensions before purchase.
Choosing This Configuration
CLBM-49R-FS-LR is the solid-door, full-height, two-section configuration with left/right hinging.
Do not substitute a glass-door model when solid doors are required for the intended storage workflow.
The supplied shelving is six adjustable epoxy-coated wire shelves. Tray slides and other field-installed options are not represented as included with this unit.
Frequently Asked Questions
What door arrangement does the CLBM-49R-FS-LR have?
It has two full-height solid doors: one left-hinged and one right-hinged.
How many shelves are included?
The refrigerator has six adjustable epoxy-coated wire shelves, with three shelves in each section.
What electrical connection does it need?
It requires 115V, 60 Hz, single-phase power and uses a NEMA 5-15P plug. A 9-foot cord and plug are provided.
Is this a remote or self-contained refrigerator?
It is a self-contained refrigerator with a bottom-mounted system using R-290 refrigerant.
