Description

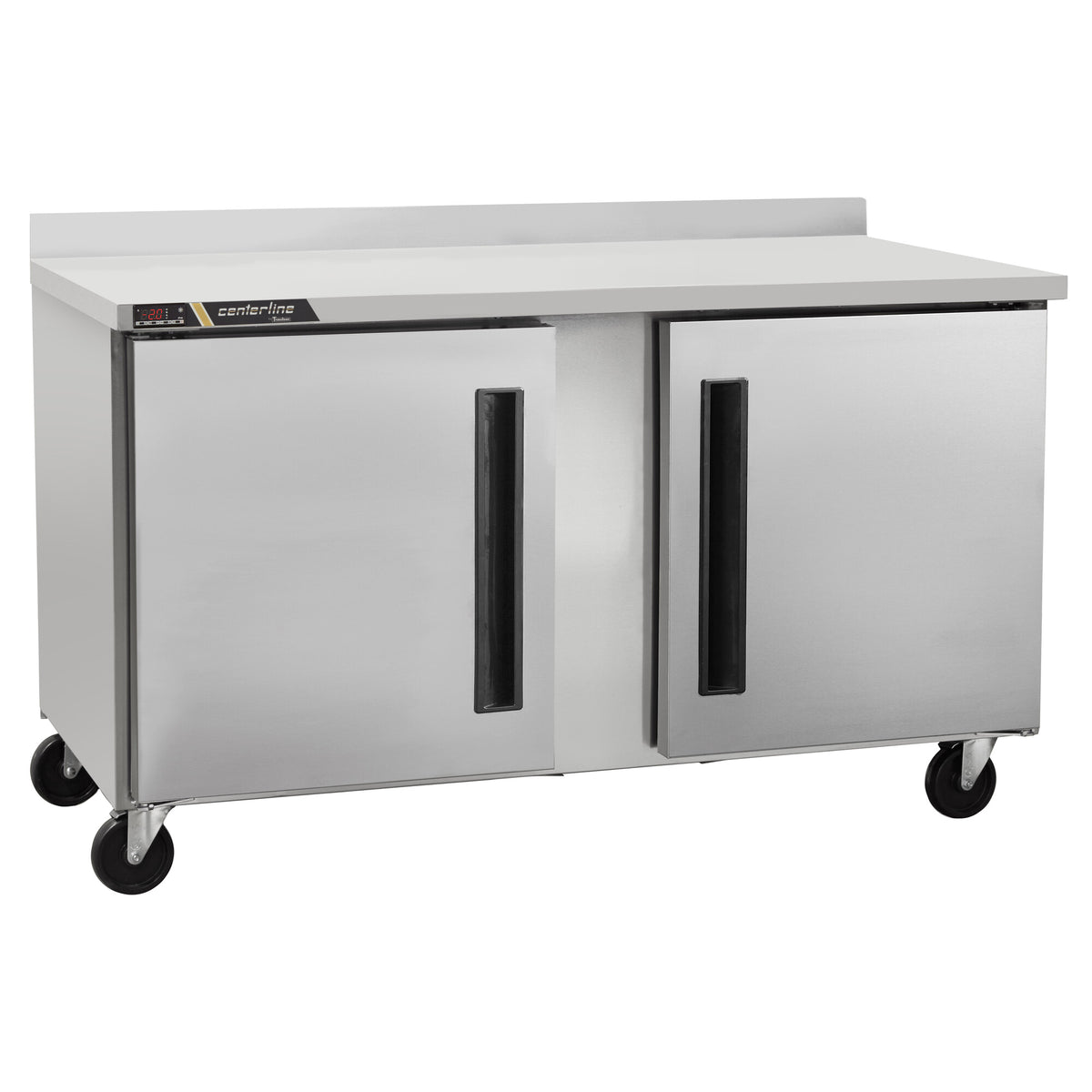

Traulsen CLUC-60F-SD-WTLL Worktop Freezer
The Traulsen CLUC-60F-SD-WTLL is a worktop freezer. Add frozen storage below a commercial worktop. Select the footprint and access layout for the station, allowing room for staff to load containers and clean the work surface. This configuration provides a 60.25 in. overall width, 17 cu. ft. of published storage capacity.
Match the refrigeration airflow path to the installation site. Keep condenser access available for cleaning and service, and use the factory drawing for the final opening and utility connections.
Model configuration and practical use
- Width: 60.25 in.
- Depth: 31.5 in.
- Height: 38 in.
- Capacity (cu. ft.): 17
- Door Type: solid door
- Number of Doors: 2 doors
- Hinge Location: left
- Refrigeration: self-contained, rear mounted
- Compressor Style: side / rear breathing
- Interior Finish: all aluminum interior
Technical specifications
| Manufacturer | Traulsen |
|---|---|
| Model / ordering code | CLUC-60F-SD-WTLL |
| Width | 60.25 in. |
| Depth | 31.5 in. |
| Height | 38 in. |
| Size | 2 section |
| Access Type | doors |
| Number of Doors | 2 doors |
| Door Type | solid door |
| Refrigeration | self-contained, rear mounted |
| Compressor Style | side / rear breathing |
| Special Features | worktop configuration with backsplash |
| Exterior Finish | stainless steel exterior |
| Interior Finish | all aluminum interior |
| Hinge Location | left |
| Capacity (cu. ft.) | 17 |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow for doors or drawers to open and for staff to load food safely. Confirm the current model drawing, electrical data plate and ventilation or remote-system requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the CLUC-60F-SD-WTLL by matching its footprint and access layout to your station, then check the listed capacity and utility requirements. Confirm optional finishes, hinges, pans, tray slides or support packages on the order.
What clearance should I allow?
Allow space for loading, door swing or drawer extension, and access to the refrigeration system for maintenance. Use the exact factory drawing to establish the installation opening and airflow requirements.
