Description

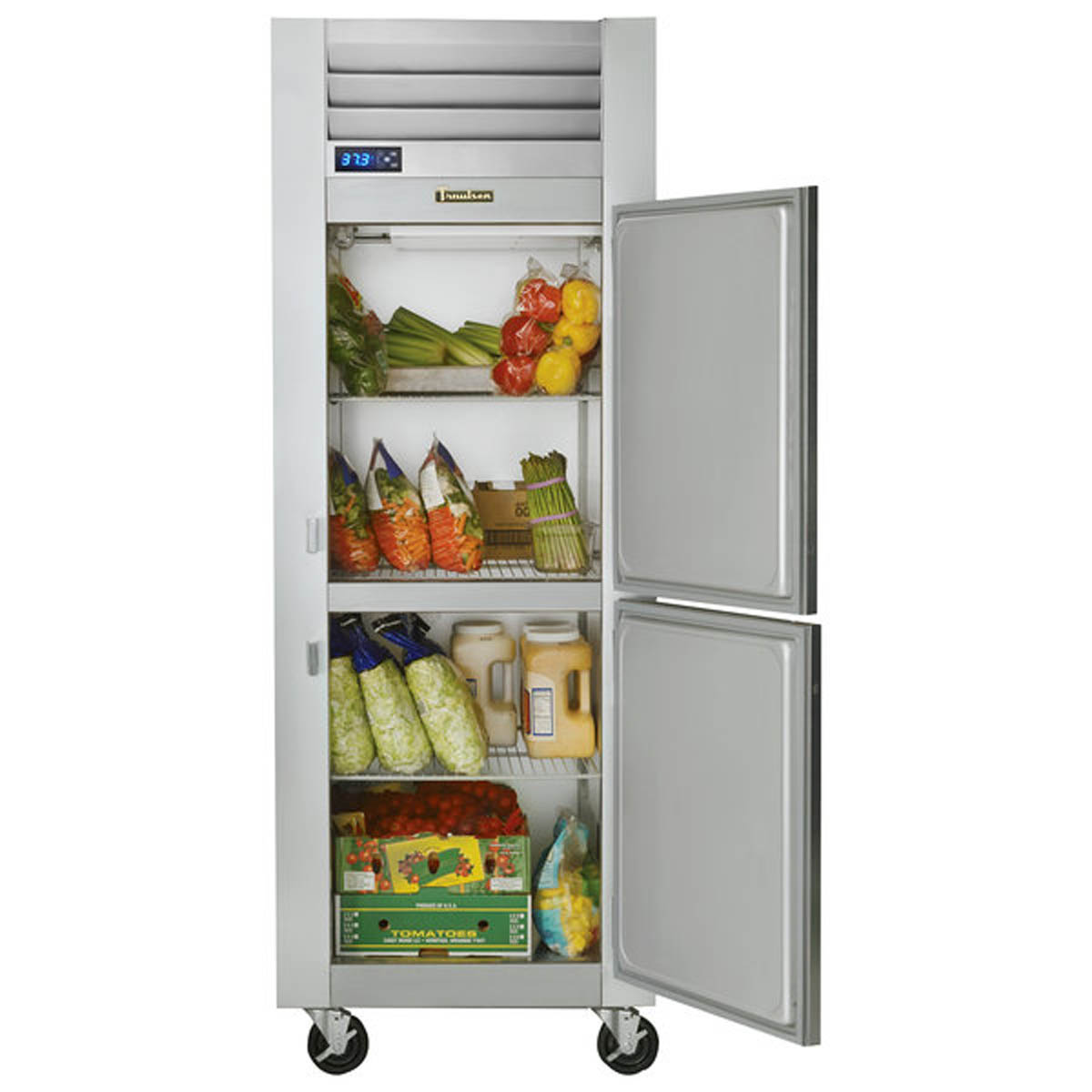

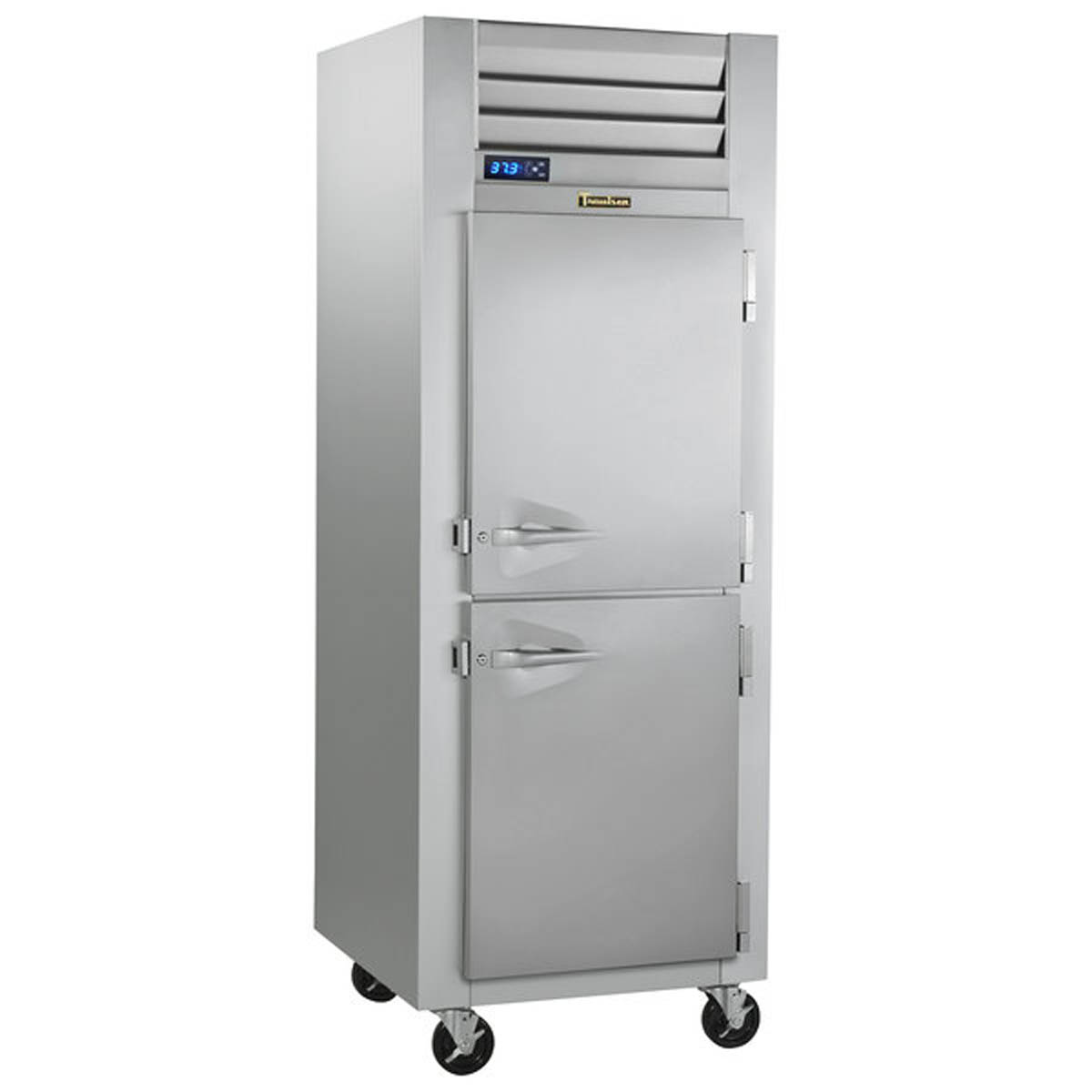

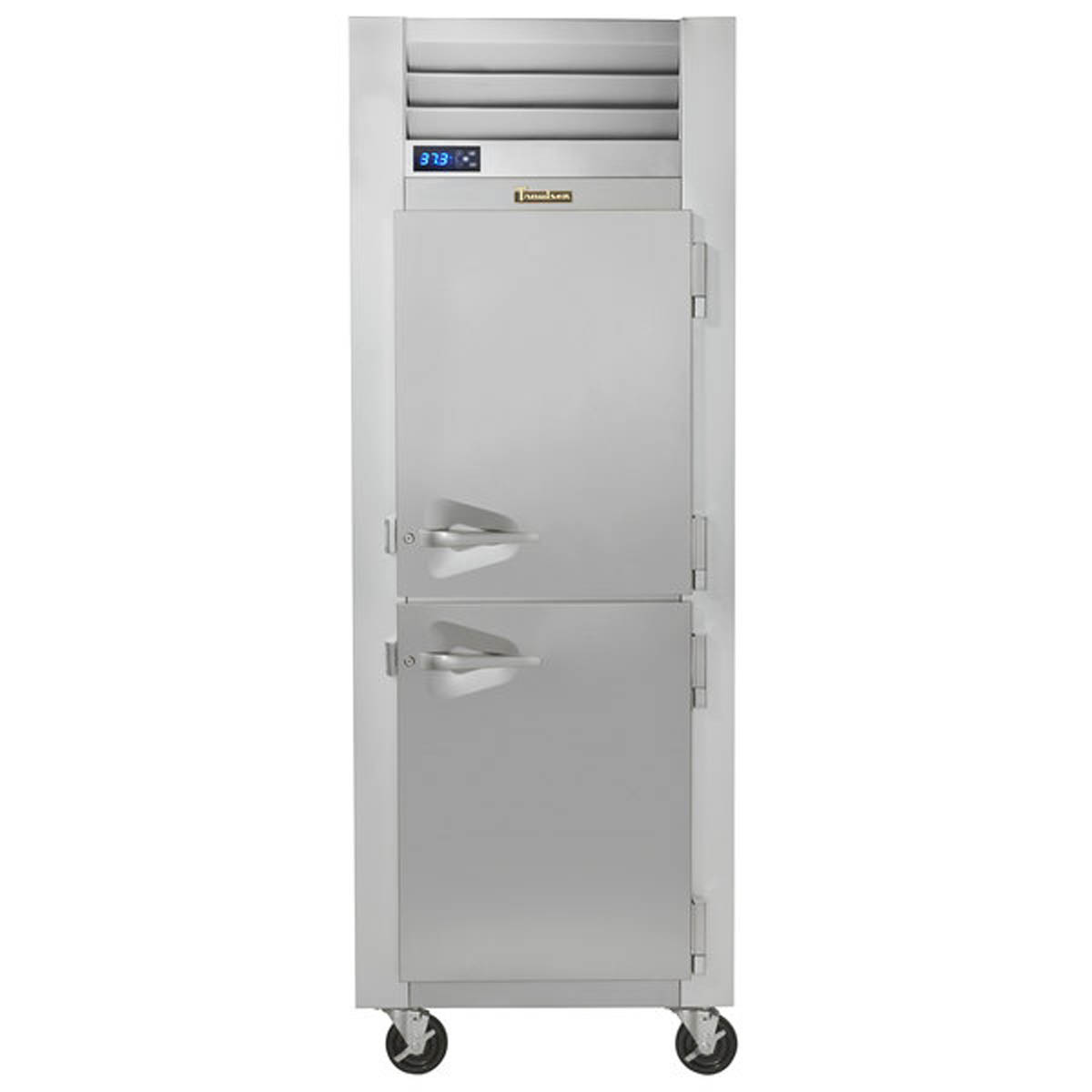

The Traulsen G10000 is a one-section, self-contained reach-in refrigerator configured with two solid half-height doors hinged on the right. Its top-mounted refrigeration system keeps the bottom of the cabinet available for refrigerated storage, while the microprocessor control provides a LED temperature display for routine monitoring.
This 29 7/8-inch-wide cabinet has 23.37 cu. ft. of net capacity and includes three epoxy-coated wire shelves. Half doors let staff open only the upper or lower portion needed for a task, helping organize frequently accessed refrigerated ingredients in commercial kitchens, prep areas, and back-of-house storage.
Applications and Workflow
Suitable for refrigerated ingredient, packaged food, and mise en place storage in commercial kitchens, restaurants, schools, and institutional foodservice areas. This is a one-section reach-in refrigerator, not a pass-through cabinet; access is from the front through its two right-hinged half doors.
Features and Practical Benefits
Right-hinged half-door access
Two solid half-height doors are hinged on the right, allowing upper and lower cabinet access independently.
Top-mounted self-contained refrigeration
The R-290 refrigeration system is mounted at the top of the cabinet and includes a front-facing condenser coil for maintenance access.
Useful organized storage
The cabinet provides 23.37 cu. ft. of net capacity and comes with three factory-installed epoxy-coated wire shelves.
Straightforward temperature monitoring
A microprocessor control with LED temperature display supports at-a-glance cabinet monitoring.
Mobile cabinet base
Four 6-inch-high locking casters are included for positioning and securing the refrigerator.
Technical Specifications
| Manufacturer model | G10000 |
|---|---|
| Cabinet type | 1-section reach-in refrigerator |
| Door configuration | 2 solid half-height doors, right hinged |
| Net capacity | 23.37 cu. ft. |
| Overall width | 29 7/8 in. |
| Overall depth | 35 1/16 in. |
| Overall height | 83 7/16 in. |
| Depth with door open 90° | 56 11/16 in. |
| Electrical requirement | 115V, 60Hz, 1-phase |
| Plug | NEMA 5-15P, attached |
| Full-load amperage | 3.8 A |
| Refrigerant | R-290 |
| Refrigerant charge | 4.5 oz. |
| Compressor horsepower | 1/4 HP |
| Required top clearance | 12 in. above |
| Standard shelves | 3 epoxy-coated wire shelves |
| Shelf area | 18.8 sq. ft. |
| Operating temperature | 34 to 38°F |
| Casters | Four 6 in. high locking casters |
| Power cord length | 9 ft. |
Installation and Purchasing Considerations
- Provide a finished location at least 29 7/8 inches wide by 35 1/16 inches deep by 83 7/16 inches high, including the standard casters.
- Allow 12 inches of clearance above the cabinet for the top-mounted refrigeration system.
- Plan for 56 11/16 inches of depth when a door is open 90 degrees; confirm this swing clearance will not block an aisle or adjacent equipment.
- Connect to a 115V, 60Hz, single-phase electrical supply. The unit has an attached NEMA 5-15P plug and a 9-foot cord.
- The refrigerator is supplied on four 6-inch-high locking casters. Verify floor access, final placement, and enough overhead space before delivery.
Choosing This Configuration
This exact G10000 configuration is a front-access, one-section refrigerator with two solid half-height doors hinged right.
Do not substitute it for a full-height-door cabinet when separate upper and lower door access is required.
This is not a pass-through model; pass-through cabinets provide doors on both sides and have different access requirements.
Tray slides and additional shelves are listed as field-installed accessories or options; they should not be assumed to be included with the standard cabinet.
Frequently Asked Questions
What door configuration does the Traulsen G10000 use?
It has two solid half-height doors, both hinged on the right side.
What electrical connection is required?
The refrigerator operates on 115V, 60Hz, single-phase power and is equipped with an attached NEMA 5-15P plug on a 9-foot cord.
How much installation clearance does it need?
Allow 12 inches above the cabinet. At a 90-degree door opening, the overall depth reaches 56 11/16 inches.
What comes inside the cabinet?
Three epoxy-coated steel wire shelves are factory installed. Optional tray slides and additional shelves are separate accessories.
