Description

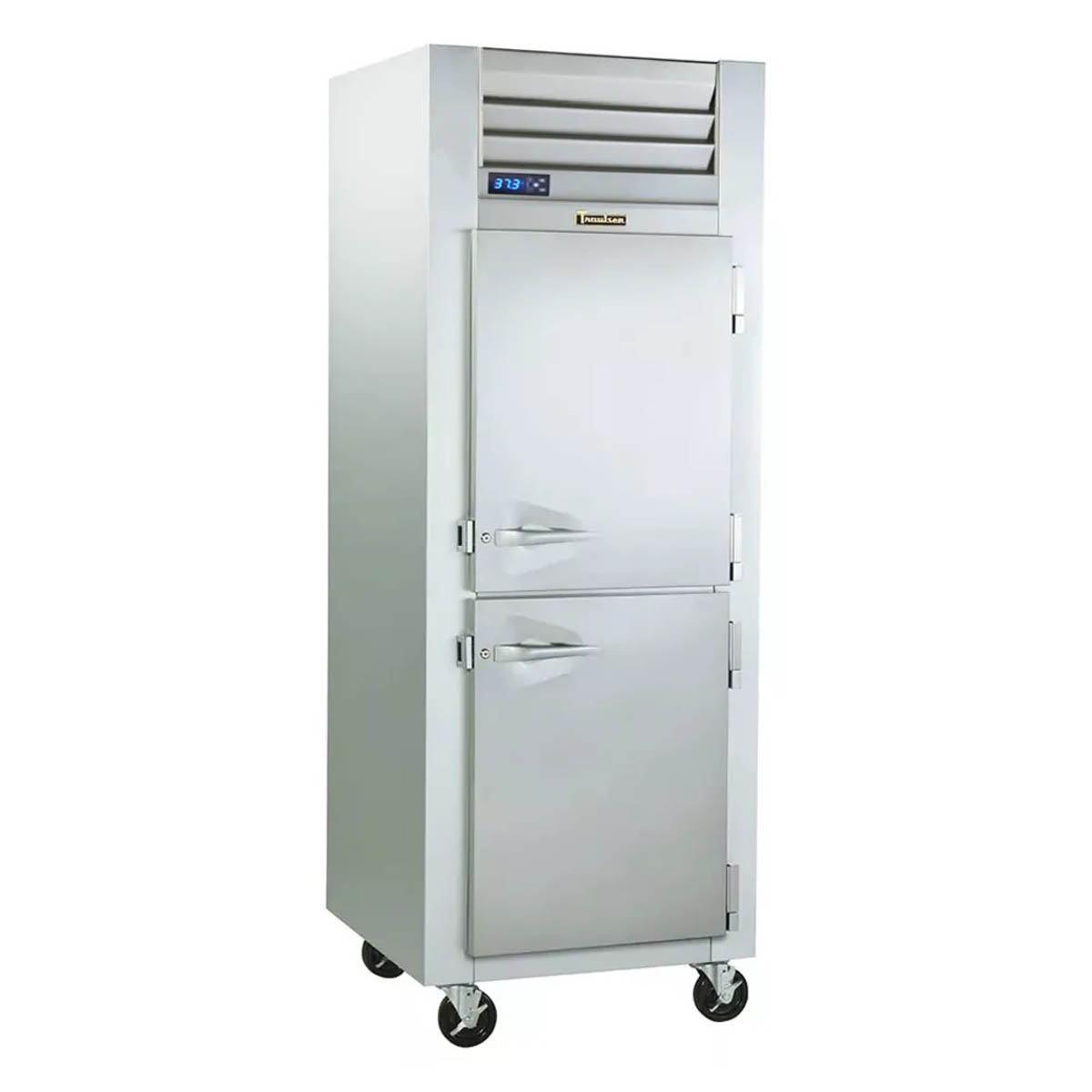

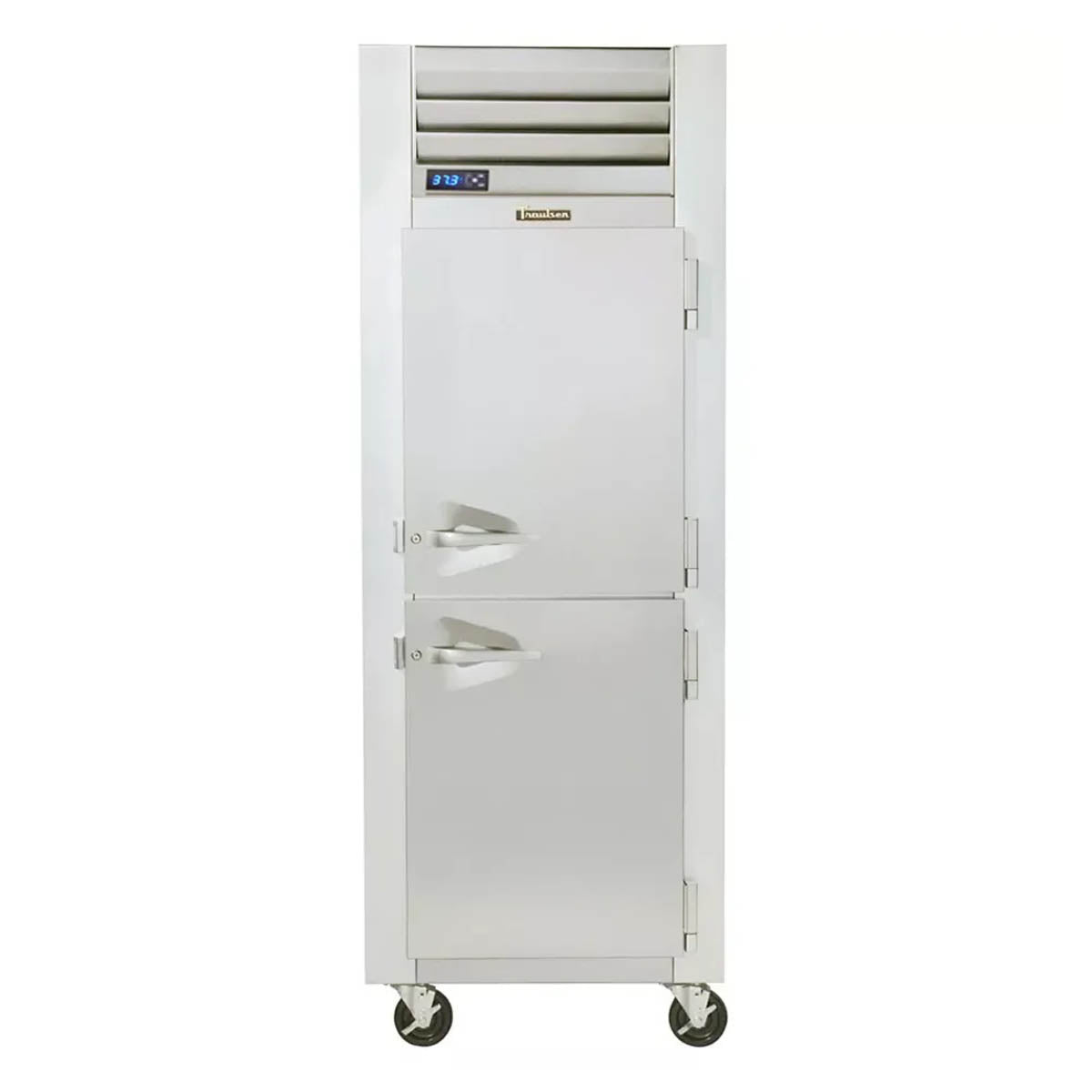

The Traulsen G10002P is a self-contained, one-section pass-thru refrigerator designed to provide refrigerated access from both sides of the cabinet. Its four half-height solid doors are all right hinged: two doors on the control side and two on the non-control side. This arrangement lets staff retrieve smaller loads without opening the full cabinet height.
A top-mounted refrigeration system keeps the evaporator outside the food zone to preserve cabinet storage space. The cabinet includes three epoxy-coated wire shelves, a microprocessor control with LED temperature display, locking 6-inch casters, and a front-facing condenser coil for routine cleaning access.
Applications and Workflow
Suitable for commercial kitchens, prep areas, production lines, and service areas where refrigerated ingredients or packaged products need to move between two work zones. This is a pass-thru refrigerator, not a freezer or heated cabinet. Verify that the right-hinged doors on both sides match the available aisle and equipment clearances.
Features and Practical Benefits
Two-sided refrigerated access
Pass-thru construction allows products to be loaded from one side and retrieved from the other, supporting separate prep, production, or service workflows.
Specific right/right door swing
G10002P has half-height doors hinged right on both the control side and non-control side. Each half-door arrangement can reduce the amount of cabinet exposure during frequent access.

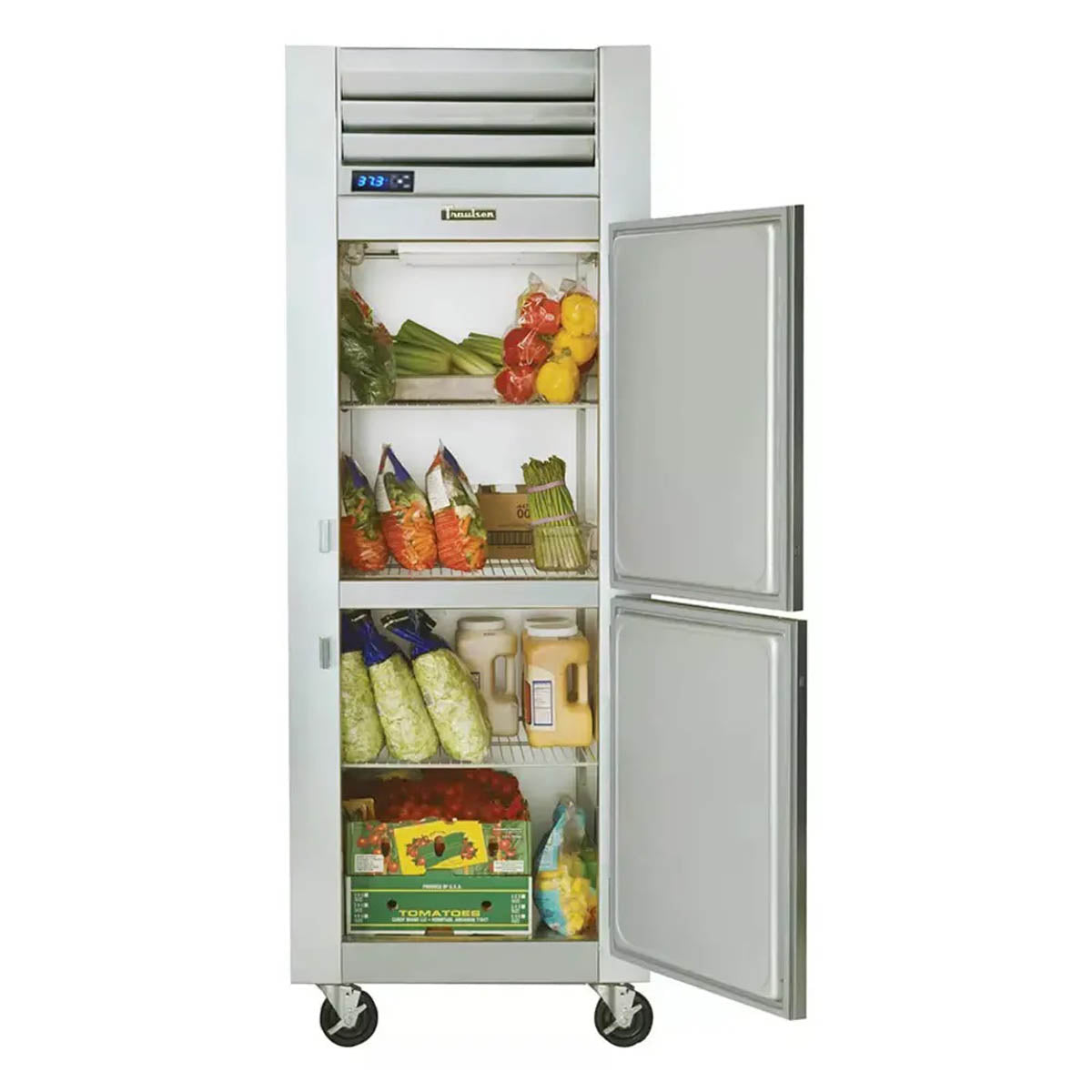

Organized interior storage

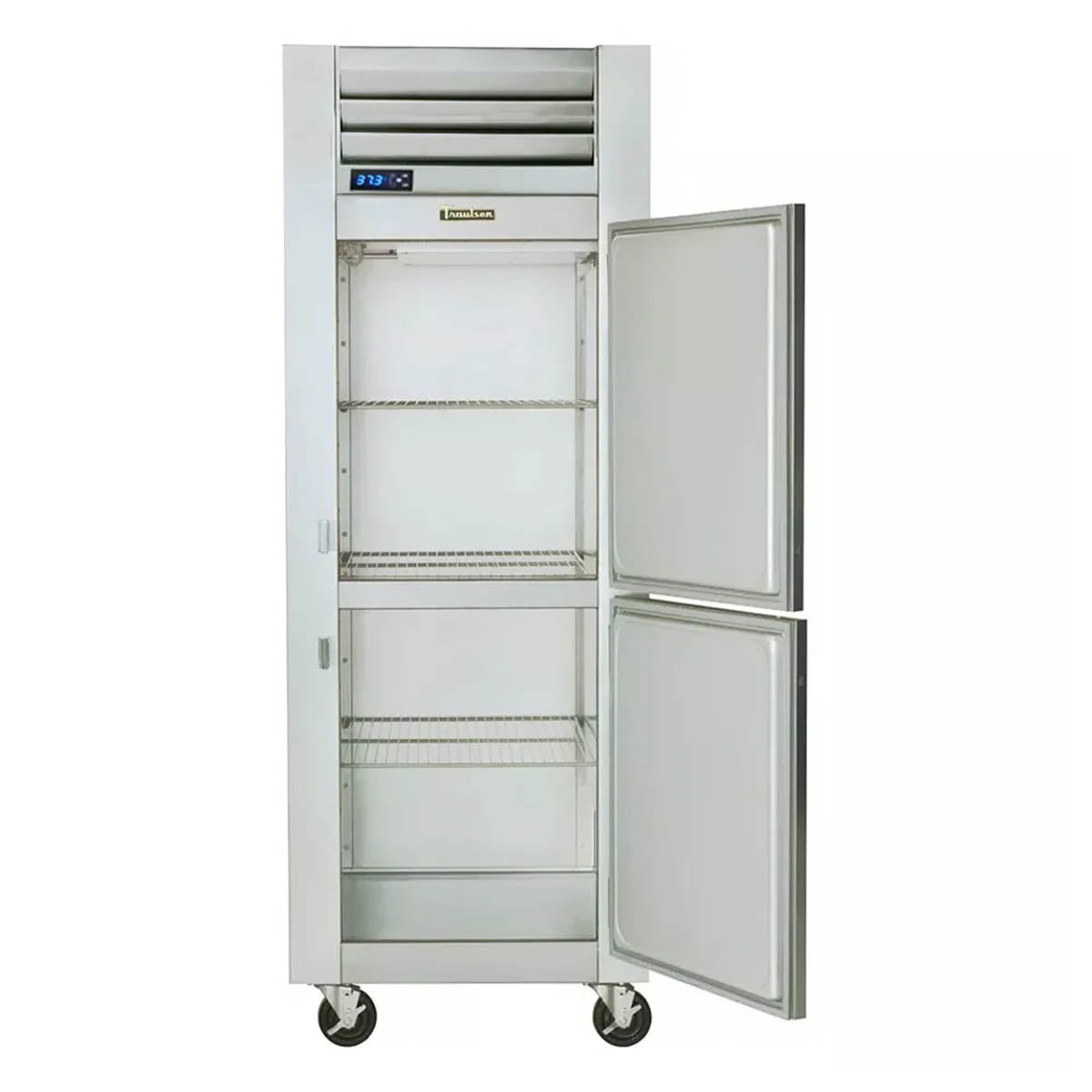

Three factory-installed epoxy-coated wire shelves provide the standard interior arrangement. The evaporator coil is located outside the food zone to keep more of the cabinet available for storage.
Top-mounted self-contained refrigeration
The self-contained refrigeration system uses R-450A refrigerant and places the condenser assembly at the top of the cabinet. A front-facing condenser coil supports accessible routine maintenance.
Practical door and mobility features
Self-closing doors have a stay-open position at 120 degrees, while four 6-inch locking casters allow the cabinet to be positioned and secured in place.
Technical Specifications
| Manufacturer model | G10002P |
|---|---|
| Cabinet type | 1-section pass-thru refrigerator |
| Door configuration | Four half-height solid doors |
| Control-side hinging | Right |
| Non-control-side hinging | Right |
| Net capacity | 24.72 cu. ft. |
| Overall dimensions | 29 7/8 in. W x 38 1/8 in. D x 83 3/8 in. H |
| Depth over body | 32 in. |
| Depth with door open 90 degrees | 56 3/4 in. |
| Clear half-door opening | 21 in. W x 27 3/8 in. H |
| Standard shelves | 3 epoxy-coated wire shelves |
| Refrigeration system | Top-mounted, self-contained |
| Refrigerant | R-450A |
| Compressor | 1/5 HP |
| Electrical requirement | 115/60/1 |
| Plug | NEMA 5-15P attached |
| Full-load amperage | 4.9 A |
| Required top clearance | 12 in. |
| Standard operating temperature | 34 to 38°F |
| Casters | Four 6 in. high locking casters |
Installation and Purchasing Considerations
- Plan for an overall footprint of 29 7/8 inches W x 38 1/8 inches D x 83 3/8 inches H on the supplied 6-inch casters.
- Allow 12 inches of unobstructed clearance above the cabinet for the top-mounted refrigeration system.
- At a 90-degree door opening, cabinet depth is 56 3/4 inches. Confirm this clearance on both pass-thru sides before positioning the unit.
- Connect to a 115/60/1 electrical supply using the attached NEMA 5-15P plug. The unit is supplied with a 9-foot cord.
- All four half-height doors are right hinged. Account for the door swing and keep both sides accessible for the intended pass-thru workflow.
- The standard cabinet includes shelves; tray slides and additional shelves are field-installed accessories, not standard equipment.
Choosing This Configuration
This exact G10002P configuration is a one-section pass-thru refrigerator with four half-height solid doors and right hinging on both the control and non-control sides.
Do not substitute a model with mixed right/left hinging if both doors must swing right from their respective sides.
This model has half-height doors, not full-height doors. It is also a refrigerator, not a reach-in-only cabinet, freezer, or remote refrigeration model.
The listed 24.72 cu. ft. net capacity applies to the half-height-door configuration.
Frequently Asked Questions
Which way do the doors swing on the Traulsen G10002P?
The G10002P has right-hinged half-height doors on both sides: the control side and the non-control side are each right hinged.
What electrical connection does this refrigerator require?
It operates on 115/60/1 power and has an attached NEMA 5-15P plug. A 9-foot power cord is provided.
How much clearance is needed for installation?
Provide 12 inches of clearance above the cabinet. With a door opened 90 degrees, overall depth reaches 56 3/4 inches, so aisle space is needed on both pass-thru sides.
Are pan slides included?
No. The standard interior arrangement is three epoxy-coated wire shelves. Tray slides are identified as field-installed accessories and should be selected separately when needed.
