Description

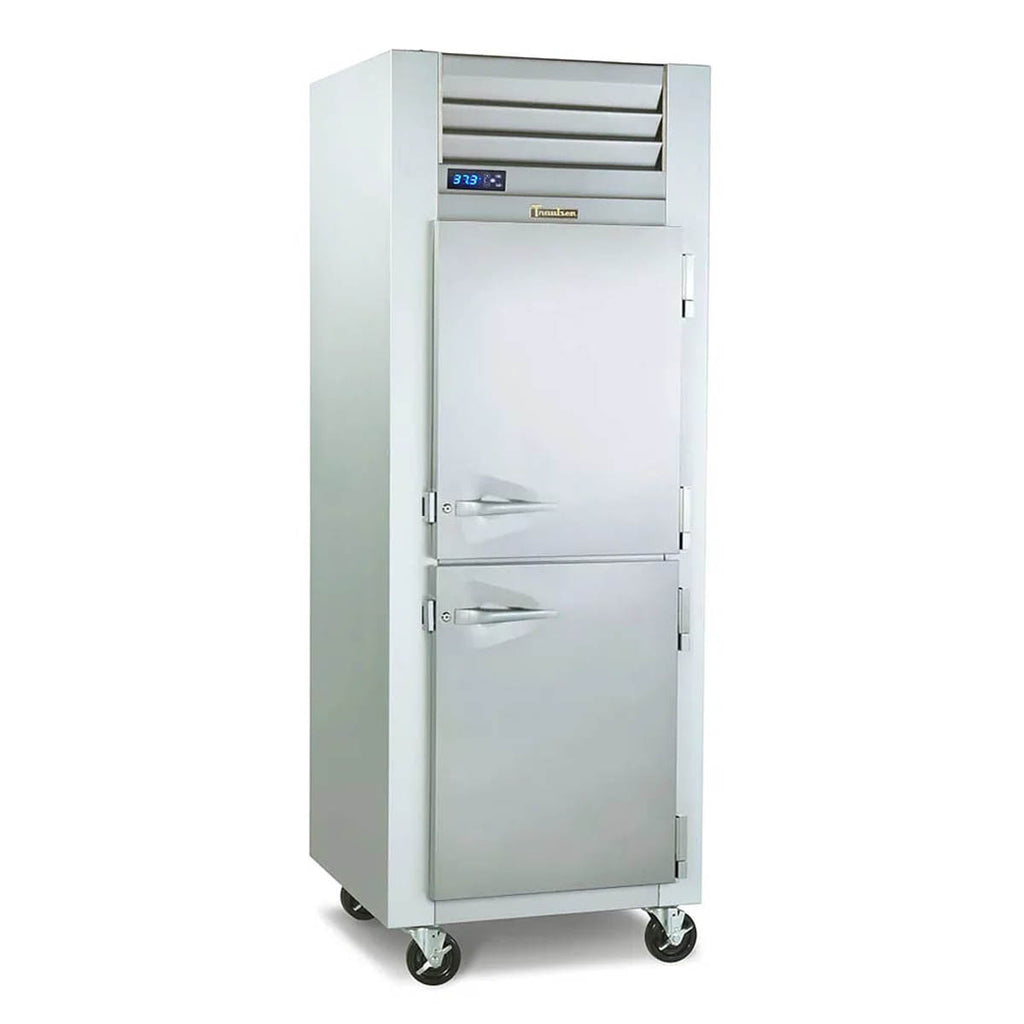

The Traulsen G10003P is a one-section, self-contained pass-thru refrigerator designed to move refrigerated ingredients or prepared product between two work areas. Its top-mounted refrigeration system, microprocessor control with LED display, and front-facing condenser support everyday back-of-house storage and access.

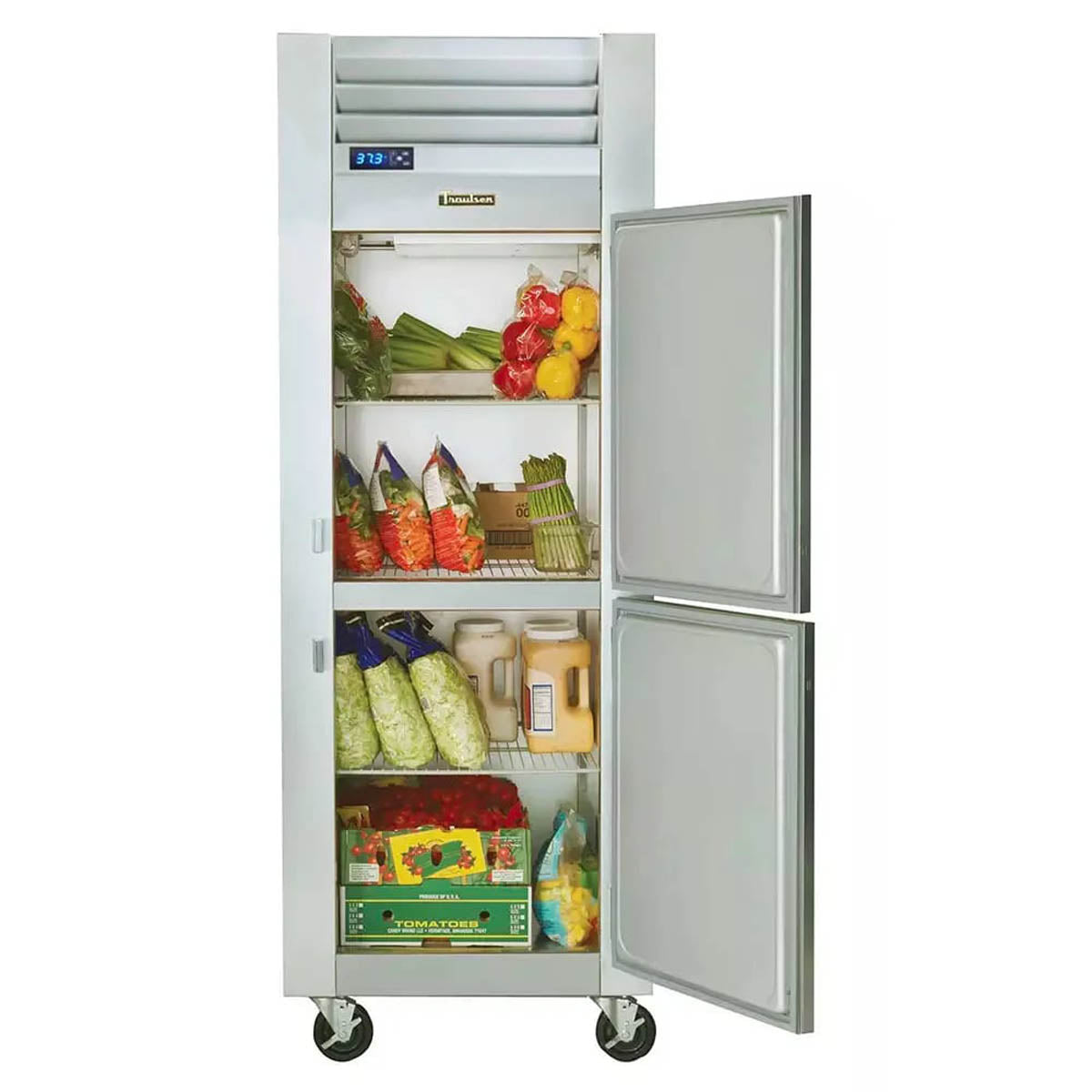

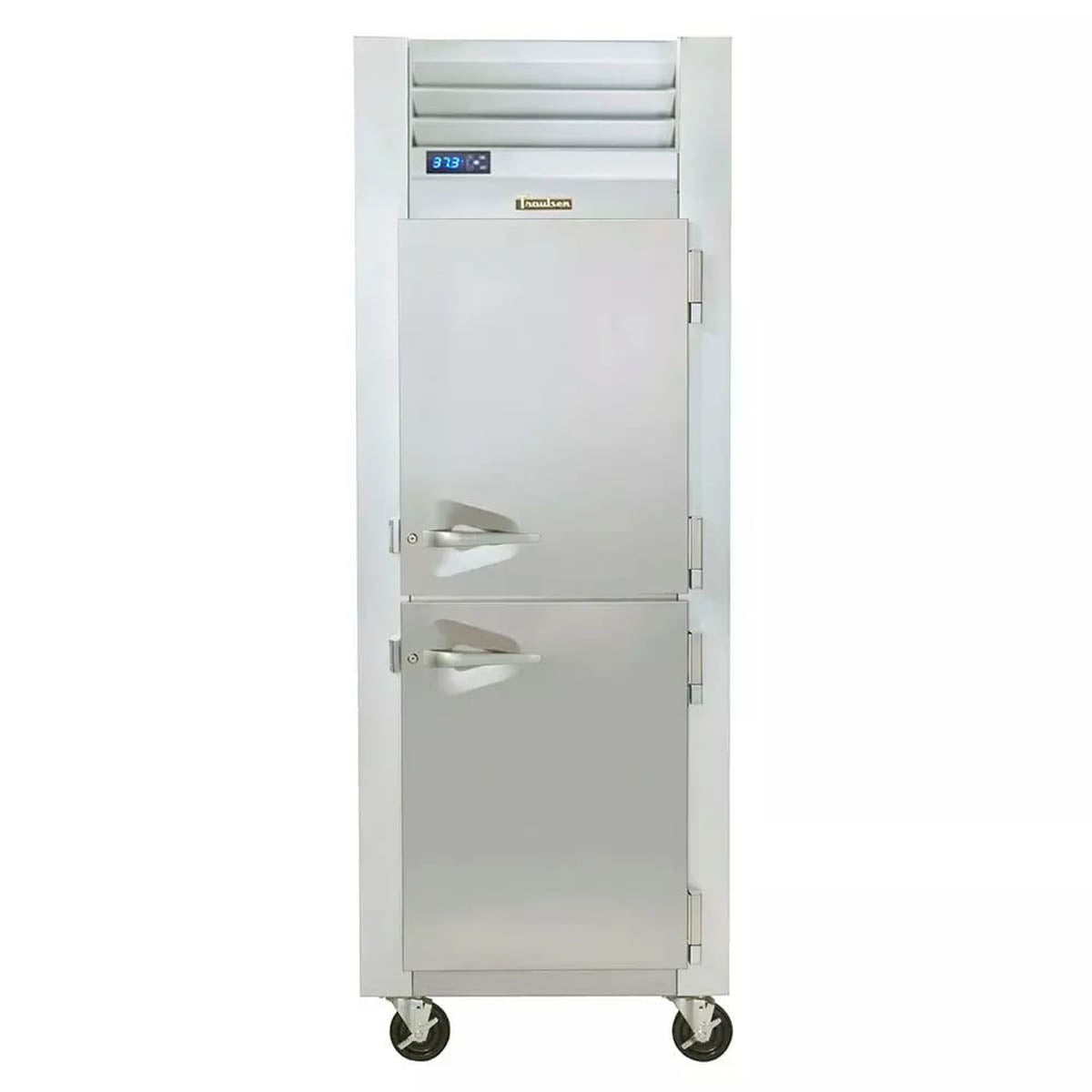

This exact configuration has four half-height solid doors—two on each side of the pass-thru cabinet. The control-side doors are right hinged and the non-control-side doors are left hinged, allowing staff to open a smaller door section rather than the full cabinet height.
Applications and Workflow
Suitable for commercial kitchens, prep areas, commissaries, and service lines that need refrigerated storage accessible from opposite sides of a wall or work zone. This is a refrigerator, not a freezer; plan the installation so both sides of the pass-thru doors remain accessible.
Features and Practical Benefits
Pass-thru access with half-height doors
Four solid half-height doors provide access from both sides while helping limit the amount of cabinet space exposed during product retrieval.
Defined door hinging
G10003P has right-hinged doors on the control side and left-hinged doors on the non-control side. Confirm the control-side orientation against the planned kitchen workflow before ordering.
Top-mounted self-contained refrigeration
The self-contained refrigeration system is mounted at the top of the cabinet and uses R-450A refrigerant.
Ready-to-use shelf arrangement

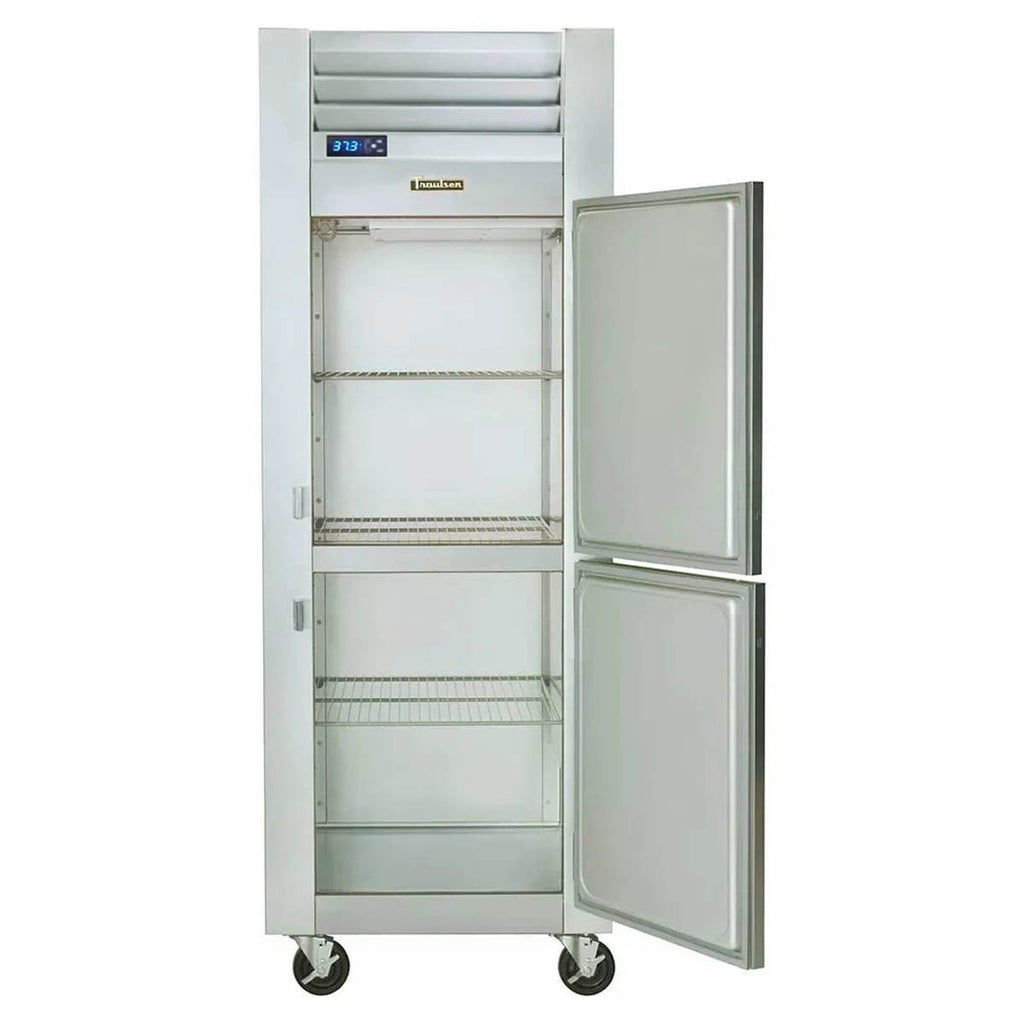

Three epoxy-coated wire shelves are factory installed per section for organized refrigerated storage.
Mobile cabinet base
The cabinet is supplied on 6-inch-high locking casters for positioning and routine cleaning access.
Technical Specifications
| Manufacturer model | G10003P |
|---|---|
| Cabinet type | 1-section pass-thru refrigerator |
| Door configuration | Four half-height solid doors |
| Control-side hinging | Right |
| Non-control-side hinging | Left |
| Net capacity | 24.72 cu. ft. (699.9 L) |
| Overall width | 29 7/8 in. (75.9 cm) |
| Overall depth | 38 1/8 in. (96.8 cm) |
| Overall height | 83 3/8 in. (211.9 cm) |
| Depth with door open 90° | 56 3/4 in. (144.2 cm) |
| Standard shelves | 3 epoxy-coated wire shelves |
| Electrical requirement | 115/60/1, NEMA 5-15P attached |
| Full-load amperage | 4.9 A |
| Refrigerant | R-450A |
| Compressor horsepower | 1/5 HP |
| Required top clearance | 12 in. |
| Standard operating temperature | 34° to 38°F (1° to 3°C) |
| Casters | Four 6 in. high locking casters |
Installation and Purchasing Considerations
- Plan a footprint of 29 7/8 inches wide by 38 1/8 inches deep by 83 3/8 inches high, including the standard casters.
- Allow for a 56 3/4-inch overall depth when a door is open to 90 degrees; verify aisle clearance on both pass-thru sides.
- Maintain 12 inches of clearance above the unit as specified by the manufacturer.
- Provide a 115/60/1 electrical connection with the attached NEMA 5-15P plug. Verify the dedicated receptacle location before setting the cabinet in place.
- Position the unit so staff can reach the front-facing condenser for routine cleaning. Do not block the top-mounted refrigeration area.
- Confirm the control-side and non-control-side door swings before installation: this G10003P configuration hinges right on the control side and left on the opposite side.
Choosing This Configuration
G10003P is the half-height-door version with four solid doors, not a full-height-door configuration.
Its door hinging is right on the control side and left on the non-control side; this differs from same-family pass-thru models with matching or reversed hinging.
Three shelves are standard. Tray slides, additional shelves, legs, and lower-height casters are listed as field-installed accessories or options and should not be assumed included.
Frequently Asked Questions
How are the doors hinged on the Traulsen G10003P?
The two half-height doors on the control side are right hinged, and the two half-height doors on the non-control side are left hinged.
What electrical connection does this refrigerator need?
It operates on 115/60/1 power and is supplied with an attached NEMA 5-15P plug.
How much clearance is needed above the cabinet?
The manufacturer specifies 12 inches of clearance above the unit.
Are tray slides included with the refrigerator?
No. Tray slides are listed as field-installed accessories or options. The standard interior arrangement is three epoxy-coated wire shelves per section.
