Description

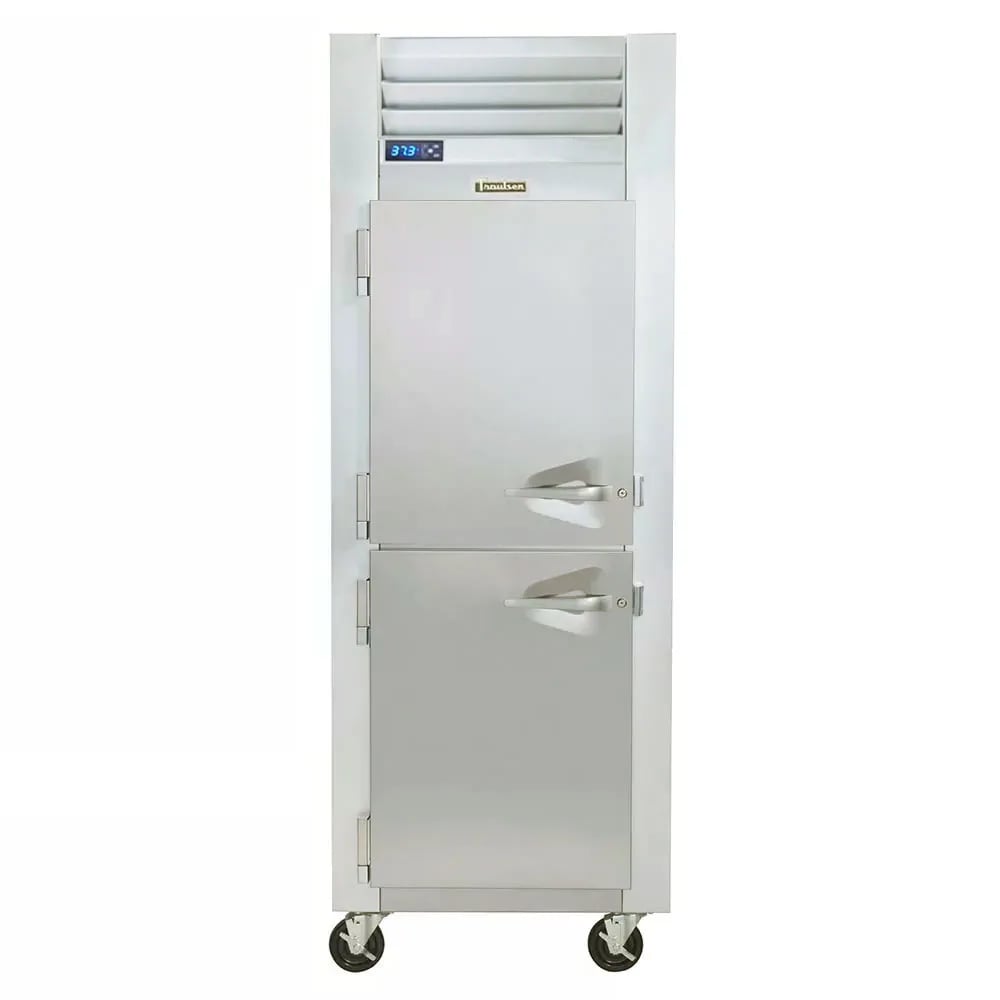

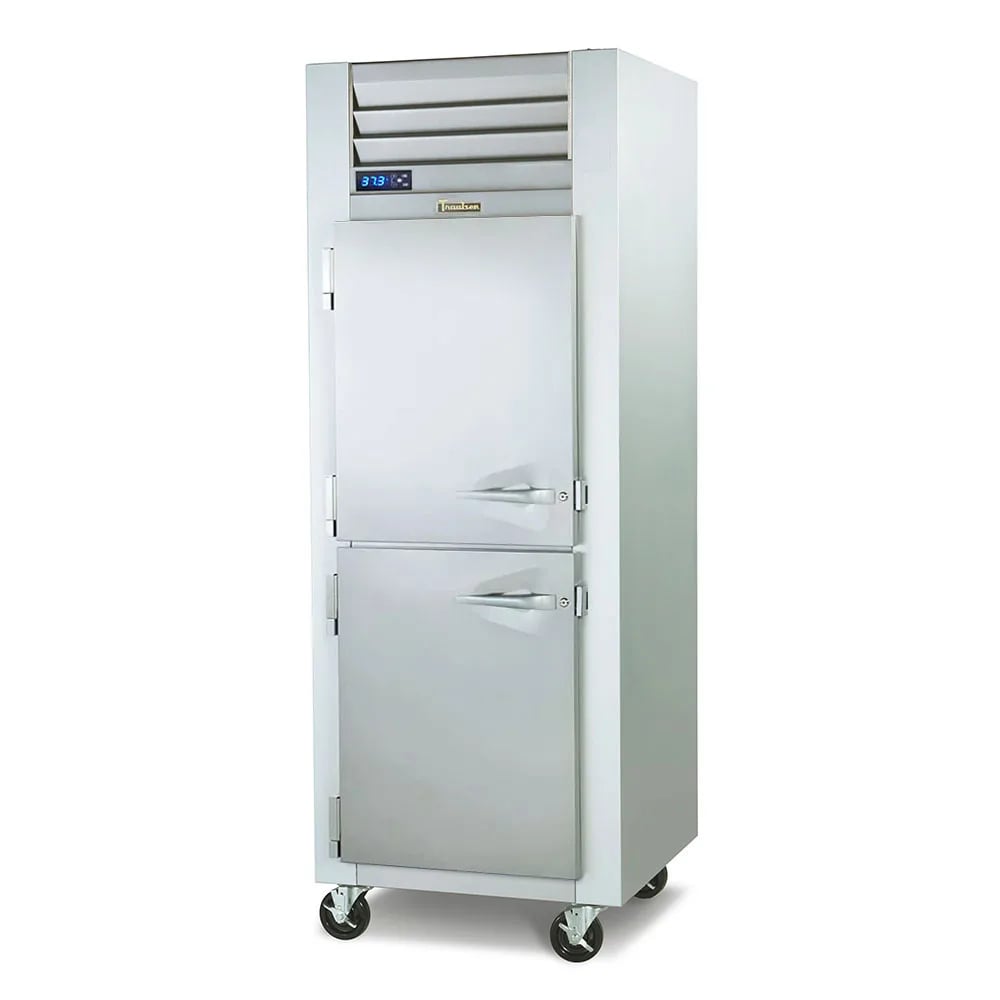

The Traulsen G10005P is a one-section, self-contained pass-thru refrigerator built for moving refrigerated ingredients or prepared product between two work areas. Its four half-height solid doors provide independent upper and lower access from each side, helping staff retrieve smaller loads without opening the full cabinet height.
This exact G10005P configuration has left-hinged doors on the control side and right-hinged doors on the non-control side. It uses a top-mounted refrigeration system, includes three epoxy-coated wire shelves, and rolls on 6-inch locking casters for placement and service access.
Applications and Workflow
A practical choice for commercial kitchens, prep rooms, production areas, and pass-through corridors where refrigerated product needs to be accessed from either side of a wall or work zone. This is a refrigerator cabinet, not a freezer; confirm that a pass-thru opening and the specified door swing fit the planned workflow.
Features and Practical Benefits
Two-sided refrigerated access
Pass-thru construction allows staff on either side of the cabinet to load or retrieve product, supporting separated prep and service workflows.
Four half-height solid doors
Upper and lower doors on both sides allow more targeted access than full-height doors. On this model, the control-side doors hinge left and the non-control-side doors hinge right.
Top-mounted self-contained system
The refrigeration system is mounted above the cabinet and uses R-450A refrigerant. A front-facing condenser coil is designed for accessible routine cleaning.
Included adjustable storage

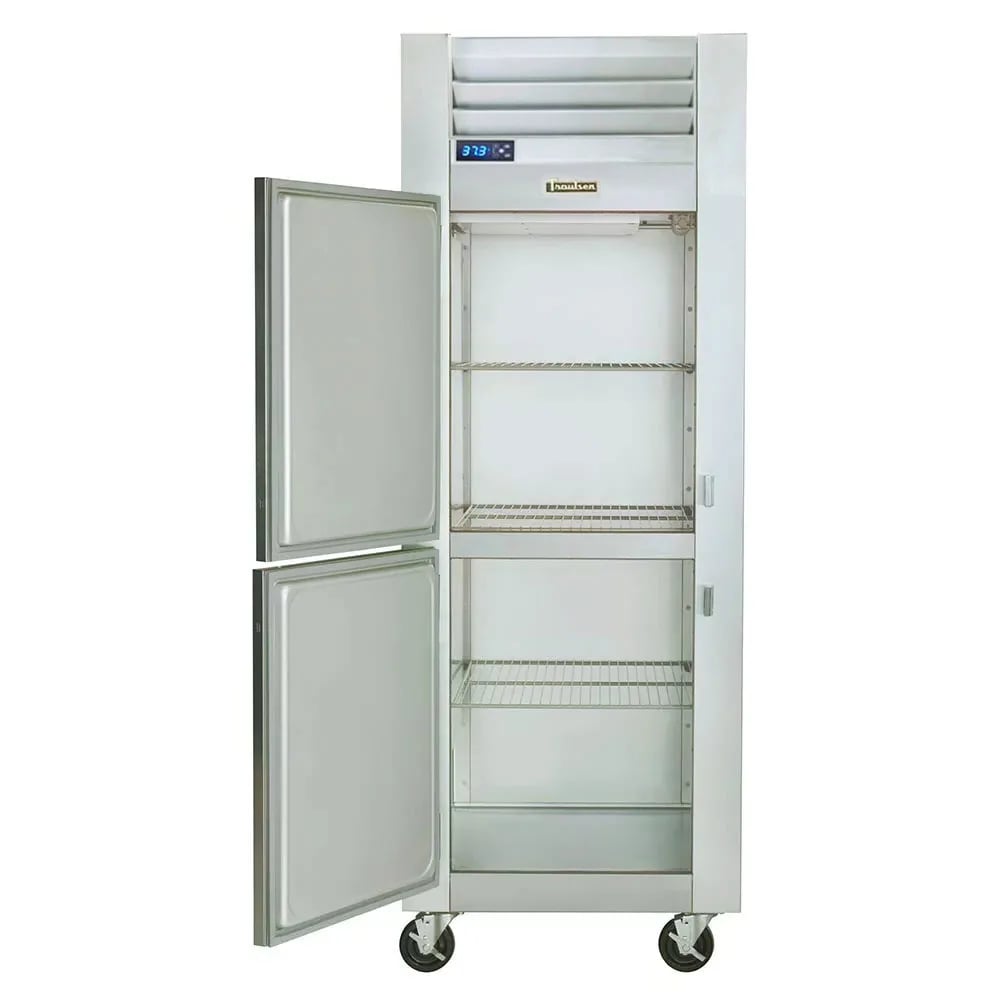

Three factory-installed epoxy-coated wire shelves are provided per section for organizing cabinet contents.
Control and cabinet construction
A microprocessor control with LED temperature display supports monitoring, while the front and doors are stainless steel and the sides and interior are anodized aluminum.

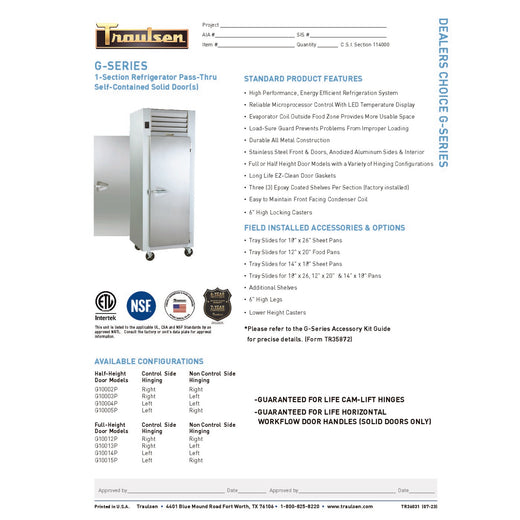

Technical Specifications
| Manufacturer model | G10005P |
|---|---|
| Cabinet type | 1-section pass-thru refrigerator |
| Door configuration | 4 half-height solid doors |
| Control-side door hinging | Left |
| Non-control-side door hinging | Right |
| Net capacity | 24.72 cu. ft. |
| Overall dimensions | 29.88 in. W x 38.13 in. D x 83.38 in. H |
| Depth with door open 90° | 56.75 in. |
| Clear half-door opening | 21 in. W x 27.38 in. H |
| Standard shelves | 3 epoxy-coated wire shelves |
| Electrical requirement | 115V / 60Hz / 1-phase |
| Plug | NEMA 5-15P attached |
| Full-load amperage | 4.9 A |
| Refrigerant | R-450A |
| Compressor horsepower | 1/5 HP |
| Required top clearance | 12 in. above |
| Mobility | Four 6 in. high locking casters |
Installation and Purchasing Considerations
- Allow a footprint of 29.88 inches wide by 38.13 inches deep; installed height is 83.38 inches on the standard 6-inch casters.
- Plan for 56.75 inches of depth with a door open 90 degrees. Verify that the left/right door swings suit traffic and adjacent equipment on both sides of the pass-thru.
- Provide 12 inches of clearance above the cabinet as specified for the refrigeration system.
- Connect to a 115V, 60 Hz, single-phase electrical supply. The unit has an attached NEMA 5-15P plug and a 9-foot cord.
- Position the cabinet so the front-facing condenser can be accessed for cleaning. Lock the casters after final placement.
Choosing This Configuration
G10005P is the half-height-door pass-thru version with four solid doors, not a two-door reach-in cabinet.
This exact model has left hinging on the control side and right hinging on the non-control side; select based on access direction from each side of the pass-thru.

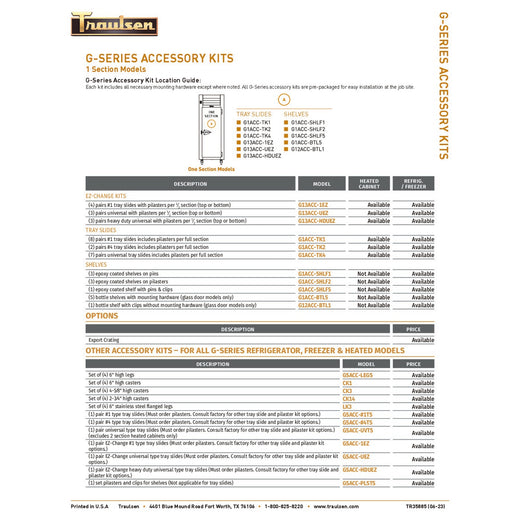

Three wire shelves are standard. Tray slides, additional shelves, legs, and lower-height casters are listed as field-installed accessories or options rather than standard inclusions.
Frequently Asked Questions
How are the doors hinged on the G10005P?
The doors on the control side are left-hinged, while the doors on the non-control side are right-hinged.
What electrical connection does this refrigerator need?
It requires 115V, 60 Hz, single-phase power and is supplied with an attached NEMA 5-15P plug.
How much clearance is needed for an open door?
The specified depth with a door open 90 degrees is 56.75 inches. Also reserve 12 inches of clearance above the cabinet.
Are shelves included?
Yes. The standard interior arrangement includes three factory-installed epoxy-coated wire shelves per section.
