Description

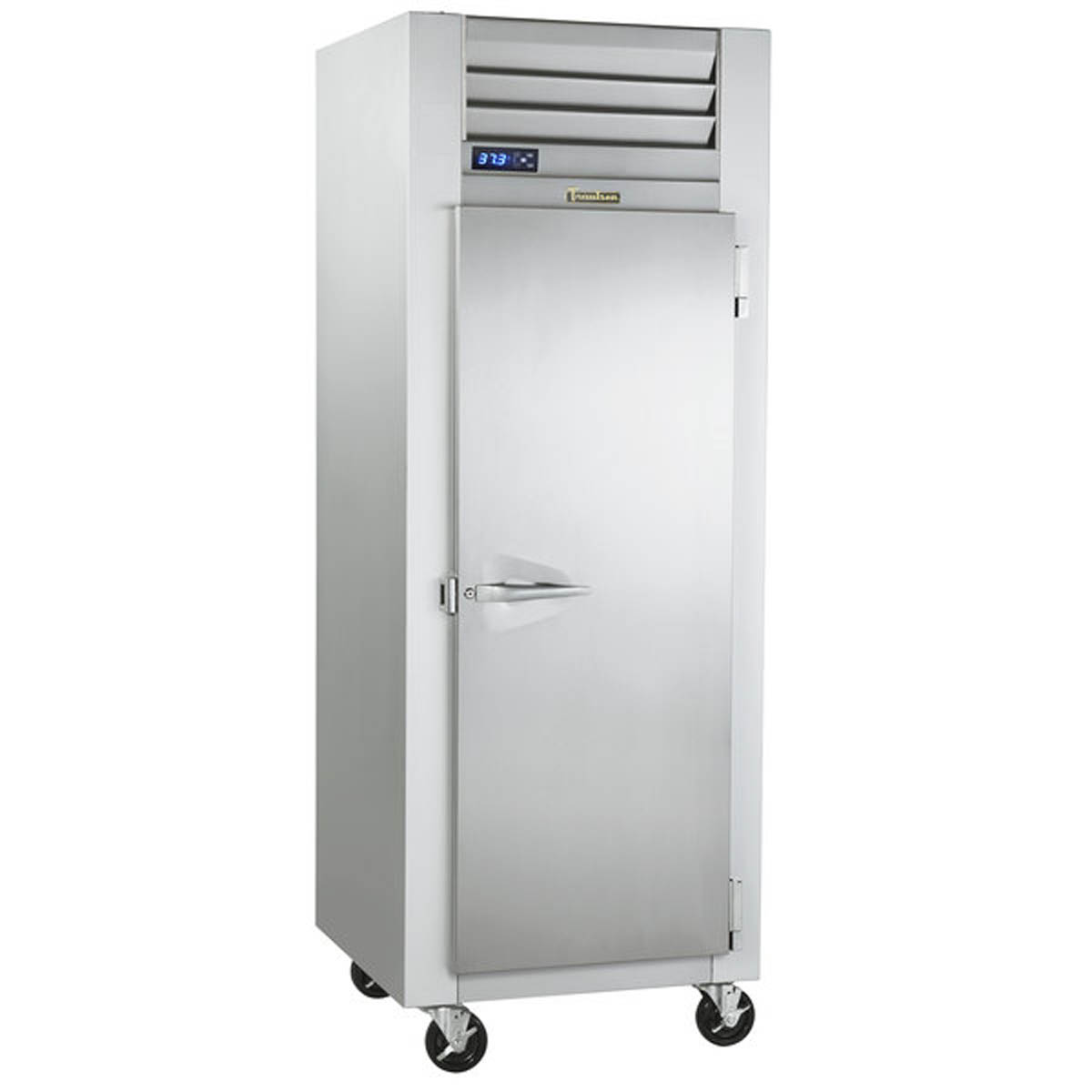

The Traulsen G10010 is a one-section reach-in refrigerator with a full-height solid door hinged on the right. Its self-contained, top-mounted refrigeration system keeps the condenser above the food storage area, while the evaporator is located outside the cabinet’s food zone to preserve usable interior space.
This configuration includes three factory-installed epoxy-coated wire shelves and four 6-inch locking casters. A microprocessor control with LED display supports at-a-glance cabinet monitoring, and the solid door self-closes while staying open at 120° for loading.
Applications and Workflow
Use this refrigerator for refrigerated ingredient, packaged-product, and backup stock storage in restaurant kitchens, cafeterias, delis, bakeries, and institutional foodservice operations. The G10010 is a refrigerator-only reach-in cabinet, not a freezer or pass-through unit. Its door is right-hinged; confirm that the door swing and 56 11/16-inch depth with the door open at 90° will suit the intended aisle and workstation layout.
Features and Practical Benefits
Right-hinged full-height access
The single full-height solid door is hinged on the right, helping buyers match the cabinet to a specific traffic flow or wall location.
Top-mounted self-contained refrigeration
The balanced refrigeration system is mounted at the top of the cabinet and uses R-450A refrigerant. Its front-facing condenser coil is designed for accessible cleaning.
Configured shelving included
Three epoxy-coated steel wire shelves are factory installed for organized storage. Optional tray slides and additional shelves are separate accessories, not standard equipment.
Space-conscious cabinet design
The evaporator coil is positioned outside the food zone, and the cabinet provides 23.43 cubic feet of net capacity in the full-height-door configuration.
Mobile, lockable base
Four 6-inch locking casters are included, allowing the cabinet to be positioned for cleaning or service and then secured in place.
Technical Specifications
| Manufacturer model | G10010 |
|---|---|
| Cabinet configuration | 1-section reach-in refrigerator, self-contained solid door |
| Door configuration | One full-height solid door, right hinged |
| Net capacity | 23.43 cu. ft. (663.5 L) |
| Overall width | 29 7/8 in. (75.9 cm) |
| Overall depth | 35 1/16 in. (89.1 cm) |
| Overall height | 83 7/16 in. (211.9 cm) |
| Depth over body | 32 in. (81.3 cm) |
| Depth with door open 90° | 56 11/16 in. (144.1 cm) |
| Clear full-door opening | 21 in. W x 57 1/2 in. H |
| Standard shelves | 3 epoxy-coated steel wire shelves |
| Electrical requirement | 115V / 60 Hz / 1-phase |
| Plug | NEMA 5-15P, attached |
| Full-load amperage | 4.9 A |
| Refrigerant | R-450A |
| Compressor horsepower | 1/5 HP |
| Required clearance | 12 in. above |
| Standard base | Four 6 in. high locking casters |
| Operating temperature | 34° to 38°F |
Installation and Purchasing Considerations
- Allow a footprint of 29 7/8 inches wide by 35 1/16 inches deep; overall height is 83 7/16 inches on the standard 6-inch casters.
- Plan for 56 11/16 inches of total depth when the door is open 90°. The right-hinged door needs clear swing space on the cabinet’s right side.
- Provide 12 inches of clearance above the cabinet for the top-mounted refrigeration system.
- Connect to a 115V, 60 Hz, single-phase electrical supply. The unit has an attached NEMA 5-15P plug and a 9-foot cord.
- Position the cabinet so the front-facing condenser can be accessed for routine cleaning. Verify the path to the installation location accommodates the cabinet dimensions.
Choosing This Configuration
G10010 is the full-height, right-hinged solid-door configuration. The similarly sized G10011 is the left-hinged full-height version.
This model is supplied with three wire shelves and locking casters. Tray slides, additional shelves, legs, and alternate-height casters are listed as accessories or options rather than standard included items.
The stated 23.43 cubic foot capacity applies to the full-height-door configuration; half-height-door versions use a different capacity figure.
Frequently Asked Questions
Which way does the door swing on the Traulsen G10010?
The G10010 has a right-hinged, full-height solid door. Allow for the door swing on the right side and for a 56 11/16-inch overall depth when opened to 90°.
What electrical connection does this refrigerator need?
It operates on 115V, 60 Hz, single-phase power and includes an attached NEMA 5-15P plug with a 9-foot cord.
How many shelves are included?
Three epoxy-coated steel wire shelves are factory installed. Additional shelves and tray-slide systems are optional accessories.
How much clearance is required above the cabinet?
Traulsen specifies 12 inches of clearance above the cabinet for this top-mounted refrigeration system.
