Description

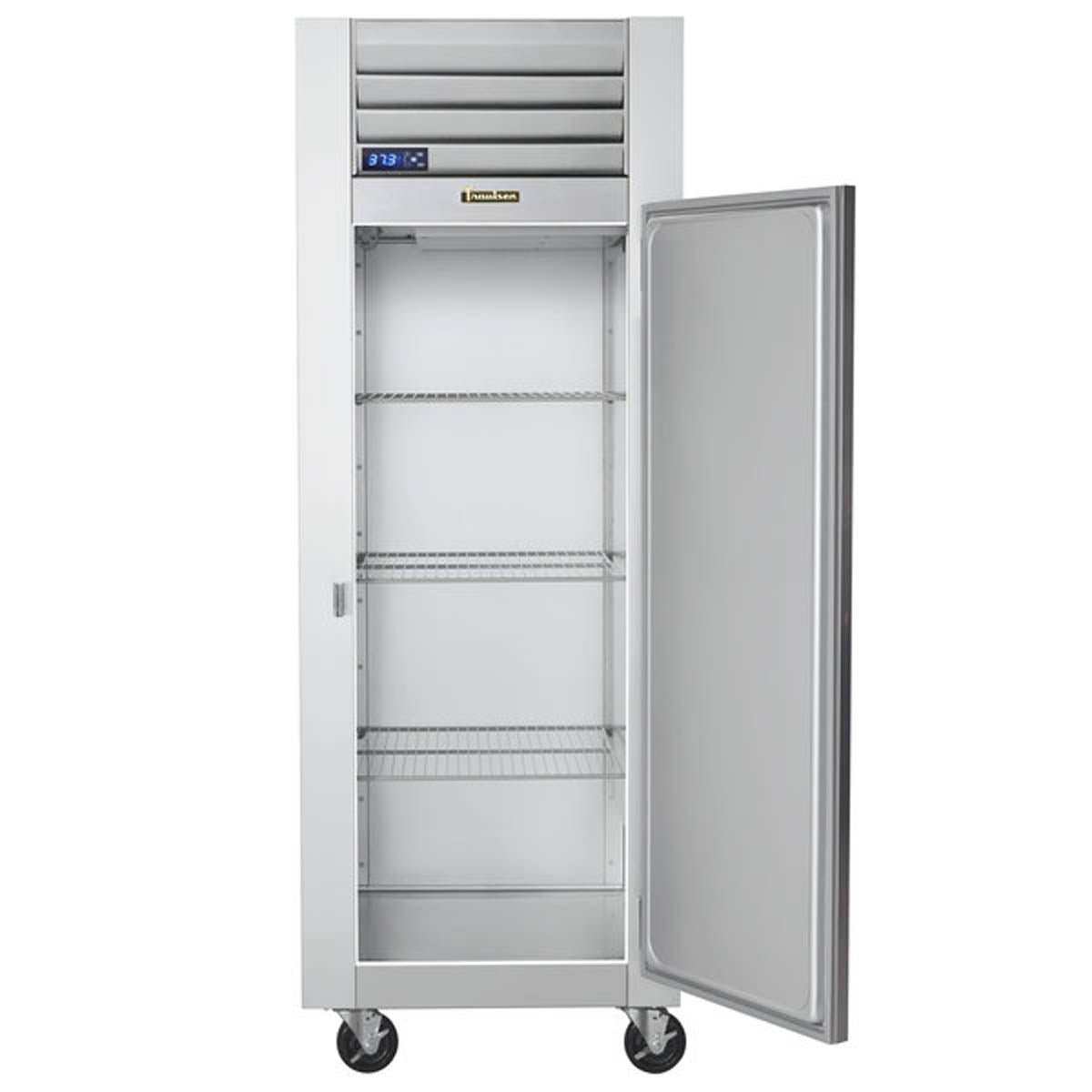

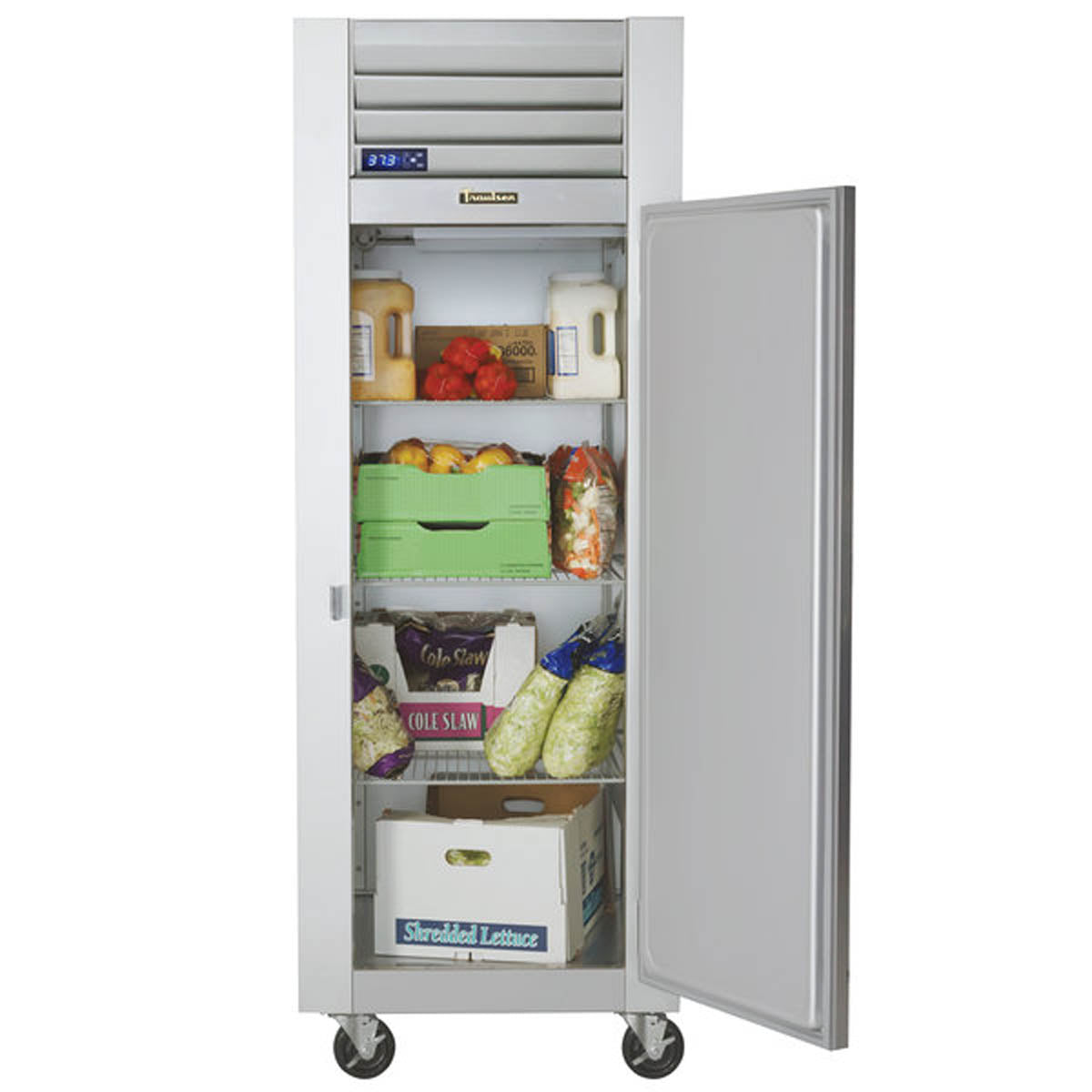

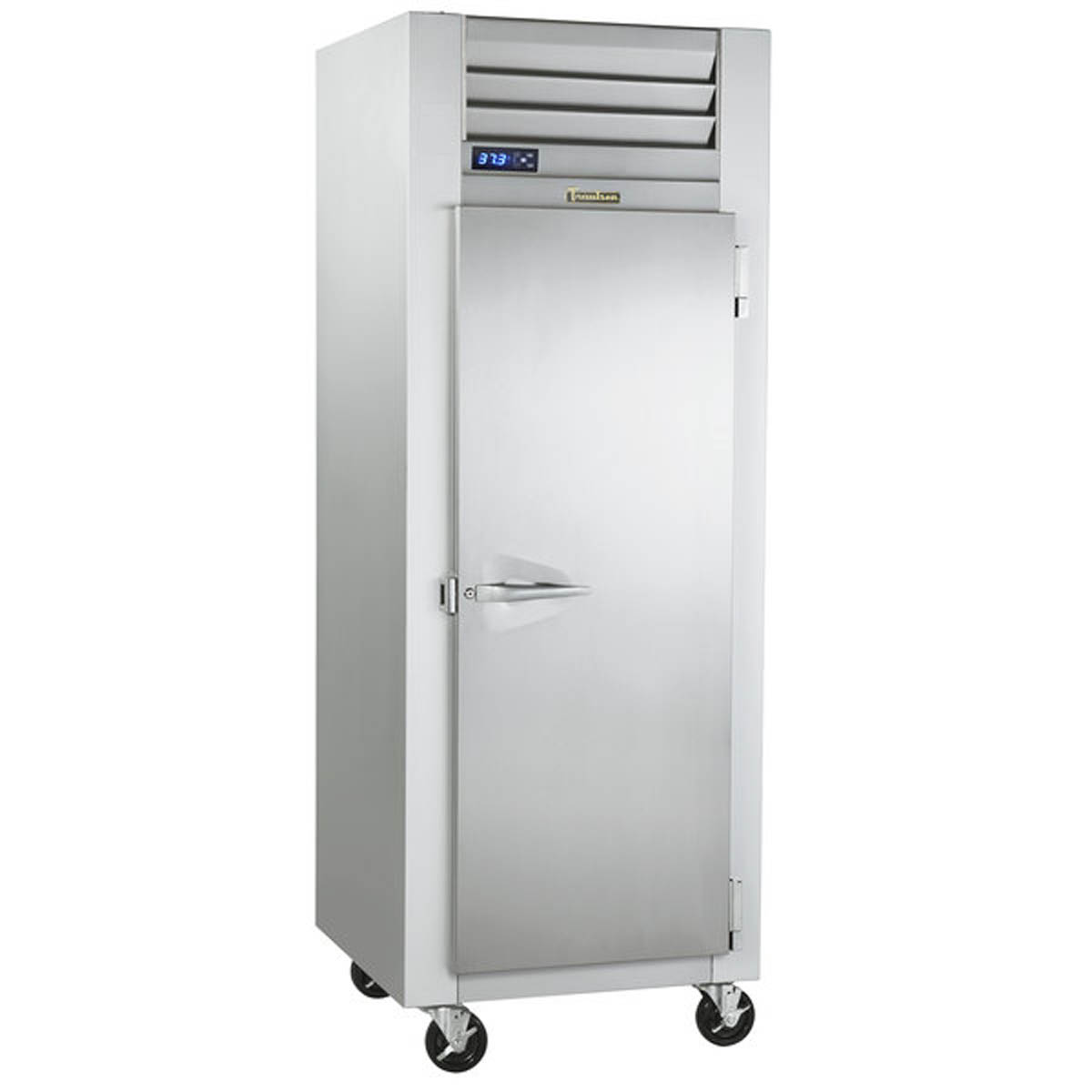

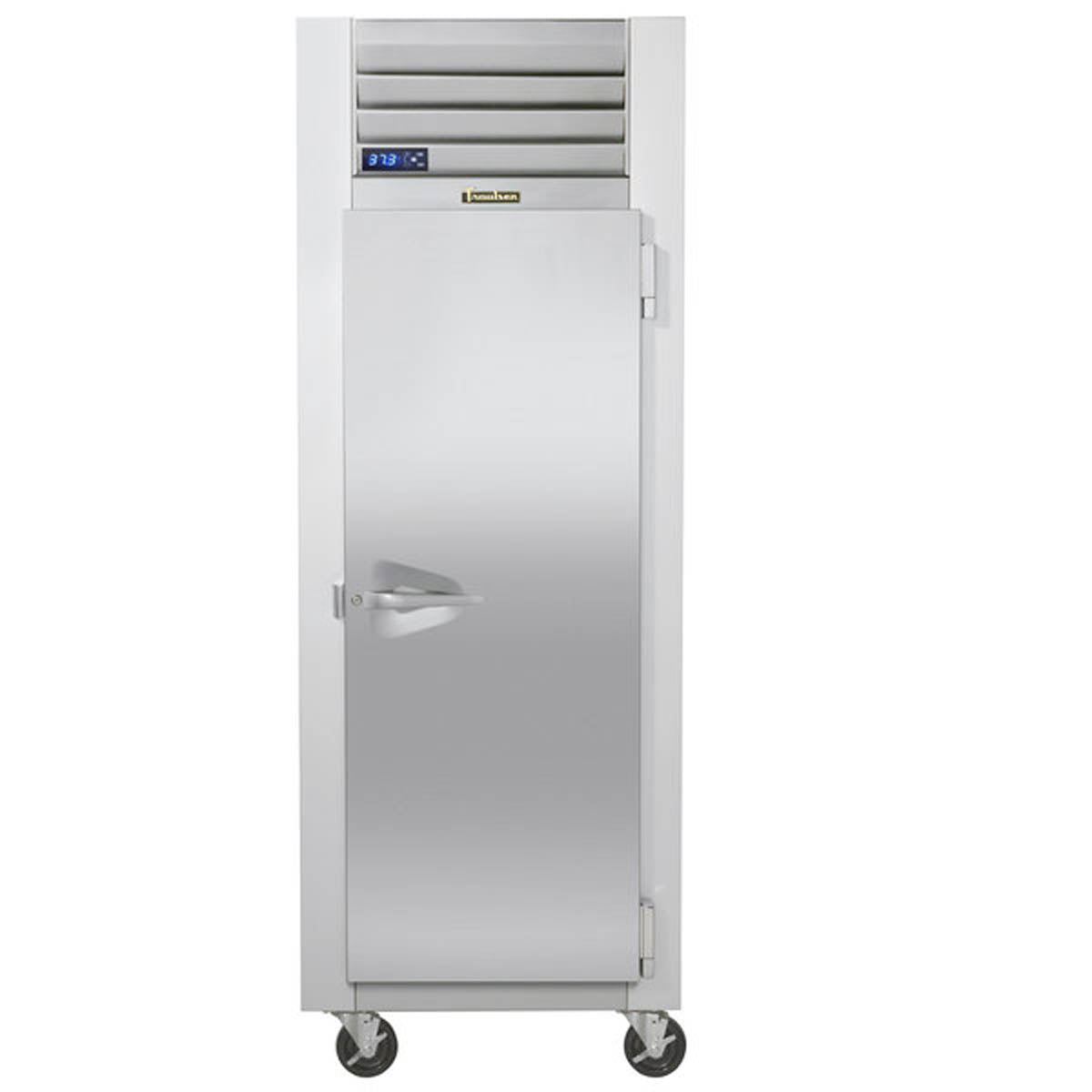

The Traulsen G10010-032 is a one-section reach-in refrigerator with a full-height, right-hinged solid door and top-mounted self-contained refrigeration. Its 23.43 cu. ft. cabinet provides refrigerated storage in a compact 29 7/8-inch-wide footprint, with three factory-installed epoxy-coated wire shelves for organized product storage.
A microprocessor control with LED display supports day-to-day temperature monitoring, while the front-facing condenser is designed for accessible cleaning. The full-height door is self-closing and can stay open at 120°, helping staff load or retrieve product without holding the door open.
Applications and Workflow
Suitable for commercial kitchens, prep areas, cafeterias, bakeries and other foodservice operations needing upright refrigerated storage. This is a refrigerator, not a freezer; its stated operating range is 34 to 38°F. Verify the planned location provides 12 inches of clearance above the cabinet and enough aisle space for the right-hinged door’s 90° open depth.
Features and Practical Benefits
Full-height, right-hinged access
This exact model uses one full-height solid door with right-side hinging. The door is self-closing, stays open at 120°, and includes a cylinder lock.
Organized one-section storage
The cabinet has 23.43 cu. ft. of net capacity and includes three epoxy-coated steel wire shelves installed at the factory.
Top-mounted self-contained system
The R-290 refrigeration system is mounted above the food zone, preserving cabinet space while keeping the condenser accessible from the front.
Straightforward monitoring
A water-resistant microprocessor control includes a three-digit LED display and supports Fahrenheit or Celsius display capability.
Technical Specifications
| Manufacturer model | G10010-032 |
|---|---|
| Cabinet configuration | 1-section reach-in refrigerator, self-contained solid door |
| Door configuration | One full-height solid door, right hinged |
| Net capacity | 23.43 cu. ft. (663.5 L) |
| Overall dimensions | 29 7/8 in. W x 35 1/16 in. D x 83 7/16 in. H |
| Depth with door open 90° | 56 11/16 in. (144.1 cm) |
| Standard shelves | 3 epoxy-coated steel wire shelves |
| Electrical requirement | 115V / 60Hz / 1-phase |
| Plug | Attached NEMA 5-15P |
| Full-load amperage | 3.8 A |
| Refrigerant | R-290 |
| Refrigerant charge | 4.5 oz. (127.6 g) |
| Refrigeration location | Top-mounted, self-contained |
| Required clearance | 12 in. above |
| Standard operating temperature | 34 to 38°F |
| Mobility | Four 6 in. high locking casters |
Installation and Purchasing Considerations
- Place the cabinet on a level floor. Overall dimensions are 29 7/8 in. W x 35 1/16 in. D x 83 7/16 in. H on the standard casters.
- Allow 12 in. of clearance above the cabinet for the refrigeration system.
- Plan for a 56 11/16 in. depth when the door is open 90°. Confirm the right-hinged door will not obstruct adjacent equipment or traffic flow.
- Connect to a 115V, 60Hz, single-phase electrical supply using the attached NEMA 5-15P plug. A 9 ft. cord and plug are provided.
- The unit includes four 6 in. high locking casters. Do not assume optional tray slides or additional shelves are included.
Choosing This Configuration
G10010-032 is the full-height, right-hinged solid-door configuration. The left-hinged full-height version is a different model.
This model is a self-contained reach-in refrigerator with a top-mounted refrigeration system; it is not a remote-condensing unit or a freezer.
Three wire shelves are standard. Tray slides and additional shelves are listed as field-installed accessories or options rather than standard cabinet contents.
Frequently Asked Questions
What is the door configuration on the G10010-032?
It has one full-height solid door with right-side hinging. The door is self-closing and has a stay-open feature at 120°.
What electrical connection does this refrigerator use?
It operates on 115V, 60Hz, single-phase power and has an attached NEMA 5-15P plug with a 9 ft. cord.
How much clearance is needed around the refrigerator?
Traulsen specifies 12 inches of clearance above the cabinet. At a 90° door opening, the overall depth is 56 11/16 inches.
Are shelves included?
Yes. Three epoxy-coated steel wire shelves are factory installed. Optional tray slides and additional shelves are separate accessories.
