Description

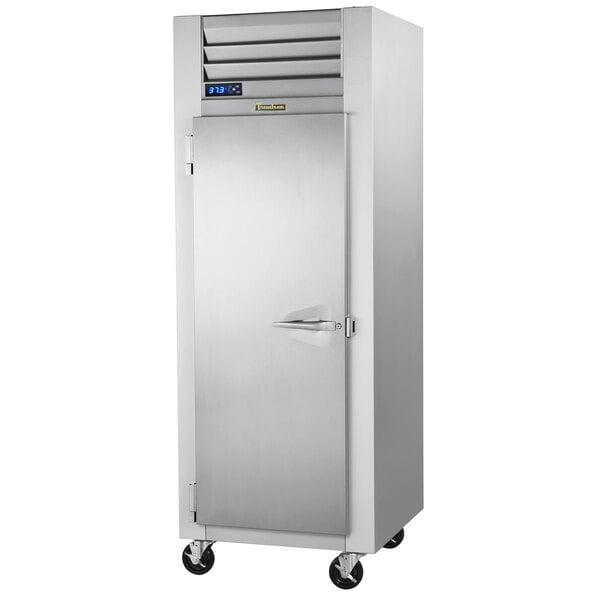

The Traulsen G10011 is a full-height, one-section G Series reach-in refrigerator with a left-hinged solid door. Its self-contained top-mounted refrigeration system is designed to hold 34–38°F, while the stainless steel interior and exterior support everyday commercial food-storage workflows.
This configuration includes three adjustable coated-wire shelves, interior LED lighting, a self-closing door with a stay-open feature, and 6-inch casters. The left-side hinge is an important layout detail: confirm that the door can swing open freely in the planned installation location.
Applications and Workflow
Use the G10011 for refrigerated ingredient, prep backup, or packaged-product storage in commercial kitchens, bakeries, cafeterias, and other foodservice operations. It is a reach-in refrigerator, not a freezer. It is also a full-height solid-door model rather than a half-height or split-door configuration.
Features and Practical Benefits
Left-hinged full-height access
The single solid door is hinged on the left, helping buyers match the refrigerator to surrounding equipment, traffic flow, and available aisle space.
Refrigerated storage capacity
The full-height cabinet provides 23.43 cu. ft. of storage capacity and includes three adjustable coated-wire shelves.
Self-contained top-mounted refrigeration
A top-mounted, self-contained R-290 refrigeration system avoids the need for a remote condenser connection and keeps the refrigeration package above the food zone.
Serviceable daily-use details
The unit has a front-facing condenser coil, a digital microprocessor control with LED display, interior LED lighting, and removable plug cylinder locks.
Mobile cabinet base
Four 6-inch casters are supplied; two have brakes and two do not, allowing the unit to be positioned and secured in place.

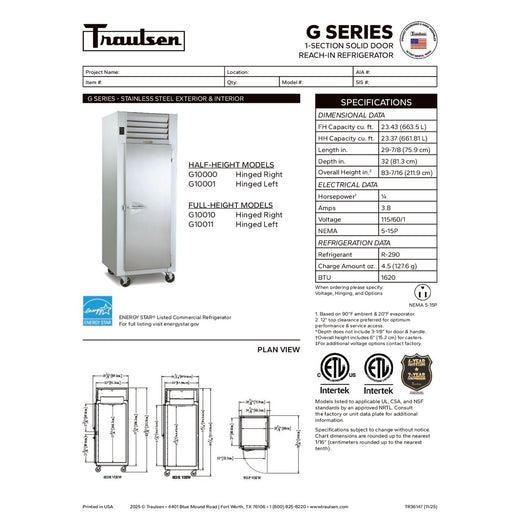

Technical Specifications
| Manufacturer model | G10011 |
|---|---|
| Configuration | 1-section, full-height reach-in refrigerator |
| Door configuration | 1 solid door, left hinged |
| Capacity | 23.43 cu. ft. (663.5 L) |
| Width | 29-7/8 in. (75.9 cm) |
| Cabinet depth | 32 in. (81.3 cm) |
| Overall height | 83-7/16 in. (211.9 cm) |
| Electrical service | 115/60/1 |
| Plug type | NEMA 5-15P |
| Refrigerant | R-290 |
| Operating temperature range | 34–38°F (1.1–3.3°C) |
| Included shelves | 3 adjustable coated-wire shelves |
| Casters | Four 6 in. casters; two with brakes |
| Power cord | 9 ft. cord and plug |
Installation and Purchasing Considerations
- Plan a 29-7/8-inch-wide by 32-inch-deep cabinet footprint with an overall height of 83-7/16 inches on the supplied casters. The manufacturer notes that the listed cabinet depth excludes 3-1/8 inches for the door and handle; allow approximately 35-1/8 inches overall front-to-back.
- Provide 115/60/1 electrical service. A 9-foot cord with a NEMA 5-15P plug is supplied.
- Leave 12 inches of top clearance where possible for optimum performance and service access.
- Position the refrigerator so the left-hinged door can open without blocking aisles, adjacent equipment, or access to the cabinet interior.
- This is a self-contained unit; no remote condenser piping is indicated. Keep the front-facing condenser accessible for cleaning and service.
Choosing This Configuration
G10011 is the full-height, one-section refrigerator with a left-hinged solid door.
Do not substitute the right-hinged version when the installation requires a left-side hinge.
The standard interior is three adjustable coated-wire shelves. Trayslides, additional shelves, alternate casters, and legs are listed separately as field-installed options and should not be assumed included.
Frequently Asked Questions
Which way does the door open on the Traulsen G10011?
The G10011 has a left-hinged solid door. Confirm the swing direction against your kitchen layout before ordering.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and is supplied with a 9-foot cord and NEMA 5-15P plug.
How much storage does the G10011 provide?
This full-height one-section model has 23.43 cu. ft. capacity and includes three adjustable coated-wire shelves.
Does this model require a remote refrigeration system?
No. The G10011 uses a self-contained, top-mounted refrigeration system with R-290 refrigerant.
