Description

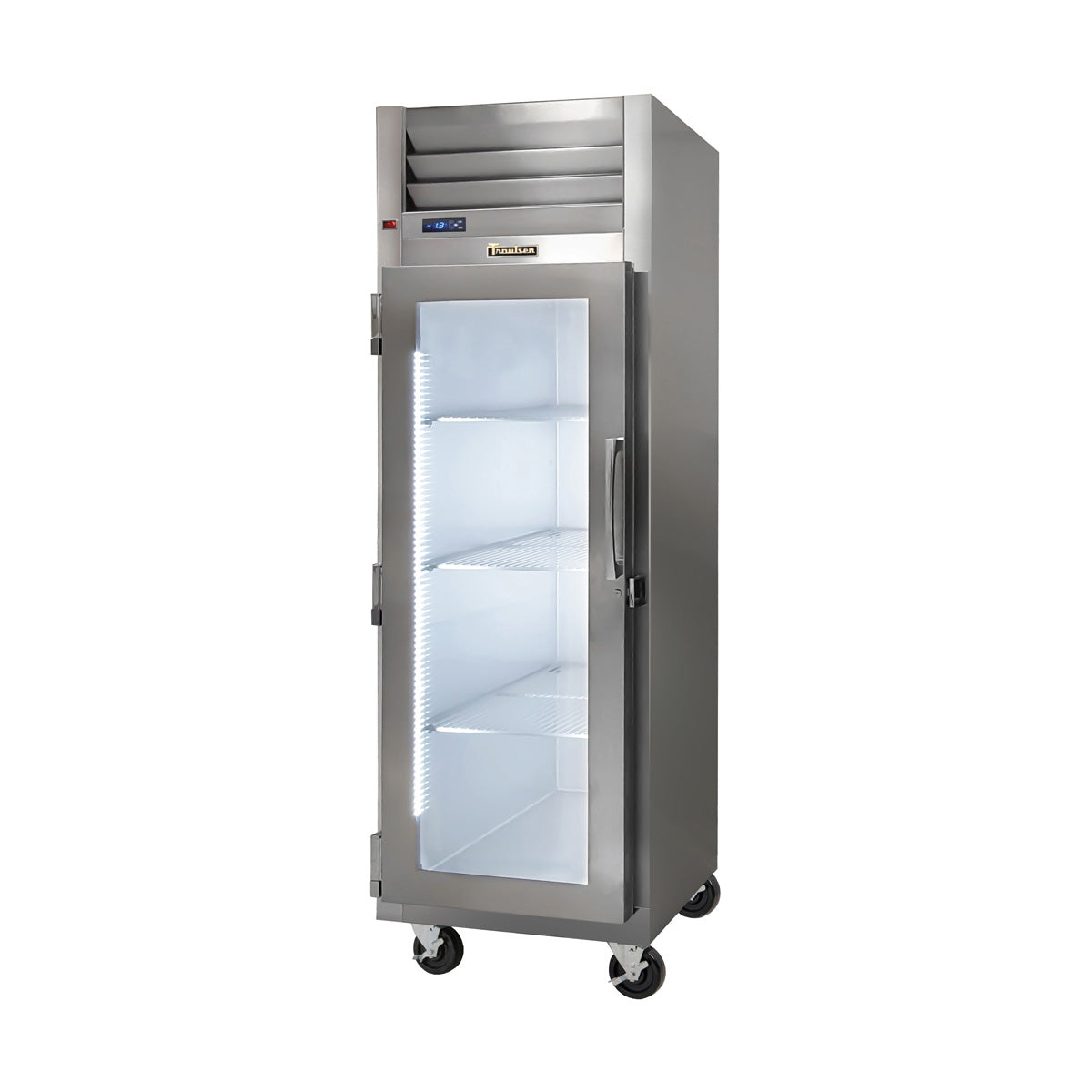

The Traulsen G11010-043 is a one-section, self-contained refrigerated merchandiser designed to hold chilled products behind a full-height glass door. Its right-hinged door, integrated LED display lighting, and front-facing condenser support visible front-of-house presentation with routine access for cleaning and service.
This 29 7/8-inch-wide model provides 23.57 cu. ft. of cabinet capacity and includes three factory-installed epoxy-coated wire shelves. The door is self-closing, stays open at 120 degrees for loading, and includes a lock. It is a refrigerator merchandiser, not a freezer or a multi-section cabinet.
Applications and Workflow
Suitable for displaying refrigerated bottled beverages, packaged grab-and-go foods, dairy items, and other chilled merchandise in cafés, markets, delis, and front-of-house foodservice areas. Confirm the right-hand door swing works with the intended aisle and adjacent equipment; this model requires considerably more front clearance when the door is opened.
Features and Practical Benefits
Right-hinged single-door access
The G11010-043 uses the one-section G11010 right-hinged configuration. Its full-height glass door is self-closing, can remain open at 120 degrees while loading, and has a removable plug cylinder lock.
Merchandising-focused illumination
Patented LED lighting is built into the display door to illuminate products through the glass without adding separate interior fixtures.
Organized standard storage
Three epoxy-coated steel wire shelves are factory installed in the one-section cabinet. Additional shelves and tray-slide arrangements are separate options, not standard contents.
Self-contained refrigeration
The top-mounted, self-contained refrigeration system uses R290 refrigerant and connects to a standard 115/60/1 electrical supply through its attached NEMA 5-15P plug.
Accessible condenser service
A front-facing condenser coil is designed for easier cleaning access, while the unit's locking casters allow the cabinet to be positioned and secured.
Technical Specifications
| Manufacturer model | G11010-043 |
|---|---|
| Cabinet configuration | One section, right-hinged glass door refrigerator |
| Net capacity | 23.57 cu. ft. (667 L) |
| Overall width | 29 7/8 in. (75.9 cm) |
| Overall depth | 35 7/16 in. (89.9 cm) |
| Overall height | 83 7/16 in. (211.9 cm) |
| Depth with door open 90° | 56 3/4 in. (144 cm) |
| Clear door width | 21 in. (53.2 cm) |
| Standard shelves | 3 epoxy-coated steel wire shelves |
| Electrical supply | 115/60/1 |
| Plug | NEMA 5-15P attached |
| Power cord | 9 ft. cord and plug |
| Refrigerant | R290 |
| Refrigeration system | Top-mounted, self-contained |
| Casters | Four 6 in. high locking casters |
| Recommended top clearance | 12 in. preferred |
Installation and Purchasing Considerations
- Allow a 29 7/8-inch cabinet width, 35 7/16-inch overall depth, and 83 7/16-inch overall height.
- Plan door-swing clearance: cabinet depth becomes 56 3/4 inches with the door open 90 degrees. The door stays open at 120 degrees for loading, so keep the front and hinge side unobstructed.
- Provide a 115/60/1 electrical connection for the attached NEMA 5-15P plug. The manufacturer states that a 9-foot cord and plug are provided.
- The refrigeration system is top mounted and self-contained; the manufacturer prefers 12 inches of top clearance for optimum performance and service access.
- The cabinet is supplied on four 6-inch locking casters. Position it on a suitable, level location and retain access to the front-facing condenser for cleaning.
Choosing This Configuration
This is the one-section refrigerator configuration with a right-hinged glass door. Do not confuse it with the left-hinged one-section configuration or wider two- and three-section cabinets.
The standard configuration includes three shelves. Tray slides, additional shelves, bottle shelves, and alternative caster arrangements are optional rather than confirmed included equipment.
This is a self-contained refrigerated merchandiser using R290; it is not a remote-condensing unit or a freezer merchandiser.
Frequently Asked Questions
Which way does the door hinge on the G11010-043?
This model is the right-hinged one-section configuration. Confirm that a right-hand hinge suits the traffic flow and adjacent fixtures at the installation location.
How much space is needed to open the door?
The cabinet is 35 7/16 inches deep overall and measures 56 3/4 inches deep with the door open 90 degrees. The door also has a stay-open feature at 120 degrees for loading.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and has an attached NEMA 5-15P plug. A 9-foot cord and plug are provided.
Are pans or tray slides included?
No pans or tray slides are confirmed as included. The standard interior arrangement is three factory-installed epoxy-coated wire shelves; tray slides are optional accessories.
