Description

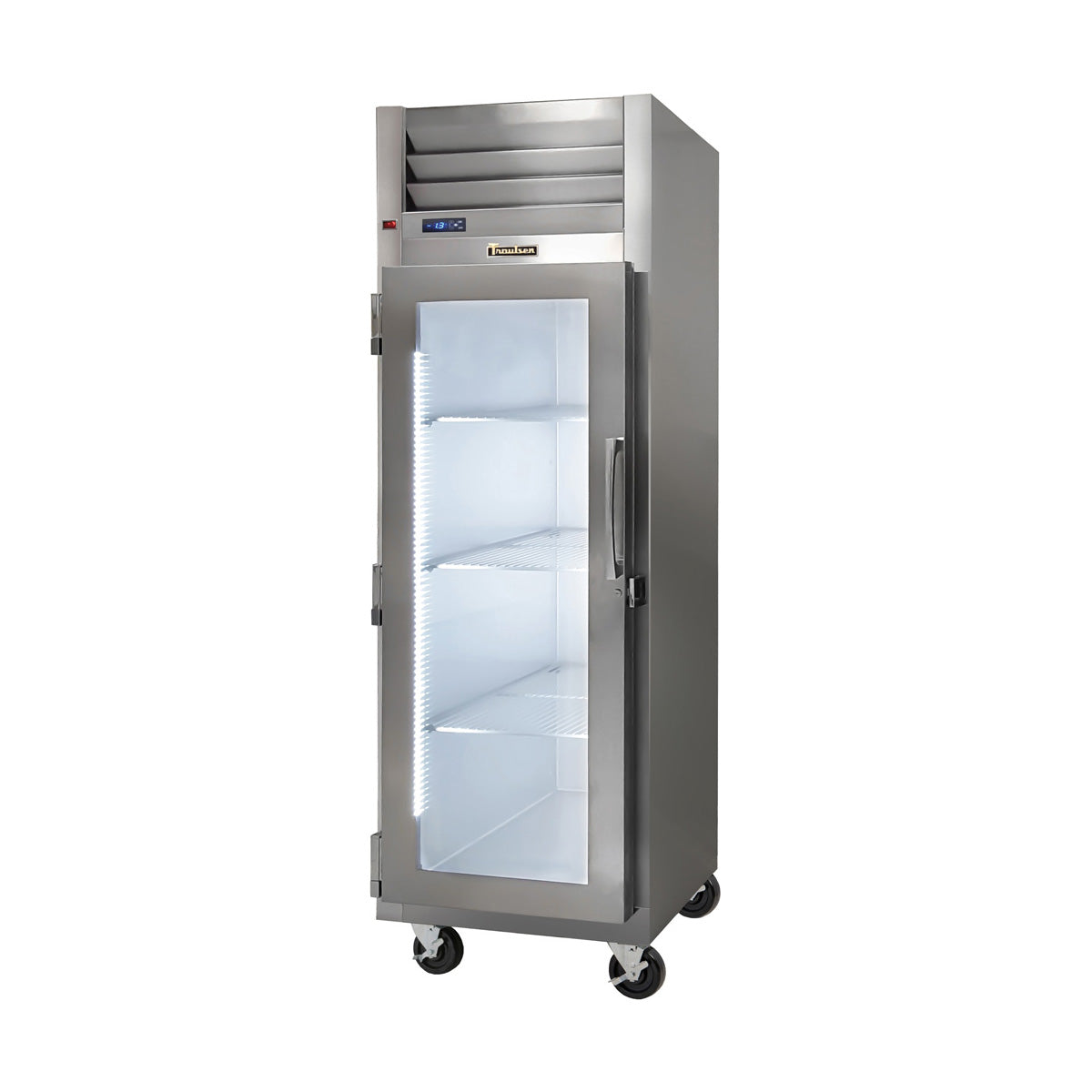

The Traulsen G11011-043 is a one-section refrigerated merchandiser designed to keep packaged beverages, grab-and-go foods, and other chilled products visible through a full-height glass door. Its left-hinged, locking door suits installations where the aisle, counter, or adjacent equipment requires the door to swing toward the left.
This self-contained, top-mounted refrigerator combines a stainless steel front with anodized aluminum sides and interior. The glass door incorporates LED display lighting, while three factory-installed epoxy-coated wire shelves provide the standard storage layout. A front-facing condenser coil supports routine cleaning access.
Applications and Workflow
Use this one-section glass-door refrigerator for front-of-house beverage and packaged-food displays, café service areas, markets, and employee breakrooms. It is a refrigerator merchandiser, not a freezer, and the left-hand door swing should be matched to the available aisle and opening clearance.
Features and Practical Benefits
Left-hinged display access
The single full-height glass door is left hinged, self-closing, lockable, and can stay open at 120 degrees for loading.
Built-in product presentation
LED lighting is integrated into the display door to illuminate stored merchandise without adding a separate interior lighting component.
Standard shelf package
Three epoxy-coated steel wire shelves are factory installed in the one-section cabinet.
Self-contained top-mounted refrigeration
The refrigeration system is contained within the cabinet and uses R290 refrigerant, simplifying placement compared with equipment requiring a remote condensing unit.
Service-minded cabinet details
A front-facing condenser coil and four 6-inch locking casters support access for cleaning and moving the cabinet when needed.
Technical Specifications
| Manufacturer model | G11011-043 |
|---|---|
| Cabinet configuration | One section, left-hinged glass door |
| Net capacity | 23.57 cu. ft. (667 L) |
| Overall width | 29 7/8 in. |
| Overall depth | 35 7/16 in. |
| Overall height | 83 7/16 in. |
| Depth over body | 32 in. |
| Depth with door open 90 degrees | 56 3/4 in. |
| Clear door width | 21 in. |
| Electrical requirement | 115/60/1 |
| Plug | NEMA 5-15P |
| Full-load amperage | 4.7 A |
| Refrigerant | R290 |
| Refrigerant charge | 4.5 oz. (127.6 g) |
| Compressor rating | 1/4 HP |
| Standard shelves | 3 epoxy-coated steel wire shelves |
| Casters | Four 6 in. high locking casters |
| Power cord length | 9 ft. |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan a finished footprint of 29 7/8 inches wide by 35 7/16 inches deep by 83 7/16 inches high.
- Allow for the door swing: cabinet depth with the door open 90 degrees is 56 3/4 inches. Confirm that this left-hinged door will not obstruct traffic or nearby equipment.
- Connect to a 115/60/1 electrical supply. The unit is supplied with a 9-foot cord and NEMA 5-15P plug.
- Provide 12 inches of clearance above the cabinet where possible for preferred performance and service access.
- The unit is self-contained and top mounted; no remote condenser is specified for this configuration. Position it so the front-facing condenser area remains accessible for cleaning.
- The cabinet includes four 6-inch high locking casters. Check overall installed height and floor conditions before final placement.
Choosing This Configuration
This exact configuration is a one-section refrigerator with one left-hinged glass door. It is not the right-hinged one-section version or a multi-section cabinet.
Three wire shelves are standard. Tray slides, additional shelves, alternate casters, and legs are listed as field-installed accessories or options rather than standard contents.
The listed 23.57 cubic foot capacity applies to the one-section G1101_ cabinet family.
Frequently Asked Questions
Which way does the door swing on the G11011-043?
This model is specified with one left-hinged glass door. Verify the left-hand swing against your wall, counter, and aisle layout before ordering.
What electrical connection does this refrigerator use?
It uses 115/60/1 power and is supplied with a 9-foot cord and NEMA 5-15P plug.
How much space is needed when the door is open?
At a 90-degree door opening, the overall depth is 56 3/4 inches. The cabinet itself is 35 7/16 inches deep.
Are shelves included?
Yes. The standard arrangement includes three factory-installed epoxy-coated steel wire shelves for this one-section cabinet.
