Description

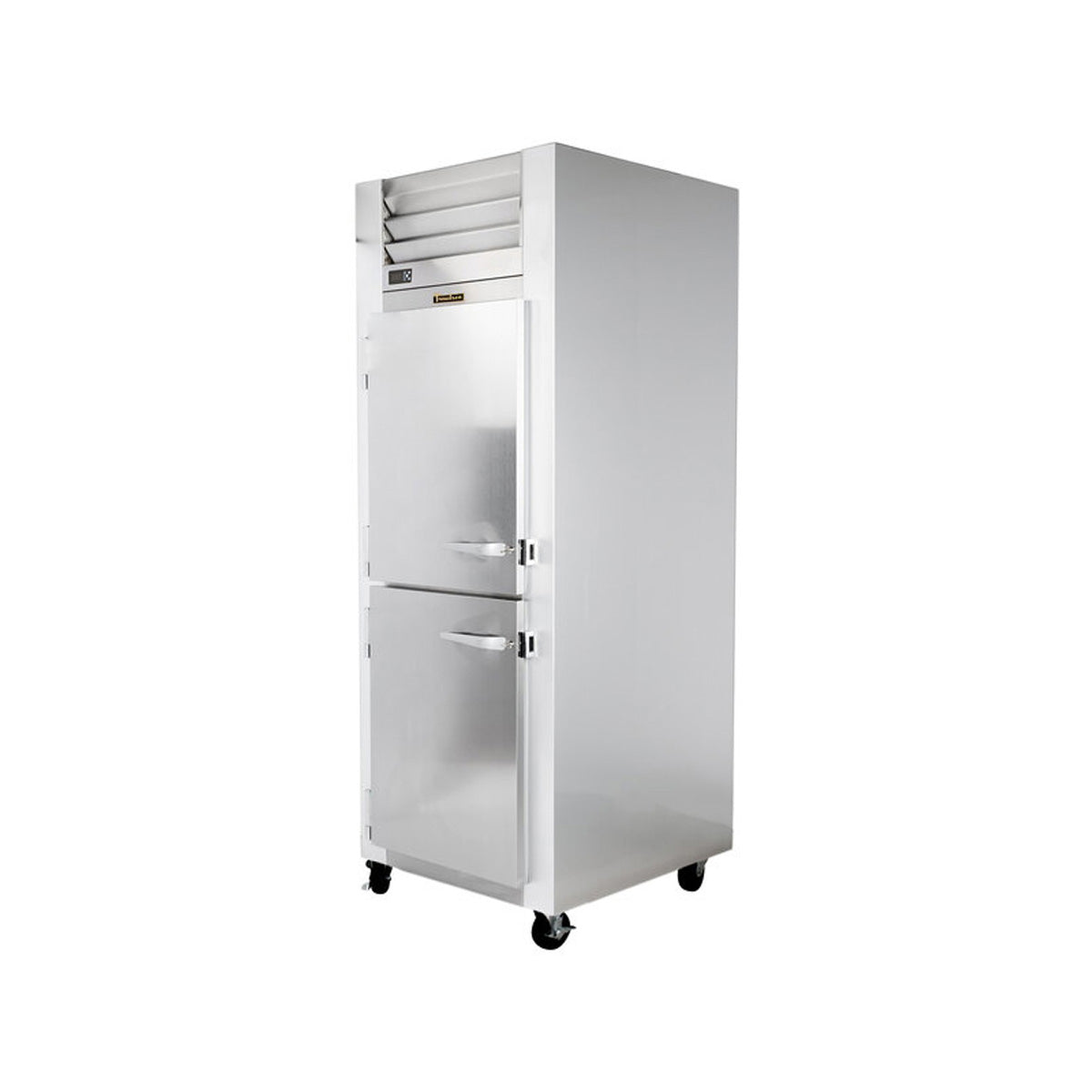

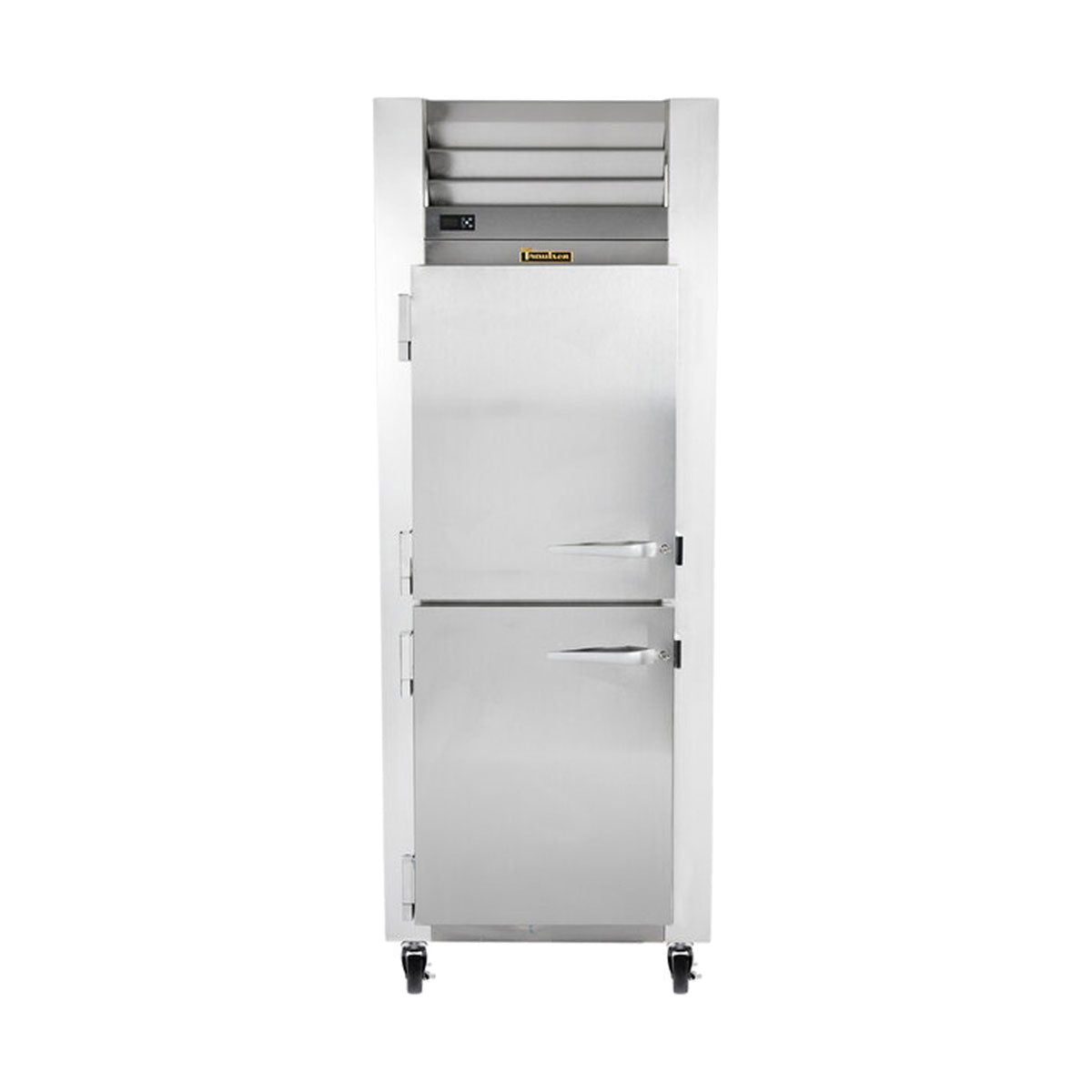

The Traulsen G12001 is a one-section, self-contained reach-in freezer with two half-height solid doors hinged on the left. Its 23.37 cu. ft. cabinet provides upright frozen storage while allowing staff to open only the upper or lower compartment as needed during receiving, prep, or line replenishment.
This G-Series configuration combines a stainless steel front and doors with anodized aluminum sides and interior. Three epoxy-coated wire shelves are factory installed, and the top-mounted refrigeration package keeps the condenser above the cabinet storage area. A microprocessor control with LED display supports at-a-glance cabinet monitoring.
Applications and Workflow
Suitable for commercial kitchens, schools, healthcare foodservice, bakeries, and institutional operations that need dedicated frozen-product storage in a narrow one-section footprint. The two half-height doors are useful where opening one portion of the cabinet at a time fits the workflow. This is a reach-in freezer, not a refrigerated prep table or a pass-through unit.
Features and Practical Benefits

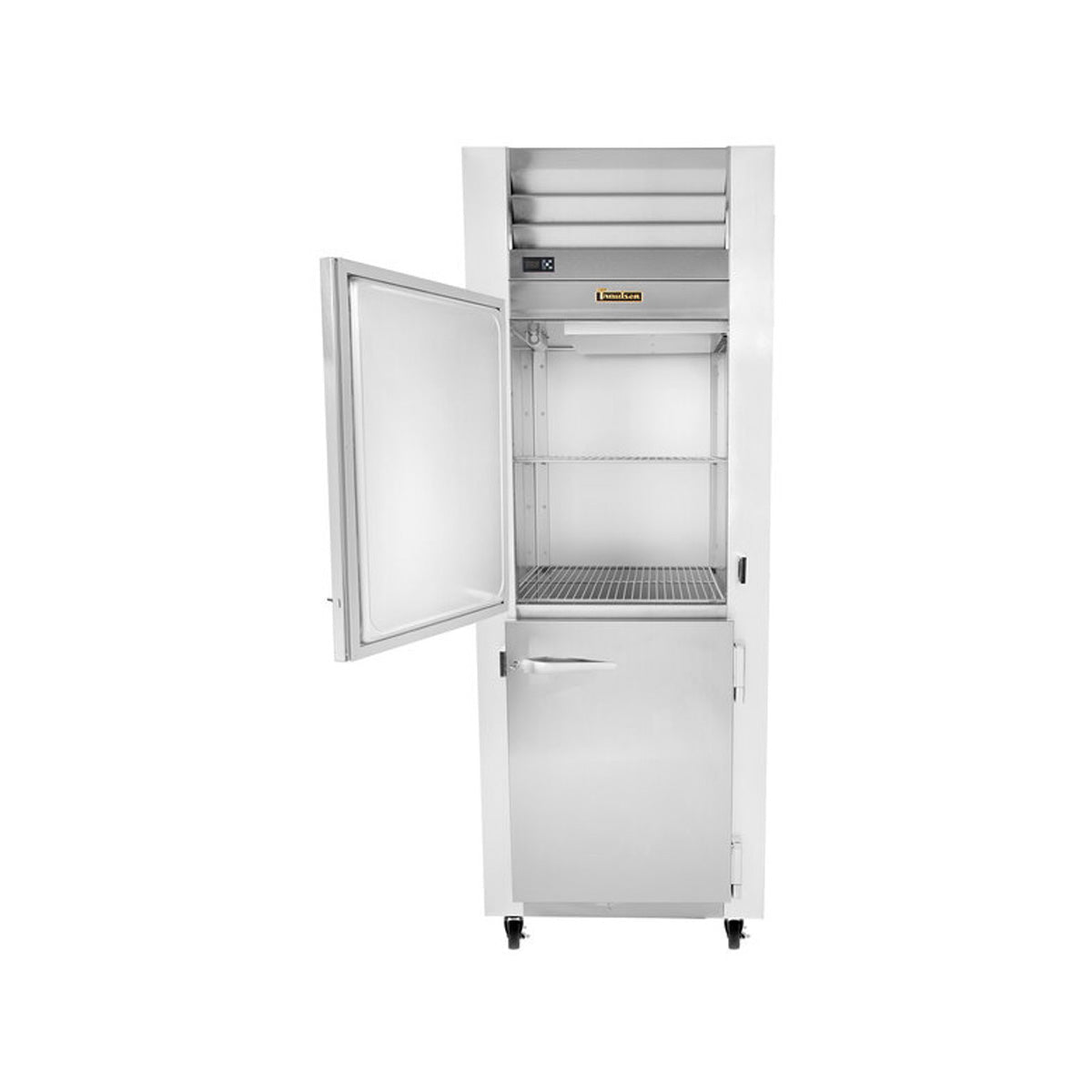

Left-hinged half-door access
Two solid half-height doors are configured with left hinging, helping buyers plan the swing direction around nearby aisles, walls, or equipment.
Top-mounted self-contained refrigeration
The R-290 refrigeration system is mounted at the top of the cabinet and includes a front-facing condenser coil for routine access and cleaning.
Usable organized storage
Three epoxy-coated wire shelves are factory installed. The evaporator coil is located outside the food zone to preserve cabinet storage space.
Durable cabinet construction
The front and doors are stainless steel, while the sides and interior are anodized aluminum for a practical commercial finish.
Connected operating convenience
A water-resistant microprocessor control with a three-digit LED display is standard, and a 9-foot cord with attached NEMA 5-15P plug is provided.
Technical Specifications
| Manufacturer model | G12001 |
|---|---|
| Configuration | 1-section reach-in freezer with two half-height solid doors |
| Door hinging | Left |
| Net capacity | 23.37 cu. ft. (661.8 L) |
| Overall width | 29 7/8 in. (75.9 cm) |
| Overall depth | 35 1/16 in. (89.1 cm) |
| Depth over body | 32 in. (81.3 cm) |
| Depth with door open 90° | 56 11/16 in. (144.1 cm) |
| Overall height | 83 7/16 in. (211.9 cm) |
| Clear door width | 21 in. (53.2 cm) |
| Clear half-door height | 27 3/8 in. (69.6 cm) |
| Standard shelves | 3 epoxy-coated wire shelves |
| Electrical | 115V / 60 Hz / 1-phase |
| Plug | NEMA 5-15P, attached |
| Full-load amperage | 6.5 A |
| Energy use | 4.89 kWh per 24 hours |
| Refrigerant | R-290 |
| Compressor horsepower | 1/2 HP |
| Cord length | 9 ft. |
| Casters | Four 6 in. locking casters |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Allow a 29 7/8 in. overall width and 35 1/16 in. overall depth; cabinet depth over the body is 32 in.
- The cabinet height is 83 7/16 in. on the included 6 in. locking casters. Confirm overhead clearance before delivery and final placement.
- Plan for a 56 11/16 in. depth when a door is open 90 degrees. The clear half-door opening height is 27 3/8 in.
- Connect to a 115V, single-phase, 60 Hz outlet using the attached NEMA 5-15P plug. The unit is supplied with a 9-foot cord.
- Provide 12 in. of top clearance where possible for performance and service access. Keep the front-facing condenser accessible for cleaning.
- Four 6 in. locking casters are included. Verify floor conditions, doorway dimensions, and final left-hinge door swing before ordering.
Choosing This Configuration
G12001 is the half-height-door model with left hinging. It is not the right-hinged G12000 configuration.
This model has two half-height solid doors, not one full-height door. Full-height door models have a different door opening arrangement.
Three wire shelves are standard. Tray slides, additional shelves, alternate casters, and legs are listed as field-installed accessories or options rather than standard inclusions.
Frequently Asked Questions
Which way do the doors hinge on the Traulsen G12001?
The G12001 is the left-hinged half-height-door configuration. Confirm that this swing direction suits the intended installation location.
What electrical connection does this freezer use?
It operates on 115V, 60 Hz, single-phase power and has an attached NEMA 5-15P plug with a 9-foot cord.
How much space is needed in front of the freezer?
With a door open 90 degrees, the overall depth is 56 11/16 inches. Plan this clearance so the half doors can open without obstructing traffic.
Are tray slides included with the freezer?
No tray slides are identified as standard. The cabinet includes three factory-installed epoxy-coated wire shelves; tray slides are offered as field-installed accessories or options.
