Description

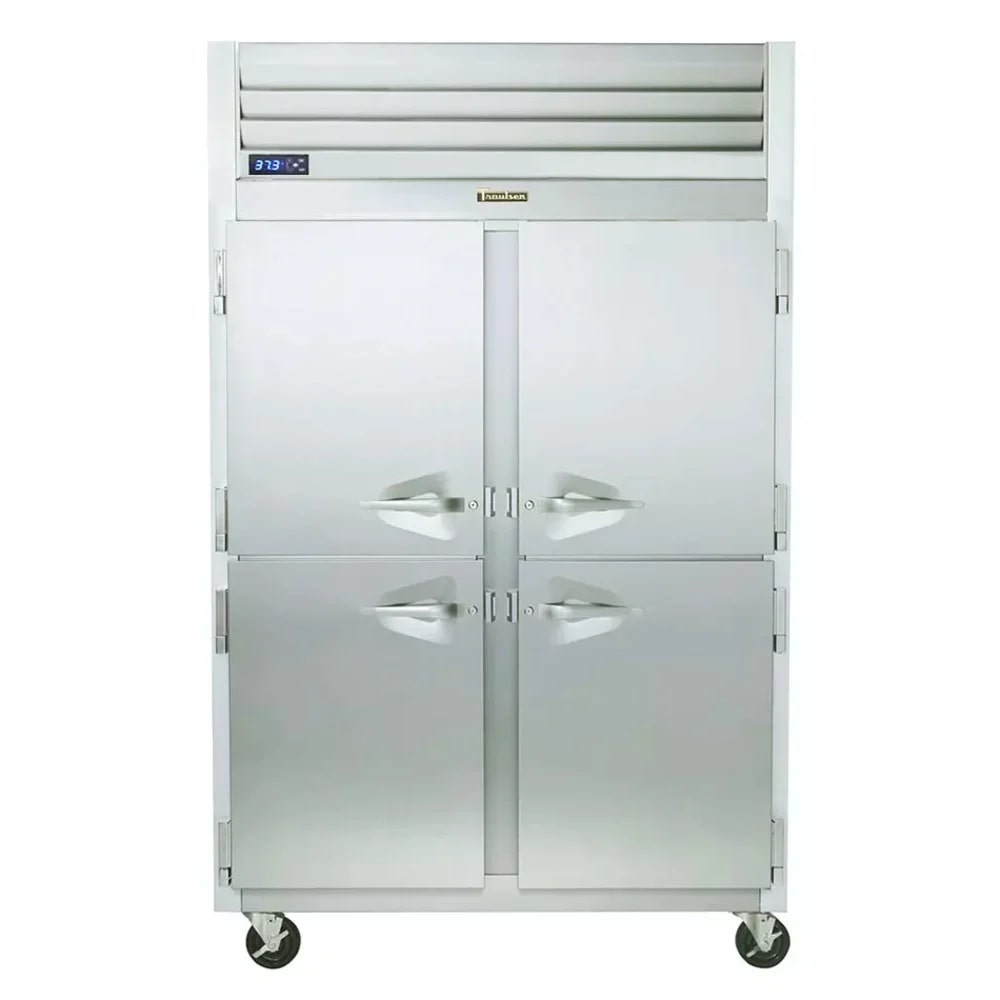

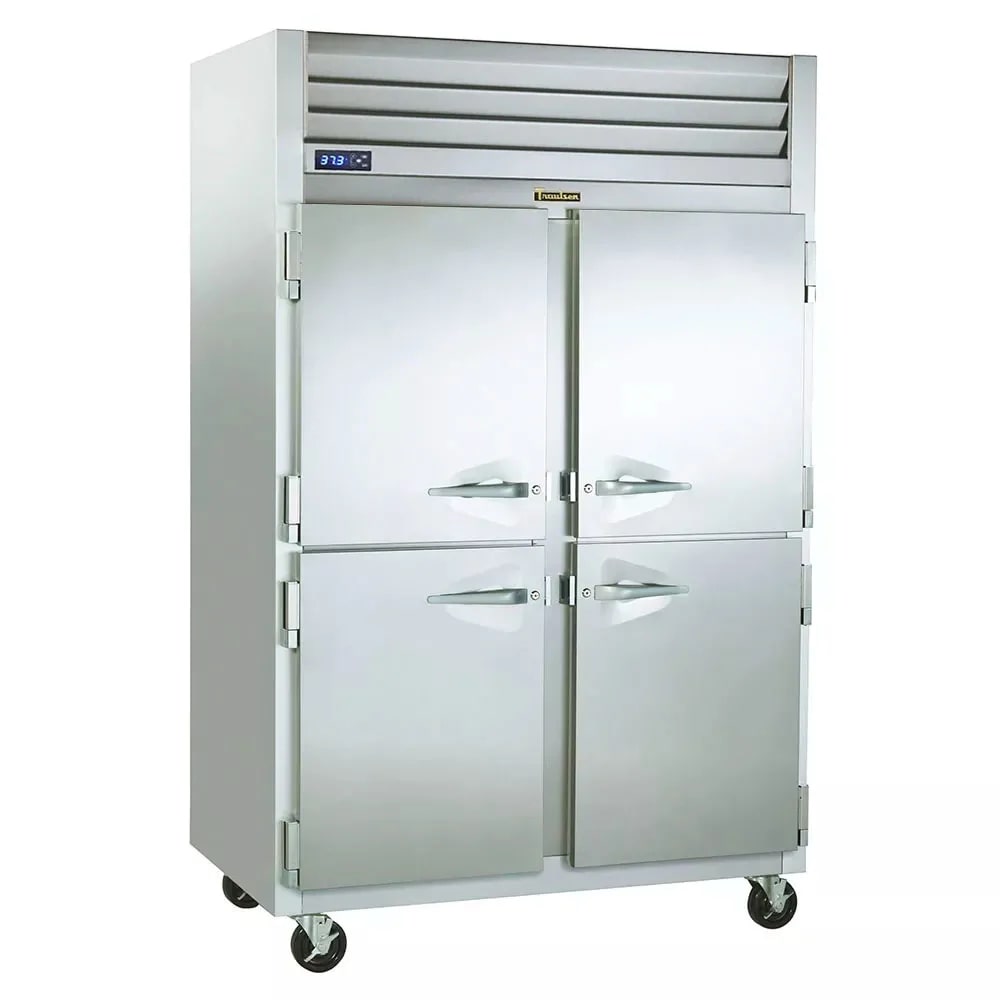

The Traulsen G20004P is a self-contained, two-section pass-thru refrigerator designed to move refrigerated ingredients or prepared items between two work areas without routing staff around the cabinet. Its solid half-height doors provide access to separate upper and lower compartments from either side of the unit.
This exact G20004P configuration has eight solid half-height doors—four on each side—with left/right hinging on both the control and non-control sides. A top-mounted refrigeration system, front-facing condenser, microprocessor control, and LED temperature display support day-to-day refrigerated storage workflow.
Applications and Workflow
Well suited to commercial kitchens with a prep area on one side and a cookline, plating area, or rear-access storage area on the other. The pass-thru design is intended for through-cabinet access; it is not a reach-in-only cabinet. Confirm that both sides of the installed location remain accessible for door operation and product loading.
Features and Practical Benefits
Two-sided product access
Pass-thru construction allows staff to load from one side and retrieve from the other, helping separate prep and service traffic.
Half-door organization
Eight solid half-height doors let users access a smaller portion of the cabinet at a time. The G20004P is specifically configured with left/right door hinging on both sides.
Factory shelf package

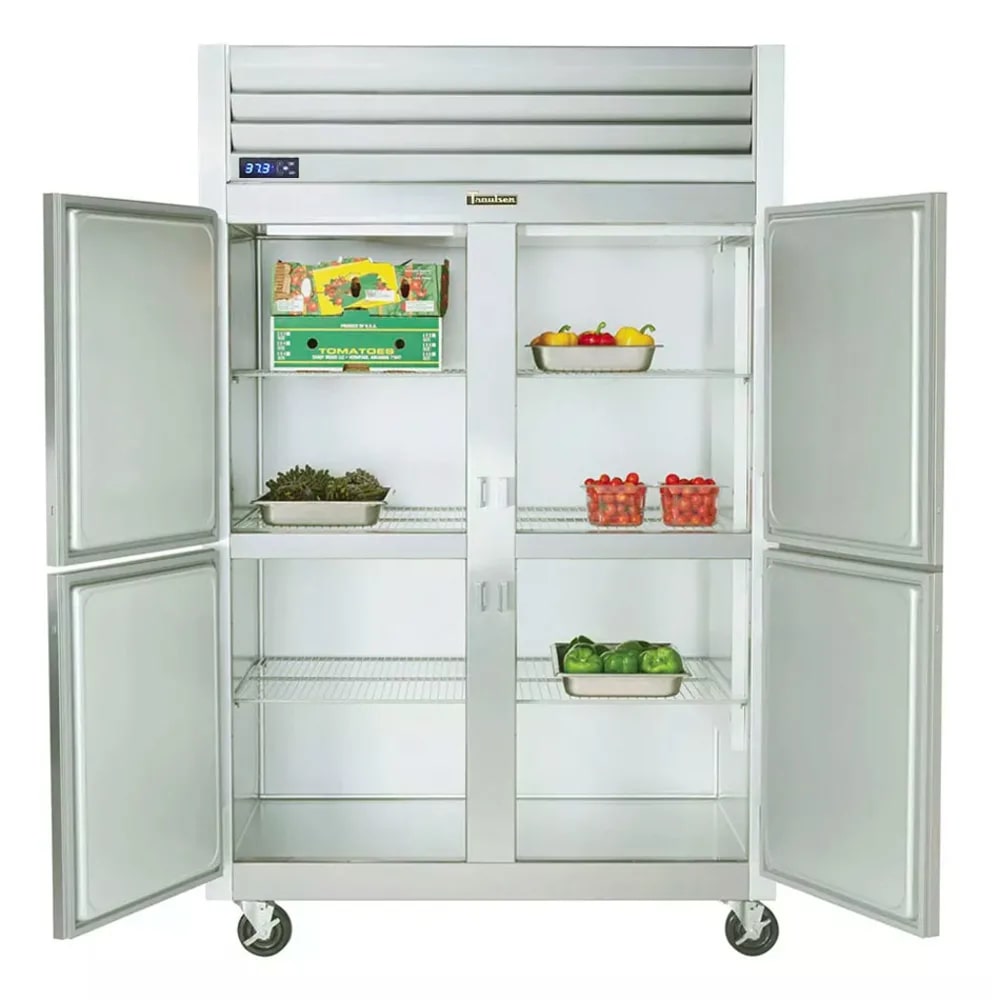

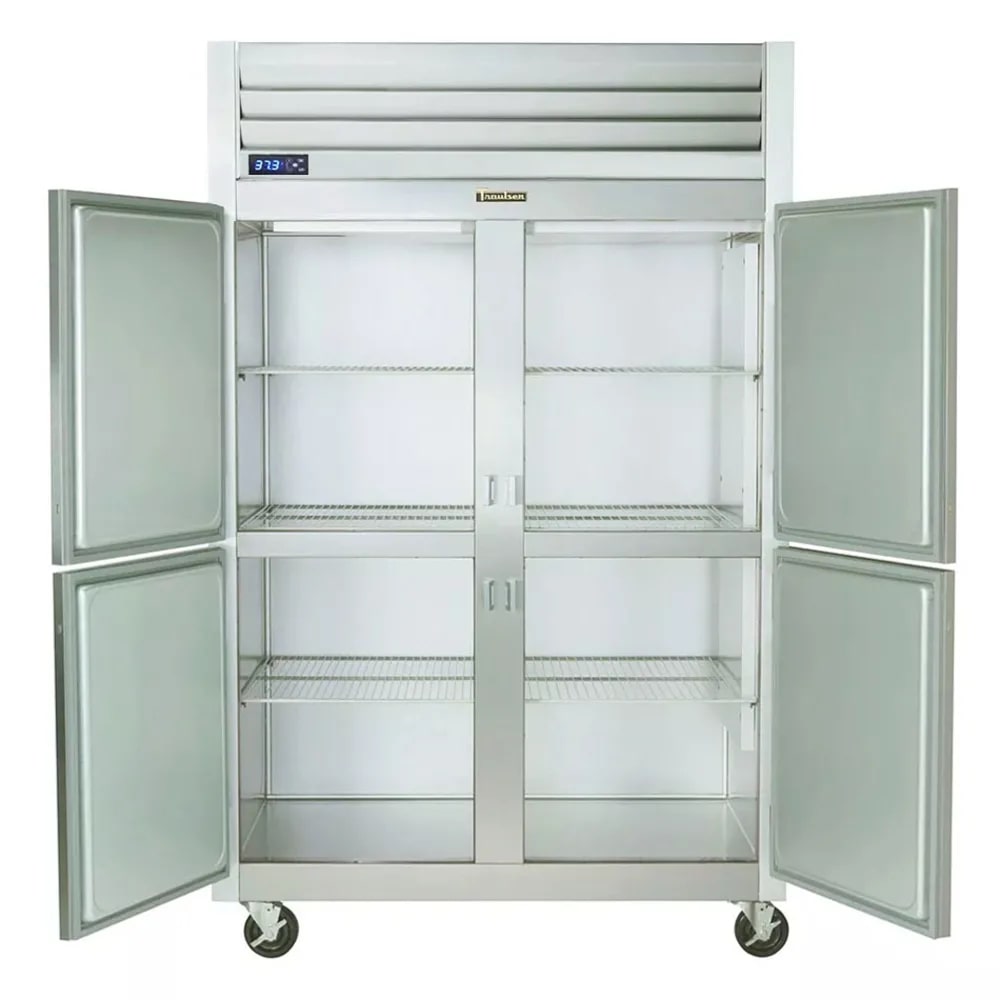

Three epoxy-coated wire shelves are factory installed per section, providing six standard shelves across the two-section cabinet.
Top-mounted self-contained system
The refrigeration system is mounted above the food storage area and uses R-450A refrigerant. Its condenser faces the front for routine cleaning access.
Built for mobile placement
Four 6-inch locking casters are included, allowing the cabinet to be positioned and secured in place.
Technical Specifications
| Manufacturer model | G20004P |
|---|---|
| Cabinet type | 2-section pass-thru refrigerator |
| Door configuration | 8 solid half-height doors |
| Door hinging | Left/right on control side; left/right on non-control side |
| Net capacity | 48.61 cu. ft. |
| Overall width | 52 1/8 in. |
| Overall depth | 38 1/8 in. |
| Overall height | 83 3/8 in. |
| Cabinet body depth | 32 in. |
| Depth with door open 90° | 56 3/4 in. |
| Electrical requirement | 115V, 60 Hz, 1-phase |
| Plug | NEMA 5-15P, attached |
| Full-load amperage | 7.4 A |
| Refrigerant | R-450A |
| Refrigeration system | Top-mounted, self-contained |
| Required top clearance | 12 in. above |
| Standard shelves | 3 per section |
| Casters | Four 6 in. locking casters |
| Operating temperature | 34°F to 38°F |
Installation and Purchasing Considerations
- Plan for an overall cabinet footprint of approximately 52 1/8 inches wide by 38 1/8 inches deep by 83 3/8 inches high on the supplied casters.
- The cabinet body depth is 32 inches, but allow 56 3/4 inches of depth where a door must open to 90 degrees.
- Maintain 12 inches of clearance above the cabinet for the top-mounted refrigeration system.
- Connect to a 115V, single-phase, 60 Hz electrical supply. The unit is supplied with an attached NEMA 5-15P plug and a 9-foot cord.
- Keep the front-facing condenser accessible for cleaning and do not block access from either pass-thru side.
- Verify doorway, aisle, and final-location clearances before delivery, particularly because doors are present on both sides of the cabinet.
Choosing This Configuration
G20004P is the half-height-door pass-thru configuration, not a full-height-door model.
This model has solid doors on both sides of the pass-thru cabinet.
Its specified hinging is left/right on the control side and left/right on the non-control side. Confirm this swing pattern suits adjacent walls, equipment, and traffic paths.
Tray slides, additional shelves, legs, and lower-height casters are listed as field-installed accessories or options; do not assume they are included.
Frequently Asked Questions
How many doors does the Traulsen G20004P have?
It has eight solid half-height doors total: four doors on each side of the two-section pass-thru cabinet.
Which way do the doors hinge?
For model G20004P, the two doors on the control side are left- and right-hinged, and the two doors on the non-control side are also left- and right-hinged.
What electrical connection does this refrigerator require?
It requires 115V, 60 Hz, single-phase power and is supplied with an attached NEMA 5-15P plug.
Are tray slides included?
No tray slides are identified as standard equipment. The manufacturer lists tray-slide systems as field-installed accessories or options.
