Description

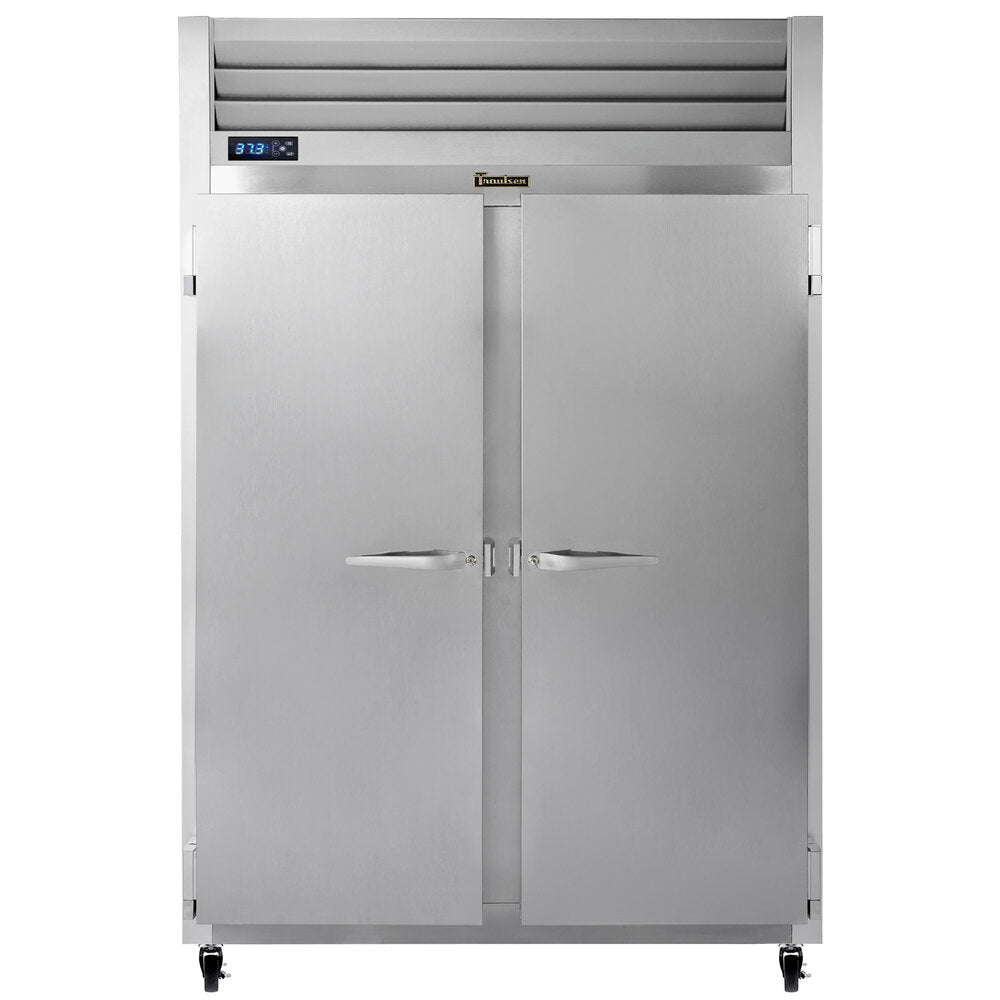

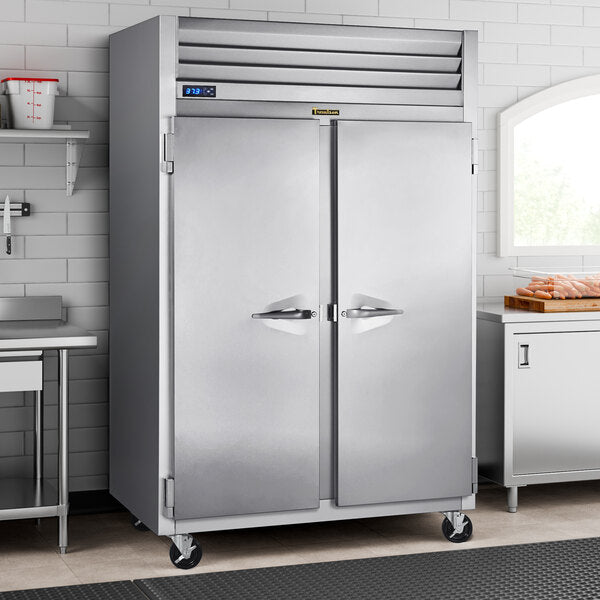

The Traulsen G20010 is a two-section solid-door reach-in refrigerator with full-height doors hinged left/right. Its 46.02 cu. ft. cabinet provides organized refrigerated storage for ingredients and prepared items, with three adjustable coated-wire shelves in each section.
A self-contained top-mounted refrigeration system keeps the bottom cabinet area clear while the front-facing condenser coil supports routine cleaning access. The G20010 uses a digital microprocessor control with LED display, interior LED lighting, self-closing doors, and a stay-open feature for loading tasks.
Applications and Workflow
Suitable for back-of-house refrigerated storage in restaurants, hotels, healthcare kitchens, schools, and institutional foodservice operations. This is a reach-in refrigerator for refrigerated storage, not a pass-through cabinet or a freezer. Plan the installation around its left/right door swing and top-mounted refrigeration section.
Features and Practical Benefits
Full-height left/right door configuration
The two solid full-height doors are configured with the left door hinged left and the right door hinged right, giving each section its own access point.
Organized two-section storage
Each section includes three adjustable coated-wire shelves installed at the factory, for six shelves total across the cabinet.
Serviceable top-mounted system
The self-contained refrigeration system is mounted on top, and the condenser coil faces forward for cleaning access.
Loading-friendly door details
Self-closing doors include a stay-open feature for loading, while cam-lift hinges and metal workflow handles are designed for repeated commercial use.
Mobile cabinet base
The refrigerator is supplied with four 6-inch casters; two have brakes and two do not.

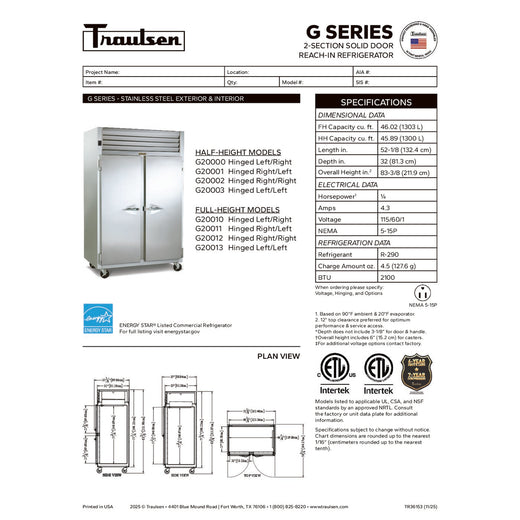

Technical Specifications
| Manufacturer model | G20010 |
|---|---|
| Configuration | Two-section solid-door reach-in refrigerator |
| Door hinging | Left/right |
| Capacity | 46.02 cu. ft. (1303 L) |
| Width | 52-1/8 in. (132.4 cm) |
| Cabinet depth | 32 in. (81.3 cm) |
| Overall height | 83-3/8 in. (211.9 cm) |
| Electrical rating | 115/60/1 |
| Amperage | 4.3 A |
| Plug configuration | NEMA 5-15P |
| Refrigerant | R-290 |
| Refrigeration system | Self-contained, top-mounted |
| Operating temperature range | 34-38 °F (1.1-3.3 °C) |
| Included shelves | 3 adjustable coated-wire shelves per section |
| Casters | Four 6 in. casters; two with brakes |
| Power cord | 9 ft. cord and plug |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Place on a level floor with a 52-1/8-inch width, 32-inch cabinet depth, and 83-3/8-inch overall height. The published cabinet depth excludes 3-1/8 inches for the door and handle, so allow approximately 35-1/8 inches from the back of the cabinet to the front of the handle.
- Allow door-swing space on both sides: the left door opens from the left and the right door opens from the right. Keep the front clear for access and condenser cleaning.
- Provide the preferred 12 inches of clearance above the cabinet for top-mounted system performance and service access.
- Connect to 115/60/1 power using the supplied 9-foot cord and NEMA 5-15P plug. Verify that the installation location has a matching grounded receptacle.
- Casters are included; two casters have brakes. Position the cabinet, engage the brakes, and confirm stable, level placement before loading product.
Choosing This Configuration
This exact G20010 configuration has two full-height solid doors with left/right hinging. It is not the half-height-door configuration.
The cabinet is a self-contained, top-mounted reach-in refrigerator. It is not a remote-condensing unit, pass-through refrigerator, or freezer.
Six adjustable coated-wire shelves are factory installed. Additional shelves and tray slides are listed as separate interior/support options and should not be assumed included.
Frequently Asked Questions
What is the door hinging on the Traulsen G20010?
It has two full-height solid doors: the left door is hinged left and the right door is hinged right.
How many shelves are included?
Three adjustable coated-wire shelves are factory installed per section, for six shelves total.
What electrical connection does it need?
The G20010 is rated for 115/60/1 power and uses a NEMA 5-15P plug on a supplied 9-foot cord.
How much clearance is needed above the refrigerator?
Traulsen specifies 12 inches of top clearance as preferred for optimum performance and service access.
