Description

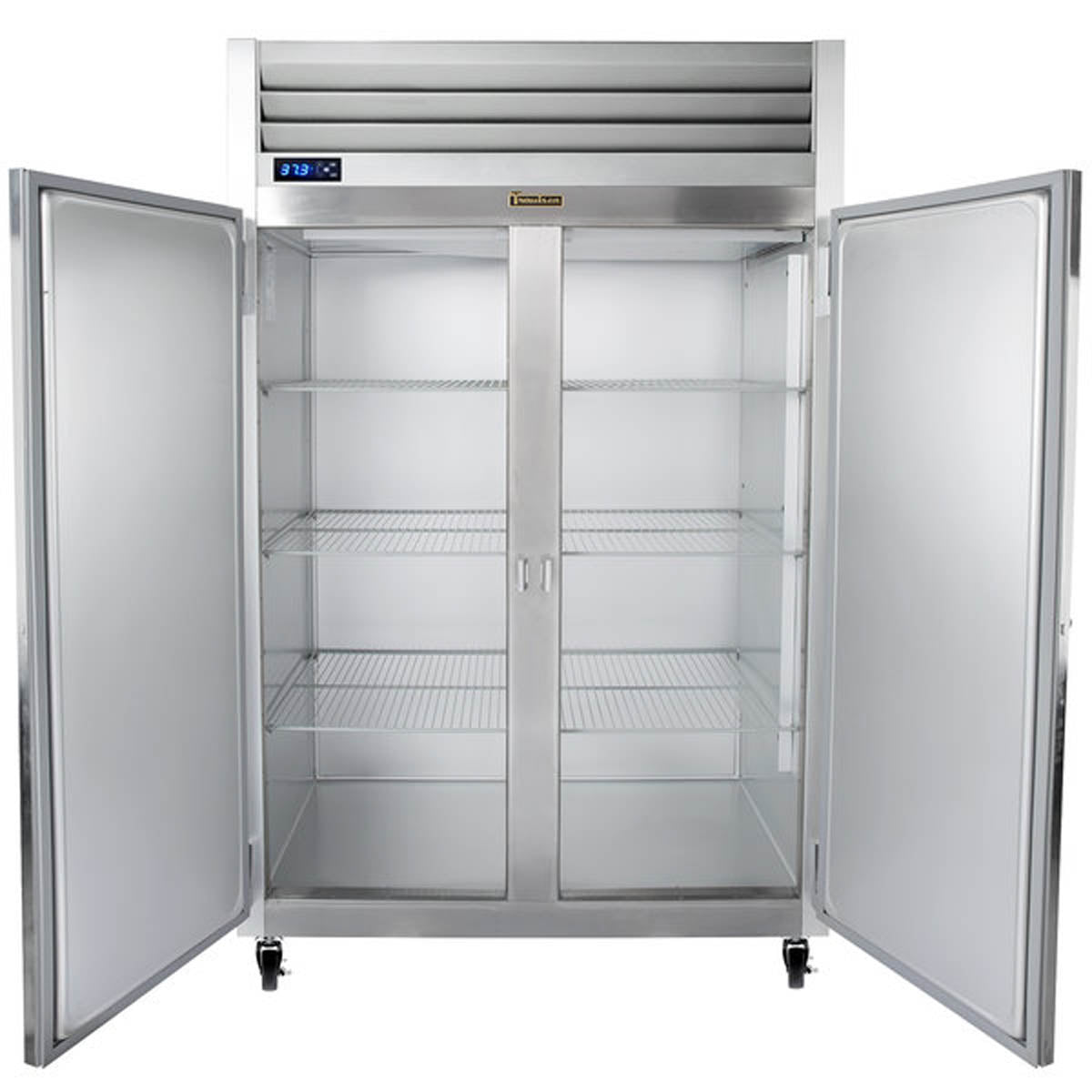

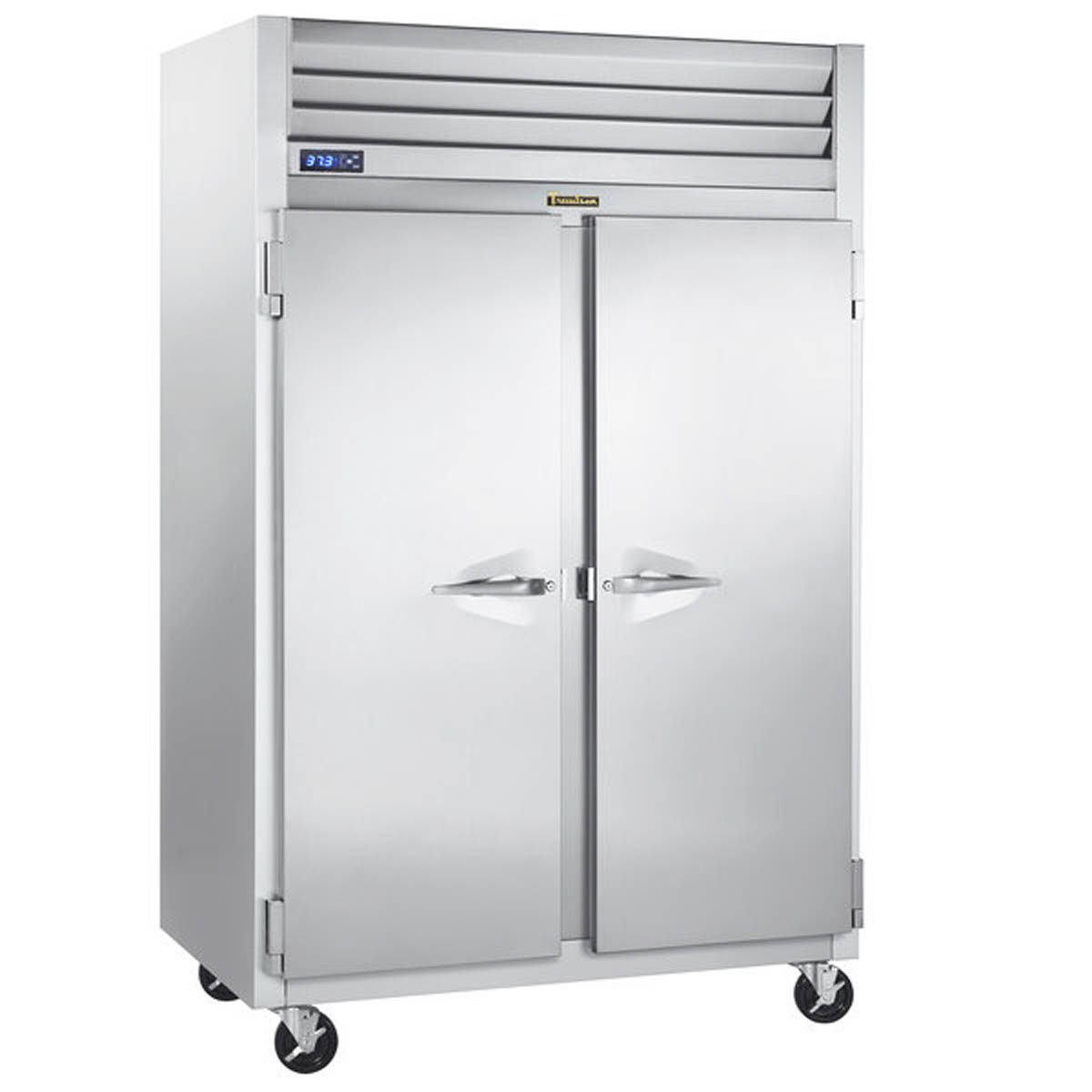

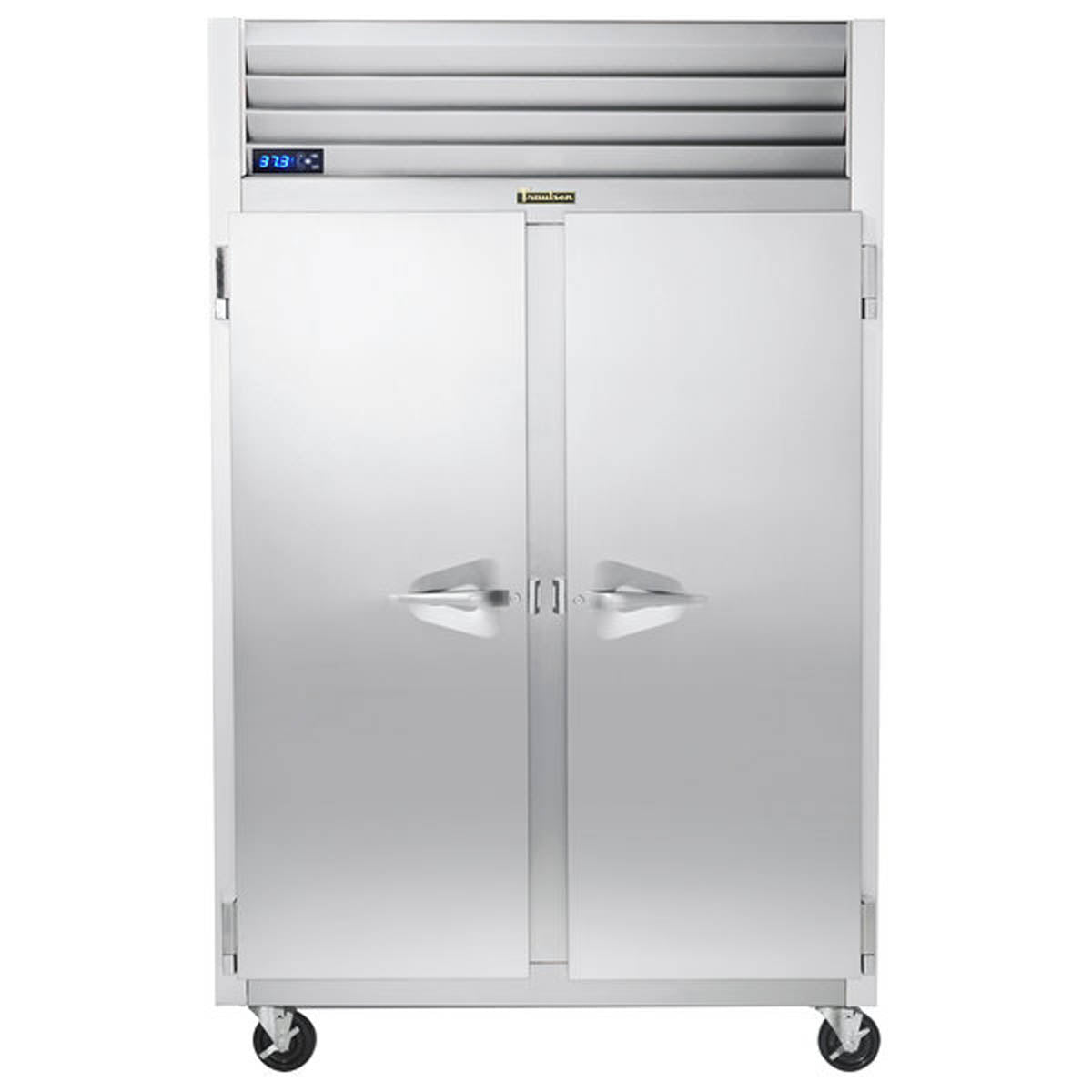

The Traulsen G20010-032 is a two-section, self-contained reach-in refrigerator with two full-height solid doors in a left/right hinging configuration. Its top-mounted R-290 refrigeration system, microprocessor control with LED display, and 46.02 cu. ft. full-door capacity suit refrigerated back-of-house storage where staff need organized access to frequently used ingredients.
This 52 1/8 in. wide cabinet includes six factory-installed epoxy-coated wire shelves—three per section—and four locking 6 in. casters. Stainless steel forms the cabinet front and doors, while anodized aluminum is used for the sides and interior. The front-facing condenser is intended to make routine condenser access more convenient.
Applications and Workflow
Use this refrigerator for refrigerated ingredient, prep-item, dairy, beverage, or packaged-product storage in restaurant kitchens, cafeterias, schools, healthcare foodservice, and similar commercial operations. It is a reach-in refrigerator with solid full-height doors, not a pass-through cabinet, freezer, or heated holding unit.
Features and Practical Benefits
Full-height two-door access
Two solid full-height doors provide separate access to the two cabinet sections. This exact G20010-032 configuration uses left/right hinging rather than matching same-side hinges.
Organized shelf storage
Six standard epoxy-coated wire shelves are installed at the factory, with three shelves in each section. The listed standard shelf area is 34.6 sq. ft.
Top-mounted self-contained refrigeration
The self-contained refrigeration system is top mounted and uses R-290 refrigerant. A front-facing condenser supports access for routine cleaning.
Workflow-focused door hardware
The doors have self-closing cam-lift hinges with a stay-open position at 120 degrees, plus horizontal recessed workflow handles designed to limit aisle protrusion.
Mobile cabinet base
Four 6 in. locking casters are included, allowing the cabinet to be moved for cleaning or repositioning and then secured in place.
Technical Specifications
| Manufacturer model | G20010-032 |
|---|---|
| Cabinet type | Two-section reach-in refrigerator |
| Door configuration | Two full-height solid doors, left/right hinging |
| Net capacity | 46.02 cu. ft. (1303 L) |
| Overall width | 52 1/8 in. (132.4 cm) |
| Overall depth | 35 in. (88.8 cm) |
| Overall height | 83 3/8 in. (211.9 cm) |
| Depth with door open 90° | 57 5/8 in. (146.3 cm) |
| Clear full-door opening | 21 in. W x 57 1/2 in. H |
| Standard shelves | 6 |
| Shelf area | 34.6 sq. ft. (3.21 sq. m) |
| Electrical | 115V, 60Hz, 1-phase; NEMA 5-15P attached plug |
| Full-load amperage | 4.3 A |
| Refrigerant | R-290 |
| Refrigeration system | Top-mounted, self-contained |
| Operating temperature | 34 to 38°F |
| Required top clearance | 12 in. |
| Casters | Four 6 in. high locking casters |
Installation and Purchasing Considerations
- Allow a 52 1/8 in. W x 35 in. D x 83 3/8 in. H footprint. The stated height is with the standard 6 in. casters installed.
- Plan for 57 5/8 in. total depth when a door is open 90 degrees; confirm this swing space will not obstruct aisles, prep stations, or adjacent equipment.
- Provide 12 in. of clearance above the cabinet as specified by Traulsen.
- Connect to a 115V, 60Hz, single-phase electrical supply. The unit has an attached NEMA 5-15P plug and a 9 ft. cord.
- This is a self-contained, top-mounted unit; no remote condenser connection is indicated. Keep the front-facing condenser accessible for cleaning and service.
- Verify that the left/right door hinging works with the planned location before ordering. The cabinet is supplied with shelves; trayslides and additional shelves are listed as field-installed options rather than standard equipment.
Choosing This Configuration
G20010-032 is the full-height solid-door version with left/right hinging. It is not the half-height-door configuration.
The full-height model is listed at 46.02 cu. ft. net capacity. Do not use the half-height model capacity when planning storage.
Standard equipment includes six shelves and four locking casters. Optional trayslides are not stated as included with this cabinet.
Frequently Asked Questions
What door arrangement does the G20010-032 have?
It has two solid full-height doors with left/right hinging. Each full-door opening provides 21 in. of clear width and 57 1/2 in. of clear height.
How many shelves are included?
Six epoxy-coated steel wire shelves are standard, with three installed in each cabinet section.
What electrical connection does it require?
The refrigerator operates on 115V, 60Hz, single-phase power and is equipped with an attached NEMA 5-15P plug and a 9 ft. cord.
How much clearance is needed for the doors and top of the cabinet?
Allow 57 5/8 in. depth with a door open 90 degrees and maintain 12 in. of clearance above the cabinet.
