Description

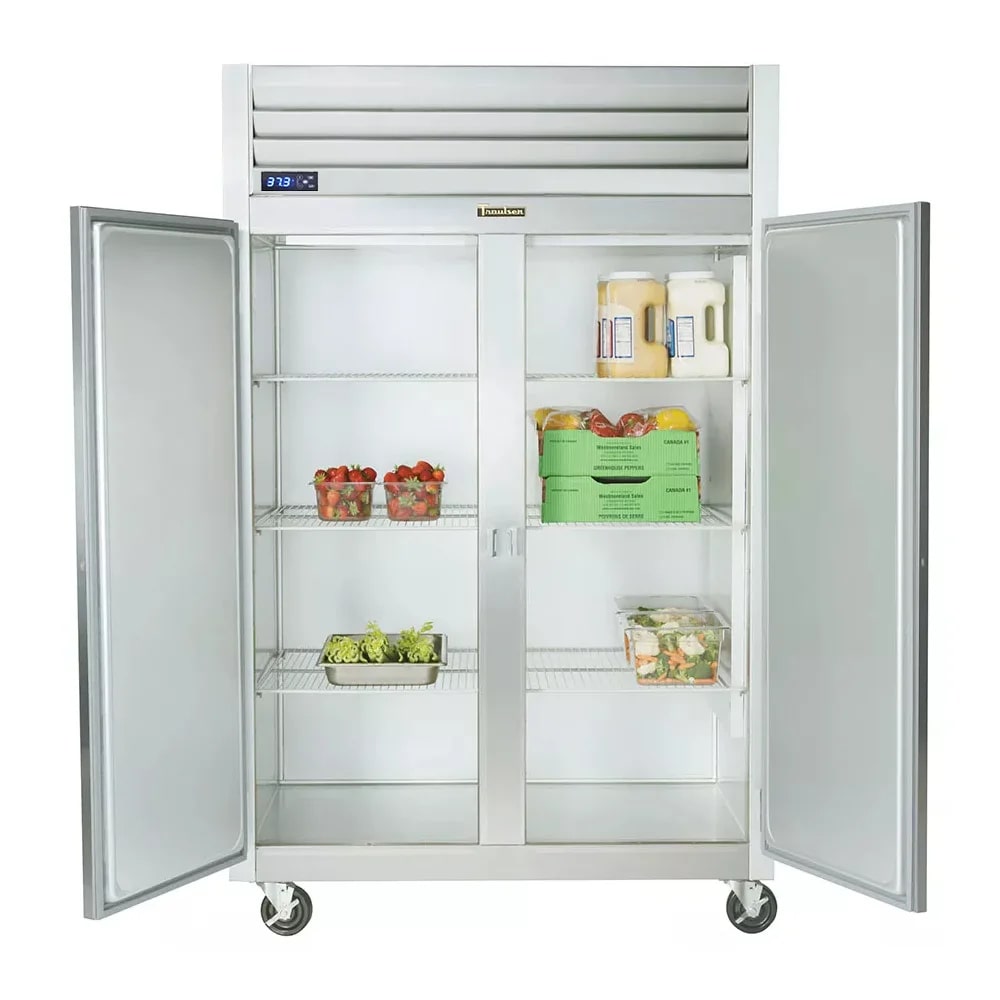

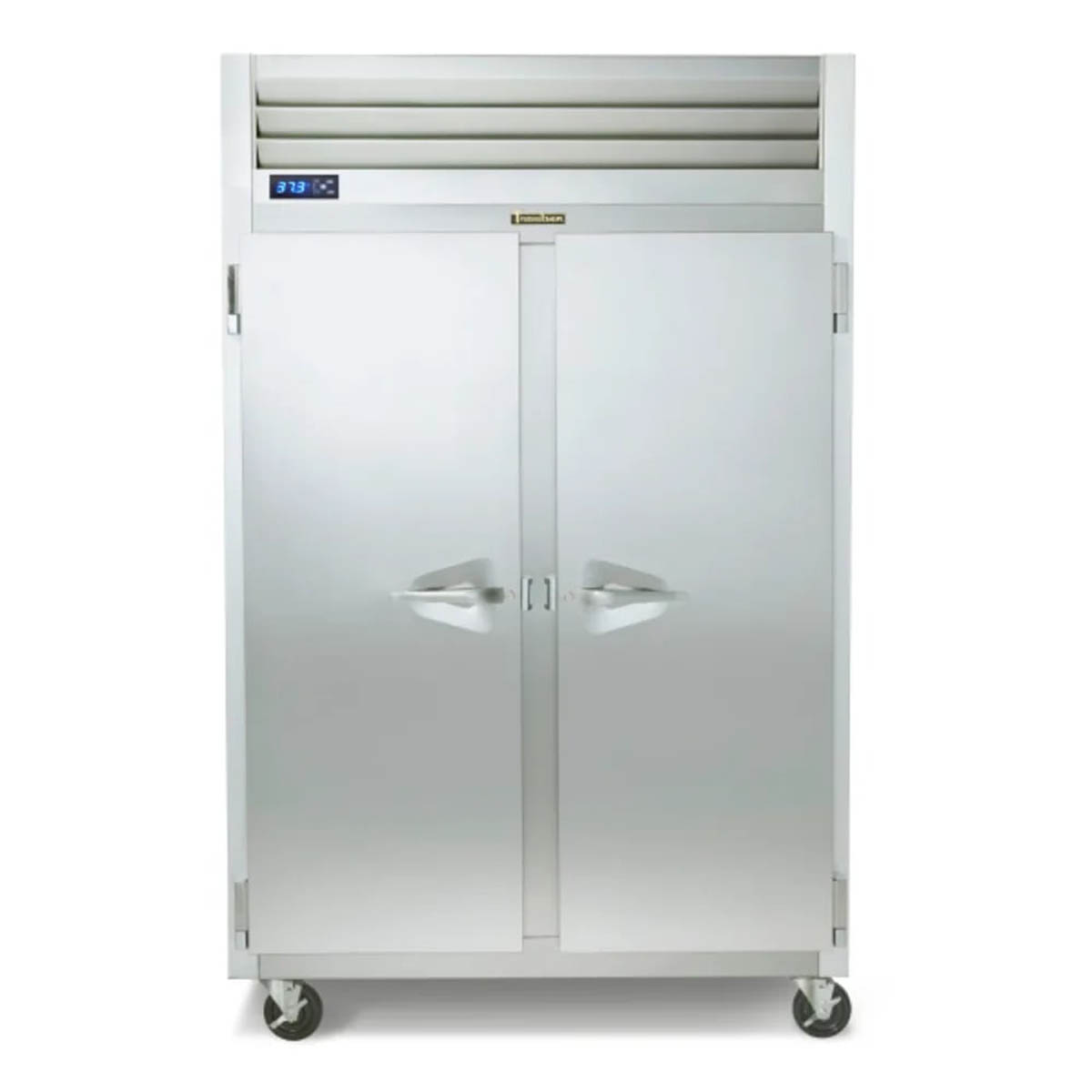

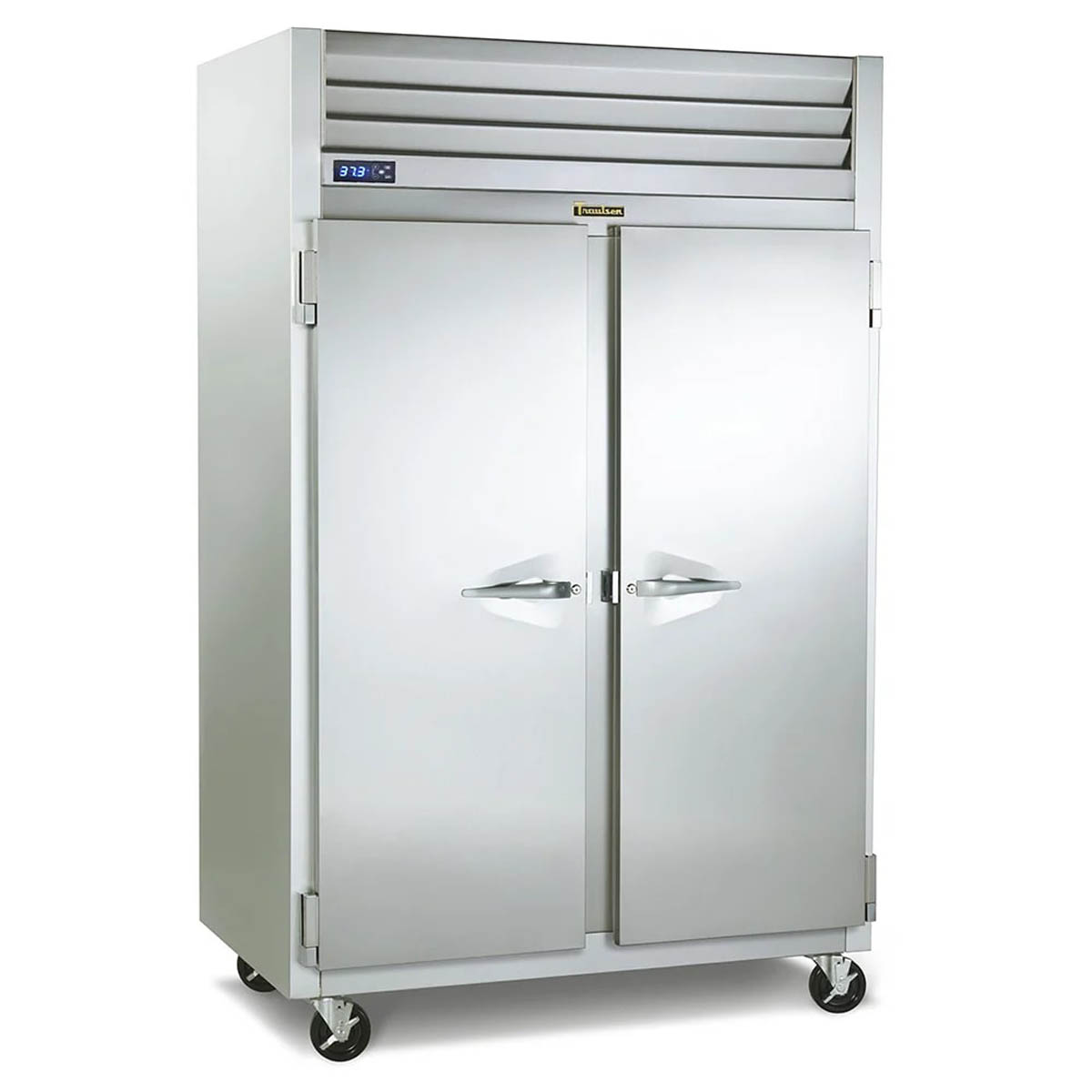

The Traulsen G20014P is a two-section, self-contained pass-thru refrigerator built for refrigerated product access from either side of the cabinet. Its four solid, full-height doors support a front-to-back workflow between prep, production, and receiving areas while keeping each section independently accessible.
This exact G-Series configuration has left/right hinging on both the control and non-control sides. It uses a top-mounted refrigeration system, a microprocessor control with LED temperature display, and factory-installed epoxy-coated shelves. The cabinet is supplied on locking casters and requires overhead clearance for the refrigeration system.
Applications and Workflow
Suitable for commercial kitchens that need a refrigerated pass-through point between two work areas, such as a prep kitchen and service line or production area. This is a self-contained refrigerator, not a remote-condensing model; plan for the cabinet’s top-mounted refrigeration system and door-swing space on both sides.
Features and Practical Benefits
Two-sided refrigerated access
Pass-thru construction places solid doors on both sides of the two-section cabinet, helping staff transfer stored ingredients or prepared product between adjacent work zones.
Specified full-height door layout
G20014P is the full-height-door configuration with left/right hinging on the control side and left/right hinging on the non-control side.
Top-mounted self-contained system
The refrigeration system is top mounted and self-contained, with a front-facing condenser coil intended to simplify routine access for cleaning.
Usable interior organization
Three epoxy-coated wire shelves are factory installed per section, for six standard shelves across the two-section cabinet.
Clear temperature readout
A microprocessor control with LED display provides a visible cabinet temperature interface.
Technical Specifications
| Manufacturer model | G20014P |
|---|---|
| Cabinet type | 2-section pass-thru refrigerator |
| Door configuration | 4 solid full-height doors |
| Control-side hinging | Left/right |
| Non-control-side hinging | Left/right |
| Overall width | 52.13 in. |
| Overall depth | 38.13 in. |
| Overall height | 83.38 in. |
| Depth with doors open 90° | 56.75 in. |
| Net capacity | 48.87 cu. ft. |
| Refrigeration system | Top-mounted, self-contained |
| Refrigerant | R-450A |
| Electrical requirement | 115/60/1, NEMA 5-15P attached plug |
| Full-load amperage | 7.4 A |
| Required overhead clearance | 12 in. above |
| Standard shelves | 3 epoxy-coated shelves per section |
| Casters | 4 locking casters, 6 in. high |
| Operating temperature | 34°F to 38°F |
Installation and Purchasing Considerations
- Allow an overall footprint of 52.13 in. W x 38.13 in. D x 83.38 in. H, including the standard casters.
- Provide 12 in. of clearance above the cabinet as specified for this model.
- At a 90° door opening, cabinet depth reaches 56.75 in.; verify aisle and opposing-equipment clearance on both pass-thru sides.
- Connect to a 115/60/1 electrical supply using the attached NEMA 5-15P plug. The unit draws 7.4 full-load amps.
- The standard 6 in. locking casters are included. Confirm the final floor location permits rolling the cabinet into place and servicing the front-facing condenser.
- This model is self-contained. Do not plan it as a remote-refrigeration cabinet.
Choosing This Configuration
G20014P is a two-section pass-thru refrigerator with four solid full-height doors; it is not the half-height-door version.
Its door arrangement is left/right on the control side and left/right on the non-control side. Confirm which side will face each work area before ordering and placing the cabinet.
The listed standard shelf complement is three epoxy-coated shelves per section. Tray slides, extra shelves, legs, and lower-height casters are accessories or options rather than assumed inclusions.
Frequently Asked Questions
How are the doors hinged on the Traulsen G20014P?
This model has left/right hinging on the control side and left/right hinging on the non-control side. Each side therefore has one left-hinged and one right-hinged full-height solid door.
How much space is needed above the refrigerator?
Allow 12 in. above the cabinet. The top-mounted self-contained refrigeration system requires this specified overhead clearance.
What electrical connection does this refrigerator use?
The G20014P is specified for 115/60/1 power and has an attached NEMA 5-15P plug. Full-load amperage is 7.4 A.
How many shelves are supplied?
The standard arrangement is three epoxy-coated wire shelves per section, for six shelves total in this two-section refrigerator.
