Description
The Traulsen G21000 is a two-section, self-contained reach-in refrigerator with four hinged glass half-height doors in a left-right hinging arrangement. Its glass doors allow staff to view stored products before opening a compartment, while the split-door layout helps limit the amount of cabinet space exposed during routine access.
This 52 1/8 in. wide refrigerator uses a top-mounted refrigeration system and provides 46.51 cu. ft. of net capacity. It comes with six epoxy-coated wire shelves, locking casters, door locks, interior LED lighting, and a microprocessor control with a digital temperature display.
Applications and Workflow
Use the G21000 for refrigerated ingredient, beverage, dairy, packaged product, or prepared-food storage in restaurant kitchens, cafeterias, institutional foodservice areas, and back-bar or service support spaces. It is a reach-in refrigerator, not a freezer; its listed operating range is 34 to 38°F. Plan for the outward door swing when locating the cabinet in an aisle or against adjacent equipment.
Features and Practical Benefits

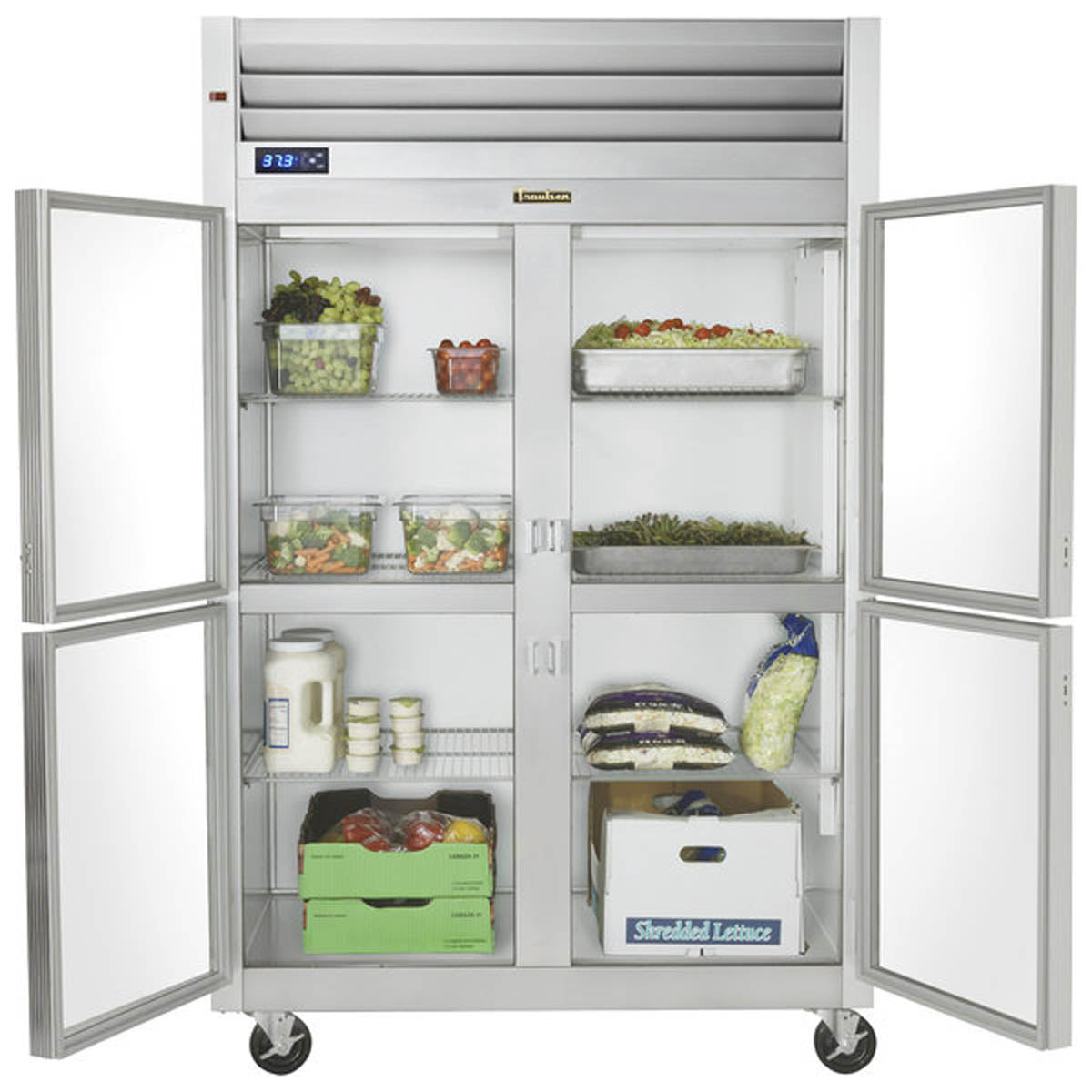

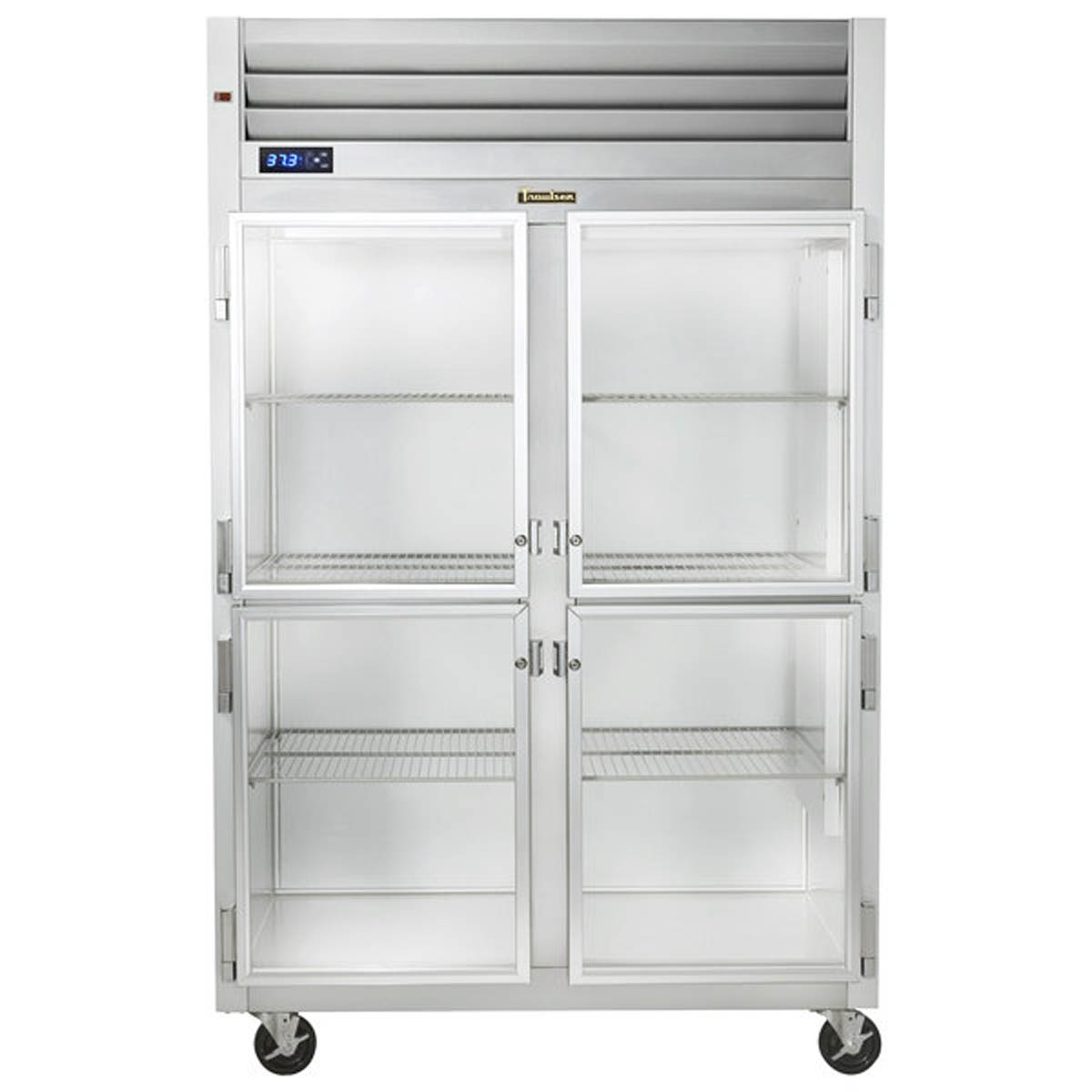

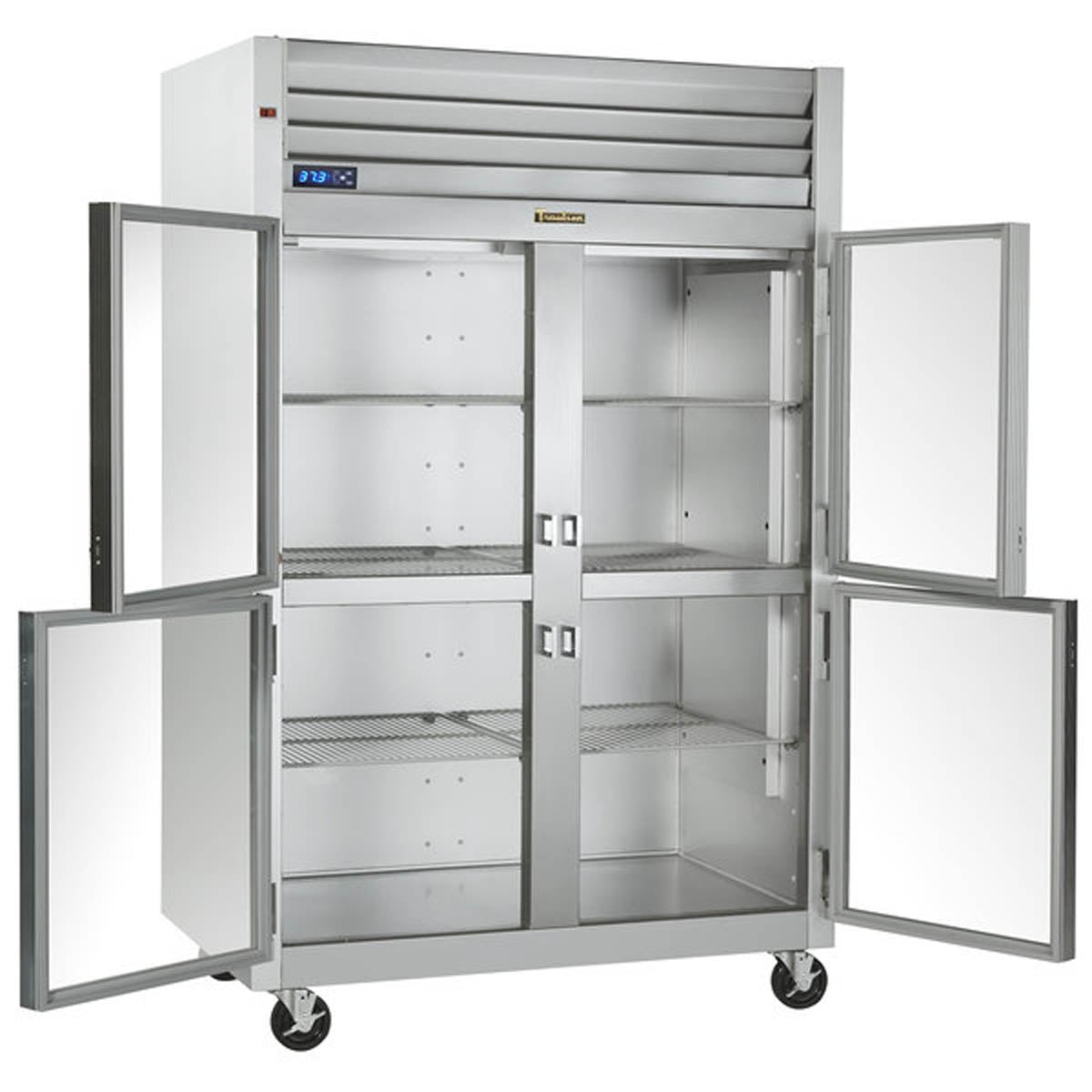

Four glass half doors for compartmental access
The half-height glass door arrangement lets staff check contents visually and open only the section needed for a pickup or restock.
Configured left-right hinging
G21000 is the left-right half-height door configuration. This distinguishes it from the other G210_ _ door-hinging arrangements in the same cabinet family.
Top-mounted self-contained refrigeration
The refrigeration system is mounted above the cabinet and includes a front-facing condenser for accessible routine cleaning.
Six factory-installed shelves
Three epoxy-coated shelves are installed per section, providing six shelves across the two-section cabinet.
Built for mobile placement
A set of four 6 in. locking casters is included, allowing the cabinet to be moved for cleaning or repositioning and then secured in place.
Technical Specifications
| Manufacturer model | G21000 |
|---|---|
| Cabinet type | 2-section reach-in refrigerator |
| Door configuration | 4 hinged glass half-height doors |
| Door hinging | Left-right |
| Net capacity | 46.51 cu. ft. (1317 L) |
| Overall width | 52 1/8 in. (132.4 cm) |
| Overall depth | 35 1/2 in. (90.1 cm) |
| Overall height | 83 3/8 in. (211.9 cm) |
| Depth with doors open 90° | 56 3/4 in. (144 cm) |
| Standard shelves | 6 |
| Electrical requirement | 115/60/1 |
| Plug | NEMA 5-15P, attached |
| Full-load amperage | 8.4 A |
| Refrigerant | R-450A |
| Compressor horsepower | 5/8 HP |
| Operating temperature | 34 to 38°F |
| Required clearance | 12 in. above |
| Casters | Four 6 in. high locking casters |
Installation and Purchasing Considerations
- Allow a 52 1/8 in. W x 35 1/2 in. D x 83 3/8 in. H footprint. Height is based on the standard 6 in. casters.
- At a 90° door opening, depth extends to 56 3/4 in.; keep this swing area clear for loading and access.
- Provide 12 in. of clearance above the cabinet for the top-mounted refrigeration system.
- Connect to a 115/60/1 electrical supply. The unit has an attached NEMA 5-15P plug and a 9 ft. cord.
- Confirm the planned location accommodates the G21000 left-right door hinging, caster-mounted height, and top clearance before delivery.
Choosing This Configuration
This exact G21000 configuration has four glass half-height doors with left-right hinging.
It is a reach-in refrigerator with self-contained top-mounted refrigeration; it is not a pass-thru or freezer configuration.
Six wire shelves are standard. Tray slides, additional shelves, legs, and alternate casters are listed as field-installed accessories or options and should not be assumed included.
Frequently Asked Questions
How many doors does the Traulsen G21000 have?
It has four hinged glass half-height doors arranged across two refrigerated sections.
Which way do the G21000 doors hinge?
The G21000 is specified with left-right hinging. Confirm the door swing against nearby walls, aisles, and equipment during layout.
What electrical connection does this refrigerator need?
It operates on 115/60/1 power and has an attached NEMA 5-15P plug with a 9 ft. cord.
Are shelves included?
Yes. The standard interior arrangement includes three epoxy-coated wire shelves per section, for six shelves total.
