Description

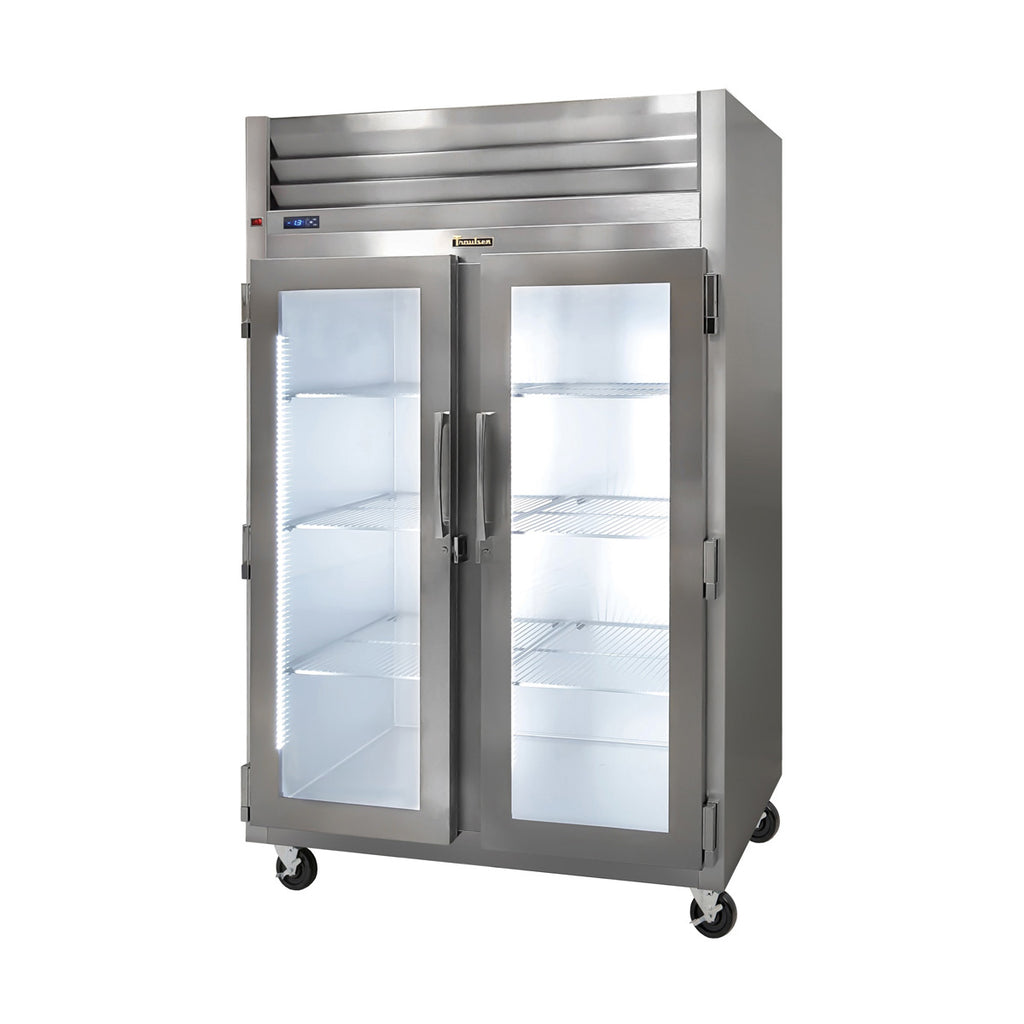

The Traulsen G21010-043 is a two-section, self-contained glass door merchandiser refrigerator designed to keep refrigerated products visible while providing full-height access through left/right-hinged doors. Its stainless steel front, anodized aluminum sides and interior, and illuminated glass doors suit customer-facing refrigerated display as well as back-bar or service-line storage.
This 52 1/8 inch wide configuration provides 46.90 cu. ft. of net capacity and six factory-installed epoxy-coated shelves—three per section. A microprocessor control with LED temperature display supports day-to-day monitoring, while door locks, self-closing hinges, and locking casters help support secure, mobile placement.
Applications and Workflow
Use this refrigerator for front-of-house merchandising of packaged refrigerated foods and beverages, café display, grab-and-go service, market counters, or visible back-of-house storage. This is a refrigerator model with self-contained refrigeration; it is not a freezer. Optional trayslides and additional shelves are separate accessories and should not be assumed included.
Features and Practical Benefits
Two full-height display doors
Left/right-hinged glass doors provide separate access to the two sections while keeping merchandise visible. The doors include locks and self-closing, stay-open hinge operation.
Six included wire shelves
The two-section cabinet is supplied with three epoxy-coated shelves per section, providing six shelves for organizing packaged products.
Self-contained, top-mounted refrigeration
The refrigeration system is mounted at the top of the cabinet and uses R290 refrigerant. A front-facing condenser coil is designed for accessible cleaning.
Built for visible merchandising
Patented LED display doors illuminate the contents, and anti-condensate heaters are located behind each door opening.
Practical cabinet mobility
Four 6-inch locking casters are included; two have brakes and two do not.
Technical Specifications
| Manufacturer model | G21010-043 |
|---|---|
| Cabinet configuration | Two section |
| Door hinging | Left/right |
| Net capacity | 46.90 cu. ft. (1328 L) |
| Overall dimensions (W x D x H) | 52 1/8 x 35 7/16 x 83 7/16 in. |
| Cabinet body depth | 32 in. (81.3 cm) |
| Depth with door open 90 degrees | 56 3/4 in. (144 cm) |
| Clear door width | 21 in. (53.2 cm) |
| Clear full-height door opening | 57 1/2 in. (146 cm) |
| Standard shelves | 6 total; 3 per section |
| Shelf area | 34.6 sq. ft. (3.21 sq. m) |
| Electrical requirement | 115/60/1 |
| Plug | NEMA 5-15P |
| Power cord length | 9 ft. |
| Full-load amperage | 7.9 A |
| Energy use | 5.27 kWh/24 hr |
| Refrigerant | R290 |
| Refrigerant charge | 4.5 oz. (127.6 g) |
| Refrigeration type | Top-mounted, self-contained |
| Exterior front material | Heavy-gauge stainless steel |
| Sides and interior material | Anodized aluminum |
| Caster configuration | Four 6 in. locking casters; 2 with brakes and 2 without |
| Recommended top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan a finished footprint of 52 1/8 inches wide by 35 7/16 inches deep by 83 7/16 inches high.
- Allow for a 56 3/4 inch overall depth when a door is open 90 degrees. Each clear door opening is 21 inches wide.
- Provide 12 inches of top clearance where possible for optimal performance and service access.
- Connect to a 115/60/1 electrical supply. The unit is equipped with a NEMA 5-15P plug and a 9-foot cord.
- The refrigeration system is self-contained; no remote condenser connection is specified. Keep the front-facing condenser accessible for cleaning and service.
- Verify the delivery path, final doorway clearance, and the two full-height door swing before ordering.
Choosing This Configuration
This exact configuration is the two-section refrigerator arrangement with two full-height glass doors hinged left/right.
It is distinct from one-section and three-section G Series cabinets, which have different widths, capacities, shelf counts, and door arrangements.
The standard shelf package is six epoxy-coated shelves total. Trayslides, additional shelves, bottle shelves, and alternate caster arrangements are optional or field-installed items rather than standard inclusions.
Frequently Asked Questions
How many shelves are included with the G21010-043?
It includes six factory-installed epoxy-coated shelves: three shelves in each of the two sections.
What electrical connection does this refrigerator use?
It operates on 115/60/1 power and is equipped with a NEMA 5-15P plug and a 9-foot cord.
How much space is needed to open the doors?
The cabinet is 35 7/16 inches deep closed and requires 56 3/4 inches of depth with a door open 90 degrees. Each clear door opening is 21 inches wide.
Are trayslides included?
No. Trayslides are listed as field-installed accessories. The standard interior arrangement is epoxy-coated wire shelving.
