Description

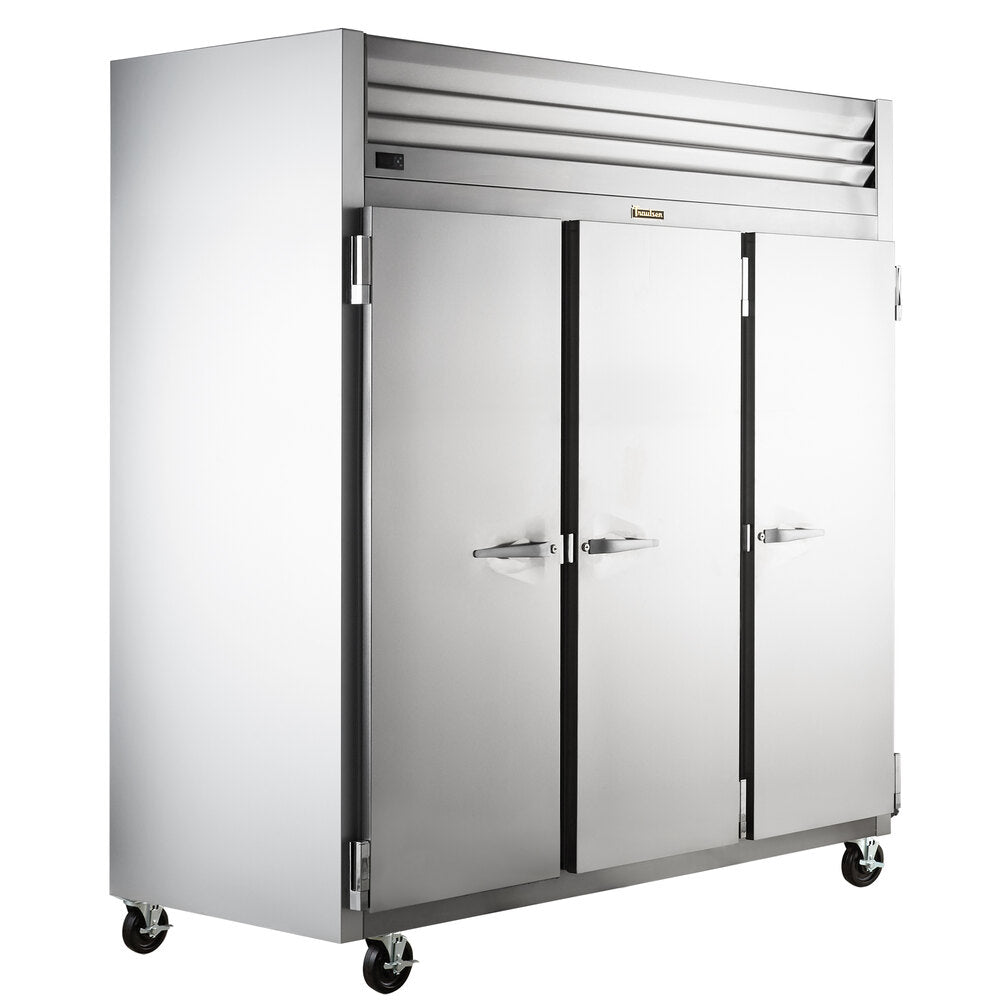

The Traulsen G30010 is a self-contained, three-section solid-door reach-in refrigerator configured with full-height doors hinged left, right, and right. Its top-mounted refrigeration system and front-facing condenser coil help keep the service area at the front of the cabinet, while the 69.35 cu. ft. cabinet provides organized cold storage across three sections.
Each section is supplied with three adjustable coated-wire shelves, for nine shelves total across the cabinet. Self-closing doors can stay open during loading, and the cabinet is furnished with 6-inch casters, including two with brakes, for positioning and cleaning access.
Applications and Workflow

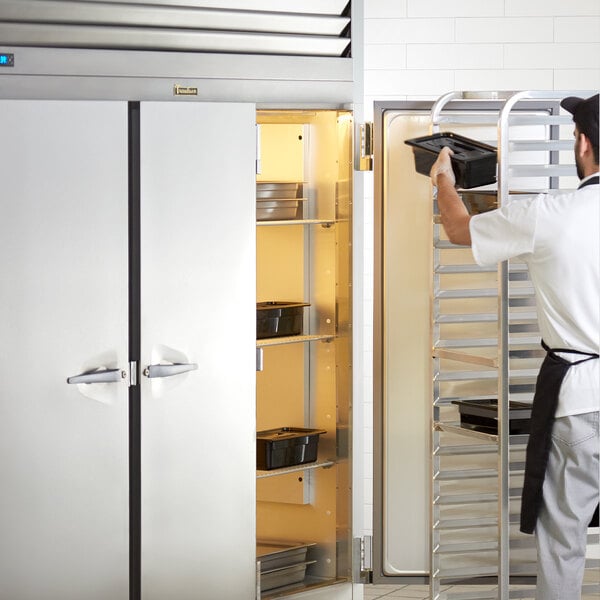

Use this reach-in refrigerator for back-of-house refrigerated ingredient, prepared-product, beverage, or packaged-food storage in restaurants, cafeterias, institutions, and similar commercial kitchens. It is a refrigerator designed to operate at 34-38°F; it is not a freezer. Confirm the left/right/right door swing suits the wall, aisle, and adjacent-equipment layout before purchase.
Features and Practical Benefits
Specified left/right/right door layout
The G30010 has three full-height solid doors hinged left, right, and right, allowing buyers to plan access by section rather than selecting a generic three-door configuration.
Three-section shelf organization
Three adjustable coated-wire shelves are factory installed in each section. Shelf pins support repositioning to suit containers and product heights.
Top-mounted R-290 refrigeration
The self-contained, top-mounted system uses R-290 refrigerant and is designed for 34-38°F refrigerated operation.
Loading-focused door details
Self-closing doors include a stay-open feature for loading. Cam-lift hinges, workflow handles, removable locks, and magnetic snap-in gaskets support routine use and cleaning.
Mobile cabinet base
A set of four 6-inch casters is supplied; two casters have brakes and two do not.

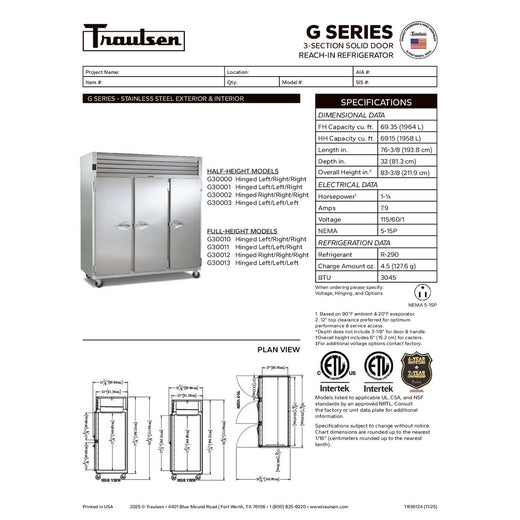

Technical Specifications
| Manufacturer model | G30010 |
|---|---|
| Configuration | Three-section, full-height solid-door reach-in refrigerator |
| Door hinging | Left / right / right |
| Capacity | 69.35 cu. ft. (1964 L) |
| Cabinet length | 76-3/8 in. (193.8 cm) |
| Cabinet depth | 32 in. (81.3 cm) |
| Overall height | 83-3/8 in. (211.9 cm), including casters |
| Operating temperature range | 34-38°F (1.1-3.3°C) |
| Refrigerant | R-290 |
| Electrical configuration | 115/60/1 |
| Plug type | NEMA 5-15P |
| Amperage | 7.9 A |
| Horsepower | 1-1/4 hp |
| Casters | Four 6 in. casters; two with brakes |
| Shelves | Three adjustable coated-wire shelves per section |
Installation and Purchasing Considerations
- Provide a floor location for a 76-3/8-inch-wide, 32-inch-deep cabinet with an overall height of 83-3/8 inches, including the 6-inch casters.
- Allow for the door and handle beyond the listed cabinet depth: the dimensional note excludes 3-1/8 inches for the door and handle. Plan the three door swings before setting the unit in place.
- Traulsen prefers 12 inches of top clearance for optimum performance and service access. Keep the front-facing condenser coil accessible for cleaning.
- Connect to 115/60/1 electrical service using the supplied 9-foot cord and NEMA 5-15P plug. Verify that the dedicated outlet location is reachable without an extension cord.
- The refrigeration system is self-contained and top mounted; no remote condenser connection is identified for this model.
Choosing This Configuration
This exact G30010 configuration uses full-height solid doors hinged left/right/right. Other hinge patterns listed in the same family are different models.
This is the stainless-steel exterior and interior G Series configuration, not a half-height-door model.
The supplied cabinet includes adjustable wire shelves and 6-inch casters. Trayslides, additional shelves, legs, and alternate caster sets are identified separately as options and should not be assumed included.
Frequently Asked Questions
What is the door hinging on the Traulsen G30010?
It has three full-height solid doors hinged left, right, and right, viewed across the cabinet.
How many shelves are included?
Three adjustable coated-wire shelves are factory installed in each of the three sections, for nine shelves total.
What electrical connection does it use?
The listed electrical configuration is 115/60/1 with a NEMA 5-15P plug. A 9-foot cord and plug are provided.
How much clearance should be allowed above the refrigerator?
Traulsen states that 12 inches of top clearance is preferred for optimum performance and service access.
