Description

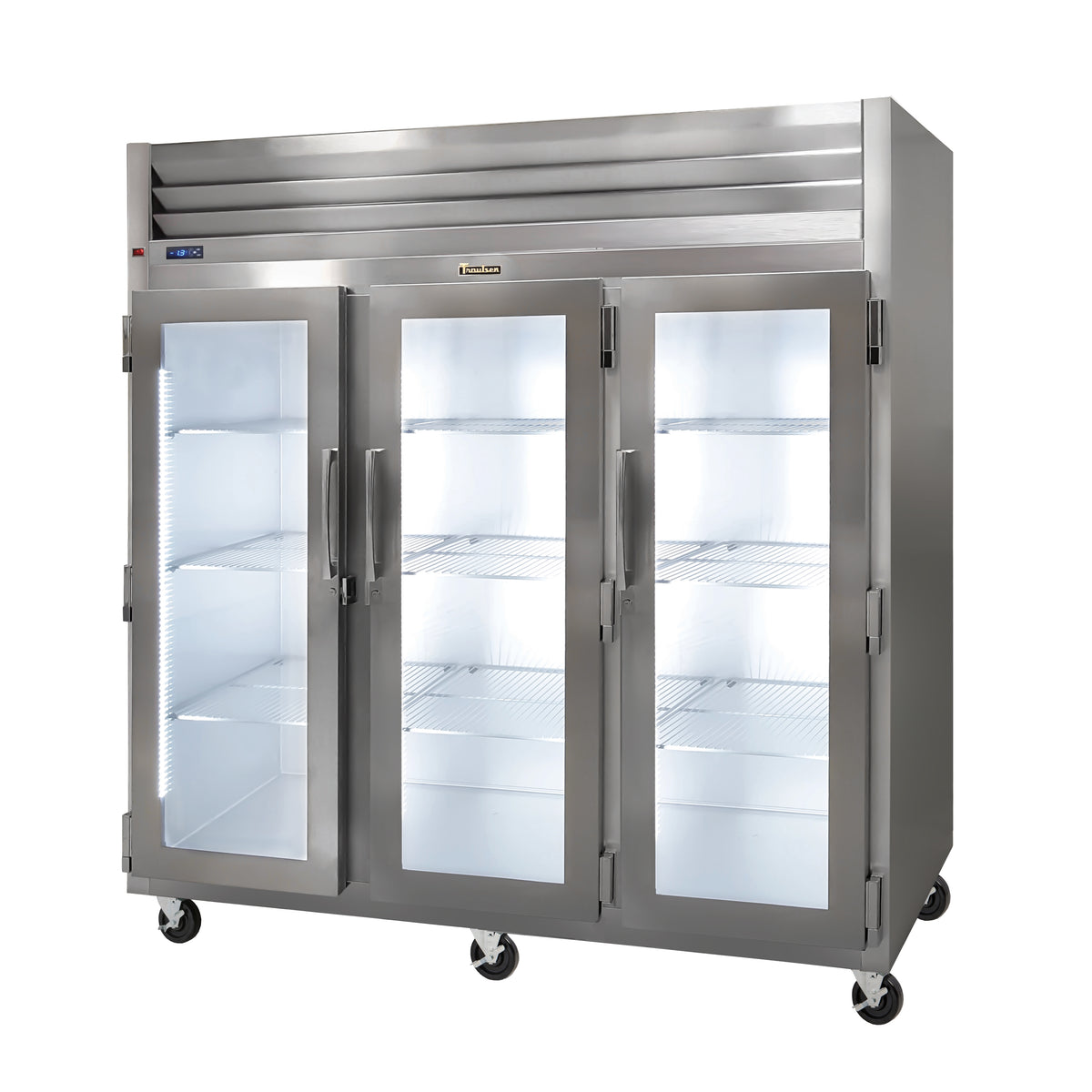

The Traulsen G32010-043 is a three-section, self-contained glass door merchandiser refrigerator designed to keep refrigerated products visible while providing reach-in storage. Its three full-height, illuminated glass doors let staff and customers see inventory without opening the cabinet, making it a practical choice for front-of-house displays and high-access back-bar or service areas.
This configuration has left/right/right door hinging, 70.67 cu. ft. of capacity, and nine factory-installed epoxy-coated shelves—three per section. A top-mounted refrigeration system, front-facing condenser coil, locking casters, LED temperature display, and 115V plug connection support day-to-day merchandising and maintenance.
Applications and Workflow
Suitable for merchandising and storing refrigerated packaged beverages, dairy, prepared grab-and-go items, and other refrigerated products in cafés, markets, cafeterias, delis, and front-of-house service areas. This is a refrigerator merchandiser, not a freezer; select it only for products appropriate for refrigerated storage.
Features and Practical Benefits
Three-door product visibility
Full-height hinged glass doors with integrated LED display lighting help present products across three sections while keeping the cabinet organized by category or service station.
Specified L/R/R door layout
The left/right/right hinging arrangement supports a defined workflow and should be checked against adjacent walls, counters, and traffic paths before purchase.
Shelf capacity for organized merchandising
Nine epoxy-coated shelves are factory installed, with three shelves supplied per section for separated product display and storage.
Service-oriented refrigeration layout
The self-contained, top-mounted refrigeration system includes a front-facing condenser coil intended to simplify routine condenser access and cleaning.
Mobile cabinet base
A set of 6-inch locking casters is included, allowing the cabinet to be positioned for cleaning or service and then secured in place.
Technical Specifications
| Manufacturer model | G32010-043 |
|---|---|
| Configuration | 3-section glass door merchandiser refrigerator |
| Door hinging | Left / right / right |
| Net capacity | 70.67 cu. ft. |
| Overall width | 76.31 in. |
| Overall depth | 35 in. |
| Overall height | 83.44 in. |
| Depth with door open 90° | 56 3/4 in. |
| Clear door width | 21 in. |
| Clear full-height door opening | 57 1/2 in. |
| Standard shelves | 9 total |
| Electrical requirement | 115V / 60Hz / 1-phase |
| Plug type | NEMA 5-15P |
| Full-load amperage | 14.4 A |
| Refrigerant | R290 |
| Refrigerant charge | 5.2 oz. |
| Compressor | 1/4 HP |
| Refrigeration system | Self-contained, top mounted |
| Cabinet finish | Stainless steel front; anodized aluminum sides and interior |
| Casters | Four 6 in. locking casters |
| Power cord length | 9 ft. |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Plan a footprint of 76.31 inches W x 35 inches D x 83.44 inches H. Confirm the route into the building and overhead clearance at the final location.
- The cabinet requires 115V, 60 Hz, single-phase electrical service and is supplied with a NEMA 5-15P plug and a 9-foot cord.
- Allow for the doors to swing open: overall depth with a door open 90 degrees is 56 3/4 inches. The full-height door clear opening is 57 1/2 inches.
- Traulsen notes that 12 inches of top clearance is preferred for performance and service access. Keep the front-facing condenser accessible for cleaning.
- Verify that the left/right/right hinge pattern suits the installation: the left door is left-hinged, while the center and right doors are right-hinged.
Choosing This Configuration
This exact G32010-043 configuration is a three-section refrigerator with three hinged glass doors in a left/right/right arrangement.
Do not substitute the alternate three-section left/left/right hinging configuration when the specified door swings are required.
The cabinet is self-contained and top mounted; it does not require a separately installed remote condenser.
Optional trayslides, additional shelves, alternative casters, legs, and bottle shelves should not be assumed included unless separately listed on the order.
Frequently Asked Questions
What is the door hinging on the Traulsen G32010-043?
This model is configured left/right/right: the leftmost door is left-hinged, and the center and rightmost doors are right-hinged.
How many shelves are included?
Nine factory-installed epoxy-coated shelves are included, with three shelves per section.
What electrical connection does it use?
It uses 115V, 60 Hz, single-phase power and is equipped with a NEMA 5-15P plug on a 9-foot cord.
How much space is needed when a door is open?
The listed depth with a door open 90 degrees is 56 3/4 inches. Also allow preferred top clearance of 12 inches for performance and service access.
