Description

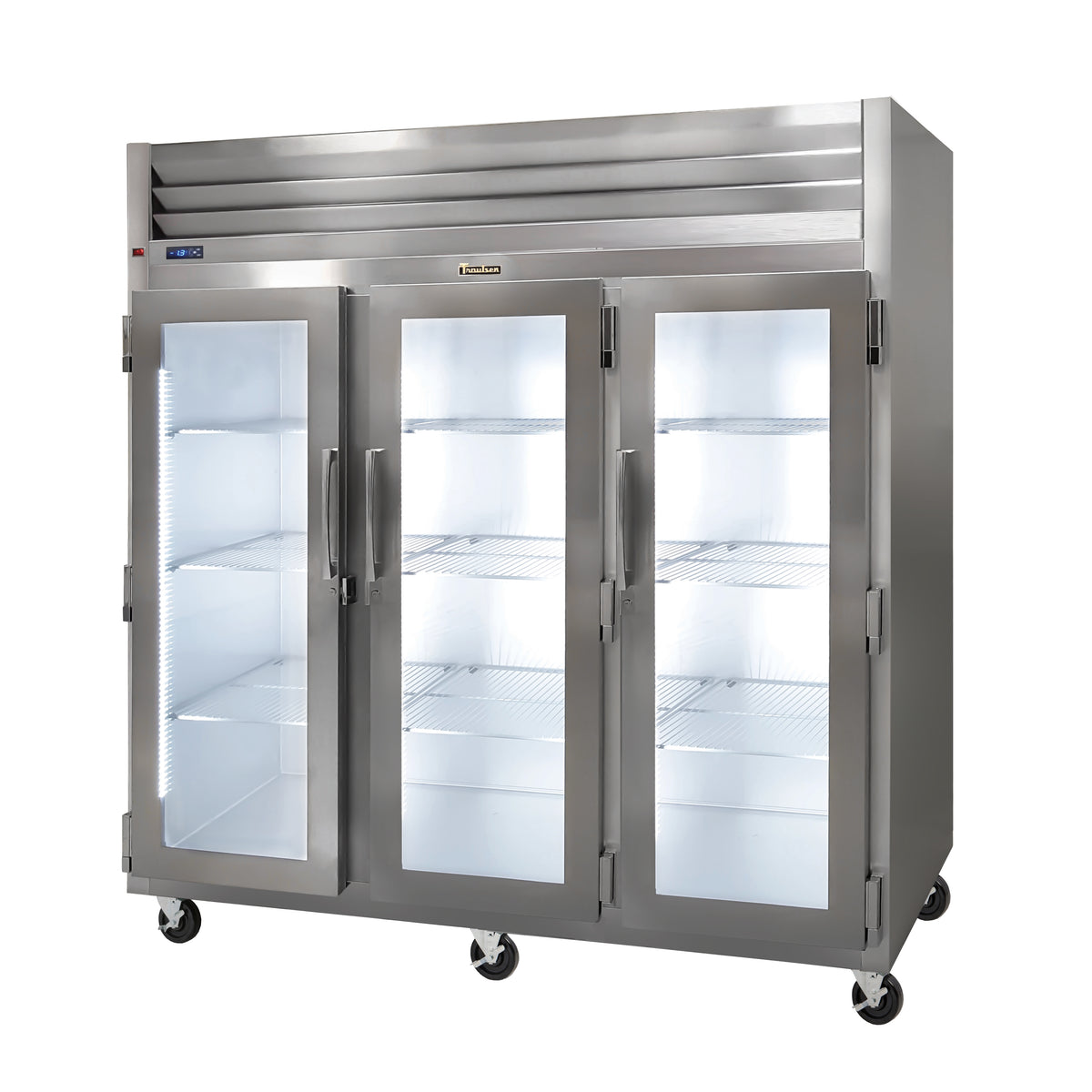

The Traulsen G32011-043 is a three-section, self-contained glass door merchandiser refrigerator designed to keep refrigerated products visible for front-of-house selection. Its three full-height glass doors use a left/left/right hinge arrangement, allowing staff and customers to view contents before opening a section.
This 76 5/16-inch-wide cabinet combines a stainless steel front with anodized aluminum sides and interior. Each section is supplied with three epoxy-coated wire shelves, for nine shelves total, while the LED display doors, locks, and LED temperature display support organized refrigerated merchandising.
Applications and Workflow
Suitable for displaying packaged beverages, dairy products, grab-and-go items, and other refrigerated merchandise in cafeterias, markets, convenience retail, and front-of-house foodservice areas. This is a refrigerator merchandiser, not a freezer; choose a freezer model when frozen-product storage is required.
Features and Practical Benefits
Three-door product display
Three full-height hinged glass doors give customers a view of merchandise while dividing access across three cabinet sections.
Specified left/left/right door swing
The G32011-043 configuration uses left/left/right hinging, an important layout detail when placing the cabinet beside walls, counters, or other equipment.
Integrated illuminated doors

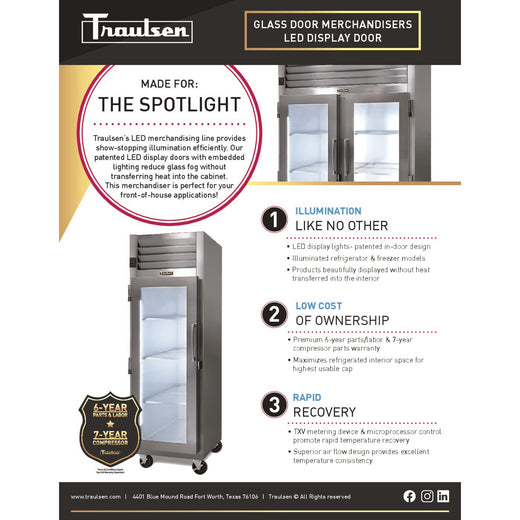

Patented LED display doors illuminate the cabinet presentation, and each door includes a lock.
Organized shelf storage
Three factory-installed epoxy-coated shelves per section provide nine standard shelves across the three-section cabinet.
Service-minded refrigeration layout
The top-mounted self-contained refrigeration system has a front-facing condenser coil for accessible routine cleaning.
Technical Specifications
| Manufacturer model | G32011-043 |
|---|---|
| Cabinet configuration | Three section |
| Door hinging | Left / left / right |
| Door style | Swing |
| Net capacity | 70.67 cu. ft. |
| Overall width | 76 5/16 in. |
| Overall depth | 35 7/16 in. |
| Overall height | 83 7/16 in. |
| Cabinet body depth | 32 in. |
| Depth with door open 90° | 56 3/4 in. |
| Clear door width | 21 in. |
| Standard shelves | 9 total; 3 per section |
| Refrigeration system | Self-contained, top mounted |
| Refrigerant | R290 |
| Electrical service | 115/60/1 |
| Plug | NEMA 5-15P |
| Power cord | 9 ft. |
| Full-load amperage | 14.4 A |
| Energy use | 7.53 kWh/24 hr |
| Compressor | 1/2 HP |
| Exterior and interior material | Stainless steel front; anodized aluminum sides and interior |
| Casters | Four 6 in. high locking casters |
| Top clearance preference | 12 in. |
Installation and Purchasing Considerations
- Allow a footprint of 76 5/16 inches wide by 35 7/16 inches deep by 83 7/16 inches high.
- Plan for 56 3/4 inches of depth when a door is open 90 degrees; the clear door width is 21 inches.
- Provide 12 inches of clearance above the cabinet where possible for performance and service access.
- Connect to 115/60/1 power using the attached NEMA 5-15P plug. The unit is supplied with a 9-foot cord and plug.
- The cabinet is supplied on 6-inch locking casters. Confirm the finished path, doorway clearance, and final location before delivery.
Choosing This Configuration
This exact configuration is the three-section refrigerator with left/left/right door hinging. The alternate three-section hinge pattern is left/right/right.

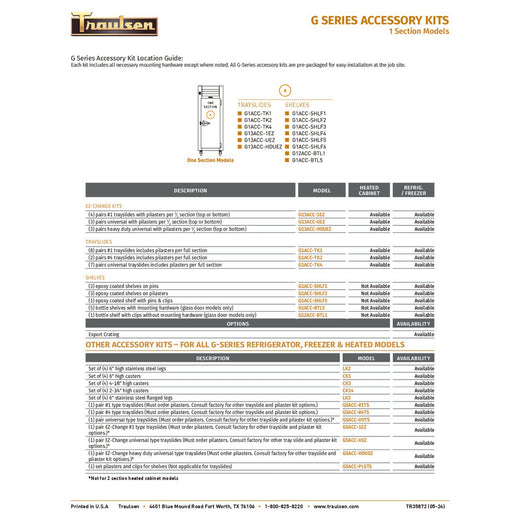

The listed standard interior arrangement is three epoxy-coated shelves per section. Tray slides, additional shelves, legs, and alternate casters are separately offered options rather than assumed included items.
This is a self-contained, top-mounted refrigerator. It does not require a remote condenser connection.
Frequently Asked Questions
Which way do the doors swing on the G32011-043?
This model is configured left/left/right: the first and second doors are left hinged, and the third door is right hinged.
How many shelves are included?
The standard arrangement is three factory-installed epoxy-coated shelves per section, for nine shelves in this three-section cabinet.
What electrical connection does it need?
The G-Series three-section refrigerator uses 115/60/1 power and is equipped with a NEMA 5-15P plug and a 9-foot cord.
How much space is needed to open a door?
With a door open 90 degrees, plan for a 56 3/4-inch overall depth. The clear door width is 21 inches.
