Description

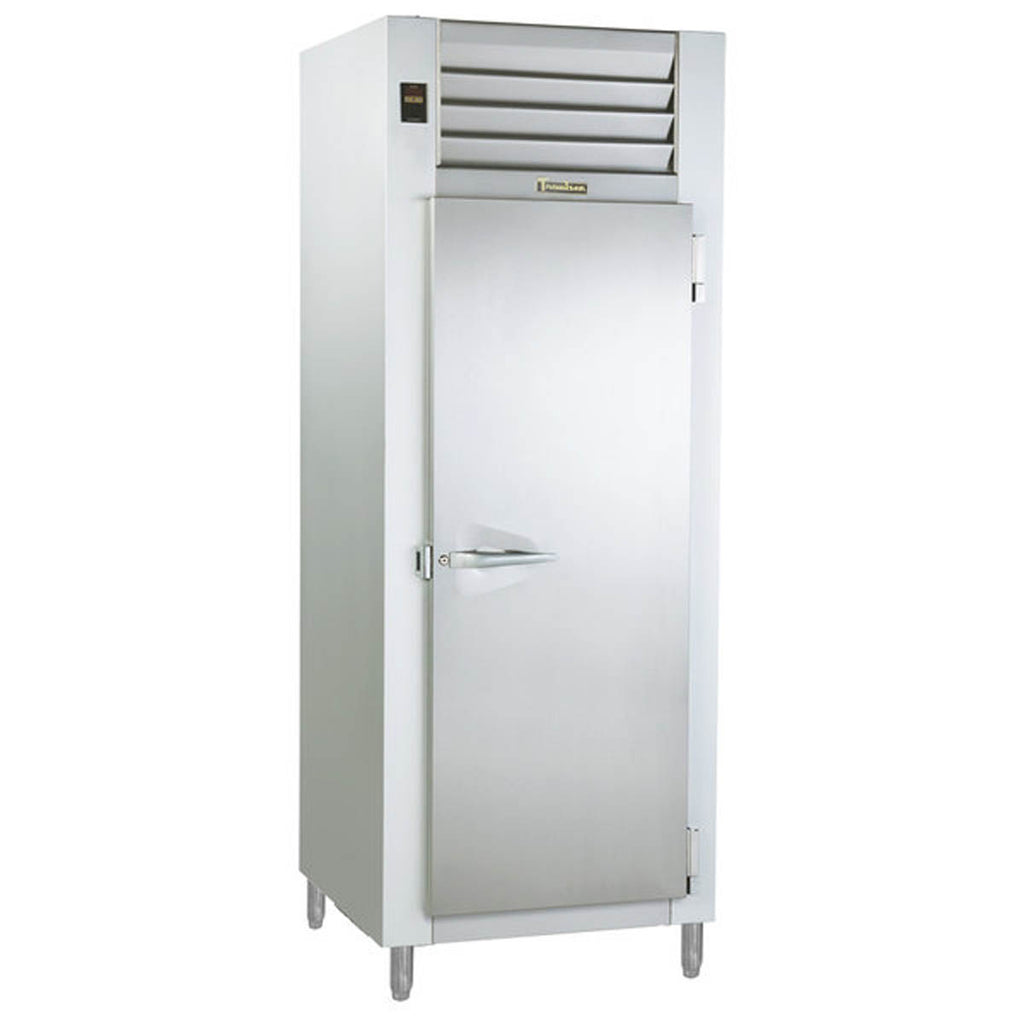

The Traulsen RCV132WUT-FHS is a one-section convertible reach-in cabinet with one full-height solid door. A face-mounted key switch changes the self-contained cabinet between refrigerator and freezer modes, giving kitchens a practical way to adapt a single storage location as menu needs change.
This R-Series configuration has a stainless steel exterior and interior, a right-hinged door, LED interior lighting, and three factory-installed adjustable coated wire shelves. Its top-mounted refrigeration system and 9-foot cord with NEMA 5-15P plug support straightforward placement where the required electrical service and overhead clearance are available.
Applications and Workflow
Use this convertible reach-in for commercial kitchens that need either refrigerated or frozen backup storage in a compact one-section footprint. It is intended to operate in one selected mode at a time; it does not provide simultaneous refrigerated and frozen compartments.
Features and Practical Benefits
Switchable cold-storage role
Use the face-mounted key switch to change the cabinet from freezer operation to refrigerator operation when storage requirements change.
Full-height, right-hinged solid door
This exact FHS configuration uses one full-height solid door with standard right-hand hinging, a lock, self-closing action, and a 120-degree stay-open feature.
Organized interior storage
Three adjustable coated wire shelves are factory installed on shelf pins, providing full-width storage surfaces within the single section.
Durable cleanable cabinet surfaces
The cabinet exterior, interior, and door liner are stainless steel; the door also uses a magnetic snap-in EZ-Clean gasket.
Built-in workflow details
Automatically activated LED lighting helps illuminate the interior, while the horizontal recessed door handle is designed to limit aisleway protrusion.
Technical Specifications
| Manufacturer model | RCV132WUT-FHS |
|---|---|
| Cabinet configuration | One-section convertible reach-in, full-height solid door |
| Net capacity | 23.43 cu. ft. |
| Overall width | 29 7/8 in. |
| Overall depth | 35 1/8 in. |
| Overall height on 6 in. legs | 83 7/16 in. |
| Depth with door open 90 degrees | 56 11/16 in. |
| Clear door opening width | 20 15/16 in. |
| Clear full-door opening height | 57 9/16 in. |
| Door hinging | Right |
| Electrical service and plug | 115/60/1, NEMA 5-15P |
| Full-load amperage | 2.4 A |
| Refrigerant | R-290 |
| Compressor horsepower | 3/4 HP |
| Freezer-mode operating temperature | -10 to 0°F |
| Refrigerator-mode operating temperature | 34 to 38°F |
| Included shelves | Three adjustable coated wire shelves per section |
| Legs | Four adjustable 6 in. high stainless steel legs |
| Power cord | 9 ft. cord with plug attached |
Installation and Purchasing Considerations
- Plan a 29 7/8 inch overall width, 35 1/8 inch overall depth, and 83 7/16 inch overall height on the included 6-inch legs.
- Allow for a 56 11/16 inch depth when the door is open 90 degrees. The clear door opening is 20 15/16 inches wide by 57 9/16 inches high.
- Provide a 115/60/1 electrical connection for the attached 9-foot cord with NEMA 5-15P plug.
- The refrigeration system is top mounted. A 12-inch top clearance is preferred for performance and service access.
- Confirm the required right-hand door swing works with the intended aisle and adjacent equipment before ordering.
Choosing This Configuration
RCV132WUT-FHS is the full-height solid-door version of the one-section W-width convertible cabinet; it is not the half-height-door configuration.
The cabinet converts between refrigerator and freezer modes rather than maintaining both temperatures at the same time.
Standard shelves are included. Tray slides, additional shelves, casters, alternative support options, and other accessories are optional or factory-selected items unless specifically ordered.
Frequently Asked Questions
What temperatures does the RCV132WUT-FHS operate at?
In freezer mode, the standard operating range is -10 to 0°F. In refrigerator mode, the standard operating range is 34 to 38°F. The operating temperatures are not adjustable.
How does this cabinet change from refrigerator to freezer?
A face-mounted key switch converts the cabinet between freezer and refrigerator operation.
Which way does the door hinge?
The one full-height solid door has standard right-hand hinging on this 132W model.
What electrical connection does it need?
It operates on 115/60/1 power and is equipped with a NEMA 5-15P plug on a 9-foot attached cord.
