Description

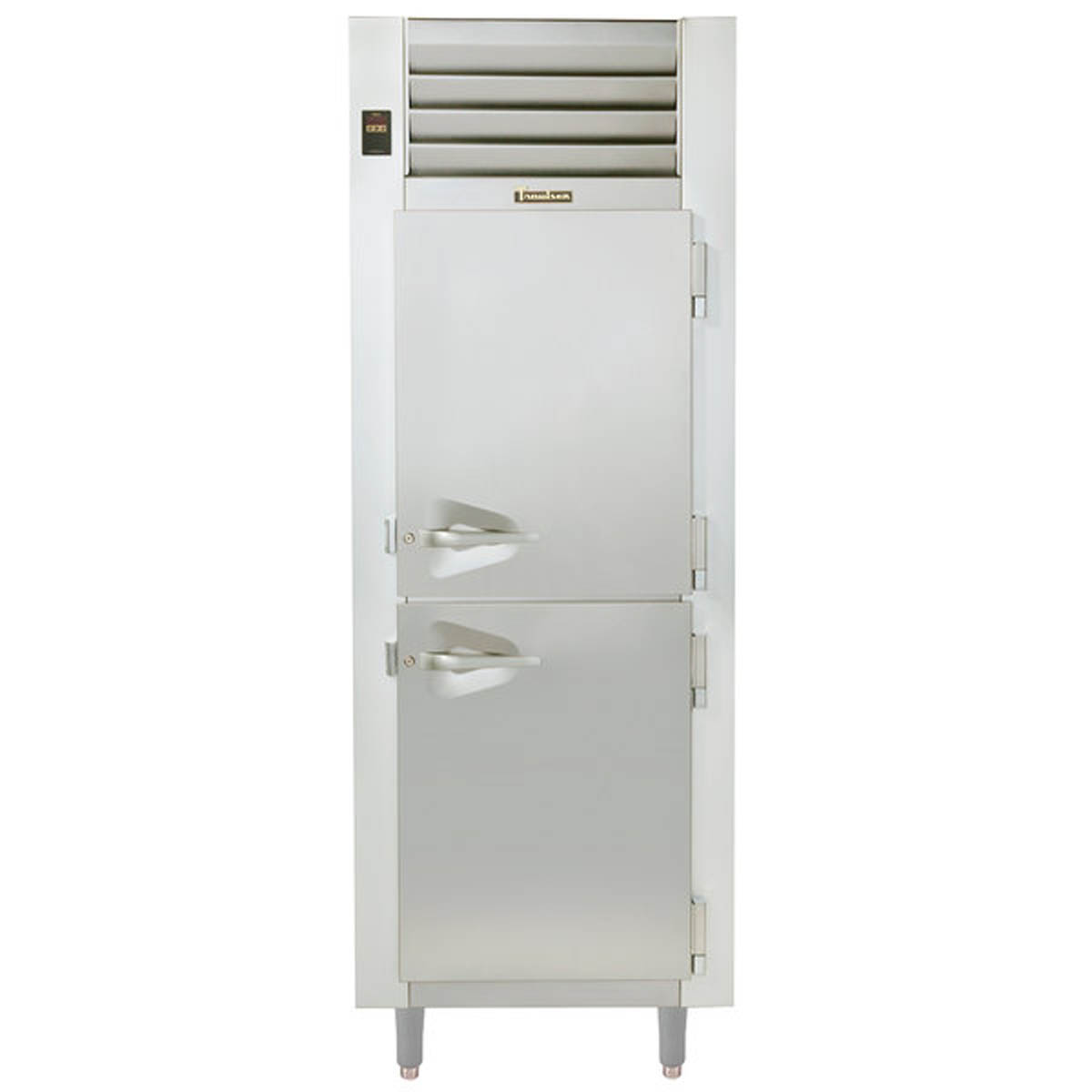

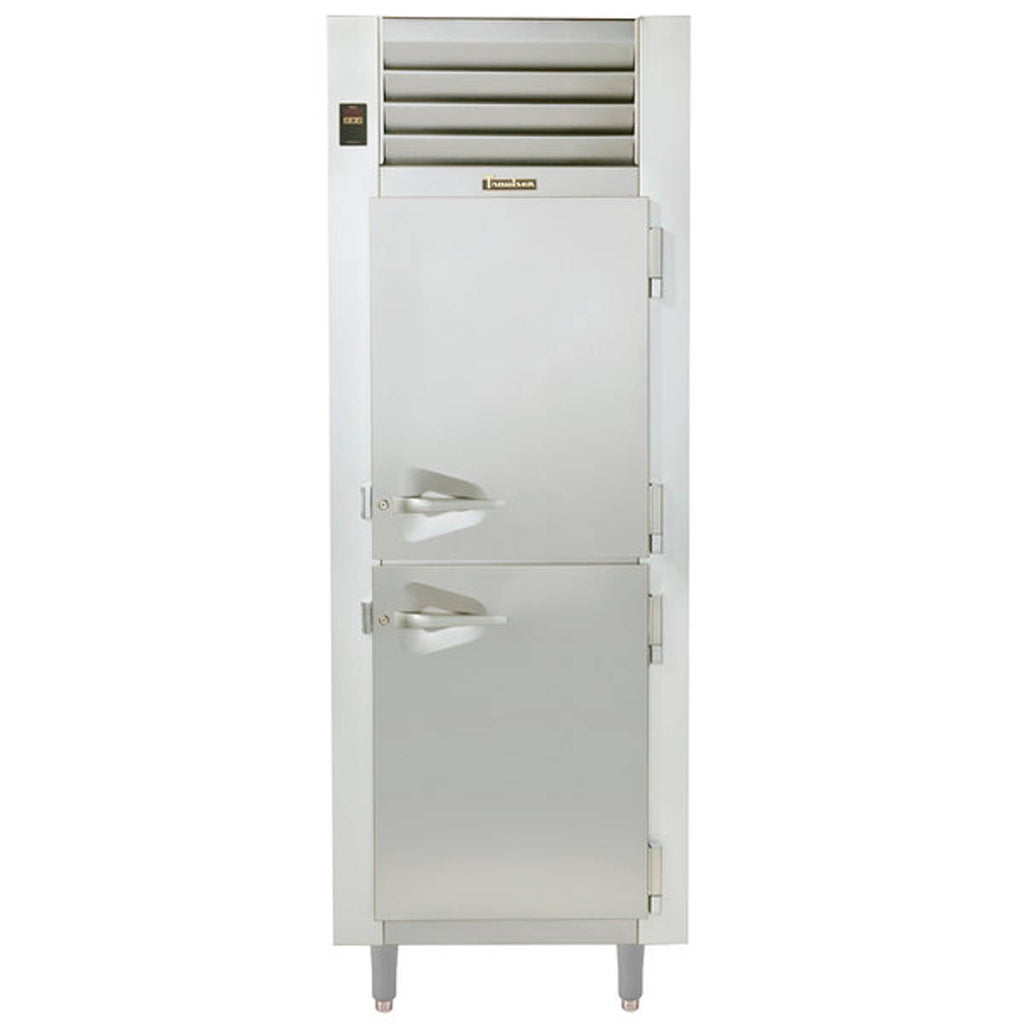

The Traulsen RDH132WUT-HHS is a one-section, self-contained dual-temperature reach-in that combines a heated top cabinet with a refrigerated bottom cabinet. Its two right-hinged, half-height solid doors allow staff to access one temperature zone without opening the other, supporting separate hot and cold holding in a compact 29 7/8-inch-wide footprint.
This R-Series cabinet has a stainless steel exterior and interior, LED-lit compartments, two standard coated wire shelves, and adjustable 6-inch stainless steel legs. The bottom refrigerated compartment is designed for 34–38°F operation, while the top heated compartment operates at 140–180°F. It requires 208–230/115V, single-phase power and includes a NEMA L14-20P plug on a 9-foot cord.
Applications and Workflow
Use the RDH132WUT-HHS where a commercial kitchen needs refrigerated ingredients or cold prepared items below and hot held product above in one reach-in cabinet. It is intended for holding, not for cooling hot food or cooking. Plan its placement around the 90-degree door swing and top-mounted refrigeration system.
Features and Practical Benefits
Two holding environments in one cabinet
The upper cabinet is heated and the lower cabinet is refrigerated, allowing separated hot and cold workflow without dedicating floor space to two full-height cabinets.
Half-height doors limit exposure
Two solid half-height doors let employees open the applicable upper or lower compartment independently. Both are self-closing and can remain open at 120 degrees for loading.
Defined operating ranges
The refrigerated bottom compartment operates at 34–38°F, while the heated upper compartment operates at 140–180°F.
Durable, cleanable construction
Stainless steel lines the interior and exterior front, sides, louver assembly, and doors. Magnetic snap-in door gaskets and a one-piece louver assembly support routine cleaning.
Built for organized reach-in storage
Two factory-installed coated wire shelves are standard, one per cabinet compartment. Each shelf has a recommended load limit of up to 225 lb.
Technical Specifications
| Manufacturer model | RDH132WUT-HHS |
|---|---|
| Configuration | Heated top cabinet; refrigerated bottom cabinet |
| Sections | 1 |
| Door configuration | 2 half-height solid doors, right hinged |
| Net capacity | 22.3 cu. ft. |
| Overall width | 29 7/8 in. |
| Overall depth | 35 1/8 in. |
| Depth with door open 90° | 56 11/16 in. |
| Overall height on included legs | 83 7/16 in. |
| Clear door width | 20 15/16 in. |
| Clear half-door height | 27 7/16 in. |
| Standard shelves | 2 coated wire shelves |
| Electrical service | 208–230/115V, 60 Hz, 1-phase |
| Plug | NEMA L14-20P |
| Wattage at 208V | 1000 W |
| Full-load amperage | 11 A |
| Refrigerant | R-450A |
| Compressor horsepower | 1/3 HP |
| Refrigerated compartment operating range | 34–38°F |
| Heated compartment operating range | 140–180°F |
| Cord length | 9 ft |
| Legs | Four adjustable 6 in. stainless steel legs |
| Top clearance preference | 12 in. |
Installation and Purchasing Considerations
- Allow a footprint of 29 7/8 in. W x 35 1/8 in. D; cabinet height is 83 7/16 in. on the included 6 in. adjustable legs.
- Account for 56 11/16 in. overall depth with a door open 90 degrees. The clear door width is 20 15/16 in.
- Provide 208–230/115V, 60 Hz, single-phase electrical service. The cabinet is equipped with a NEMA L14-20P plug and a 9 ft cord.
- The manufacturer prefers 12 in. of clearance above the cabinet for refrigeration performance and service access.
- This exact configuration has right-hinged solid half-height doors. Verify the door swing suits the intended aisle and adjacent equipment before ordering.
- The refrigeration system is self-contained and top-mounted; do not plan this model as a remote-condensing installation.
Choosing This Configuration
This exact RDH132WUT-HHS configuration is a one-section R-Series reach-in with a heated top compartment, refrigerated bottom compartment, and right-hinged half-height solid doors.
The cabinet includes two coated wire shelves, not tray slides. Tray slides, additional shelves, casters, glass doors, alternate hinging, and other support arrangements are optional selections rather than standard equipment.
Although the cabinet exterior includes stainless steel front, sides, louver assembly, and doors, the top, back, and bottom are galvanized steel.
Frequently Asked Questions
Which compartment is heated and which is refrigerated?
The top cabinet is heated, and the bottom cabinet is refrigerated. The heated compartment operates at 140–180°F; the refrigerated compartment operates at 34–38°F.
What electrical connection does the RDH132WUT-HHS need?
It requires 208–230/115V, 60 Hz, single-phase power. A 9-foot cord with a NEMA L14-20P plug is provided.
How much clearance is needed to open the doors?
With a door open 90 degrees, the cabinet depth is 56 11/16 inches. Each half door has a 20 15/16-inch clear width.
Are tray slides included?
No. The standard interior arrangement includes two coated wire shelves, one per cabinet compartment. Tray slides are optional.
