Description

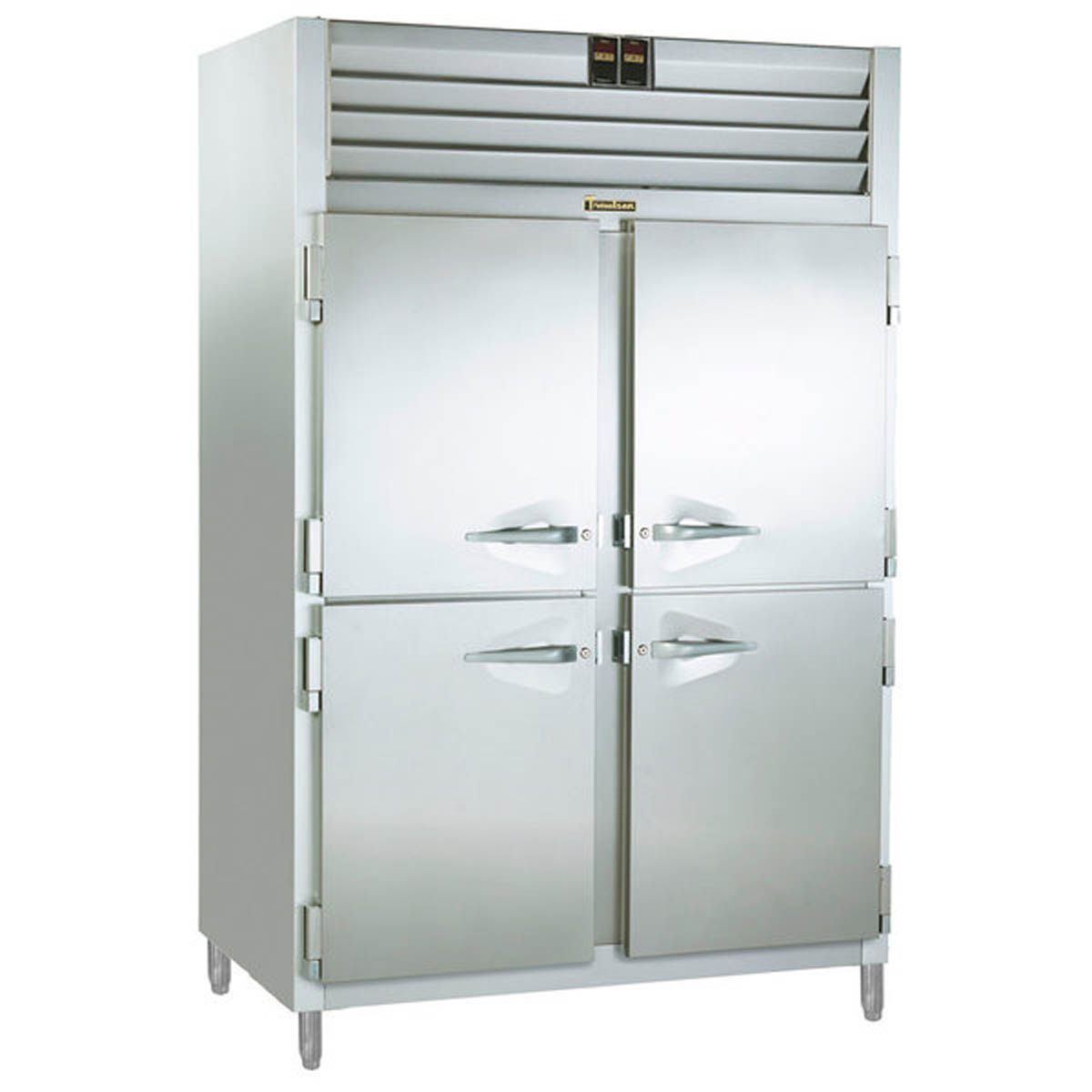

The Traulsen RDH232WUT-HHS is a 32-inch-deep, self-contained dual-temperature reach-in designed to hold hot and refrigerated products in separate side-by-side sections. Its left section is heated and its right section is refrigerated, allowing one cabinet to support distinct hot and cold holding workflows without combining the two environments.
This exact R-Series configuration has four half-height solid doors, with two doors per section. Half doors let staff access one portion of a section at a time, while the cabinet’s six standard coated-wire shelves provide organized full-width storage. Stainless steel inside and out supports frequent commercial use and cleaning.
Applications and Workflow
Suitable for commercial kitchens that need adjacent hot holding and refrigerated storage at a cookline, plating area, banquet operation, or institutional foodservice station. The left compartment is for heated holding and the right compartment is refrigerated; it is not a two-zone refrigerator or a two-zone heated cabinet.
Features and Practical Benefits
Separate heated and refrigerated sections
The left cabinet operates as the heated section and the right cabinet as the refrigerated section, keeping these workflows physically separated in one 58-inch-wide reach-in.
Four half-height solid doors
This HHS model uses half-height solid doors, allowing access to part of a cabinet section without opening its entire height. Doors are self-closing and can stay open at 120 degrees.
Organized standard storage
Six coated wire shelves are standard, with three shelves per section. The listed shelf area is divided equally between the refrigerator and heated cabinet.
Self-contained refrigeration
The refrigerated right side uses a top-mounted, self-contained refrigeration system with R-450A refrigerant and a front-facing condenser.
Durable, cleanable cabinet construction
The exterior front, sides, louver assembly, doors, interior, and door liners are stainless steel. Magnetic snap-in door gaskets are designed for simplified removal and cleaning.

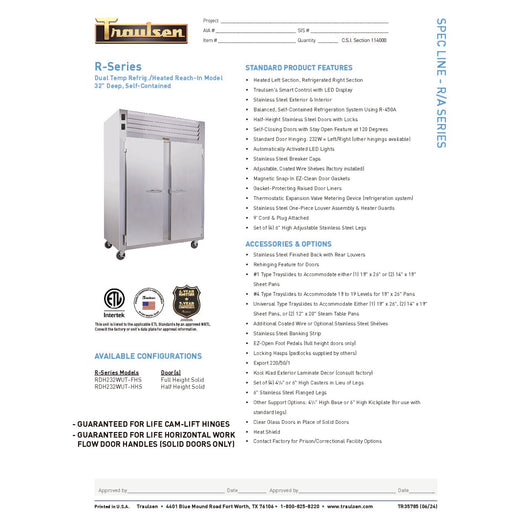

Technical Specifications
| Manufacturer model | RDH232WUT-HHS |
|---|---|
| Cabinet configuration | 2-section dual-temperature reach-in; heated left section and refrigerated right section |
| Door configuration | 4 half-height solid doors |
| Net capacity | 46.86 cu. ft. |
| Overall width | 58 in. |
| Overall depth | 35 in. |
| Body depth | 32 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90° | 57 11/16 in. |
| Clear door width | 21 1/8 in. |
| Clear half-door height | 27 1/2 in. |
| Standard shelves | 6 coated wire shelves |
| Shelf area | 25.28 sq. ft. total; 12.64 sq. ft. per section |
| Electrical service | 208-230/115/60/1 |
| Plug | NEMA L14-20P |
| Wattage at 208V | 2000 W |
| Full-load amperage | 13.5 A |
| Refrigerant | R-450A |
| Refrigerant charge | 16 oz. |
| Compressor horsepower | 1/3 HP |
| Refrigerated operating range | 34 to 38°F |
| Heated operating range | 140 to 180°F |
| Standard legs | Four 6 in. adjustable stainless steel legs |
| Power cord | 9 ft. cord with attached plug |
Installation and Purchasing Considerations
- Plan a footprint of 58 inches wide by 35 inches deep, with an overall height of 83 1/4 inches on the included 6-inch adjustable legs.
- Allow 57 11/16 inches of depth when a door is open 90 degrees. The clear door width is 21 1/8 inches.
- Provide the specified 208-230/115/60/1 electrical service and a NEMA L14-20P receptacle. The unit has a factory-attached 9-foot cord and plug.
- Keep 12 inches of top clearance where possible for performance and service access. The refrigerated section’s top-mounted system uses a front-facing condenser.
- Confirm the required door hinging before ordering. This 232W configuration is listed with left/right standard hinging; other hingings are available.
Choosing This Configuration
RDH232WUT-HHS is the half-height solid-door version, with four doors total. It is distinct from the full-height solid-door configuration listed under RDH232WUT-FHS.
This is a self-contained model with the heated compartment on the left and the refrigerated compartment on the right.
Six coated wire shelves are standard. Tray slides, additional shelves, casters, glass doors, and other support arrangements are listed as options rather than standard equipment.
Frequently Asked Questions
Which side is heated and which side is refrigerated?
The left section is heated, and the right section is refrigerated.
What are the normal operating temperature ranges?
The refrigerated compartment is listed at 34 to 38°F. The heated compartment is listed at 140 to 180°F.
Does this cabinet have full-height or half-height doors?
This RDH232WUT-HHS configuration has half-height solid doors. There are four doors total across the two cabinet sections.
What electrical connection does it need?
The specification lists 208-230/115/60/1 power, a NEMA L14-20P plug, and a 9-foot attached cord.
