Description

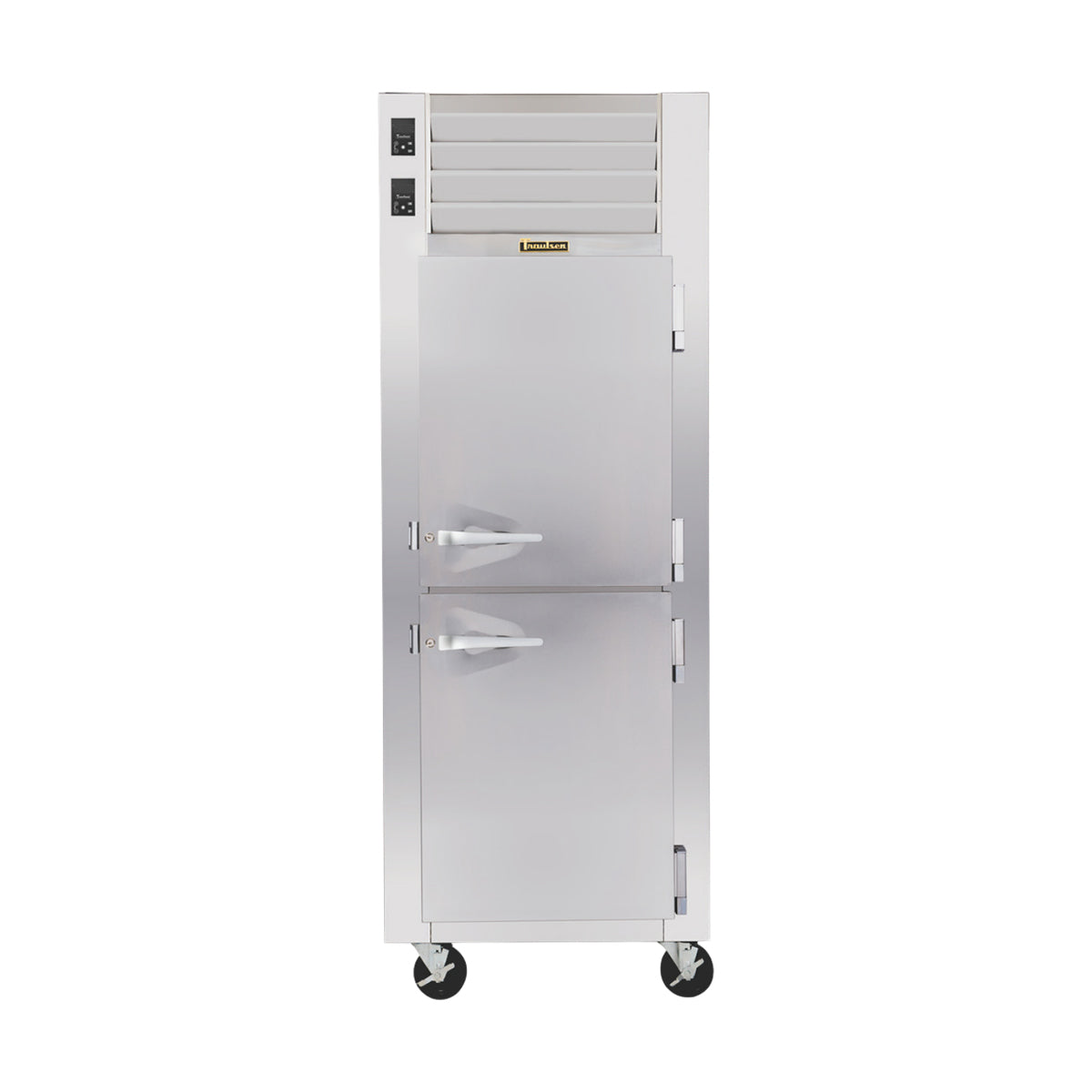

The Traulsen RDT132KUT-HHS is a 24-inch, one-section reach-in refrigerator/freezer combo with a refrigerated top cabinet and freezer bottom cabinet. Its two half-height solid doors divide access between the two temperature zones, helping staff reach the needed compartment without opening a full-height door.
This self-contained R-Series cabinet has stainless steel inside and out, one adjustable coated wire shelf in each cabinet, LED interior lighting, and Smart Control with LED display. It is a space-conscious choice for kitchens that need separate refrigerated and frozen storage in one vertical footprint.
Applications and Workflow
Suitable for commercial prep kitchens, cafés, healthcare foodservice, and other operations that need both refrigerated and frozen ingredient storage at one station. This model is a reach-in storage cabinet with an upper refrigerator and lower freezer; it is not a single-temperature refrigerator or freezer.
Features and Practical Benefits
Two temperature zones in one section
The upper cabinet is refrigerated and the lower cabinet is frozen, providing distinct storage zones in a 24-inch-wide reach-in.
Half-height solid doors
Two locking stainless steel half doors provide separate access to the refrigerator and freezer compartments. Each door is self-closing and can stay open at 120 degrees for loading.
Organized standard interior
One adjustable coated wire shelf is factory installed in each cabinet, for two standard shelves total.
Built for busy access
Automatic LED lighting activates at the door, while the horizontal workflow handle and 90-degree open depth support routine reach-in use.
Self-contained electrical setup
The top-mounted refrigeration system uses a 115/60/1 electrical connection and is supplied with a 9-foot cord and NEMA 5-20P plug.
Technical Specifications
| Manufacturer model | RDT132KUT-HHS |
|---|---|
| Cabinet configuration | One-section reach-in; refrigerator top cabinet and freezer bottom cabinet |
| Door configuration | Two half-height solid stainless steel doors with locks |
| Standard door hinging | Right |
| Exterior and interior | Stainless steel exterior and interior |
| Net capacity, total | 17.1 cu. ft. |
| Refrigerator net capacity | 8.5 cu. ft. |
| Freezer net capacity | 8.5 cu. ft. |
| Overall width | 24 in. |
| Overall depth | 35 in. |
| Overall height on 6-inch legs | 83 1/4 in. |
| Depth with door open 90 degrees | 54 3/4 in. |
| Clear door width | 18 5/8 in. |
| Clear half-door height | 27 1/2 in. |
| Standard shelves | 2 adjustable coated wire shelves total |
| Electrical requirement | 115/60/1 |
| Plug type | NEMA 5-20P |
| Full-load amperage | 11.9 A |
| Power cord | 9 ft. cord and plug |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator operating temperature | 34 to 38 degrees F |
| Freezer operating temperature | -5 to 0 degrees F |
| Included legs | Four adjustable 6-inch-high stainless steel legs |
Installation and Purchasing Considerations
- Place the cabinet on its included four adjustable 6-inch stainless steel legs. Overall dimensions on the legs are 24 inches wide by 35 inches deep by 83 1/4 inches high.
- Allow for a 54 3/4-inch overall depth when a door is open 90 degrees. Verify aisle and opposing-equipment clearance before placement.
- Provide 12 inches of top clearance where possible for performance and service access.
- Connect to a 115/60/1 electrical supply using the supplied 9-foot cord with NEMA 5-20P plug. Verify the receptacle and circuit are appropriate before installation.
- The refrigeration system is self-contained and top mounted. Keep the louver area accessible for cleaning and service.
Choosing This Configuration
This exact RDT132KUT-HHS configuration is a 24-inch, one-section cabinet with a refrigerated top compartment and freezer bottom compartment.
It has half-height solid doors and right-hand standard hinging for the 132K configuration.
The standard interior includes two coated wire shelves total, one per cabinet. Additional shelves, tray slides, casters, alternate support options, glass refrigerator doors, and other listed accessories are not standard unless specifically ordered.
Frequently Asked Questions
Which compartment is refrigerated and which is frozen?
The upper cabinet is refrigerated and the lower cabinet is frozen. The published standard operating range is 34 to 38 degrees F for the refrigerator compartment and -5 to 0 degrees F for the freezer compartment.
What electrical connection does the RDT132KUT-HHS use?
It operates on 115/60/1 power, draws 11.9 full-load amps, and is equipped with a NEMA 5-20P plug on a 9-foot cord.
How many shelves come standard?
The cabinet includes two standard adjustable coated wire shelves: one in the refrigerator cabinet and one in the freezer cabinet.
How much floor and door-swing space should be planned?
The cabinet footprint is 24 inches wide by 35 inches deep. With a door opened 90 degrees, depth reaches 54 3/4 inches; 12 inches of top clearance is preferred for service access.
