Description

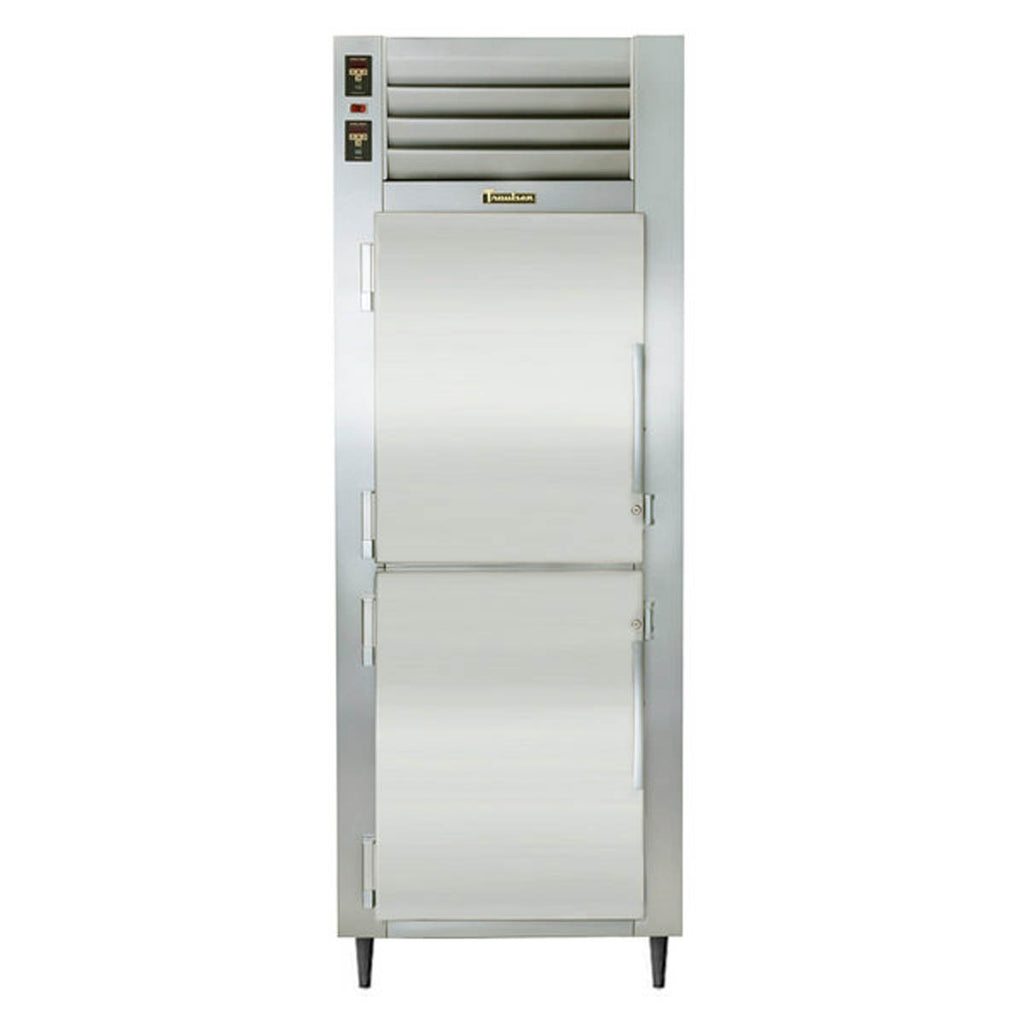

The Traulsen RDT132WUT-HHS is a one-section, self-contained reach-in refrigerator-freezer combo with a refrigerated upper cabinet and freezer lower cabinet. Its 29-7/8 in. overall width provides separated cold and frozen storage in a narrow footprint, helping staff keep frequently used products organized by temperature zone.
This R-Series configuration has stainless steel inside and out, two half-height solid doors, right-hand standard hinging, and one adjustable coated wire shelf in each cabinet. Top-mounted refrigeration, LED lighting, locking doors, and a front-facing condenser support daily back-of-house access and cleaning.
Applications and Workflow
Suitable for commercial kitchens, prep areas, cafeterias, and other operations that need refrigerated and frozen storage in one narrow reach-in cabinet. This is a refrigerator/freezer combination, not a single-temperature refrigerator or a two-section storage cabinet.
Features and Practical Benefits
Separated refrigerated and frozen storage
The upper cabinet is refrigerated and the lower cabinet is a freezer, allowing one unit to support two distinct storage zones.
Narrow one-section footprint
At 29-7/8 in. wide, this model fits locations where a full-width multi-section reach-in is not practical.
Half-height door access
Half-height solid doors allow staff to open the refrigerator or freezer area independently. The doors self-close and can stay open at 120 degrees.
Durable, cleanable cabinet construction
The cabinet exterior, interior, door, and louver assembly use stainless steel, while the door liner includes a raised profile designed to protect the gasket.
Ready for standard electrical connection
This self-contained model is specified for 115/60/1 power and includes a 9 ft. cord with a NEMA 5-20P plug.

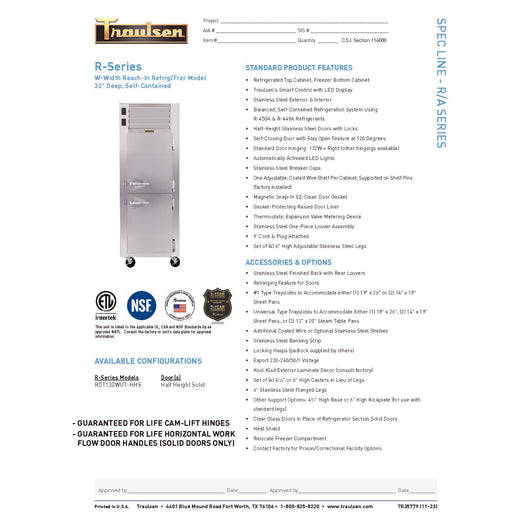

Technical Specifications
| Manufacturer model | RDT132WUT-HHS |
|---|---|
| Cabinet configuration | Refrigerated top cabinet with freezer bottom cabinet |
| Overall width | 29-7/8 in. |
| Overall depth | 35-1/8 in. |
| Overall height on 6 in. legs | 83-7/16 in. |
| Depth with door open 90 degrees | 56-11/16 in. |
| Clear door width | 20-15/16 in. |
| Clear half-door height | 27-7/16 in. |
| Door style | Half-height stainless steel solid doors with locks |
| Standard door hinging | Right-hand |
| Exterior and interior material | Stainless steel |
| Refrigerator net capacity | 10.72 cu. ft. |
| Freezer net capacity | 10.72 cu. ft. |
| Total net capacity | 21.44 cu. ft. |
| Standard shelves | 2 adjustable coated wire shelves total |
| Refrigeration system | Top-mounted, self-contained balanced system |
| Refrigerants | R-450A refrigerator; R-448A freezer |
| Electrical service | 115/60/1, NEMA 5-20P |
| Full-load amperage | 11.9 A |
| Power cord | 9 ft. cord and plug attached |
| Included legs | Four 6 in. adjustable stainless steel legs |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Allow an overall footprint of 29-7/8 in. W x 35-1/8 in. D x 83-7/16 in. H on the supplied 6 in. adjustable legs.
- Plan for 56-11/16 in. total depth when a door is open 90 degrees. The clear door width is 20-15/16 in.; each half door has a 27-7/16 in. clear height.
- Provide a 115/60/1 electrical connection for the attached 9 ft. cord and NEMA 5-20P plug. Verify the site receptacle matches before installation.
- This is a top-mounted, self-contained refrigeration system. Traulsen prefers 12 in. of top clearance for performance and service access.
- The cabinet ships with four 6 in. adjustable stainless steel legs. Confirm final height, aisle clearance, and leveling requirements before positioning the unit.
Choosing This Configuration
This exact RDT132WUT-HHS configuration is a one-section W-width refrigerator/freezer with the refrigerator on top, freezer on bottom, and half-height solid doors.
The standard door hinging for the 132W configuration is right-hand. A rehinging feature is listed as an option; confirm any requested hinge change at the time of purchase.
Two coated wire shelves are standard—one per cabinet. Additional shelves, tray slides, casters, alternate support arrangements, glass refrigerator doors, and other listed accessories are not assumed to be included.
Frequently Asked Questions
Which compartment is refrigerated and which is frozen?
The upper cabinet is the refrigerated compartment, and the lower cabinet is the freezer compartment.
What electrical service does the RDT132WUT-HHS require?
It is specified for 115/60/1 electrical service, draws 11.9 full-load amps, and has an attached 9 ft. cord with a NEMA 5-20P plug.
How much clearance is needed to open the doors?
With a door open 90 degrees, the overall depth is 56-11/16 in. Plan aisle space accordingly and allow preferred top clearance of 12 in. for service access.
Are shelves included?
Yes. The standard arrangement includes one adjustable coated wire shelf in the refrigerator cabinet and one in the freezer cabinet, for two total shelves.
