Description

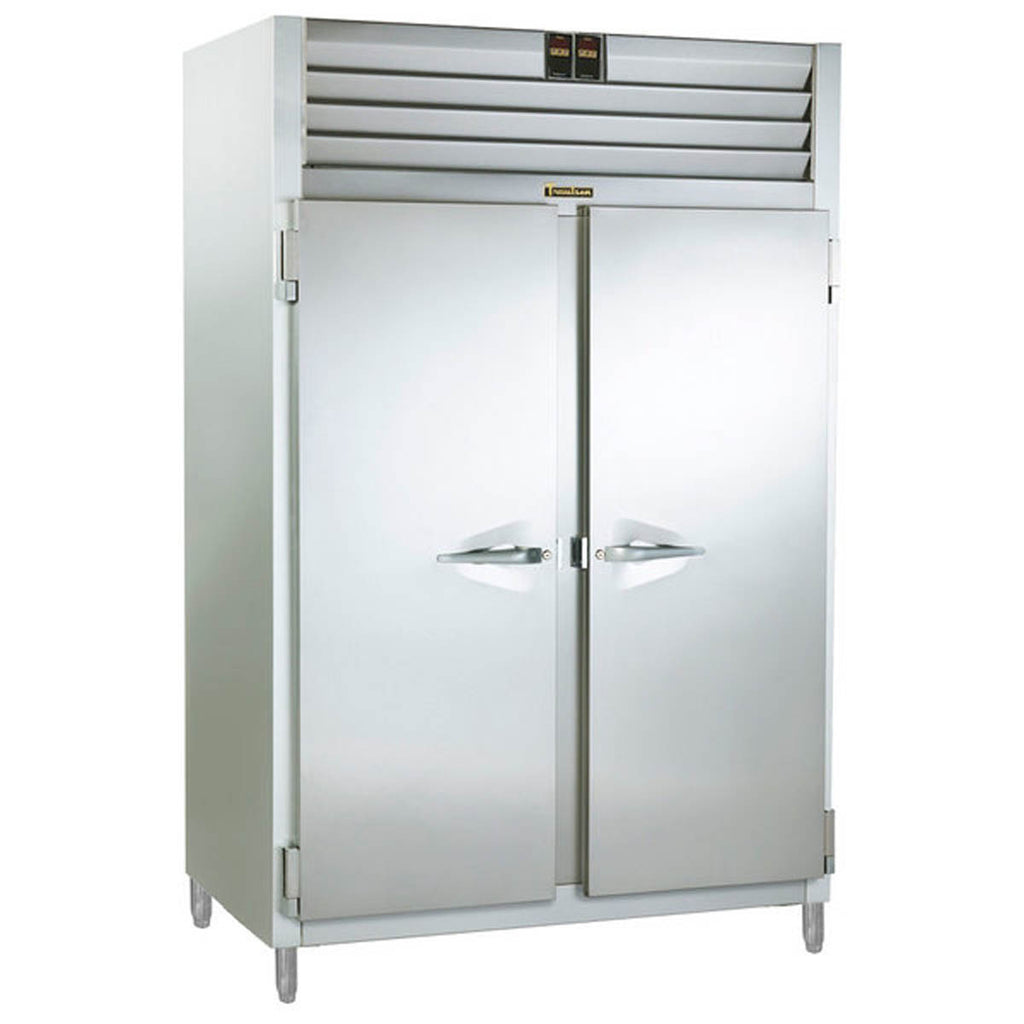

The Traulsen RDT232DUT-FHS is a 48-inch, two-section reach-in refrigerator-freezer with a refrigerator compartment on the left and freezer compartment on the right. Its full-height solid doors provide separate access to each temperature zone, helping staff organize refrigerated and frozen inventory in one footprint.
This R-Series D-width cabinet has stainless steel inside and out, top-mounted self-contained refrigeration, Smart Control with LED display, and six factory-installed coated wire shelves. Each section is fitted with three adjustable shelves for arranging product at different heights.
Applications and Workflow
Suitable for commercial kitchens, prep areas, cafeterias, and institutional foodservice operations that need both refrigerated and frozen storage at one workstation. This model is a refrigerator-freezer combination, not two refrigerator sections: the left compartment is refrigerated and the right compartment is frozen.
Features and Practical Benefits
Separated cold-storage zones
The left section is refrigerated while the right section is frozen, allowing operators to keep two storage categories in one 48-inch reach-in.
Full-height solid-door access
This FHS configuration uses full-height solid doors rather than half-height doors. The doors self-close and can remain open at 120 degrees during loading or restocking.
Organized shelf storage
Six coated wire shelves are standard—three adjustable shelves in each section—so staff can set shelf heights around stored product.
Stainless steel cabinet surfaces
The cabinet exterior, interior, and door liners are stainless steel, supporting a durable workhorse cabinet for busy back-of-house storage.
Built-in operating visibility
Traulsen Smart Control uses an LED display, while automatically activated interior LED lighting helps staff see stored items when a door is opened.
Technical Specifications
| Manufacturer model | RDT232DUT-FHS |
|---|---|
| Cabinet configuration | Two-section reach-in refrigerator/freezer; refrigerator left, freezer right |
| Door configuration | 2 full-height solid doors |
| Overall width | 48 in. |
| Overall depth | 35 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90° | 54 1/4 in. |
| Net capacity | 37.72 cu. ft. total |
| Refrigerator net capacity | 18.86 cu. ft. |
| Freezer net capacity | 18.86 cu. ft. |
| Standard shelves | 6 coated wire shelves total; 3 per section |
| Electrical requirement | 115V / 60 Hz / 1 phase |
| Plug | NEMA 5-20P |
| Cord | 9 ft. attached cord |
| Full-load amperage | 13.6 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator operating temperature | 34 to 38°F |
| Freezer operating temperature | -5 to 0°F |
| Legs | Four 6 in. adjustable stainless steel legs |
| Exterior and interior finish | Stainless steel exterior and interior |
Installation and Purchasing Considerations
- Plan for a 48-inch overall width, 35-inch overall depth, and 83 1/4-inch overall height on the included 6-inch legs.
- Allow for a 54 1/4-inch depth when a door is opened 90 degrees; verify that this swing will not obstruct aisles, equipment, or wall-mounted fixtures.
- Connect to a 115V, 60 Hz, single-phase electrical supply using the attached 9-foot cord with NEMA 5-20P plug. Confirm that the receptacle matches the plug before delivery.
- The refrigeration system is top-mounted and self-contained. Traulsen notes that 12 inches of top clearance is preferred for performance and service access.
- Level the cabinet on its four adjustable stainless steel legs. Do not assume casters, tray slides, extra shelves, or other listed options are included.
Choosing This Configuration
This exact RDT232DUT-FHS configuration has two full-height solid doors. The similarly named HHS version uses half-height solid doors instead.
The refrigerator compartment is on the left and the freezer compartment is on the right for this model.
Standard storage consists of coated wire shelves. Tray slides and stainless steel shelves are listed as options, not standard equipment.
Frequently Asked Questions
Which side is the refrigerator and which side is the freezer?
The refrigerator is in the left section and the freezer is in the right section.
Does the RDT232DUT-FHS have full or half doors?
It has two full-height solid doors. The FHS designation identifies the full-height solid-door configuration.
What electrical connection does this unit require?
It operates on 115V, 60 Hz, single-phase power and is equipped with a 9-foot cord and NEMA 5-20P plug.
How many shelves are included?
Six coated wire shelves are standard: three adjustable shelves per section. Optional tray slides and additional or stainless steel shelves are separate selections.
