Description

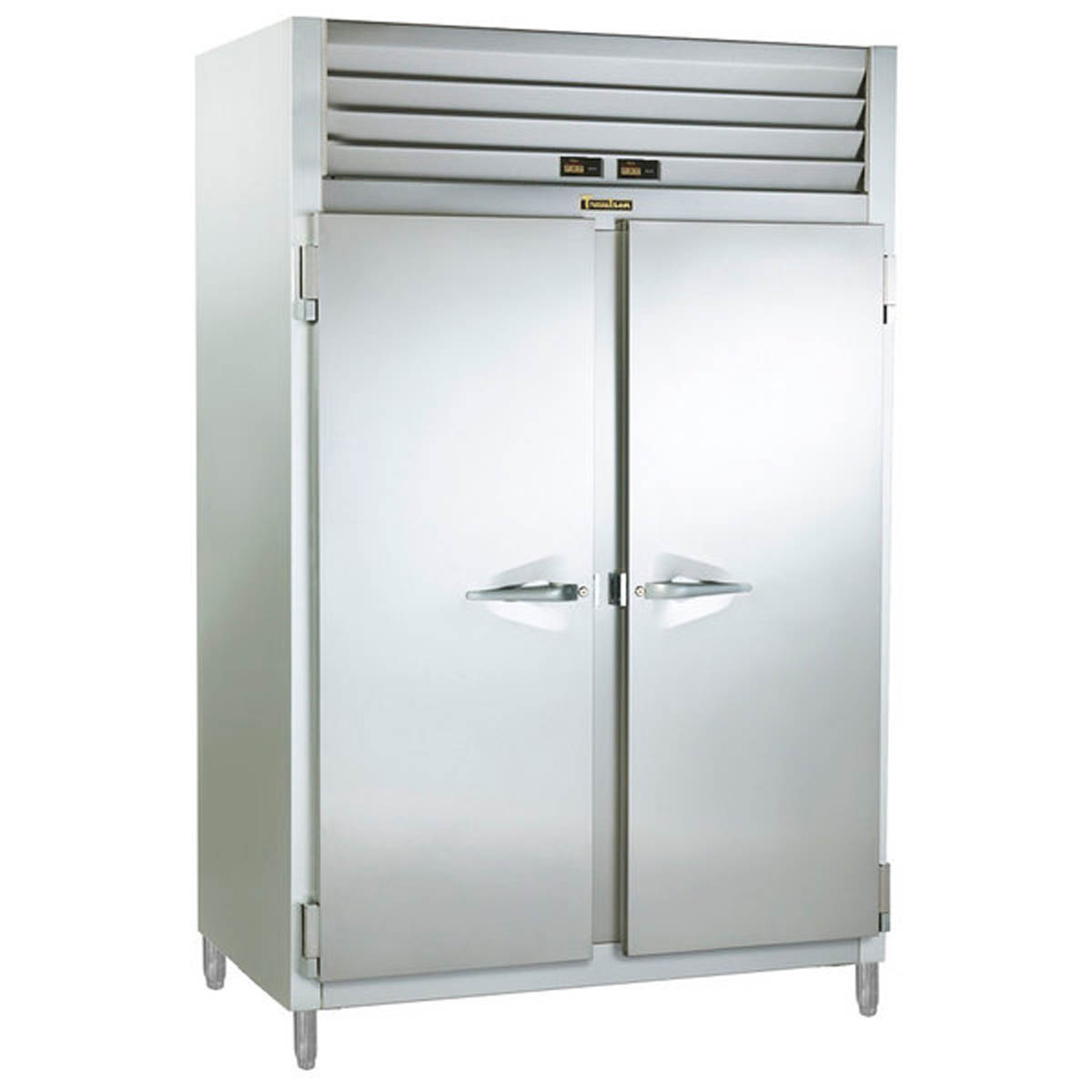

The Traulsen RDT232NUT-FHS is a two-section, self-contained reach-in with a refrigerator compartment on the left and a freezer compartment on the right. Its full-height solid doors keep each temperature zone separate while providing direct access to bulk ingredients, prepared components, and frozen inventory.
This N-width model has a stainless steel exterior and interior, six factory-installed adjustable coated wire shelves, and top-mounted dual refrigeration systems. It is supplied on four 6-inch adjustable stainless steel legs with a 9-foot cord and NEMA 5-20P plug.
Applications and Workflow
A practical choice for commercial kitchens, bakeries, cafeterias, and institutional foodservice operations that need refrigerated and frozen storage in one reach-in footprint. This configuration is intended for separate refrigerator and freezer storage; the right-hand section is the freezer and the left-hand section is the refrigerator.
Features and Practical Benefits
Separate refrigerator and freezer sections
The left compartment operates as a refrigerator while the right compartment operates as a freezer, allowing frozen and refrigerated inventory to be stored in one cabinet.
Full-height solid-door access
This FHS configuration has two full-height solid stainless steel doors rather than four half doors. Both doors are self-closing, stay open at 120 degrees, and include locks.
Organized interior storage
Three adjustable coated wire shelves are installed in each section, providing six shelves total for separating products by type or use.
Self-contained top-mounted refrigeration
Balanced dual refrigeration systems are located at the top of the cabinet, with separate R-450A refrigerator and R-448A freezer systems.

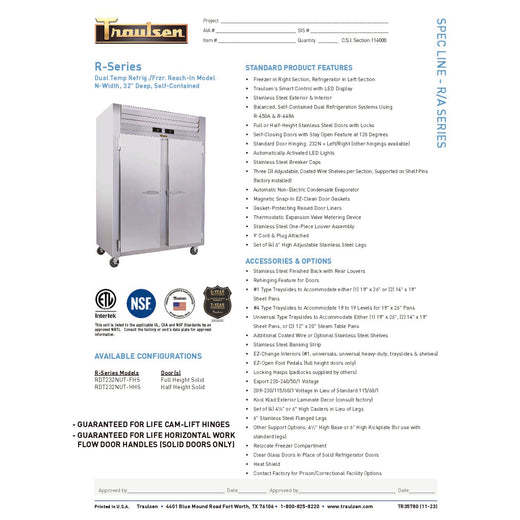

Technical Specifications
| Manufacturer model | RDT232NUT-FHS |
|---|---|
| Configuration | Two-section refrigerator/freezer reach-in; refrigerator left, freezer right |
| Door configuration | 2 full-height solid stainless steel doors |
| Overall width | 52 1/8 in. |
| Overall depth | 35 in. |
| Overall height | 83 1/4 in. on 6 in. legs |
| Depth with door open 90 degrees | 57 11/16 in. |
| Total net capacity | 42.26 cu. ft. |
| Refrigerator net capacity | 21.13 cu. ft. |
| Freezer net capacity | 21.13 cu. ft. |
| Exterior and interior finish | Stainless steel |
| Standard shelves | 6 adjustable coated wire shelves total |
| Refrigeration system | Top-mounted, self-contained balanced dual system |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator compressor | 1/3 HP |
| Freezer compressor | 1/2 HP |
| Electrical service and plug | 115/60/1; NEMA 5-20P |
| Full-load amperage | 15.4 A |
| Power cord | 9 ft. cord and plug attached |
| Legs | Four 6 in. adjustable stainless steel legs |
Installation and Purchasing Considerations
- Place on a level floor and use the four included 6-inch adjustable stainless steel legs to stabilize the cabinet.
- Allow 52 1/8 inches of overall width, 35 inches of overall depth, and 83 1/4 inches of height on the supplied legs.
- Plan aisle clearance for a 57 11/16-inch overall depth when a door is opened 90 degrees.
- Provide 12 inches of clearance above the cabinet for preferred performance and service access.
- Connect to the specified 115/60/1 electrical service using the supplied 9-foot cord with NEMA 5-20P plug. Confirm the installation location has the appropriate receptacle before delivery.
- Keep the top-mounted refrigeration area accessible for cleaning and service; do not treat optional casters, tray slides, or alternate support packages as included.
Choosing This Configuration
This exact RDT232NUT-FHS model uses two full-height solid doors. The half-height-door version is a different configuration.
The standard layout places the refrigerator on the left and freezer on the right.
Standard storage is six coated wire shelves. Tray slides and additional or stainless steel shelves are optional arrangements, not standard included storage.
Frequently Asked Questions
Which side is the refrigerator and which side is the freezer?
The refrigerator is in the left section and the freezer is in the right section.
Does this model have full doors or half doors?
RDT232NUT-FHS is the full-height solid-door configuration, with one full-height solid door for each section.
How many shelves are included?
It includes six adjustable coated wire shelves total: three in the refrigerator section and three in the freezer section.
What electrical connection does it use?
The unit is specified for 115/60/1 power and is equipped with a 9-foot cord and NEMA 5-20P plug.
