Description

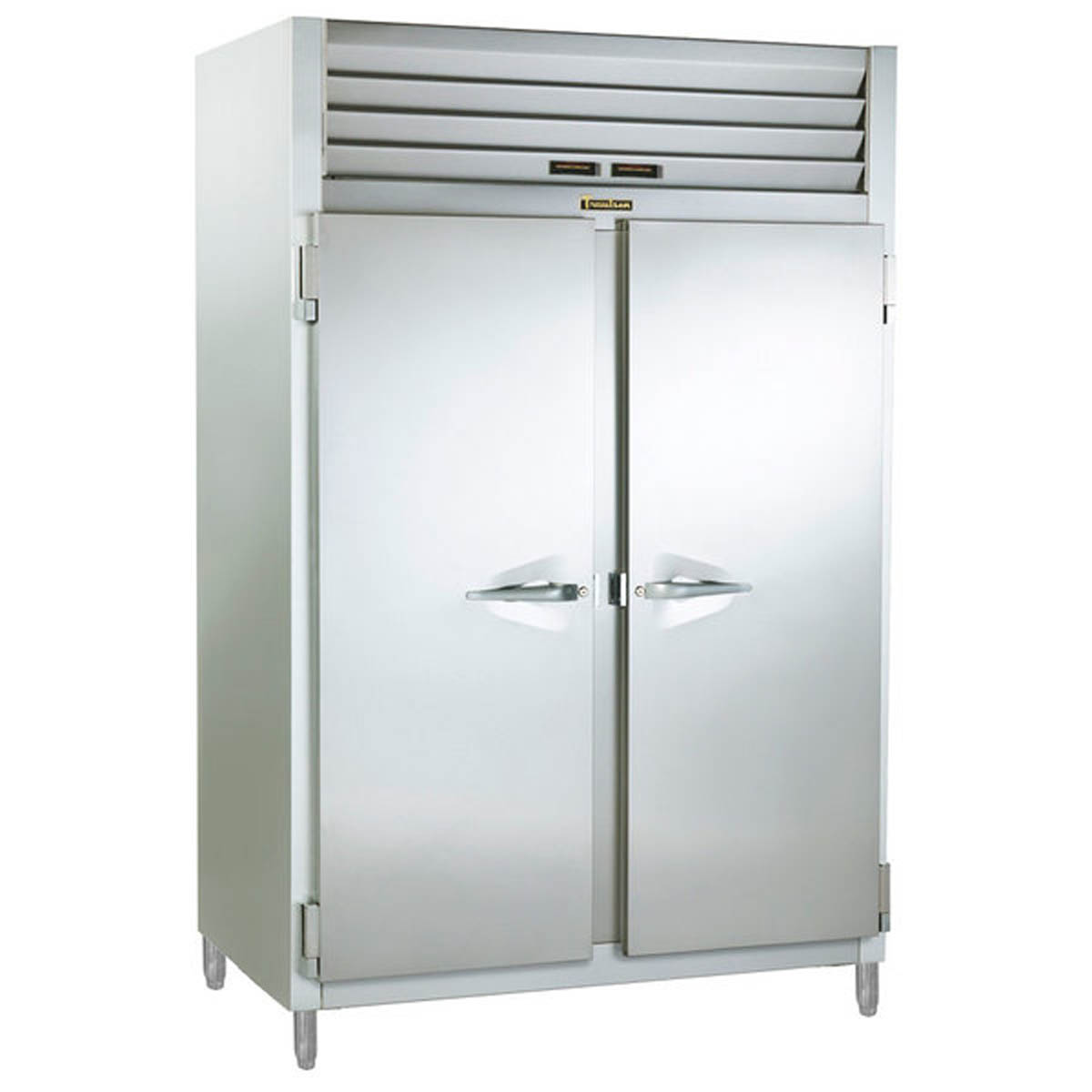

The Traulsen RDT232WUT-FHS is a 58-inch-wide, two-section reach-in refrigerator/freezer combination with a refrigerator compartment on the left and a freezer compartment on the right. This full-height, solid-door configuration provides separate cold and frozen storage in one stainless steel cabinet for kitchens that need both product types close to the prep or production area.
Each section includes three adjustable coated-wire shelves, for six standard shelves total. The self-contained, top-mounted refrigeration system, Smart Control with LED display, automatic interior lighting, locking doors, and 120-degree stay-open function support organized access during active kitchen workflows.
Applications and Workflow
Use this reach-in where a commercial kitchen needs adjacent refrigerated and frozen storage without dedicating floor space to separate cabinets, such as prep kitchens, production areas, institutional foodservice operations, and back-of-house storage. This model has one refrigerator section and one freezer section; it is not a two-refrigerator cabinet or a two-freezer cabinet.
Features and Practical Benefits
Refrigerated and frozen storage in one footprint
The left compartment is a refrigerator and the right compartment is a freezer, keeping the two storage environments separated within a 58-inch-wide cabinet.
Full-height solid-door access
This exact FHS configuration uses full-height solid doors rather than split half doors. The doors self-close and can remain open at 120 degrees for loading and unloading.
Standard adjustable shelf package
Three adjustable coated-wire shelves are supplied per section, giving the cabinet six standard shelves for organizing refrigerated and frozen inventory.
Built for daily access
The stainless steel exterior and interior, LED interior lights, removable locks, and magnetic EZ-Clean door gaskets support routine commercial use and cleaning.
Self-contained top-mounted system
The refrigeration system is housed at the top of the cabinet and uses a front-facing condenser intended to simplify condenser access for cleaning.
Technical Specifications
| Manufacturer model | RDT232WUT-FHS |
|---|---|
| Configuration | Two-section reach-in refrigerator/freezer |
| Door configuration | Two full-height solid doors |
| Compartment arrangement | Refrigerator left; freezer right |
| Net capacity, total | 46.86 cu. ft. |
| Net capacity, refrigerator | 23.43 cu. ft. |
| Net capacity, freezer | 23.43 cu. ft. |
| Overall width | 58 in. |
| Overall depth | 35 1/8 in. |
| Depth over body | 32 in. |
| Depth with door open 90° | 56 11/16 in. |
| Overall height on legs | 83 7/16 in. |
| Clear door width | 20 15/16 in. |
| Clear full-door height | 57 9/16 in. |
| Standard shelves | 6 total |
| Electrical requirement | 115V, 60 Hz, single phase, NEMA 5-20P |
| Full-load amperage | 15.4 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator compressor | 1/3 HP |
| Freezer compressor | 1/2 HP |
| Standard refrigerator temperature | 34 to 38°F |
| Standard freezer temperature | -5 to 0°F |
| Legs | Four 6-inch adjustable stainless steel legs |
| Power cord | 9 ft. cord and plug |
Installation and Purchasing Considerations
- Allow a finished footprint of 58 inches wide by 35 1/8 inches deep. Overall height is 83 7/16 inches on the included 6-inch adjustable stainless steel legs.
- Plan aisle and door clearance: cabinet depth with a door open 90 degrees is 56 11/16 inches. Each door has a 20 15/16-inch clear width and a 57 9/16-inch clear full-door height.
- Provide a 115V, single-phase, 60 Hz electrical connection with a NEMA 5-20P receptacle. The unit has a 9-foot cord and plug.
- The top-mounted system has a front-facing condenser. A 12-inch top clearance is preferred for performance and service access.
- Confirm the delivery route, doorway clearances, final location, and dedicated electrical receptacle before purchase. Standard supports are legs; casters and other support choices are listed as options.
Choosing This Configuration
RDT232WUT-FHS is the full-height solid-door version, with two full doors. The similarly designated HHS configuration uses half-height solid doors instead.
This is the W-width, 58-inch model. Do not substitute narrower two-section configurations when the specified layout requires this cabinet width.
The refrigerator is positioned on the left and the freezer on the right in the standard configuration. Relocating the freezer compartment is listed as an option rather than a standard feature.
Standard shelving is included. Tray slides, additional shelves, stainless shelves, casters, and glass refrigerator doors are optional configurations or accessories and should not be assumed included.
Frequently Asked Questions
Which side is the refrigerator on?
The refrigerator compartment is on the left side, and the freezer compartment is on the right side.
Does this model have full doors or half doors?
RDT232WUT-FHS has two full-height solid doors. The HHS version is the separate half-height-door configuration.
How many shelves are included?
It includes three adjustable coated-wire shelves in each section, for six standard shelves total.
What electrical connection does it require?
The standard electrical requirement is 115V, 60 Hz, single phase with a NEMA 5-20P plug. A 9-foot cord and plug are provided.
