Description

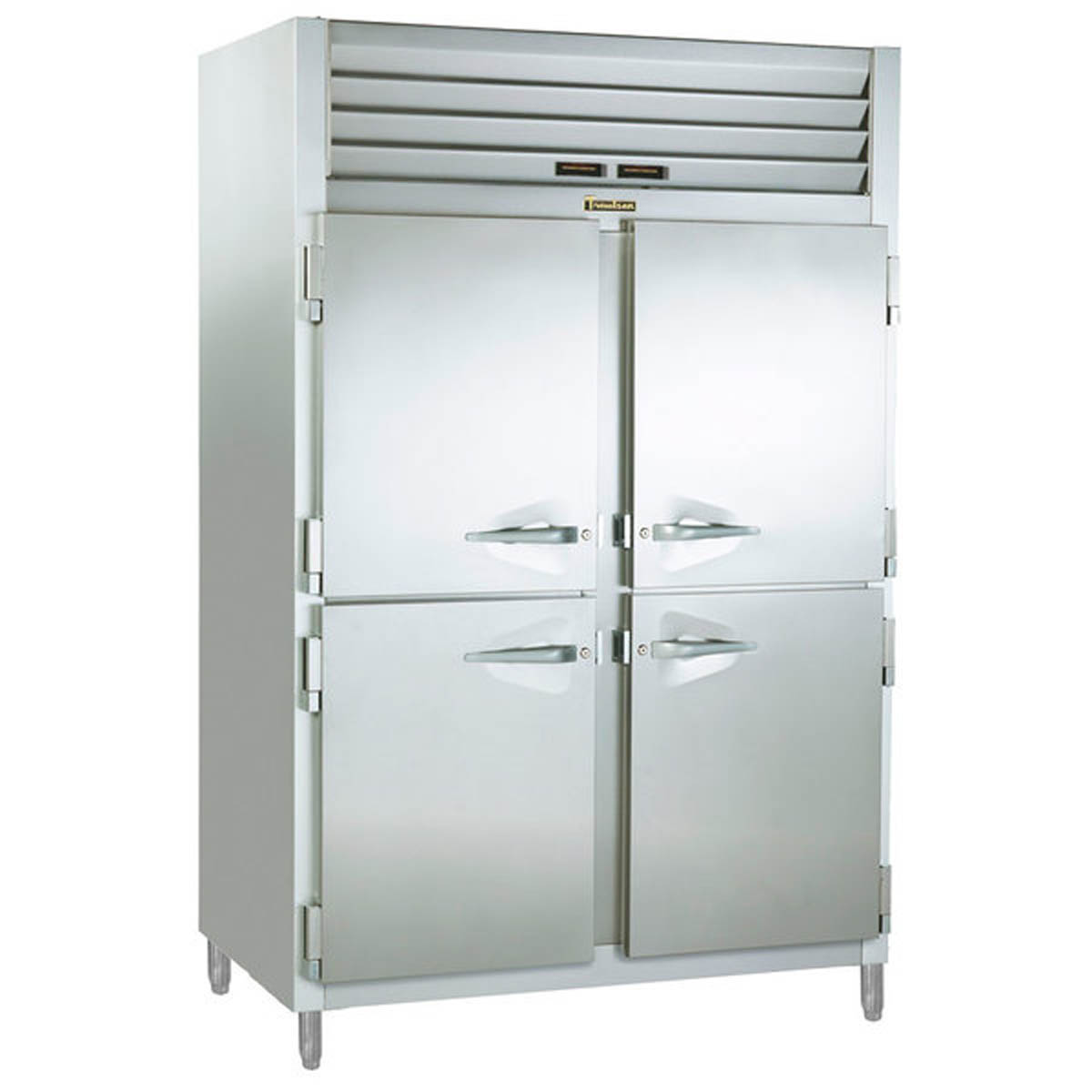

The Traulsen RDT232WUT-HHS is a 58-inch, two-section reach-in refrigerator/freezer built for operations that need refrigerated and frozen product storage at the same workstation. Its left compartment is refrigerated and its right compartment is frozen, with independent self-contained refrigeration systems housed at the top of the cabinet.
This exact HHS configuration uses four half-height solid stainless steel doors rather than two full-height doors. Half doors let staff access one portion of a compartment while keeping the remaining interior closed. The cabinet includes three adjustable coated wire shelves per section, LED interior lighting, door locks, and Smart Control with an LED display.
Applications and Workflow
Suitable for restaurant prep areas, institutional kitchens, commissaries, and other commercial foodservice operations that need both refrigerated and frozen storage in one reach-in footprint. This unit has a fixed refrigerator-left/freezer-right layout, so it is best where that compartment arrangement fits the intended workflow.
Features and Practical Benefits
Refrigerated and frozen storage in one cabinet
The left section is a refrigerator and the right section is a freezer, providing two temperature zones without installing separate reach-ins.
Half-height door access
Four half-height solid doors allow staff to open only the upper or lower portion needed for retrieval, which can help limit unnecessary exposure of the rest of the compartment.
Organized shelf storage
Each section includes three factory-installed adjustable coated wire shelves, for six standard shelves total.
Durable, cleanable cabinet surfaces
The exterior and interior are stainless steel, while magnetic snap-in EZ-Clean door gaskets simplify routine gasket removal and cleaning.
Top-mounted self-contained system
The balanced refrigeration systems are top-mounted and self-contained, with a front-facing condenser designed for accessible cleaning.
Technical Specifications
| Manufacturer model | RDT232WUT-HHS |
|---|---|
| Door configuration | Four half-height solid doors |
| Compartment layout | Refrigerator left; freezer right |
| Net capacity | 46.86 cu. ft. |
| Refrigerator capacity | 23.43 cu. ft. |
| Freezer capacity | 23.43 cu. ft. |
| Overall width | 58 in. |
| Overall depth | 35 1/8 in. |
| Overall height on legs | 83 7/16 in. |
| Depth with door open 90 degrees | 56 11/16 in. |
| Electrical requirement | 115/60/1, NEMA 5-20P |
| Full-load amperage | 15.4 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Standard shelves | 6 total; 3 per section |
| Included legs | Four 6-inch adjustable stainless steel legs |
Installation and Purchasing Considerations
- Provide a dedicated 115/60/1 electrical connection with a NEMA 5-20P receptacle. A 9-foot cord and plug are provided.
- Confirm the installation footprint: the cabinet is 58 inches wide, 35 1/8 inches deep, and 83 7/16 inches high on its included 6-inch adjustable legs.
- Allow for door swing and aisle clearance. Cabinet depth reaches 56 11/16 inches with a door open 90 degrees.
- Allow 12 inches of top clearance where possible for performance and service access.
- The unit is self-contained and top-mounted; plan access to the front-facing condenser for regular cleaning and service.
Choosing This Configuration
RDT232WUT-HHS is the half-height solid-door version, with four doors total. The similarly designated FHS version uses full-height solid doors instead.
This is the 58-inch W-width cabinet. Do not substitute a narrower two-section cabinet when matching an existing opening or workflow.
The refrigerator is on the left and freezer is on the right. The freezer compartment location is not reversible as a standard field adjustment.
Standard shelving is included; tray slides, additional shelves, casters, alternate bases, and other listed accessories are separate configuration options unless specifically ordered.
Frequently Asked Questions
Which side is refrigerated and which side is frozen?
The left section is refrigerated and the right section is frozen.
Does this model have full-height or half-height doors?
RDT232WUT-HHS has four half-height solid doors. Two half doors serve each section.
What electrical connection does it require?
The standard electrical requirement is 115/60/1 with a NEMA 5-20P plug. The cabinet is supplied with a 9-foot cord and plug.
How many shelves are included?
It includes three adjustable coated wire shelves per section, for six shelves total.
