Description

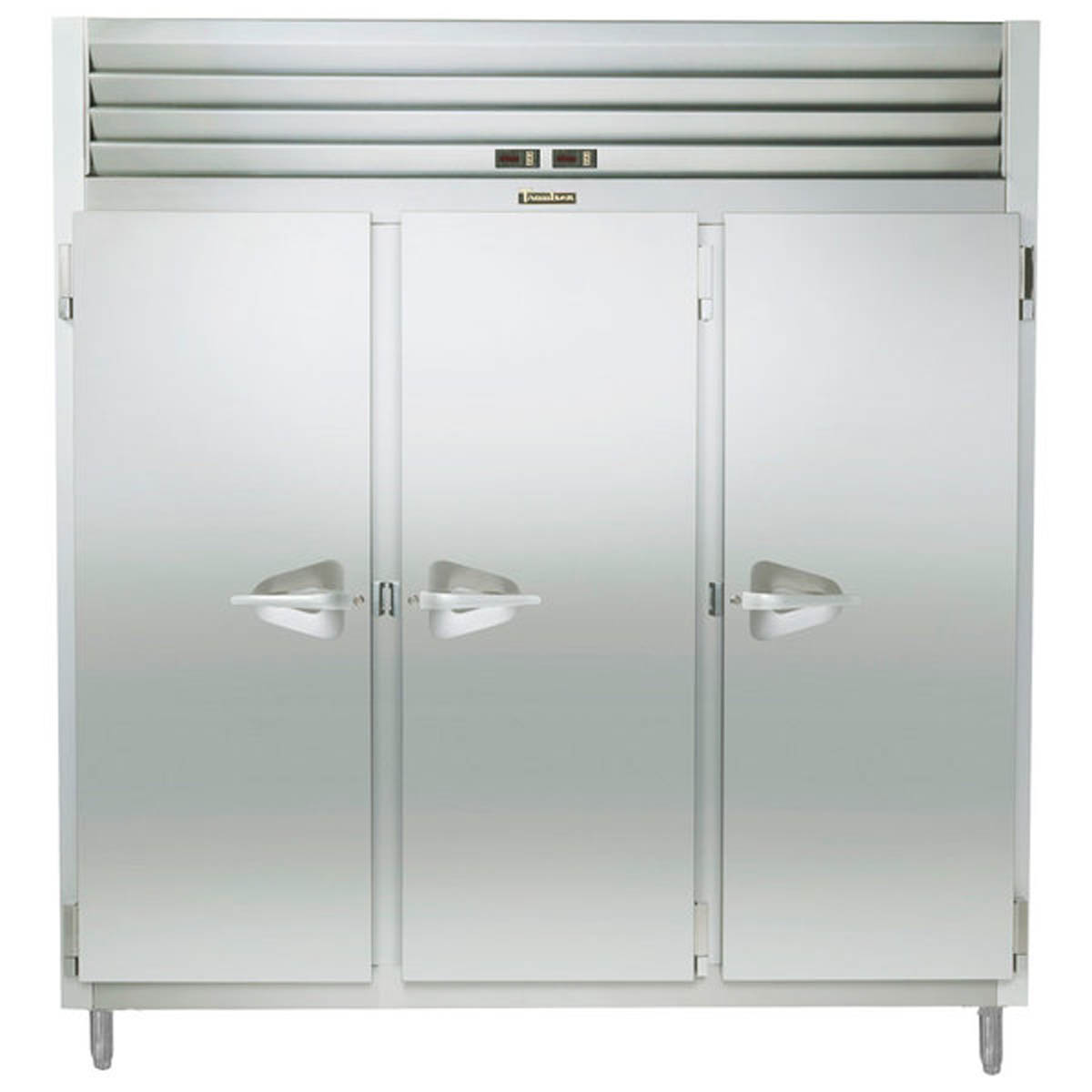

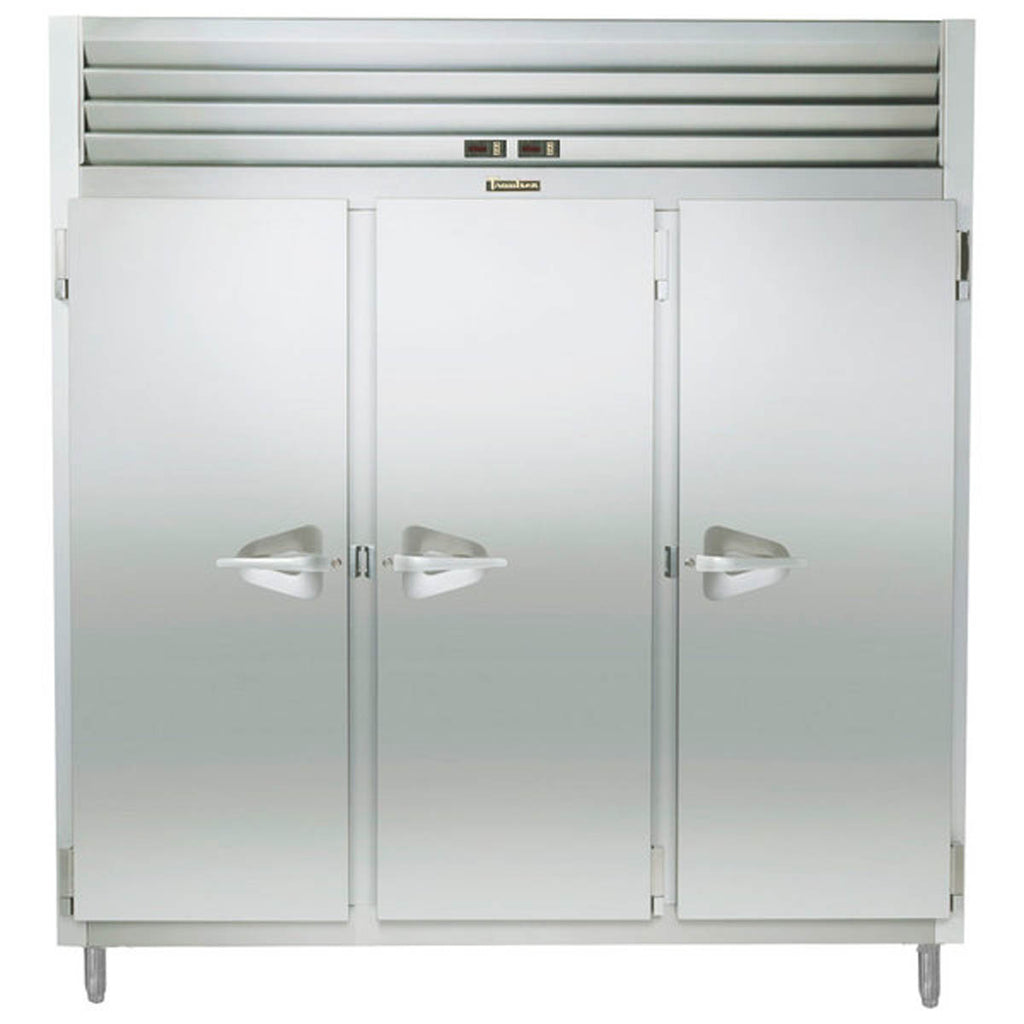

The Traulsen RDT332NUT-FHS is a self-contained, three-section reach-in refrigerator/freezer designed to consolidate refrigerated and frozen ingredient storage in one upright cabinet. Its left and center sections are refrigerated, while the right section is a freezer, allowing staff to organize products by temperature zone without moving between separate cabinets.
This exact FHS configuration has three full-height solid doors, one per section, with a left/right/right hinge arrangement. The stainless steel interior and exterior, nine factory-installed coated wire shelves, LED lighting, and Smart Control with LED display support organized day-to-day storage and access.
Applications and Workflow
Suitable for commercial kitchens, prep areas, institutional foodservice operations, and back-of-house storage that need refrigerator and freezer space in one 76 5/16 in. footprint. This model is intended for upright storage; its freezer is limited to the right section, while the left and center sections are refrigerated.
Features and Practical Benefits
Separated cold-storage zones
The left and center sections are refrigerated and the right section is frozen, providing distinct storage areas within one cabinet.
Full-height solid-door access
Three full-height solid stainless steel doors give one-door access to each section. Doors are self-closing, stay open at 120 degrees, and include locks.
Organized standard interior
Each section includes three adjustable coated wire shelves on shelf pins, for nine standard shelves across the cabinet.
Self-contained top-mounted system
The dual refrigeration system is self-contained and top-mounted, avoiding a separate remote condenser installation.
Durable service-facing construction
The cabinet has a stainless steel exterior and interior, plus a front-facing condenser designed for cleaning access.
Technical Specifications
| Manufacturer model | RDT332NUT-FHS |
|---|---|
| Cabinet configuration | Three-section dual-temperature reach-in |
| Door configuration | 3 full-height solid doors |
| Temperature-zone layout | Refrigerator left and center; freezer right |
| Overall width | 76 5/16 in. |
| Overall depth | 35 in. |
| Overall height on legs | 83 1/4 in. |
| Depth with door open 90 degrees | 57 11/16 in. |
| Clear full-door height | 57 5/8 in. |
| Clear door width | 21 1/8 in. |
| Total net capacity | 67.36 cu. ft. |
| Refrigerator net capacity | 45.31 cu. ft. |
| Freezer net capacity | 22.05 cu. ft. |
| Standard shelves | 9 coated wire shelves |
| Electrical requirement | 115/60/1, hard wired |
| Full-load amperage | 25.3 A |
| Refrigerator refrigerant | R-450A |
| Freezer refrigerant | R-448A |
| Refrigerator compressor | 1/2 HP |
| Freezer compressor | 1/2 HP |
| Standard supports | Four 6 in. adjustable stainless steel legs |
| Standard door hinging | Left/right/right |
| Preferred top clearance | 12 in. |
Installation and Purchasing Considerations
- Allow a finished footprint of 76 5/16 in. wide by 35 in. deep and 83 1/4 in. high on the supplied 6 in. adjustable legs.
- Plan for 57 11/16 in. total depth when a door is open 90 degrees; verify aisle and adjacent-equipment clearance before placement.
- Use a 115/60/1 electrical supply. The specification identifies this model as hard wired with three feed wires including ground; have electrical connection completed appropriately.
- Provide 12 in. clearance above the cabinet where possible for performance and service access.
- The standard door hinging is left/right/right. Confirm that this swing pattern suits the planned location and traffic flow.
- The unit has a top-mounted, self-contained refrigeration system; no remote condenser is specified for the standard configuration.
Choosing This Configuration
This is the RDT332NUT-FHS full-height solid-door configuration, not the half-height-door version.
The refrigerator occupies the left and center sections; the freezer occupies the right section.
Standard interior equipment is three coated wire shelves per section. Tray slides, extra shelves, stainless shelves, casters, and alternate support options are listed as options rather than standard equipment.
Frequently Asked Questions
Which sections are refrigerator and freezer compartments?
The left and center sections are refrigerated, and the right section is the freezer.
How many doors and shelves does this model include?
This FHS model has three full-height solid doors. It includes three adjustable coated wire shelves per section, for nine standard shelves total.
What electrical connection does the RDT332NUT-FHS require?
It is specified for 115/60/1 power and hard-wired connection with three feed wires including ground.
How much space is needed in front of the cabinet?
With a door open 90 degrees, the overall depth is 57 11/16 inches. Plan the aisle around that open-door dimension.
